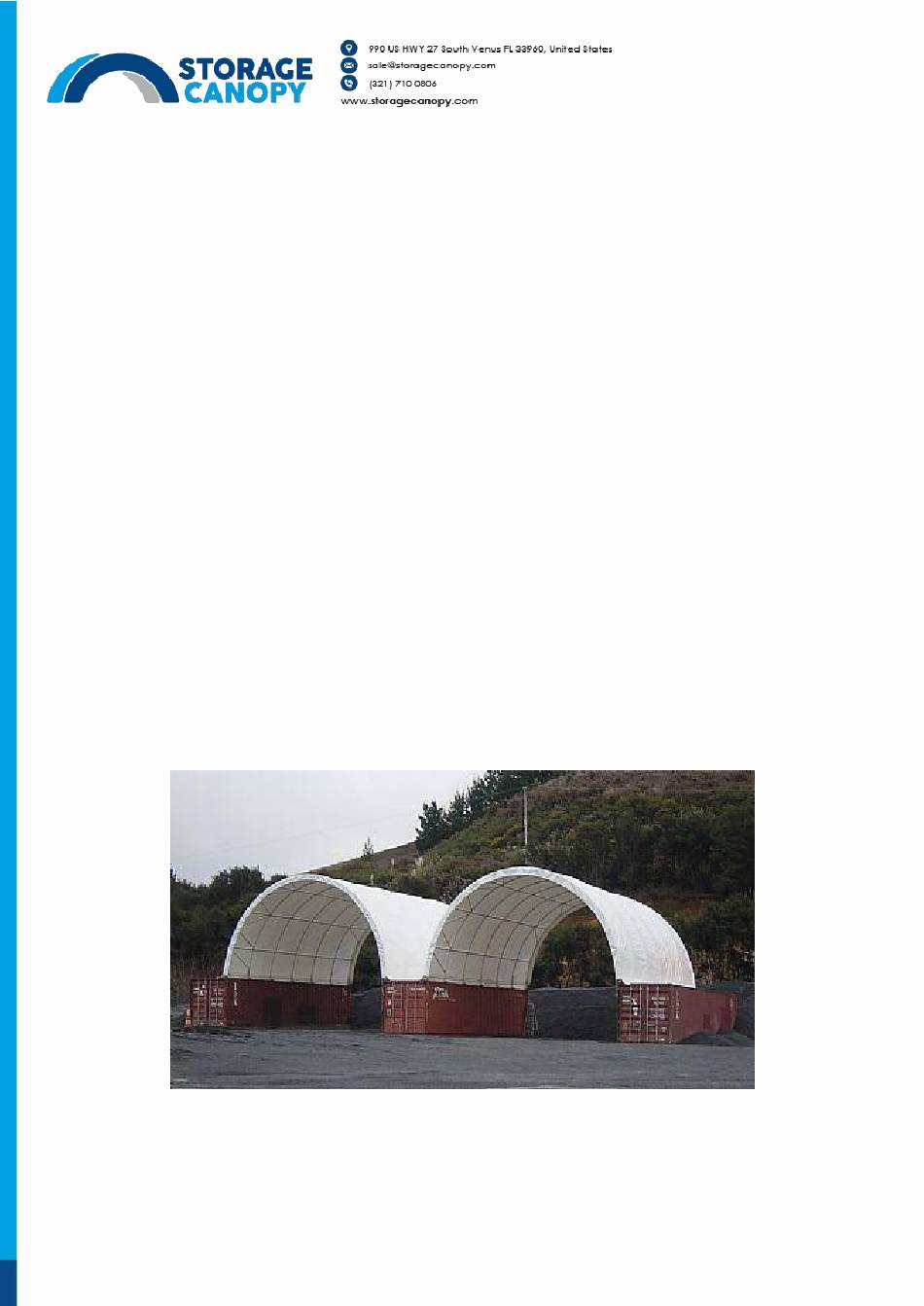

- Page 1 SHELTER ASSEMBLY MANUAL Model # W10xL12xH 3.6m C3340S Container Shelter...
-
Page 2: Specification
SPECIFICATION Width:10m Length:12m Height:3.6m IMPORTANT ---- READ MANUAL FIRST Improper site preparation, Assembly and Maintenance may invalidate warranty and cause unnecessary and costly mistake. If you have any questions contact your local dealer. For User Friendly assembly we have identified each individual component with the part code as indicated in the parts list. - Page 3 PartsList Part Code Description Base Plate Base Plate Angle seat Top bent tube Middle bent tube Bottom bent tube Connection purlin Support tube 12 groups Clip Lower tensioning tube for roof cover 2groups Roof cover Bolt M8x80 Bolt M10x90 Bolt M8x60 24 groups Ropes ∮32 Plastic Plug for end of tensioning tube...
- Page 4 SPECIFICATION Width: 10m Length: 12m Height: 3.6m IMPORTANT ---- READ MANUAL FIRST Improper site preparation, Assembly and Maintenance may invalidate warranty and cause unnecessary and costly mistake. If you have any questions contact your local dealer. For User Friendly assembly we have identified each individual component with the part code as indicated in the parts list.
-
Page 5: Installation Process
EQUIPEMNT AND TOOLS FOR INSTALIATION 1. Measuring tape 2. String for alignment 3. Step ladder 4. Welder 5. Sledge hammer 6. Wrench 7. Scissors INSTALLATION PROCESS A—BASE INSTALLATION Please refer to the diagram (Figure 1) to place the base plates. Figure 1 1. - Page 6 B—FRAME INSTALLATION Please refer to the diagram (Figure 1) to install the Frame.
- Page 7 Figure 2 As Figure 2 shown find Top bent tube (part code 1), Middle bent tube (part code2) and bottom bent tubes (part code3). To connect them by Screw M8x80 （ part code 9） , which makes one group of arches. Please NOTE the direction of the screw. DO NOT install the screws on the top of the truss where the fabric will rest.
- Page 8 When finishing installing the first two arches, connect the Connection purlins onto them by using screw M10x90 （ part code 10 ）.There are 5 pieces of Connection purlins (part code 4) between two groups. Then install the third arch into base plate and connect the purlins. Finally install the Support tube (part code 5) using Screw M8x60（part code10A）and Clip (part code 6).
- Page 9 C- INSTRUCTION FOR ROOF COVER...
- Page 10 NOTE: DO NOT install the cover onto the frame of your building in high wind conditions. A slight breeze is the most advantageous for cover installation. To take advantage of the breeze, pull the cover up over the arches with the breeze blowing in the cover like a sail filled with air. Put the Roof cover (part code 8) EVENLY, CARRFULLR AND SLOWLY on the frame.
- Page 11 seats (part code 14). Cut 6 pockets according to the position of the base plates and put the Lower tensioning tubes for roof cover (part code 7) into the pocket of roof cover. Then use the Ratchet straps (part code13) to tie down the Lower tensioning tubes like the Figure 3.
- Page 12 NOTE: DO NOT LEAVE THE ROOF COVER UNATTACHED UNDERANY CIRCUMSTANCES until the final assembly and tightening has been completed. The process is quite easy. But some tightening adjustments will be necessary to produce a flat, tensioned roof cover. Please adjust the roof cover every month.
