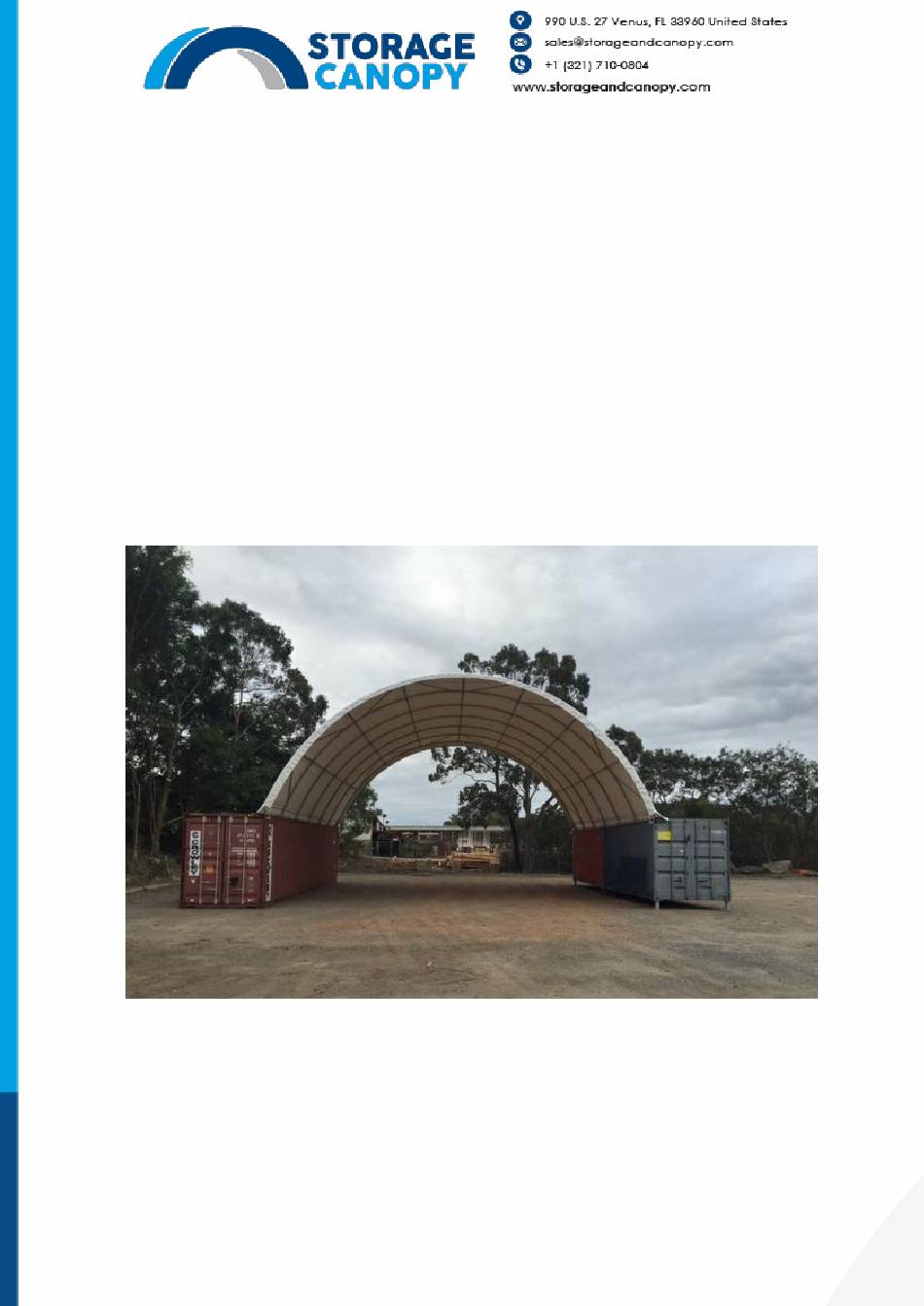

- Page 1 SHELTER ASSEMBLY MANUAL Model # W12xL6xH 4.5m C4020 Container Shelter...
-
Page 2: Specification
SPECIFICATION Width:12m Length:6m Height:4.5m IMPORTANT ---- READ MANUAL FIRST Improper site preparation, Assembly and Maintenance may invalidate warranty and cause unnecessary and costly mistake. If you have any questions contact your local dealer. For User Friendly assembly we have identified each individual component with the part code as indicated in the parts list. -
Page 3: Parts List
Parts List Part Code Description Roof Bent Tube Upper Bent Tube Shoulder Bent Tube Purlin Bottom Tensitoning tube Groups Left Base Plate Right Base Plate The base Angle Bolt M12*30 Ratchet Angle Seats Strap Bolt M12*110 Rope Self-tapping screw ∮ 32 Plastic Plug for end of tensioning tube Roof Cover Diagonal tube Clip... - Page 4 EQUIPEMNT AND TOOLS FOR INSTALIATION 1. Measuring tape 2. String for alignment 3. Step ladder 4. Welder 5. Sledge hammer 6. Wrench 7. Scissors INSTALLATION PROCESS A—BASE INSTALLATION Please refer to the diagram (Figure 1) to place the base plates. Figure 1 1.
- Page 5 Figure 2 Sketch Frame...
- Page 6 B—FRAME INSTALLATION...
- Page 7 Figure 3 1 . As Figure 3 shown find Roof Bent Tube (No. 1), UpperBent Tube (No.2), Shoulder Bent Tube(No.3). To connect them by Self-tapping screw（No.14）.Which makes one group of arch. Please NOTE the direction of the bolt. DO NOT install the bolts on the top of the truss where the fabric will rest.
- Page 8 using screw M12x110 （ No.12） .There are 7 pieces of Connection Purlins (No.4) between each arch. Then install the third arch into base plate and connect the purlins. Finally install the Diagonal tube (No.17) using bolt and Clip (No.18). Assemble the Frame by turns like this. C—ROOF COVER INSTALLATION NOTE: DO NOT install the cover onto the frame of your building in high wind conditions.
- Page 9 Figure 6 Figure 7 3. Weld the base Angle (No. 7) on each container and use Ropes (No. 13) to knit the cover on the two side arches, finally tie the Roof cover to the Angle seats. 4. Cut pockets over each ratchet on the base plates and put the Tensioning Tube for roof cover (No.
- Page 10 Please check the below installation detailed pictures:...
- Page 11 NOTE: DO NOT LEAVE THE ROOF COVER UNATTACHED UNDER ANY CIRCUMSTANCES until the final assembly and tightening has been completed. The process is quite easy. But some tightening adjustments will be necessary to produce a flat, tensioned roof cover. Please adjust the roof cover every month. Please Note: Please use the tape wrapped around the gap between the steel skeleton after installing.
