Canon imagePROGRAF iPF765 Basic Manual page 10

Attaching the Roll Holder to Rolls
1

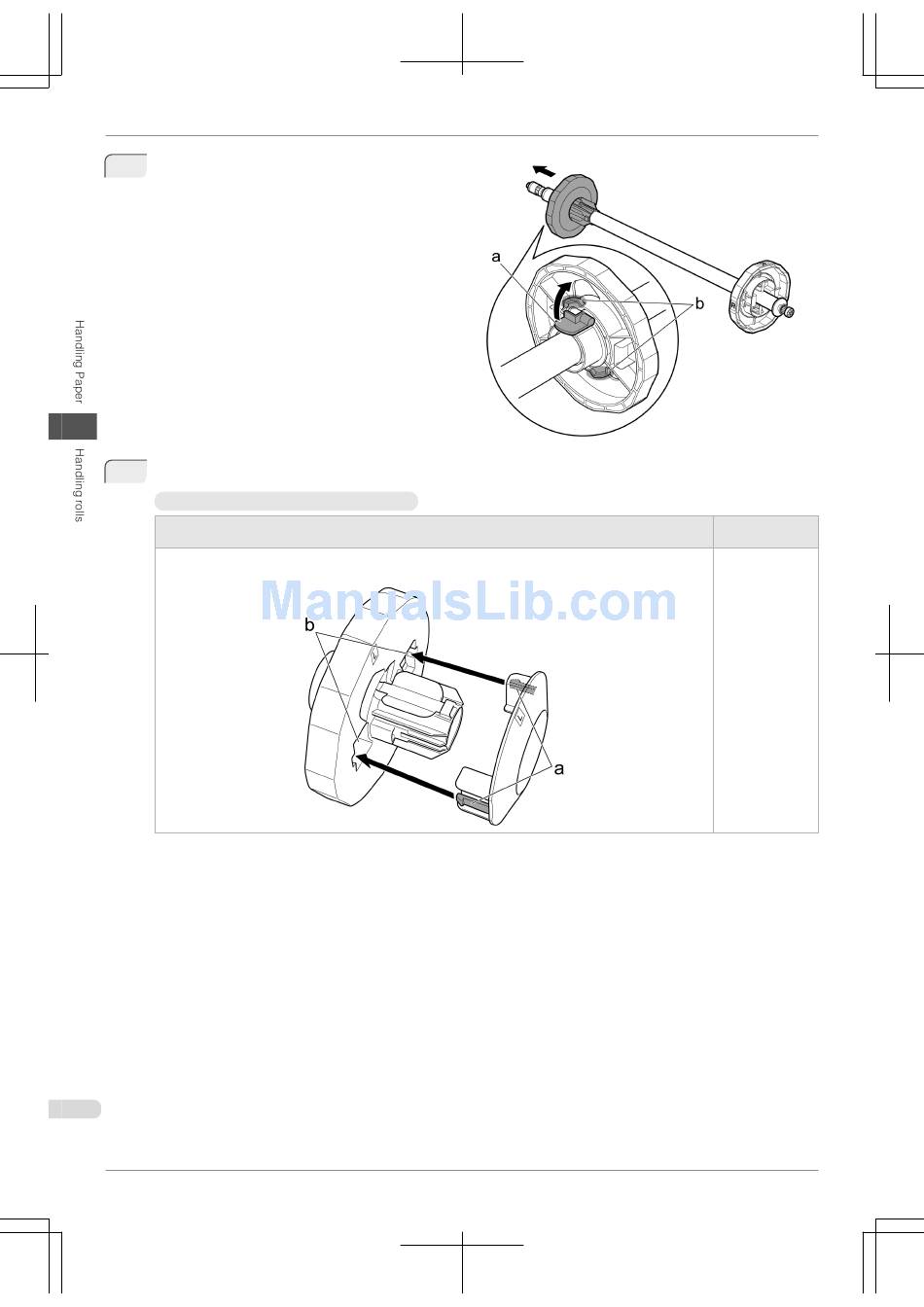

Lift the Holder Stopper lever (a) from the shaft side
to unlock it. Holding the Holder Stopper at the posi-
tion indicated (b), remove it from the Roll Holder.
2
Insert the respective attachments for the roll paper core on the Roll Holder and Holder Stopper.
• Using rolls with a 2-inch paper core
Align the tips (a) of the 2-Inch Paper Core Attachment with the holes (b) of the Holder Stopper and insert it
firmly.
10
Holder Stopper (Left Side)
iPF765
Roll Holder (Right
Side)
No attachment is
needed.
Basic Guide
