1. Introduction

Dansensor® ISM-3 is an oxygen analyser which measures the concentration of oxygen (O
a gas mixture.
The measured O concentration is shown in a large, easy readable display.
2
ISM-3 can via a simple menu structure be programmed to give alarm in case of a too high or
too low O concentration. Besides that an alarm is given in case of insufficient flow of
2
measuring gas, or in case of other faults in the ISM-3.
ISM-3 is equipped with a relay for alarm in case of too high/low O
measuring gas flow or other vital faults.40
ISM-3 is specially developed for being incorporated/mounted on nitrogen generators etc.
where the control of the O
EN
concentration is a vital part of the process.
2

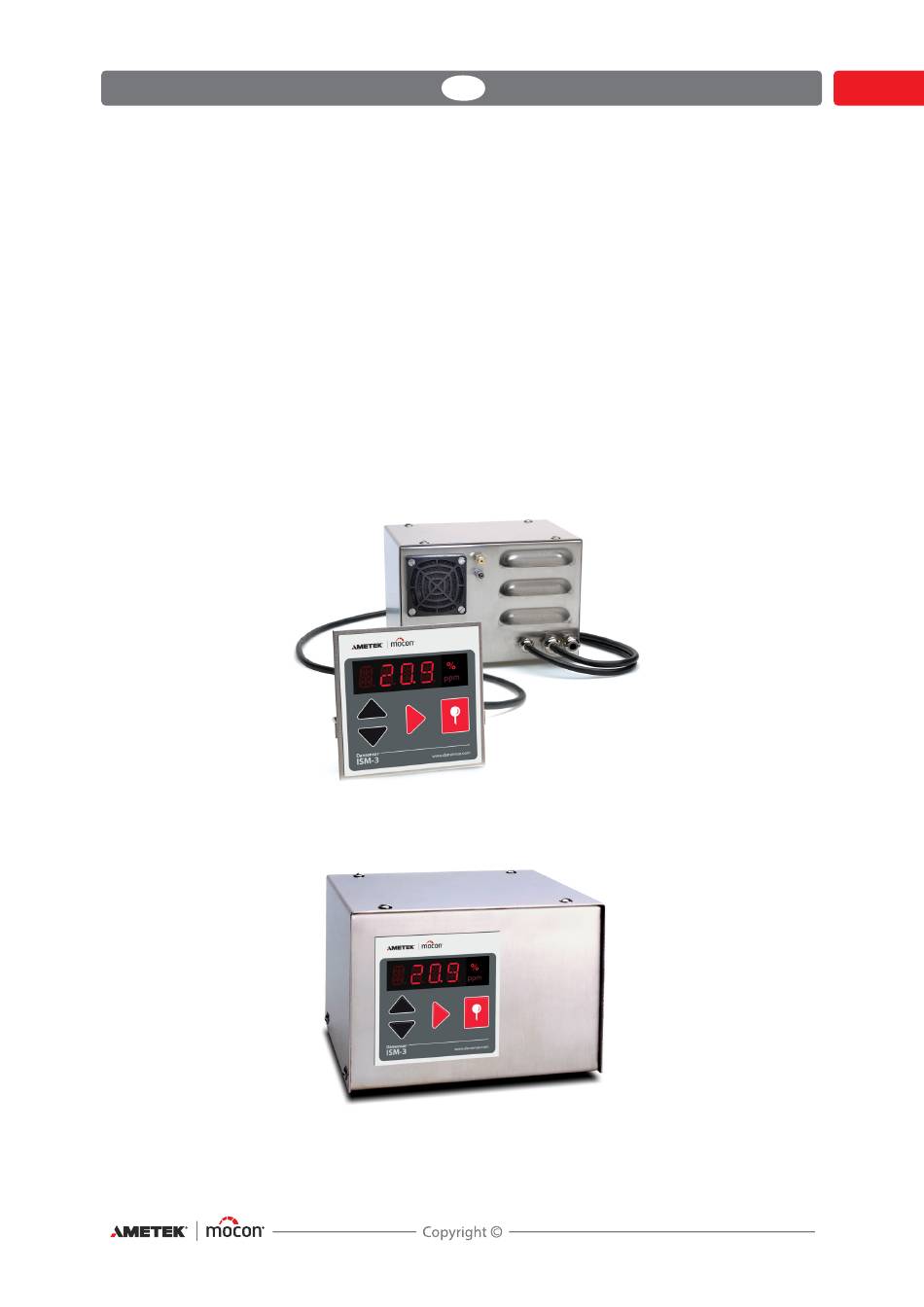

Fig. 1. ISM-3 Analyser for incorporation
Fig. 2. ISM-3 Analyser designed for retrofitting
