Packing List
LTE Module x 1
1. R29 LTE Module Installation

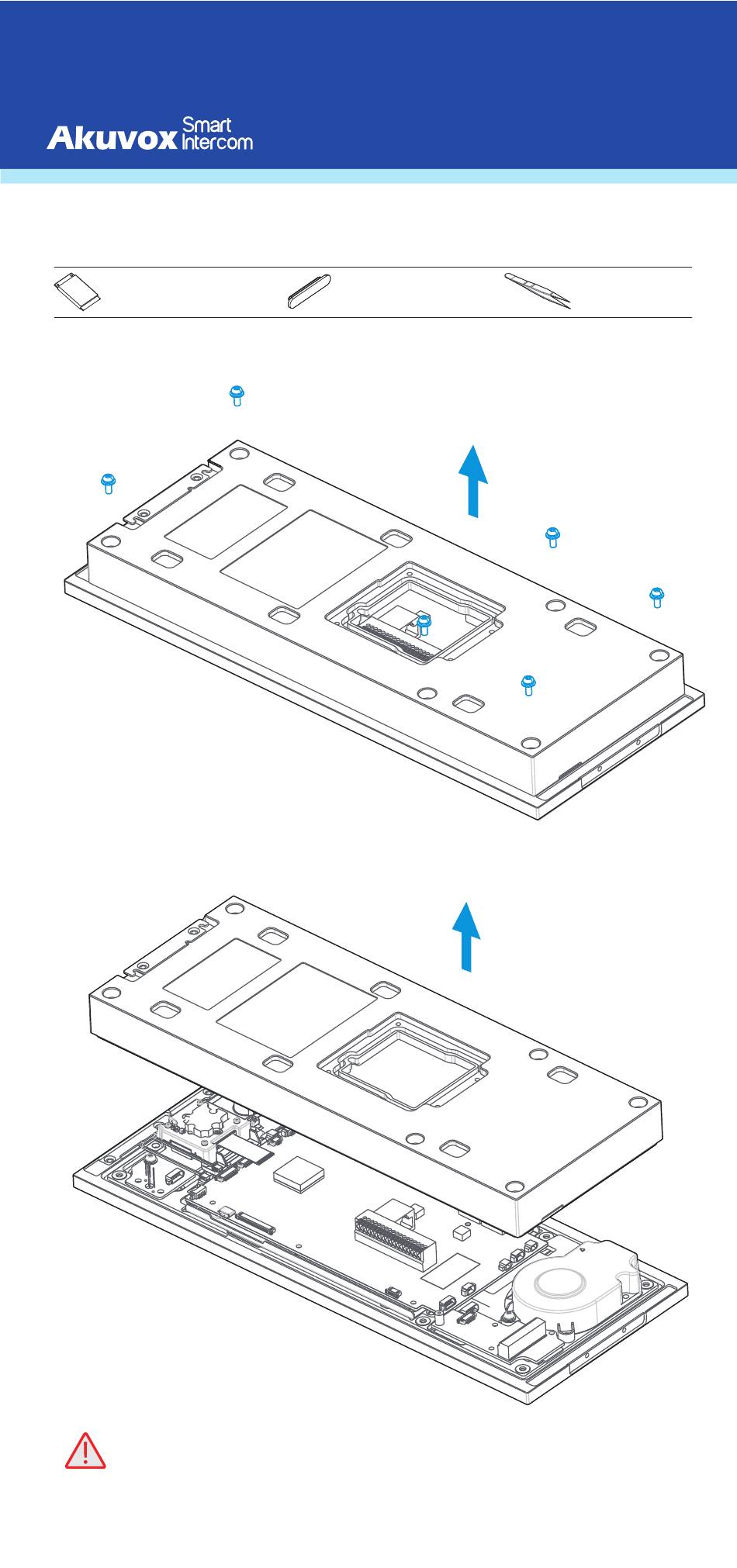

Remove the six screws (M3x8) on the device's rear cover
using cross screwdriver and keep the screws.
Remove the device's rear cover.
Warning: Do not open the rear cover when the SIM card is installed otherwise it
might cause the damage to the device.
LTE Module Installation Guide
Rubber Plug x 1
1
R29
Tweezers x 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Akuvox R29
Summary of Contents for Akuvox R29
- Page 1 Packing List LTE Module x 1 Rubber Plug x 1 Tweezers x 1 1. R29 LTE Module Installation Remove the six screws (M3x8) on the device's rear cover using cross screwdriver and keep the screws. Remove the device's rear cover.
- Page 2 LTE Module Installation Guide Insert the LTE module connecting fingers into the interface as indicated in the drawing and press down the other end of module to line up the left screw hole with the lower screw column. Lock the module on to the screw column of the device with the screws (M2x5).
- Page 3 LTE Module Installation Guide Connect the main RF cable and the div RF cable to the module as indicated in the dotted green circle. While the other ends of the two cables are already connected to the main-board. Notice: The two cables are distinguished by the labels attached.
- Page 4 LTE Module Installation Guide 2. R29 LTE SIM Card Installation and Removal 2.1 R29 LTE SIM Card Installation Insert the SIM card to the card slot at the bottom and push the card all the way in using the back end of the tweezers attached with the module until you hear a clattering sound.
- Page 5 LTE Module Installation Guide 2.2 R29 LTE SIM Card Removal Remove the SIM card rubber plug at the bottom of the device. Push the card against the slot base using the back end of the tweezers until you hear a clattering sound when the SIM card...
- Page 6 Information contained in this document is believed to be accurate and reliable at the time of printing. This document is subject to change without notice, any update to this document can be viewed on Akuvox’ s website: http://www.akuvox.com © Copyright 2020 Akuvox Ltd. All rights reserved.
