  • Page 1 R29 Series Door Phone User Manual...
  • Page 2 About This Manual Thank you for choosing Akuvox’s R29 series door phone. This manual is intended for end users who need to properly configure the door phone. This manual is applicable to 29.31.1.7xx version, and it provides all functions’ configurations of R29 series door phone.

  • Page 3: Table Of Contents

    Content 1. Product Overview....................................... 1 1.1. Instruction........................................1 1.2. Connector Introduction....................................2 2. Daily use..........................................3 2.1. Starting......................................... 3 2.2. Make a Call........................................4 2.2.1. Call From Digital Keypad.................................4 2.2.2. Call From Phonebook..................................5 2.2.3. Call From Speed Dial..................................6 2.2.3.1. Building theme..................................6 2.2.3.2.
  • Page 4 2.4.4. Unlock by DTMF codes................................... 9...

  • Page 5: Product Overview

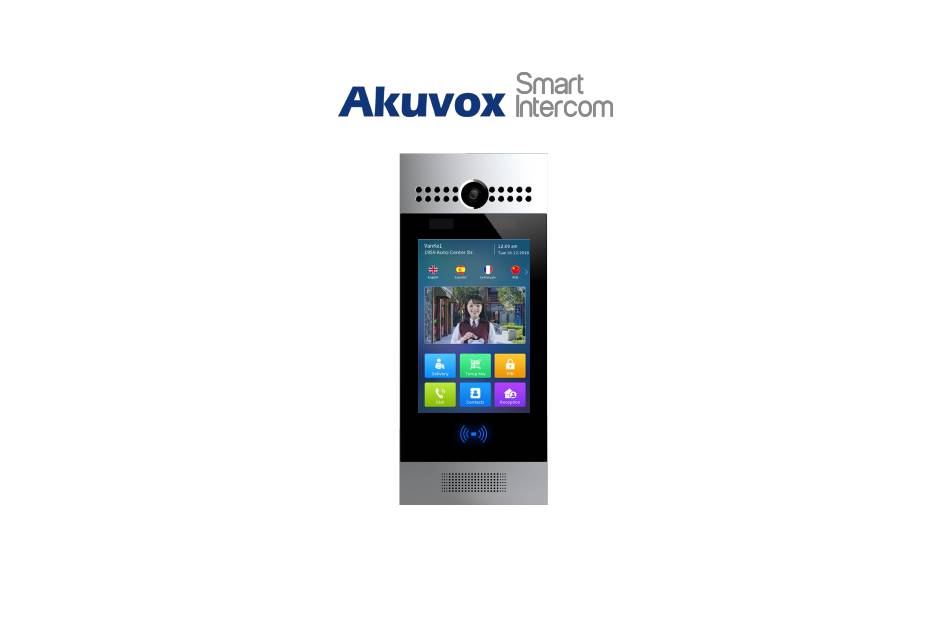

    & infrared Microphone 1.1. Instruction Infrared LEDs R29 series is an Android-based IP video door phone with a touch screen. It incorporates audio and video communications, access Touch screen control and video surveillance. Its finely-tuned Android OS allows for feature customization to Access card reader better suit the habit of usage of local people.

  • Page 6: Connector Introduction

    1.2. Connector Introduction Ethernet (POE): Ethernet (POE) connector which can provide both power and network connection. 12V/GND: External power supply terminal if POE is not available. WG_D0/1: Wiegand terminal for wiegand access control. RS485A/B: RS485 terminal for automation system control (e.g. Figure 1.2-1 Connection introduction Elevator control).

  • Page 7: Daily Use

    2. Daily use 2.1. Starting When booting R29X first time, users need to choose a suitable display language for device. Tap Start to start the selection. R29X support 4 languages, including French, English, Spanish and Chinese. Then choosing the proper display theme according to specific application scenarios.

  • Page 8: Make A Call

    2.2. Make a Call There are three ways to make a call from the door phone to monitor units, which can be an indoor monitor or an intercom app. 2.2.1. Call From Digital Keypad Press Dial (Building theme) or Call (Villa theme or Office theme) to enter the dial interface.

  • Page 9: Call From Phonebook

    2.2.2. Call From Phonebook Tap Contacts to enter the phonebook. In the phonebook interface, to find a specific occupant, scroll up or down the pre-imported contact list, which is either a room number, an occupant’s name, or the combination of both. It also supports searching the list by alphabet and then clicking the dial key next to the found contact.

  • Page 10: Call From Speed Dial

    2.2.3. Call From Speed Dial 2.2.3.1. Building theme Press Reception to make the call directly. 2.2.3.2. Villa theme or Office theme Press Call to enter the call interface, choose a speed dial number that users want to call directly. Figure 2.2.3.3 Speed dial 2.3.

  • Page 11: Unlock

    2.4. Unlock 2.4.1. Unlock by Pin Codes Unlock the door by using predefined public pin or private pin. Press PIN icon to enter the PIN code interface, enter the “pin code” and press Confirm icon to unlock, then you will hear “Welcome, please coming ”...

  • Page 12: Unlock By Face

    2.4.2. Unlock by Face Stand in front of the camera of R29X in 0.5-1m and look at the camera, the device will recognize the predefined face less than 0.6s in the main interface(Building theme) or enter the “Password”(Villa or office theme) interface and it will announce “Welcome, please come in”...
  • Page 13 succeeded”. If the card has not been registered, the phone will show “Invalid password”. 2.4.4. Unlock by DTMF codes During the calling, the president can press the predefined DTMF codes to remote unlock the door.
  • Page 14 Abbreviations ACS: Auto Configuration Server DNS-SRV: Service record in the Domain Name System Auto: Automatically FTP: File Transfer Protocol AEC: Configurable Acoustic and Line Echo Cancelers GND: Ground ACD: Automatic Call Distribution HTTP: Hypertext Transfer Protocol Autop: Automatical Provisioning HTTPS: Hypertext Transfer Protocol Secure AES: Advanced Encryption Standard IP: Internet Protocol BLF: Busy Lamp Field...
  • Page 15 SIP: Session Initiation Protocol PCAP: Packet Capture SNMP: Simple Network Management Protocol PNP: Plug and Play STUN: Session Traversal Utilities for NAT RFID: Radio Frequency Identification SNMP: Simple Mail Transfer Protocol RTP: Real-time Transport Protocol SDMC: SIP Devices Management Center RTSP: Real Time Streaming Protocol TR069: Technical Report069 MPEG: Moving Picture Experts Group...
  • Page 16 Contact us For more information about the product, please visit us atwww.akuvox.com or feel free to contact us by Sales email: sales@akuvox.com Technical support email: techsupport@akuvox.com Telephone: +86-592-2133061 ext.7694/8162 We highly appreciate your feedback about our products.
