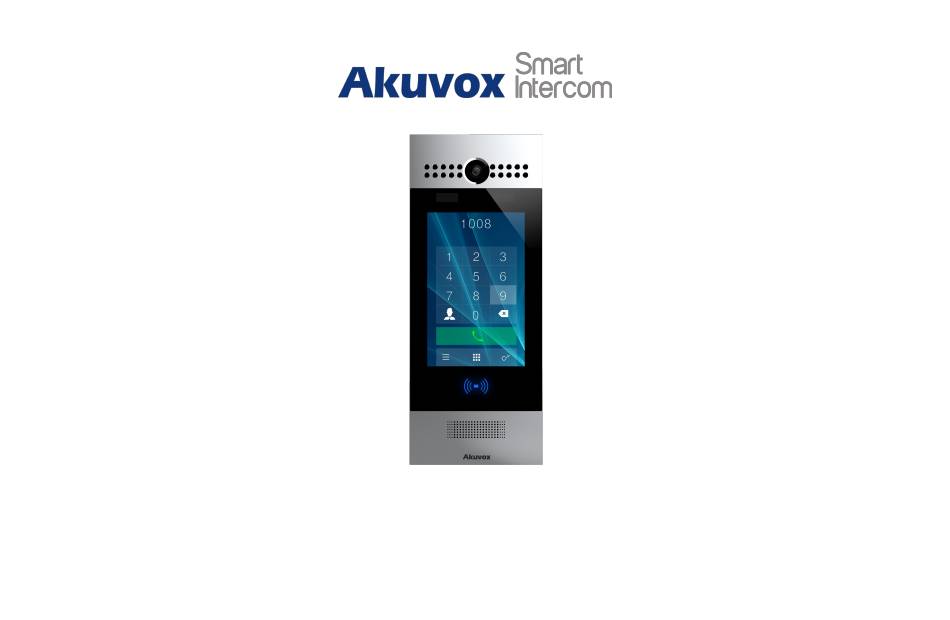

  • Page 1 R29 Series Door Phone User Manual...
  • Page 2 About This Manual Thank you for choosing Akuvox’s R29S/F door phone. This manual is intended for end users, who need to properly configure the door phone. It provides all functions and configuration of R29S/F, the information detailed in this user manual applicable to firmware version 29.0.1.224.zip or lower version.
  • Page 3 FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 4 in all tested frequency bands, although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. Before a new product is a available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC, tests for each phone are performed in positions and locations as required by the FCC.

  • Page 5: Table Of Contents

    Content 1. Product overview........................................ 1 1.1. Product Description....................................1 1.2. Connection Introduction.....................................2 2. Daily Use..........................................3 2.1. Making a Call.......................................3 2.1.1. Calling From Digital Keypad................................3 2.1.2. Calling From Phonebook................................3 2.2. Receiving a Call......................................4 2.3. Unlock...........................................5 2.3.1. Public Key......................................5 2.3.2.

  • Page 6: Product Overview

    1. Product overview 1.1. Product Description Built-in light sensor 29S is an Android-based IP video door phone with a touch screen. Color camera & infrated sensor Microphone It incorporates audio and video communications, access control Infrared LEDs and video surveillance. Its finely-tuned Android OS allows for feature customization to Touch screen better suit the habit of usage of local people.

  • Page 7: Connection Introduction

    1.2. Connection Introduction Ethernet(POE): Ethernet(POE) connector which can provide both power and network connection. 12V/GND: External power supply terminal if POE is not available. WG_D0/1: Wiegand terminal for wiegand access control. RS485A/B: RS485 terminal for automation system control(e.g. Elevator control). DOORA/B/C: Trigger signal input terminal(e.g.

  • Page 8: Daily Use

    2. Daily Use ① 2.1. Making a Call ② There are two ways to make a call from the door phone to monitor units, which can be an indoor monitor or an intercom app. ③ 2.1.1. Calling From Digital Keypad ①The default interface of the door phone is the dial interface.

  • Page 9: Receiving A Call

    contact list, which is either a room number, an occupant’s name, or the combination of both. ⑥Search the list by alphabet. ⑦Tap the dial key next to the contact found. 2.2. Receiving a Call When a monitor unit calls the door phone, it will auto answer the incoming call by default.

  • Page 10: Unlock

    2.3. Unlock ① There are multiple ways of opening door. 2.3.1. Public Key Public key is a 8-digit password used by all occupants in a building. ①Tap the icon to enter the unlock interface. ② ②Enter the public key on the unlock interface, for example 33333333, the default public key of the door phone.

  • Page 11: Unlock By Face

    You will hear “the door is opened” 2.3.4. Unlock by RF (Radio-Frequency) Card ④ R29 series is compatible with both 13.56MHz and 125KHz RF cards. ④Place the card near the reader and you will hear “The door is now opened.”...

  • Page 12: Unlock By Dtmf Code

    2.3.5. Unlock by DTMF code During the call between the answer unit and the door phone, the occupant tap the unlock key on the monitor unit to grant access.
