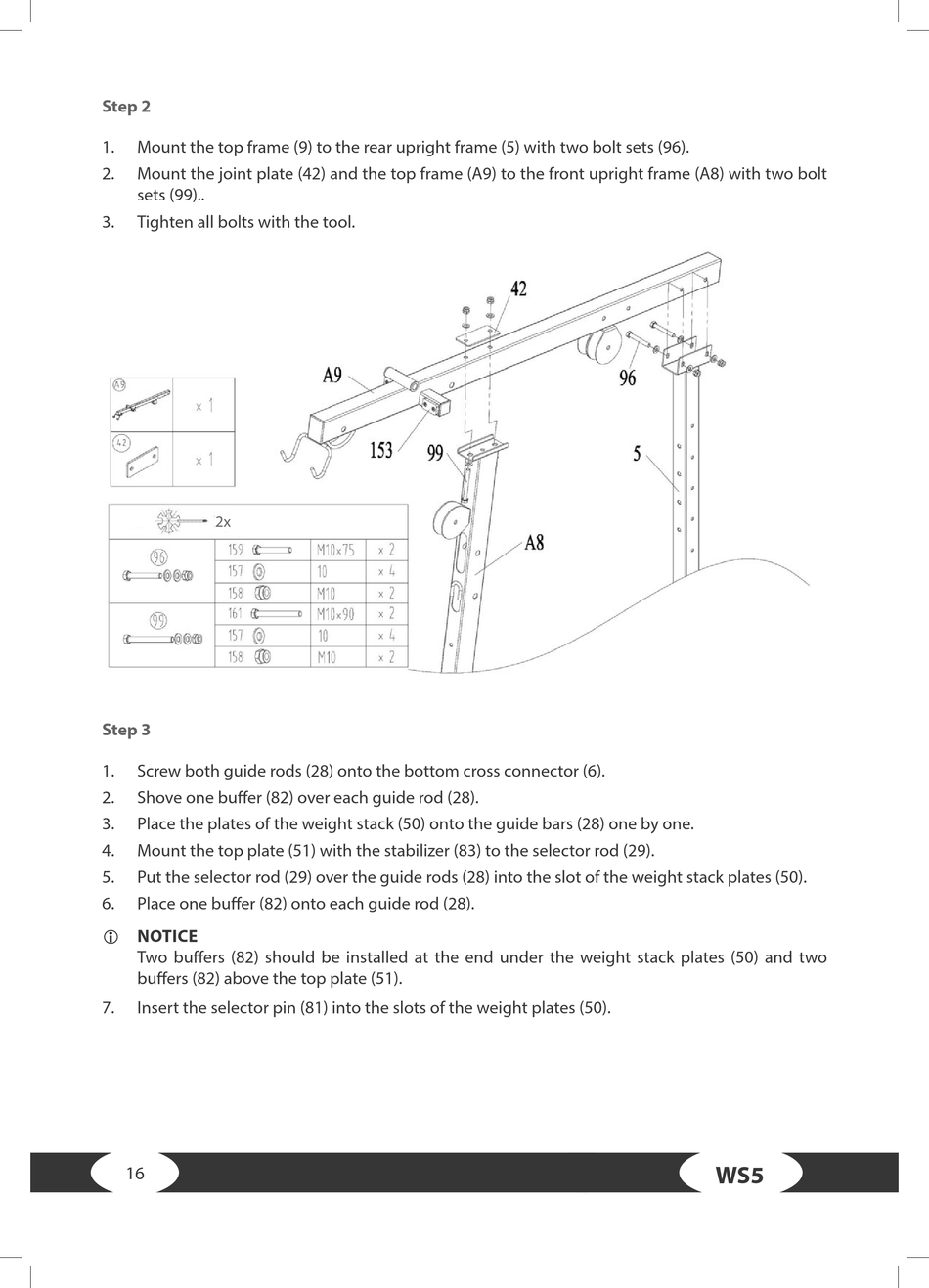

Step 2
1. Mount the top frame (9) to the rear upright frame (5) with two bolt sets (96).
2. Mount the joint plate (42) and the top frame (A9) to the front upright frame (A8) with two bolt
sets (99)..
3. Tighten all bolts with the tool.
2x
Step 3
1. Screw both guide rods (28) onto the bottom cross connector (6).
2. Shove one buffer (82) over each guide rod (28).
3. Place the plates of the weight stack (50) onto the guide bars (28) one by one.
4. Mount the top plate (51) with the stabilizer (83) to the selector rod (29).
5. Put the selector rod (29) over the guide rods (28) into the slot of the weight stack plates (50).
6. Place one buffer (82) onto each guide rod (28).
L
NOTICE
Two buffers (82) should be installed at the end under the weight stack plates (50) and two
buffers (82) above the top plate (51).
7. Insert the selector pin (81) into the slots of the weight plates (50).
