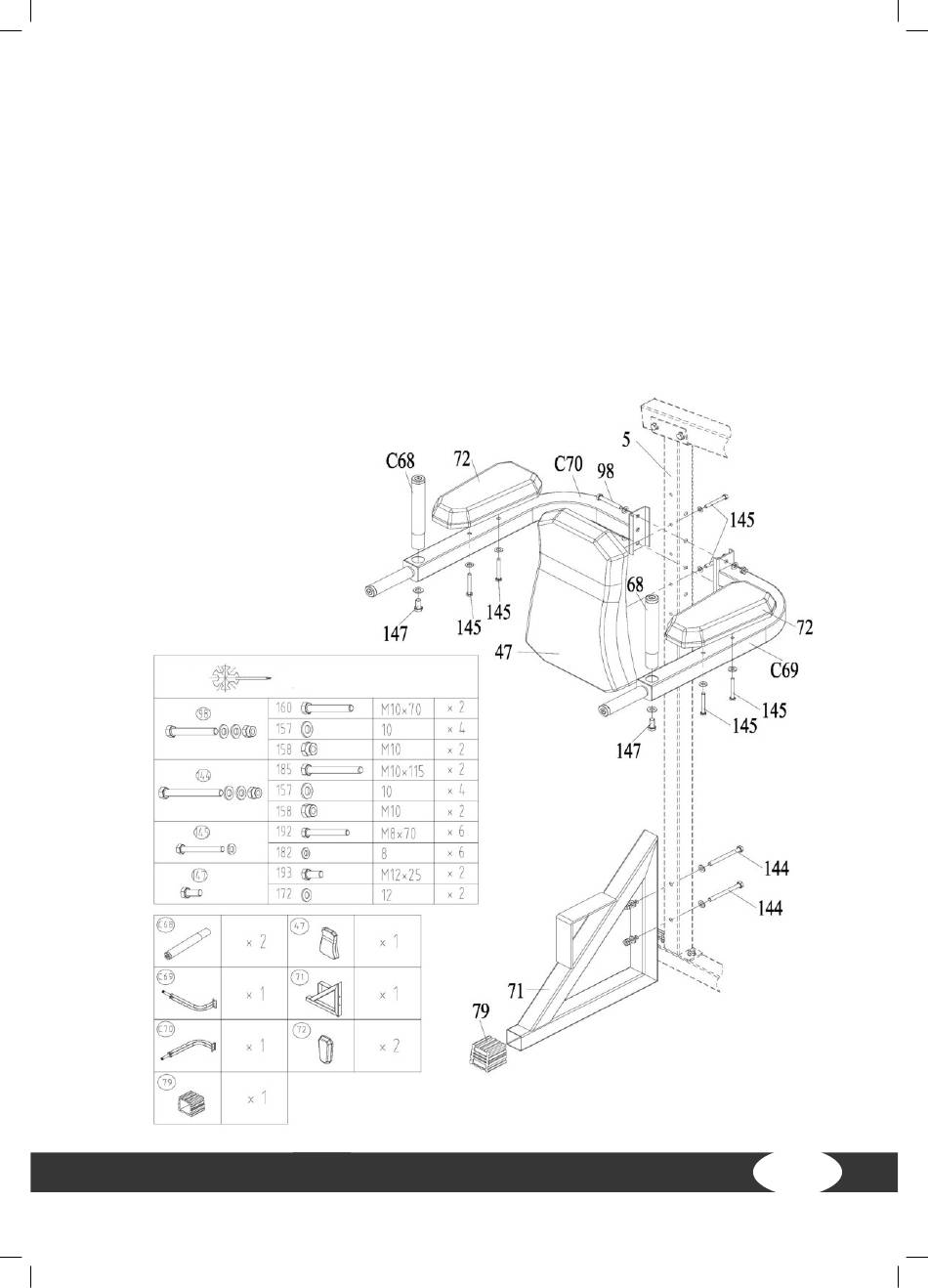

Step 22
1. Place the end caps (79) onto the end of the foot exercise (71) and mount the foot exercise (71)
to the rear support frame (5) with two bolt sets (144).
2. Mount the left support pole (C69) and the right support pole (C70) to the rear support frame (5)
with two bolt sets (98).
3. Mount the armrest cushions(72) to the left support pole (C69) and the right support pole (C70)
with each two bolt sets (145)
4. Mount the back cushion (47) to the rear upright frame (5) with two bolt sets (145).
5. Mount the upright handles (C68) to the left support pole (C69) and the right support pole (C70)
with each one bolt set (147).
6. Tighten all bolts with the tool.
2x
