- Page 1 Assembly and Operating Instructions max. 760 kg ~ 30 Min. 67 kg L 228 | W 65 | H 80 FSUKWTRS7001.01.02 SKU: WTRS7001 Taurus TF TF- Elite 2-Tier Dumbbell Rack...
- Page 2 2-Tier Rack...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 2-Tier Rack...
- Page 5 European VAT Number: DE813211547 Disclaimer © TAURUS is a registered brand of the company Fitshop GmbH. All rights reserved. Any use of this trademark without the explicit written permission of Fitshop is prohibited. Product and manual are subject to change. Technical data can be changed without advance notice.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and fi rst use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
- Page 7 Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions. The following safety instructions may appear in this manual: ATTENTION This notice indicates potentially hazardous situations which, if not avoided, may result in property damage.
-
Page 8: General Information
GENERAL INFORMATION Technical Data Weight and Dimensions: Article weight (gross, incl. packaging): No.1 29 .36 kg No.2 43 kg Article weight (net, without packaging): 66.5 kg Packaging dimensions (LxWxH) approx.: No.1 80 cm x 68 cm x 26 cm No.2 235 cm x 26 cm x 13 cm Set-up dimensions (LxWxH) approx.: 228 cm x 65 cm x 80 cm... -
Page 9: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly aff ected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 10: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 11: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suff ocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 12: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. ⚠... - Page 13 Step 1: Assembly of Floor Standers and Placing Frames Assemble one placing frame (2) to the lower fl oor standers (1) by using eight screws (6), eight spring washers (9) and eight washers (8). Assemble the other placing frame (2) to the upper fl oor standers (1) by using eight screws (6), eight spring washers (9) and eight washers (8).
-
Page 14: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. -
Page 15: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. ⚠ CAUTION Damaged or worn components may aff ect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 16: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specifi ed intervals: Part Weekly Monthly Quarterly Screw connections Legend: C = clean;... -
Page 17: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more effi cient and pleasant, we recommend that you add suiting accessories to your fi tness equipment. For training equipment like smith machines, weight benches or racks this could for example be a fl oor mat, which makes your fi tness equipment stand more securely and also protects the fl oor from sweat but it could be also additional weights, handles, foot straps for leg exercises or triceps ropes. -
Page 18: Ordering Spare Parts
The serial number of your equipment is unique. It’s located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate fi eld. Serial number: Brand / Category: Taurus / Rack Model Name: Elite Dumbbell Rack Article Number: TF-PTT0265... -
Page 19: Parts List
Parts List Name Specifi cation Qty. Floor stander Placing frame Great yuan throne Rubber mat Hex socket head cap screw M10*30 Hex socket head cap screw M12*25 Plain washer Φ20*Φ10.5*2 Plain washer Φ24*Φ13*2.5 Spring washer Nylon insert lock nut... -
Page 20: Exploded Drawing
Exploded Drawing 2-Tier Rack... -
Page 21: Warranty
WARRANTY Products from TAURUS® are subject to strict quality control. However, if a fi tness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 22 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
-
Page 23: Contact
CONTACT Please fi nd a detailed overview including address and opening hours for all stores of Fitshop UK on the following website: www.fi tshop.co.uk/storelocator... - Page 24 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA The Fitshop Group is Europe’s largest specialist for https://www.fi tshop.co.uk/ home fi tness equipment with currently 70 stores www.fi tshop.co.uk/blog/ and one of the world’s most renowned online mail order companies for fi tness equipment. Fitshop UK is part of the Fitshop Group.
- Page 25 Notes...
- Page 26 Notes 2-Tier Rack...

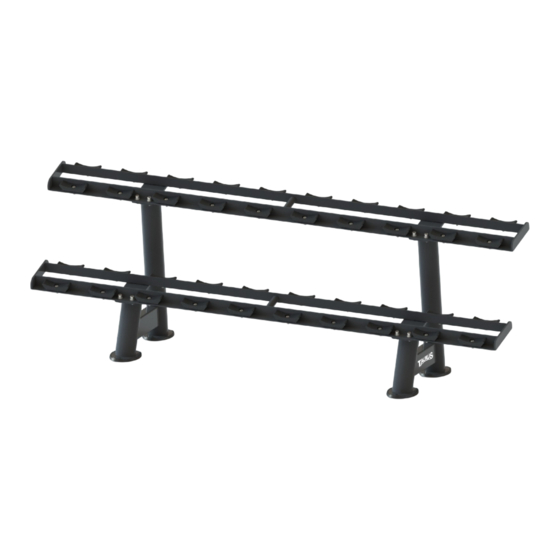

- Page 28 Taurus Elite 2-Tier Dumbbell Rack...
