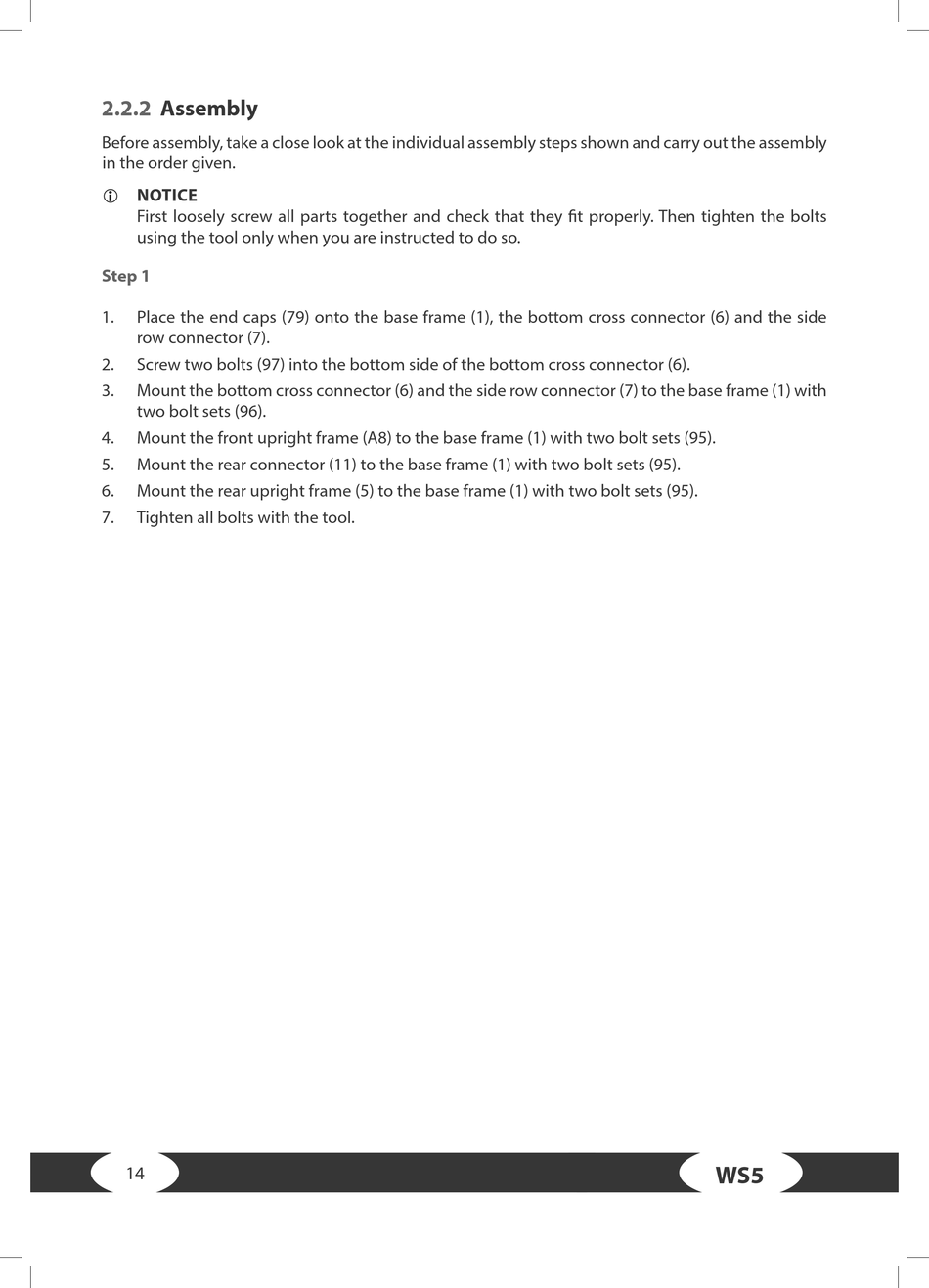

2.2.2

Assembly

Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
L
NOTICE
First loosely screw all parts together and check that they fit properly. Then tighten the bolts
using the tool only when you are instructed to do so.
Step 1
1. Place the end caps (79) onto the base frame (1), the bottom cross connector (6) and the side
row connector (7).
2. Screw two bolts (97) into the bottom side of the bottom cross connector (6).
3. Mount the bottom cross connector (6) and the side row connector (7) to the base frame (1) with
two bolt sets (96).
4. Mount the front upright frame (A8) to the base frame (1) with two bolt sets (95).
5. Mount the rear connector (11) to the base frame (1) with two bolt sets (95).
6. Mount the rear upright frame (5) to the base frame (1) with two bolt sets (95).
7. Tighten all bolts with the tool.
14 WS5
