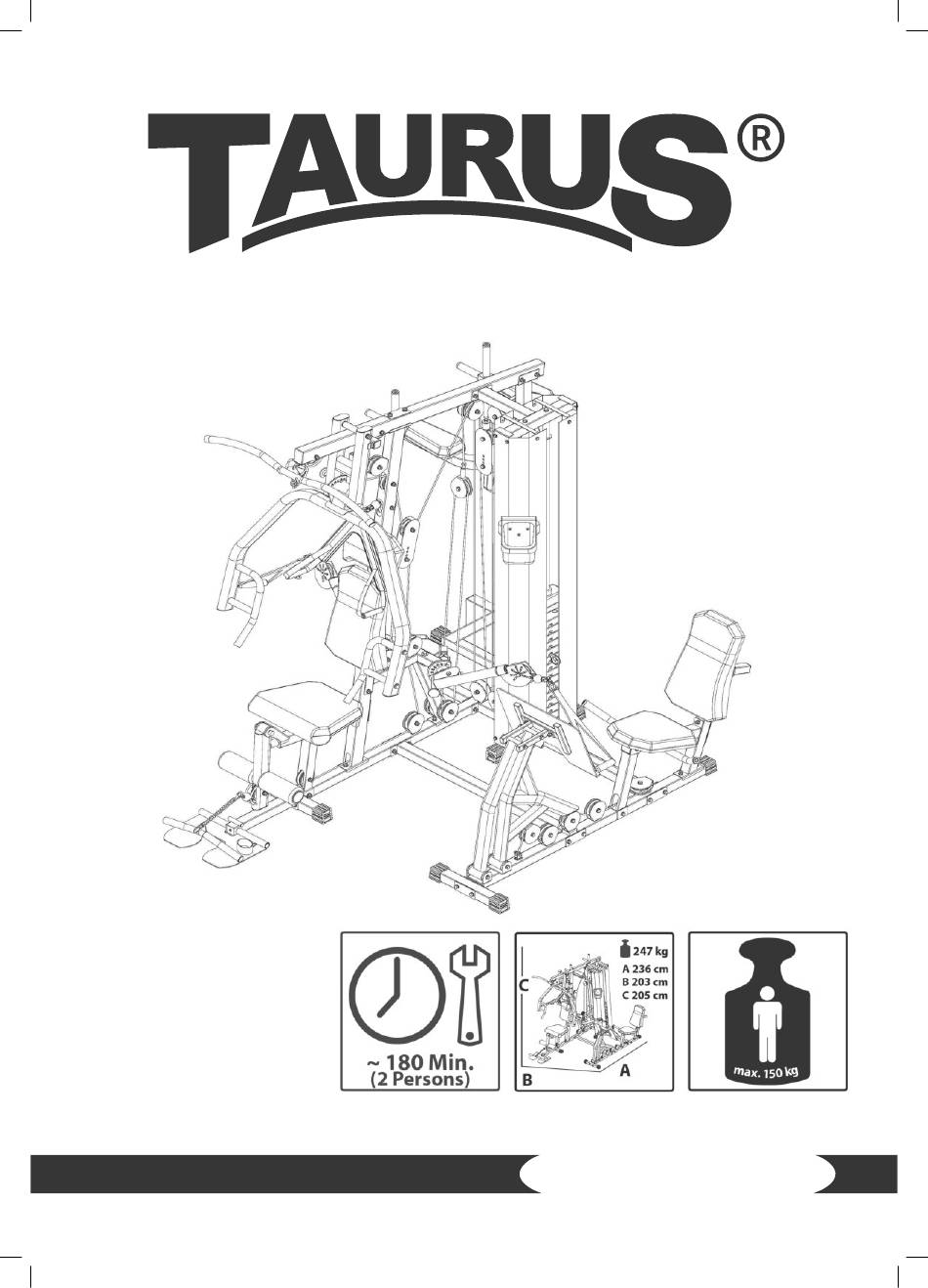

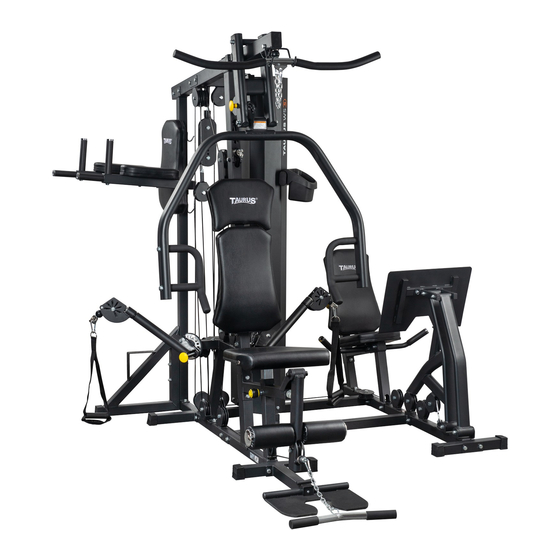

  • Page 1 Assembly and Operating Instructions TFWS5.06.01 TF-WS5-6 Multi-Gym...

  • Page 3: Table Of Contents

    Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Assembly Part A 2.2.1 Scope of Delivery 2.2.2 Assembly Assembly Part B 2.3.1 Scope of Delivery 2.3.2 Assembly Assembly Part C 2.4.1 Scope of Delivery 2.4.2 Assembly Assembly Part D 2.5.1 Scope of Delivery 2.5.2 Assembly Cable Installation Overview...
  • Page 4 Parts List Part B Exploded Drawing Part B Parts List Part C Exploded Drawing Part C Parts List Part D Exploded Drawing Part D WARRANTY CONTACT...
  • Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
  • Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.

  • Page 7: General Information

    GENERAL INFORMATION Technical Data Weight and dimensions: Article weight (gross, inc. packaging): 511,5 kg Article weight (net, without packaging): 247 kg Packaging dimensions (LxWxH): No. 1 approx. 194 cm x 32 cm x 24 cm No. 2 approx. 163 cm x 32 cm x 24 cm No.

  • Page 8: Personal Safety

    Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year.

  • Page 9: Set-Up Place

    Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION The training room should be well ventilated during training and not be exposed to any draughts. Choose the place in which to set up the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment.

  • Page 10: Assembly

    ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.

  • Page 11: Assembly Part A

    Assembly Part A 2.2.1 Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred.

  • Page 14: Assembly

    2.2.2 Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Then tighten the bolts using the tool only when you are instructed to do so.
  • Page 16 Step 2 Mount the top frame (9) to the rear upright frame (5) with two bolt sets (96). Mount the joint plate (42) and the top frame (A9) to the front upright frame (A8) with two bolt sets (99).. Tighten all bolts with the tool. Step 3 Screw both guide rods (28) onto the bottom cross connector (6).
  • Page 18 Step 4 Mount the fixing bracket (10) to the guide rods (28) with two bolt sets (101). Mount the joint plate (42) and the fixing bracket (10) to the top frame (9) with two bolt sets (96). Mount the buffer (84) to the fixing bracket (10) with one bolt set (100). Tighten all bolts with the tool.
  • Page 19 Step 5 Mount the cable arm assemble (A13) to the rear connector (11) with two bolt sets (103). Screw the cable arm assemble (A13) to the front upright frame (A8) with two bolt sets (96). Place the end caps (79) onto the front base tube (2). Mount the low row connector (3) and the front base tube (2) to the base frame (1) with two bolt sets (96).
  • Page 20 Step 6 Mount the seat cushion support (A20) to the base frame (1) with one bolt set (96). Insert the cushion support (22) into the seat cushion support (A20) and secure the connection with the fast pin (86). Mount the seat cushion support (A20) and the joint plate (42) to the front upright frame (8) with two bolt sets (99).
  • Page 22 Step 7 Mount the press arm selector (A17) to the top frame (A9) and guide the pivot axle (31) through. Insert a screw (36) into the pivot axle (31) and secure it with a nut set (108). Mount the press arm (A16) to the press arm selector (A17) and guide the pivot axle (31) through. Insert a screw (36) into the pivot axle (31) and secure it with a nut set (108).
  • Page 24 Step 8 Figure A: Place the two plastic bushings (90) into the top frame (9). Place cable 1 (119) on pulley P1 (91). Mount pulley P1 (91) to the top frame (9) with one bolt set (98). Figure B: Place two plastic bushings (90) into the top frame (9). Place cable 1 (119) on pulley P2 (91).
  • Page 25 Cable 1...
  • Page 26 Step 9 Figure A: Place two plastic bushings (90S) into the leg extension (A21). Place cable 2 (120) on the Ø100 pulley P12 (92). Mount the Ø100 pulley P12 (92) to the leg extension (A21) with one bolt set (112). Figure B: Place two plastic bushings (90) into the seat cushion support (A20).
  • Page 27 Cable 2...
  • Page 28 Step 10 Figure A: Fix cable 3 (121) to the rotational pulley block (23) with one gyro wheel (33), one bushing (34) and one bolt set (114). Guide cable 3 (121) over pulley P19 (91) and mount pulley P19 (91) to the rotational pulley block (23) with one bolt set (110). Figure B: Fix the cable 3 (121) with pulley P20 (91) to the cable arm (14) with one bolt set (110).
  • Page 29 Cable 3...
  • Page 30 Step 11 Figure A: Screw cable 5 (109) into the upper part of the pulley block (12). Figure B: Guide cable 5 (109) over pulley P28 (91) backwards. Figure D: Guide the cable 5 (109) downwards and underneath pulley P29 (91). Mount pulley P29 (91) to the pulley holder on the bottom cross connector (6) with one bolt set (110).
  • Page 31 Step 12 Mount the left iron shell (25) to the bottom cross connector (6) and the fixing bracket (10) with four bolt sets (115). Mount the right iron shell (26) to the bottom cross connector (6) and the fixing bracket (10) with four bolt sets (115).
  • Page 32 Step 13 Mount the seat cushion (48) to the cushion support (22) with four bolt sets (117). Mount the headrest cushion (49) to the front upright frame (8) with two bolt sets (116). Mount the back cushion (47) to the front upright frame (8) with two bolt sets (115). Attach one hand grip (46) to each side on the end of cable 3 (121) with each one hoist hook (93).
  • Page 33 Step 14 Place the plugs (94) into the holes of the base frame (1), rear upright frame (5) and the bottom cross connector (6).

  • Page 34: Assembly Part B

    Assembly Part B 2.3.1 Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred.

  • Page 36: Assembly

    2.3.2 Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Then tighten the bolts using the tool only when you are instructed to do so.
  • Page 38 Step 16 Mount the seat support (59) to the upright support (58) with one bolt set (98). Mount the seat support (59) and the joint plate (42) to the support (B57) with two bolt sets (96). Mount the right armrest (B54) and the left armrest (B55) to the seat support (59) with two bolt sets (96).
  • Page 40 Step 17 Fix the back support (B60) on the support (B57) with the fast pin (86). Mount the back cushion (47) to the back support (B60) with two bolt sets (115). Tighten all bolts with the tool.
  • Page 41 Step 18 Mount pulley P32 (91) to the foot extension pole (B62) with one bolt set (153). Mount pulley P33 (91), P35 (91) and P36 (91) to the leg extension base frame (56) with three bolt sets (152). Tighten all bolts with the tool.
  • Page 42 Step 19 Mount the connecting tube A (52) and the joint plate (42) to the base frame (1) with two bolt sets (96). Mount the connecting tube B (53) to the bottom cross connector (6) with one bolt set (101). Tighten all bolts with the tool.
  • Page 43 Step 20 Remove the bolt set (152) and the end of cable 5 (109) from the pulley holder on the bottom cross connector (6). Mount pulley P31 (91) to the pulley holder with the previously removed bolt set (152) and guide cable 5 (109) along underneath pulley P31 (91) and the weight plates (50) in the direction to pulley P32.
  • Page 44 Step 21 Guide cable 5 (109) along pulley P32 (91) through the upright support (58) and along underneath pulley P33 (91). Place cable 5 (109) on pulley P34 (91) and mount pulley P34 (91) to the foot extension pole (B62) with one bolt set (110).
  • Page 45 Cable 5...

  • Page 46: Assembly Part C

    Assembly Part C 2.4.1 Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred.
  • Page 47 Step 22 Place the end caps (79) onto the end of the foot exercise (71) and mount the foot exercise (71) to the rear support frame (5) with two bolt sets (144). Mount the left support pole (C69) and the right support pole (C70) to the rear support frame (5) with two bolt sets (98).

  • Page 48: Assembly Part D

    Assembly Part D 2.5.1 Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred.

  • Page 49: Assembly

    2.5.2 Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Then tighten the bolts using the tool only when you are instructed to do so.
  • Page 50 Step 24 To level the floor, additional protect pads (151) can be used.

  • Page 51: Cable Installation Overview

    Cable Installation Overview 2.6.1 Part A Cable 1 Cable 3 Cable 5 Cable 2...

  • Page 52: Part B

    2.6.2 Part B Cable 5...

  • Page 53: Storage And Transport

    STORAGE AND TRANSPORT General Instructions ࣑ ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. The storage location should be dry and well ventilated and have a constant ambient temperature between 5°C and 45°C. ⚠...

  • Page 54: Troubleshooting, Care And Maintenance

    TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. ⚠ CAUTION Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner.

  • Page 55: Maintenance And Inspection Calendar

    Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Half-yearly Yearly Cables and pulleys...

  • Page 56: Recommended Accessories

    RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape.

  • Page 57: Ordering Spare Parts

    The serial number of your equipment is unique. It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / multi-gym Model Name: Article Number: TF-WS5-6...

  • Page 58: Parts List Part A

    Parts List Part A Name Qty. BASE FRAME FRONT BASE TUBE LOW ROW CONNECTOR FOOT PLATE REAR UPRIGHT BOTTOM CROSS CONNECTOR SIDE ROW CONNECTOR FRONT UPRIGHT TOP FRAME FIXING BRACKET REAR CONNECT SINGLE PULLEY BLOCK CABLE ARM ASSEMBLE CABLE ARM AXLE COLLAR PRESS ARM PRESS ARM SELECTOR...
  • Page 59 PULL PIN GYRO WHEEL BUSHING INSERT PIN DOUBLE - THREAD SCREW ROUND TUBE INTENSIFY PLATE (1) INTENSIFY PLATE (2) INTENSIFY PLATE (3) PULLEY BLOCK JOINT PLATE BIG WASHER IRON BUSHING PLASTIC BUSHING HAND GRIP OF CABLE ARM BACK CUSHION SEAT CUSHION HEADREST CUSHION WEIGHT PLATE TOP PLATE...
  • Page 60 PULLEY - Ø100 HOIST HOOK HOLE PLUG SQUARE NECK BOLT M10×60 + WASHER + LOCK NUT BOLT M10×75 + TWO WASHERS + LOCK NUT SQUARE NECK BOLT M10×60 BOLT M10×70 + TWO WASHERS + LOCK NUT BOLT M10×90 + TWO WASHERS + LOCK NUT CROSS RECESSED COUNTERSUNK HEAD SCREW M10×65 + TWO NUTS BOLT M10×20 + WASHER CROSS PAD HEAD SCREW M6×10...
  • Page 61 RECTANGLE PLUG - 7050 SQUARE PLUG - 38 SQUARE PLUG - 25 SPRING FOAM TUBE LAT BAR CIRCLIPS FOR SHAFT BIG WASHER 12 CORE PULLING RIVET WASHER 10 + LOCK NUT M10 PROTECT PAD BOLT M10×45 + TWO WASHERS + LOCK NUT RUBBER PLATE CROSS SOCKET HEAD SCREWS M5×10 SQUARE NECK BOLT M10×60...
  • Page 62 BOLT M10×125 BOLT M6×45 WASHER 6 LOCK NUT M6 BOLT M8×16 WASHER 8 BOLT M8×85 BOLT M6×20 BOLT M10×65 BOLT M10×45 CROSS SOCKET HEAD SCREWS M5×10...

  • Page 63: Exploded Drawing Part A

    Exploded Drawing Part A...

  • Page 64: Parts List Part B

    Parts List Part B Name Qty. CONNECTING TUBE (A) CONNECTING TUBE (B) FRONT BASE TUBE RIGHT ARMREST LEFT ARMREST LEG EXTENSION BASE FRAME SUPPORT UPRIGHT SUPPORT SEAT SUPPORT BACK SUPPORT ROTATE BUSHING FOOT EXTENSION POLE (1) FOOT EXTENSION POLE (2) FOOT EXTENSION SUPPORT FOOT PLATE JOINT PLATE...
  • Page 65 UPRIGHT SUPPORT SEAT SUPPORT BACK SUPPORT ROTATE BUSHING FOOT EXTENSION POLE (1) FOOT EXTENSION POLE (2) FOOT EXTENSION SUPPORT FOOT PLATE JOINT PLATE FOAM CHECK RING SMALL SEAT CUSHION BACK CUSHION SQUARE END CAP - 50 PULLEY - Ø90 SQUARE NECK BOLT M10×60 + WASHER + LOCK NUT BOLT M10×75 + TWO WASHERS + LOCK NUT BOLT M10×70 + TWO WASHERS + LOCK NUT BOLT M10×115 + TWO WASHERS + LOCK NUT...

  • Page 66: Exploded Drawing Part B

    Exploded Drawing Part B...

  • Page 67: Parts List Part C

    Parts List Part C Name Qty. UPRIGHT HAND HANDLE LEFT SUPPORT POLE SET RIGHT SUPPORT POLE SET FOOT EXERCISE FOAM CHECK RING ARMREST CUSHION BACK CUSHION BOLT M10×70 + TWO WASHERS + LOCK NUT HEX SOCKET HEAD SCREWS M8×20 BOLT M10×115 + TWO WASHERS + LOCK NUT BOLT M8×70 + WASHER FOAM TUBE - Ø32*125 FOAM TUBE - Ø32*170...

  • Page 68: Exploded Drawing Part C

    Exploded Drawing Part C...

  • Page 69: Parts List Part D

    Parts List Part D Name Qty. LOW ROW BAR ABDOMINAL STRAP HOOK ANKLE STRAP CANTEEN RACK SUPPORT CANTEEN RACK HOIST HOOK CROSS PAD HEAD SCREW M6×16 CHAIN OVAL PLUG - 8040 ROUND PLUG - Ø30 FOAM TUBE - Ø32*125 CROSS PAD HEAD SCREW M6×16...

  • Page 70: Exploded Drawing Part D

    Exploded Drawing Part D...

  • Page 71: Warranty

    WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
  • Page 72 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.

  • Page 73: Contact
