Step 5
1.

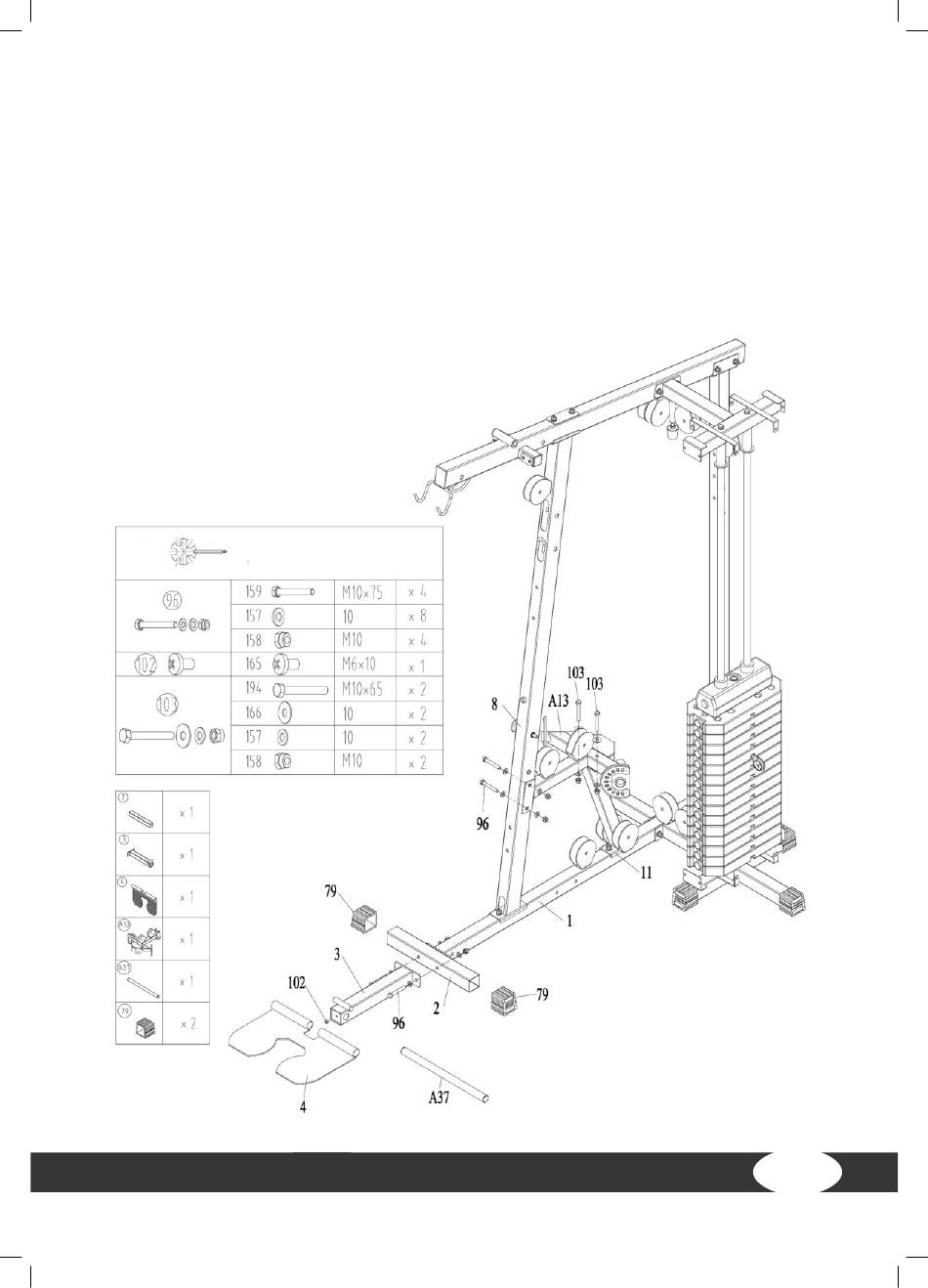

Mount the cable arm assemble (A13) to the rear connector (11) with two bolt sets (103).
2.
Screw the cable arm assemble (A13) to the front upright frame (A8) with two bolt sets (96).
3.
Place the end caps (79) onto the front base tube (2).
4.
Mount the low row connector (3) and the front base tube (2) to the base frame (1) with two bolt
sets (96).
5.
Mount the foot plate (4) to the low row connector (3) and insert the round tube (A37). Secure
the connection with a screw (102).
6.
Tighten all bolts with the tool.
2x
19
