User Manual
USB Hub DB-15
USB Hub DB-15 2-console KVM
USB Hub DB-15 KVM
Designed and manufactured by Austin Hughes
UM-CV-751-USBKVM-KIT-Q222V1

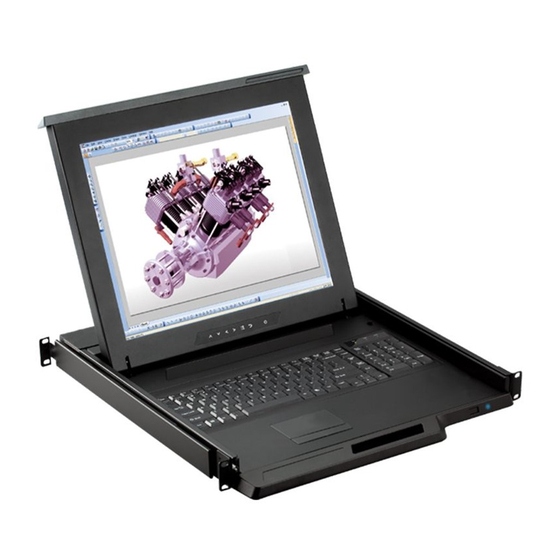

dedicated KVM switch and rackmount screen technology
- KVM Rear Kit Version
for LCD Console Drawer
KVM
-IP802H
back
AC Input : 100 - 240 VAC
-802H
back
AC Input : 100 - 240 VAC
-801H
back
AC Input : 100 - 240 VAC
www.austin-hughes.com
751

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CYBERVIEW DB-15 IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Austin Hughes CYBERVIEW DB-15 IP

Summary of Contents for Austin Hughes CYBERVIEW DB-15 IP

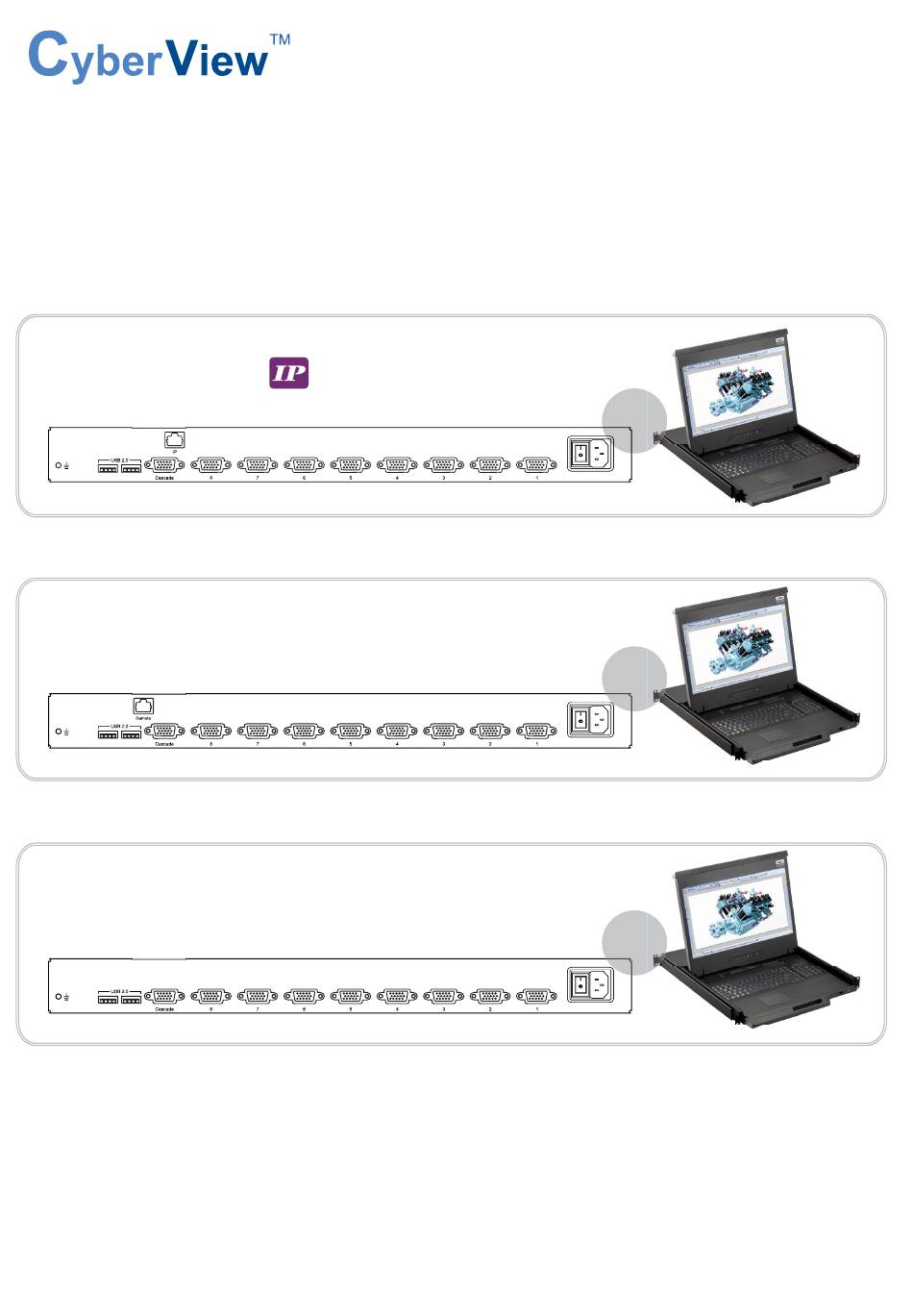

  • Page 1 AC Input : 100 - 240 VAC USB Hub DB-15 2-console KVM -802H back AC Input : 100 - 240 VAC USB Hub DB-15 KVM -801H back AC Input : 100 - 240 VAC Designed and manufactured by Austin Hughes UM-CV-751-USBKVM-KIT-Q222V1 www.austin-hughes.com...
  • Page 2 Legal Information First English printing, May 2022 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 > USB Hub DB-15 IP KVM -IP802H Package Contents KVM port connection IP console connection Connect to IP console IP Console Firmware Update Built-in USB Hub Usage & Connection KVM Cascade P.10 Specifi cations P.11 < Part. 2 > USB Hub DB-15 2-console KVM -802H Package Contents...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 5: Usb Hub Db-15 Ip Kvm

    < Part 1 > USB Hub DB-15 USB Hub DB-15 IP KVM < 1.1 > Package Contents -IP802H KVM Rear Kit back AC Input : 100 - 240 VAC The power of the KVM rear kit may be changed to external power design based on the LCD console drawer series and model.

  • Page 6: Kvm Port Connection

    < 1.2 > KVM port connection USB Hub DB-15 IP KVM CB-6 / CB-10 / CB-15 USB Servers ■ 6 / 10 / 15 ft USB KVM cable ■ Support USB server DB-15 USB KVM port Drawer KVM Rear Kit AC Input : 100 - 240 VAC CB - 6 / 10 / 15 USB KVM cable support USB server...

  • Page 7: Ip Console Connection

    < 1.3 > IP console connection USB Hub DB-15 IP KVM Network device hub or router CAT 5 / 6 cable Drawer KVM Rear Kit AC Input : 100 - 240 VAC IP Console Frequency Resolution Support ( Hz ) 1920 x 1080 1920 x 1200 1600 x 1200...

  • Page 8: Connect To Ip Console

    < 1.4 > Connect to IP console USB Hub DB-15 IP KVM Please make sure to follow the below steps to setup your KVM IP properly. I. Confi gure the target server The target server is the server that connected to the IP KVM Switch. Before use IP remote access, you need to turn off...
  • Page 9 USB Hub DB-15 IP KVM Change display scaling setting 100% Open Settings. Click on System. Click on Display. Under the “Scale and layout” section, select the scale 100%. UM-CV-751-USBKVM-KIT-Q222V1 www.austin-hughes.com...
  • Page 10 USB Hub DB-15 IP KVM II. Logging in to IP KVM The default IP address is as below: IP address: 192.168.1.22 Subnet mask: 255.255.255.0 Gateway: 192.168.1.1 IP KVM model with single IP port: - Default address 192.168.1.22 IP KVM model with dual IP ports: - The 1st IP address 192.168.1.22 - The 2nd IP address 192.168.1.23 To log in to the IP KVM do as follows:...
  • Page 11 USB Hub DB-15 IP KVM III. Confi gure Remote Console Resolution The IP remote console displayed on the HTML5-based browser support multiple types of resolution, with a maximum of 1,920 x 1,200. Click Remote Console and then Resolution, the Remote Console Video page is displayed, select the same resolution as target servers, click Apply to save the resolution.

  • Page 12: Ip Console Firmware Update

    < 1.5 > IP Console Firmware Update USB Hub DB-15 IP KVM Firmware Update Steps 1) Download the latest IP KVM fi rmware from the link http://www.austin-hughes.com/resources/software/kvm-switch 2) Login the IP KVM 3) Click < Maintenance > 4) Click < Update Firmware > 5) Click <...

  • Page 13: Built-In Usb Hub Usage & Connection

    < 1.6 > Built-in USB Hub Usage & Connection USB Hub DB-15 IP KVM AC Input : 100 - 240 VAC 2 x USB 2.0 ( USB hub for device connection ) Flash Disk Hard disk storage Keyboard / Mouse Scanner Printer Camera...

  • Page 14: Kvm Cascade

    < 1.7 > KVM Cascade USB Hub DB-15 IP KVM ■ Cascade up to 8 levels, 128 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of CV-801H. When multiple combo DB-15 KVMs cascade together, the master KVM at level 1 will take all control of other Expansion KVM switches (e.g.

  • Page 15: Specifi Cations

    < 1.8 > Specifi cations USB Hub DB-15 IP KVM -IP802H KVM Port ▀ Number of ports : Connector : DB-15 combo connector Connectivity : Combo 2-in-1 VGA + USB KVM cable, 6, 10 or 15 feet Local Console : Nil for LCD console drawer version ▀...

  • Page 16: Usb Hub Db-15 2-Console Kvm

    < Part 2 > SB Hub DB-15 2-console KVM USB Hub DB-15 2-console KVM < 2.1 > Package Contents -802H • Receiver box for remote console x 1 • Power adapter w/ power cord ( for receiver ) x 1 •...

  • Page 17: Kvm Port Connection

    < 2.2 > KVM port connection USB Hub DB-15 2-console KVM CB-6 / CB-10 / CB-15 USB Servers ■ 6 / 10 / 15 ft USB KVM cable ■ Support USB server DB-15 USB KVM port Drawer KVM Rear Kit AC Input : 100 - 240 VAC CB - 6 / 10 / 15 USB KVM cable support USB server...

  • Page 18: Remote Console Connection

    < 2.3 > Remote console connection USB Hub DB-15 2-console KVM For remote console, max. cable length is subject to the resolution. Please refer to the tables below. Drawer KVM Rear Kit AC Input : 100 - 240 VAC Remote Console Frequency Max.
  • Page 19 How to use a receiver to connect a remote console USB Hub DB-15 2-console KVM Local Power Computer Remote I/O Receiver Front Mouse Remote Local Rear Select button The receiver provides a hotkey function for remote console. Please refer to P.23 Remote Drawer KVM Rear Kit Console...

  • Page 20: Built-In Usb Hub Usage & Connection

    < 2.4 > Built-in USB Hub Usage & Connection USB Hub DB-15 2-console KVM AC Input : 100 - 240 VAC 2 x USB 2.0 ( USB hub for device connection ) Flash Disk Hard disk storage Keyboard / Mouse Scanner Printer Camera...

  • Page 21: Kvm Cascade

    < 2.5 > KVM Cascade USB Hub DB-15 2-console KVM ■ Cascade up to 8 levels, 128 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of CV-801H. When multiple combo DB-15 KVMs cascade together, the master KVM at level 1 will take all control of other Expansion KVM switches (e.g.

  • Page 22: Specifi Cations

    < 2.6 > Specifi cations USB Hub DB-15 2-console KVM -802H KVM Port ▀ Number of ports : Connector : DB-15 combo connector Connectivity : Combo 2-in-1 VGA + USB KVM cable, 6, 10 or 15 feet Local Console : Nil for LCD console drawer version ▀...

  • Page 23: Usb Hub Db-15 Kvm

    < Part 3 > USB Hub DB-15 KVM USB Hub DB-15 KVM < 3.1 > Package Contents -801H KVM Rear Kit back AC Input : 100 - 240 VAC The power of the KVM rear kit may be changed to external power design based on the LCD console drawer series and model.

  • Page 24: Kvm Port Connection

    < 3.2 > KVM port connection USB Hub DB-15 KVM CB-6 / CB-10 / CB-15 USB Servers ■ 6 / 10 / 15 ft USB KVM cable ■ Support USB server DB-15 USB KVM port Drawer KVM Rear Kit AC Input : 100 - 240 VAC CB - 6 / 10 / 15 USB KVM cable support USB server USB Servers...

  • Page 25: Built-In Usb Hub Usage & Connection

    < 3.3 > Built-in USB Hub Usage & Connection USB Hub DB-15 KVM AC Input : 100 - 240 VAC 2 x USB 2.0 ( USB hub for device connection ) Flash Disk Hard disk storage Keyboard / Mouse Scanner Printer Camera UM-CV-751-USBKVM-KIT-Q222V1...

  • Page 26: Kvm Cascade

    < 3.4 > KVM Cascade USB Hub DB-15 KVM ■ Cascade up to 8 levels, 128 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of CV-801H. When multiple combo DB-15 KVMs cascade together, the master KVM at level 1 will take all control of other Expansion KVM switches (e.g.

  • Page 27: Specifi Cations

    < 3.5 > Specifi cations USB Hub DB-15 KVM -801H ▀ KVM Port Number of ports : Connector : DB-15 combo connector Connectivity : Combo 2-in-1 VGA + USB KVM cable, 6, 10 or 15 feet Local Console : Nil for LCD console drawer version ▀...

  • Page 28: Usb Hub Db-15 Kvm Usage

    < Part 4 > Usage USB Hub DB-15 KVM Usage < 4.1 > KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications USB Hub DB-15 KVM 8 ports Bank no.

  • Page 29: Password

    < 4.2 > Password USB Hub DB-15 KVM Usage The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”...

  • Page 30: Kvm Osd

    < 4.3 > KVM OSD USB Hub DB-15 KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter...

  • Page 31: Kvm Hotkey & Remote Console Hotkey

    < 4.4 > KVM Hotkey & Remote Console Hotkey USB Hub DB-15 KVM Usage Local / IP Remote Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port...
  • Page 32 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-USBKVM-KIT-Q222V1 P.28...
