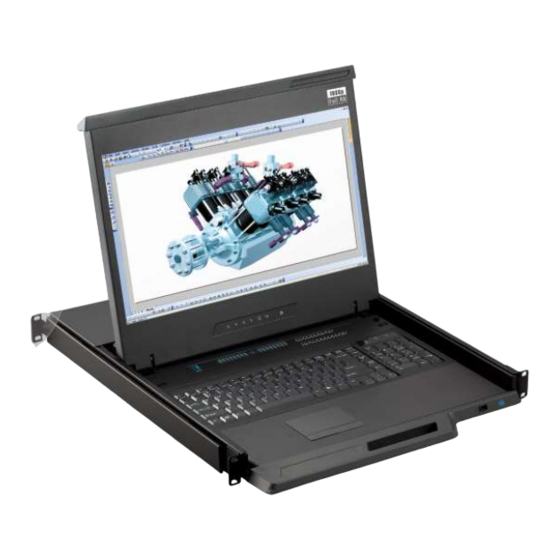

User Manual
Cat6
KVM
Cat6 2-console KVM
Cat6 KVM
Designed and manufactured by Austin Hughes
UM-CV-751-UKVM-KIT-Q322V1
dedicated KVM switch and rackmount screen technology
- KVM Rear Kit Version
for LCD Console Drawer
-UIP802
-UIP1602
-UIP3202
back
-U802
-U1602
-U3202
back
-U801
-U1601
-U3201
back
www.austin-hughes.com
751

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CyberView Cat6 IP KVM UIP802 and is the answer not in the manual?

Questions and answers

Related Manuals for Austin Hughes CyberView Cat6 IP KVM UIP802

Summary of Contents for Austin Hughes CyberView Cat6 IP KVM UIP802

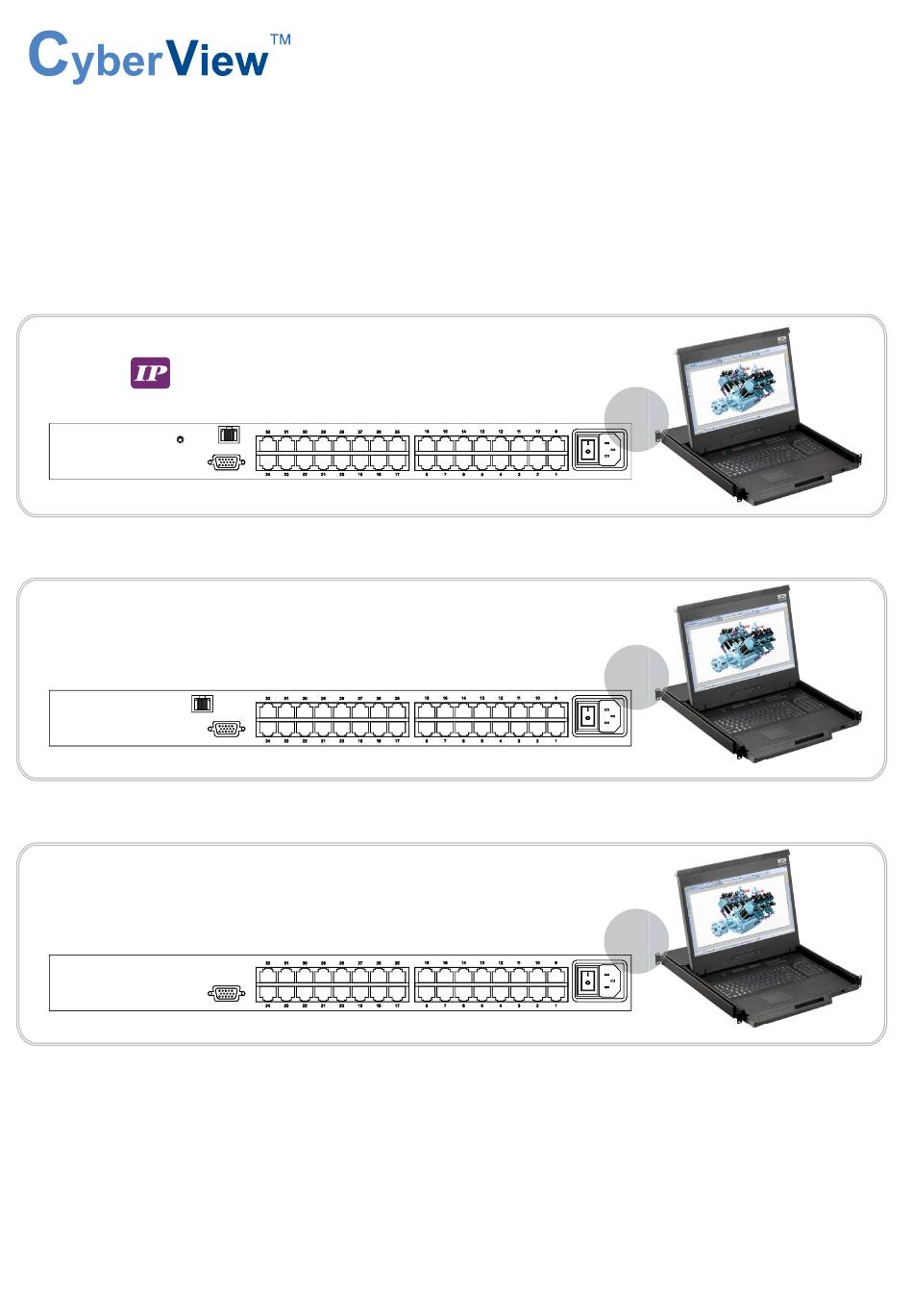

  • Page 1 KVM switch and rackmount screen technology User Manual - KVM Rear Kit Version for LCD Console Drawer -UIP802 -UIP1602 Cat6 -UIP3202 back -U802 -U1602 Cat6 2-console KVM -U3202 back -U801 -U1601 Cat6 KVM -U3201 back Designed and manufactured by Austin Hughes UM-CV-751-UKVM-KIT-Q322V1 www.austin-hughes.com...
  • Page 2 Legal Information First English printing, August 2022 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 > Cat6 IP KVM -UIP802 -UIP1602 -UIP3202 Package Content KVM port & Cat6 dongle connection IP & Remote console connection IP Console Setting Important Preconfi guration for IP console P.5 - 7 KVM Cascade Specifi cations <...
  • Page 4 < Part 1 > Cat6 Cat6 IP KVM < 1.1 > Package Contents -UIP802 -UIP1602 -UIP3202 KVM Rear Kit back The power of the KVM rear kit may be changed to external power design based on the LCD console drawer series and model. -UIP802 Cascade Power...
  • Page 5 < 1.2 > KVM port & Cat6 dongle connection Cat6 IP KVM DG-100C DG-100P DG-100H DG-100SD DG-100S USB-C dongle DP-USB dongle HDMI-USB dongle DVI-USB dongle VGA-USB dongle Servers DG-100C USB-C CAT 5 / 6 cable DG-100P max. 40 meters Cat6 KVM port Drawer KVM Rear Kit DG-100H HDMI...
  • Page 6 < 1.3 > IP console connection Cat6 IP KVM Drawer KVM Rear Kit IP Console Frequency Resolution Support ( Hz ) 1920 x 1080 1920 x 1200 1600 x 1200 1280 x 1024 1024 x 768 UM-CV-751-UKVM-KIT-Q322V1 www.austin-hughes.com...
  • Page 7 < 1.4 > Connect to IP console Cat6 IP KVM Please make sure to follow the below steps to setup your KVM IP properly. I. Confi gure the target server The target server is the server that connected to the IP KVM Switch. Before use IP remote access, you need to turn off...
  • Page 8 Cat6 IP KVM Change display scaling setting 100% Open Settings. Click on System. Click on Display. Under the “Scale and layout” section, select the scale 100%. UM-CV-751-UKVM-KIT-Q322V1 www.austin-hughes.com...
  • Page 9 Cat6 IP KVM II. Logging in to IP KVM The default IP address is as below: IP address: 192.168.1.22 Subnet mask: 255.255.255.0 Gateway: 192.168.1.1 IP KVM model with single IP port: - Default address 192.168.1.22 IP KVM model with dual IP ports: - The 1st IP address 192.168.1.22 - The 2nd IP address 192.168.1.23 To log in to the IP KVM do as follows:...
  • Page 10 Cat6 IP KVM III. Confi gure Remote Console Resolution The IP remote console displayed on the HTML5-based browser support multiple types of resolution, with a maximum of 1,920 x 1,200. Click Remote Console and then Resolution, the Remote Console Video page is displayed, select the same resolution as target servers, click Apply to save the resolution.
  • Page 11 < 1.5 > IP Console Firmware Update Cat6 IP KVM Firmware Update Steps 1) Download the latest IP KVM fi rmware from the link http://www.austin-hughes.com/resources/software/kvm-switch 2) Login the IP KVM 3) Click < Maintenance > 4) Click < Update Firmware > 5) Click <...
  • Page 12 < 1.6 > KVM Cascade Cat6 IP KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of U-801 / U-1601 / U-3201. When multiple Cat6 KVMs cascade together, the master KVM at level 1 will take all control of other Expansion KVM switches (e.g.

  • Page 13: Specifi Cations

    < 1.7 > Specifi cations Cat6 IP KVM -UIP802 -UIP1602 -UIP3202 KVM Port ▀ Number of ports : 8, 16 or 32 Connector : RJ-45 Connectivity : DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable Local Console : Nil for LCD console drawer version ▀...

  • Page 14: Cat6 2-Console Kvm

    < Part 2 > Cat6 2-console KVM < 2.1 > Package Contents Cat6 2-console KVM -U802 / -U1602 / -U3202 • Receiver box for remote console x 1 • Power adapter w/ power cord ( for receiver ) x 1 •...

  • Page 15: Kvm Port & Cat6 Dongle Connection

    < 2.2 > KVM port & Cat6 dongle connection Cat6 2-console KVM DG-100C DG-100P DG-100H DG-100SD DG-100S USB-C dongle DP-USB dongle HDMI-USB dongle DVI-USB dongle VGA-USB dongle Servers DG-100C USB-C CAT 5 / 6 cable DG-100P max. 40 meters Cat6 KVM port Drawer KVM Rear Kit DG-100H HDMI...

  • Page 16: Remote Console Connection

    < 2.3 > Remote console connection Cat6 2-console KVM For remote console, max. cable length is subject to the resolution. Please refer to the tables below. Drawer KVM Rear Kit Remote Console Frequency Max. Cat6 Cable Resolution Support ( Hz ) Length ( M ) 1920 x 1080 1920 x 1200...
  • Page 17 How to use a receiver to connect a remote console Cat6 2-console KVM Local Power Computer Remote I/O Receiver Front Mouse Remote Local Rear Select button The receiver provides a hotkey function for remote console. Please refer to P.23 Remote Drawer KVM Rear Kit Console Local computer...

  • Page 18: Kvm Cascade

    < 2.4 > KVM Cascade Cat6 2-console KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of U-801 / U-1601 / U-3201. When multiple Cat6 KVMs cascade together, the master KVM at level 1 will take all control of other Expansion KVM switches (e.g.

  • Page 19: Specifi Cations

    < 2.5 > Specifi cations Cat6 2-console KVM -U802 -U1602 -U3202 KVM Port ▀ Number of ports : 8, 16 or 32 Connector : RJ-45 Connectivity : DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable Local Console : Nil for LCD console drawer version ▀...

  • Page 20: Cat6 Kvm

    < Part 3 > Cat6 KVM < 3.1 > Package Contents Cat6 KVM -U801 -U1601 -U3201 KVM Rear Kit back The power of the KVM rear kit may be changed to external power design based on the LCD console drawer series and model. -U801 Cascade Power...

  • Page 21: Kvm Port & Cat6 Dongle Connection

    < 3.2 > KVM port & Cat6 dongle connection Cat6 KVM DG-100C DG-100P DG-100H DG-100SD DG-100S USB-C dongle DP-USB dongle HDMI-USB dongle DVI-USB dongle VGA-USB dongle Servers DG-100C USB-C CAT 5 / 6 cable DG-100P max. 40 meters Cat6 KVM port Drawer KVM Rear Kit DG-100H HDMI...

  • Page 22: Kvm Cascade

    < 3.3 > KVM Cascade Cat6 KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of U-801 / U-1601 / U-3201. When multiple Cat6 KVMs cascade together, the master KVM at level 1 will take all control of other Expansion KVM switches (e.g.

  • Page 23: Specifi Cations

    < 3.4 > Specifi cations Cat6 KVM -U801 -U1601 -U3201 KVM Port ▀ Number of ports : 8, 16 or 32 Connector : RJ-45 Connectivity : DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable Local Console : Nil for LCD console drawer version ▀...

  • Page 24: Usage

    < Part 4 > Usage Cat6 KVM Usage < 4.1 > KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications 8 ports Bank no.

  • Page 25: Password

    < 4.2 > Password Cat6 KVM Usage The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”...

  • Page 26: Kvm Osd

    < 4.3 > KVM OSD Cat6 KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter Complete / Switch to selected port...

  • Page 27: Kvm Hotkey & Remote Console Hotkey

    < 4.4 > KVM Hotkey & Remote Console Hotkey Cat6 KVM Usage Local / IP Remote Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port...
  • Page 28 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-UKVM-KIT-Q322V1 P.25...
