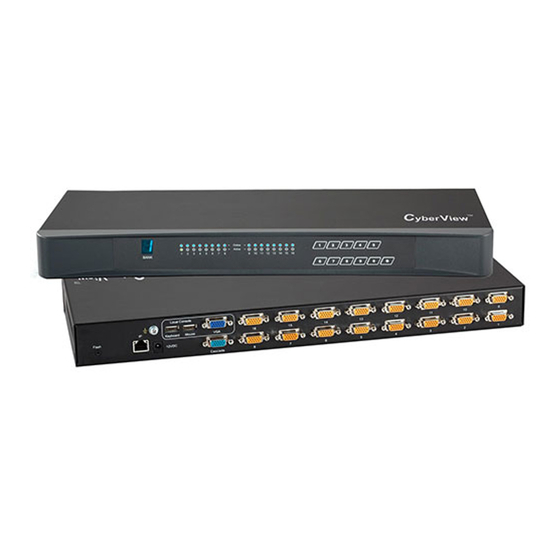

dedicated KVM switch and rackmount screen technology
User Manual
Combo DB-15
2-console KVM
IP-802 / IP-1602
Combo DB-15
2-console KVM
CV-802 / CV-1602
Combo DB-15 KVM
CV-S801 / CV-S1601
751
Designed and manufactured by Austin Hughes
UM-CV-751-SKVM-Q222V1
www.austin-hughes.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP-802 and is the answer not in the manual?

Questions and answers

Related Manuals for Austin Hughes IP-802

Summary of Contents for Austin Hughes IP-802

  • Page 1 KVM switch and rackmount screen technology User Manual Combo DB-15 2-console KVM IP-802 / IP-1602 Combo DB-15 2-console KVM CV-802 / CV-1602 Combo DB-15 KVM CV-S801 / CV-S1601 Designed and manufactured by Austin Hughes UM-CV-751-SKVM-Q222V1 www.austin-hughes.com...
  • Page 2 Legal Information First English printing, May 2022 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 > Combo DB-15 IP KVM IP-802 IP-1602 Package Contents KVM port connection IP & Local console connection Connect to IP console IP Console Firmware Update KVM Cascade Specifi cations < Part. 2 > Combo DB-15 2-console KVM...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 5: Combo Db-15 Ip Kvm

    Combo DB-15 IP KVM < 1.1 > Package Contents IP-802 / IP-1602 KVM unit • IP-802 or IP-1602 KVM unit x 1 • Mounting set w/ bracket & screws x 1 • Power adapter w/ power cord ( for KVM ) x 1...

  • Page 6: Ip & Local Console Connection

    < 1.3 > IP & Local console connection Combo DB-15 IP KVM IP Console IP Console ( 1080 support ) Frequency Frequency Resolution Support Resolution Support ( Hz ) ( Hz ) 1920 x 1080 1920 x 1080 1920 x 1200 1600 x 1200 1600 x 1200 1280 x 1024...

  • Page 7: Connect To Ip Console

    < 1.4 > Connect to IP console Combo DB-15 IP KVM Please make sure to follow the below steps to setup your KVM IP properly. I. Confi gure the target server The target server is the server that connected to the IP KVM Switch. Before use IP remote access, you need to turn off...
  • Page 8 Combo DB-15 IP KVM Change display scaling setting 100% Open Settings. Click on System. Click on Display. Under the “Scale and layout” section, select the scale 100%. UM-CV-751-SKVM-Q222V1 www.austin-hughes.com...
  • Page 9 Combo DB-15 IP KVM II. Logging in to IP KVM The default IP address is as below: IP address: 192.168.1.22 Subnet mask: 255.255.255.0 Gateway: 192.168.1.1 IP KVM model with single IP port: - Default address 192.168.1.22 IP KVM model with dual IP ports: - The 1st IP address 192.168.1.22 - The 2nd IP address 192.168.1.23 To log in to the IP KVM do as follows:...
  • Page 10 Combo DB-15 IP KVM III. Confi gure Remote Console Resolution The IP remote console displayed on the HTML5-based browser support multiple types of resolution, with a maximum of 1,920 x 1,200. Click Remote Console and then Resolution, the Remote Console Video page is displayed, select the same resolution as target servers, click Apply to save the resolution.

  • Page 11: Ip Console Firmware Update

    < 1.5 > IP Console Firmware Update Combo DB-15 IP KVM Firmware Update Steps 1) Download the latest IP KVM fi rmware from the link http://www.austin-hughes.com/resources/software/kvm-switch 2) Login the IP KVM 3) Click < Maintenance > 4) Click < Update Firmware > 5) Click <...

  • Page 12: Kvm Cascade

    < 1.6 > KVM Cascade Combo DB-15 IP KVM ■ Cascade up to 8 levels, 128 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of CV-S801 / CV-S1601. When multiple combo DB-15 KVMs cascade together, the master KVM at level 1 will take all control of other Expansion KVM switches (e.g.

  • Page 13: Specifi Cations

    Dimension (W x D x H) : 443 x 171 x 44 mm / 17.4 x 6.7 x 1.73 inch Net weight : 2.3 kg / 5.1 lb ( IP-802 ) 2.5 kg / 5.5 lb ( IP-1602 ) ▀...

  • Page 14: Combo Db-15 2-Console Kvm

    < Part 2 > Combo DB-15 2-console KVM < 2.1 > Package Contents Combo DB-15 2-console KVM CV-802 / CV-1602 • CV-802 or CV-1602 KVM unit x 1 • Mounting set w/ bracket & screws x 1 KVM unit • Power adapter w/ power cord ( for KVM ) x 1 •...

  • Page 15: Remote & Local Console Connection

    < 2.3 > Remote & Local console connection Combo DB-15 2-console KVM For remote console, max. cable length is subject to the resolution. Please refer to the tables below. Remote Console Frequency Max. Cat6 Cable Resolution Support ( Hz ) Length ( M ) 1920 x 1080 1920 x 1200...
  • Page 16 How to use a receiver to connect a remote console Combo DB-15 2-console KVM Local Power Computer Remote I/O Receiver Front Mouse Remote Local Rear Select button The receiver provides a hotkey function for remote console. Please refer to P.21 Remote Console Local computer...

  • Page 17: Kvm Cascade

    < 2.4 > KVM Cascade Combo DB-15 2-console KVM ■ Cascade up to 8 levels, 128 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of CV-S801 / CV-S1601. When multiple combo DB-15 KVMs cascade together, the master KVM at level 1 will take all control of other Expansion KVM switches (e.g.

  • Page 18: Specifi Cations

    Dimension (W x D x H) : 500 x 400 x 140 mm / 19.7 x 15.8 x 5.5 inch Gross weight : 3.8 kg / 8.4 lb ( IP-802 ) 4.1 kg / 9 lb ( IP-1602 ) UM-CV-751-SKVM-Q222V1 P.14...

  • Page 19: Combo Db-15 Kvm

    < Part 3 > Combo DB-15 KVM Combo DB-15 KVM < 3.1 > Package Contents CV-S801 / CV-S1601 KVM unit • CV-S801 or CV-S1601 KVM unit x 1 • Mounting set w/ bracket & screws x 1 • Power cord ( for KVM ) x 1 CV-S801 Local Console Power...

  • Page 20: Kvm Port Connection

    < 3.2 > KVM port connection Combo DB-15 KVM CB-6 / CB-10 / CB-15 USB Servers ■ 6 / 10 / 15 ft USB KVM cable ■ Support USB server DB-15 Combo KVM port CB - 6 / 10 / 15 USB KVM cable support USB server USB Servers UM-CV-751-SKVM-Q222V1...

  • Page 21: Kvm Cascade

    < 3.3 > KVM Cascade Combo DB-15 KVM ■ Cascade up to 8 levels, 128 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of CV-S801 / CV-S1601. When multiple combo DB-15 KVMs cascade together, the master KVM at level 1 will take all control of other Expansion KVM switches (e.g.

  • Page 22: Specifi Cations

    < 3.4 > Specifi cations Combo DB-15 KVM CV-S801 CV-S1601 KVM Port ▀ Number of ports : 8 or 16 Connector : DB-15 combo connector Connectivity : USB 2-in-1 KVM cable, up to 6, 10 & 15 feet Local Console ▀...

  • Page 23: Combo Db-15 Kvm Usage

    < Part 4 > Usage Combo DB-15 KVM Usage < 4.1 > KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications 8 ports Bank no.

  • Page 24: Password

    < 4.2 > Password Combo DB-15 KVM Usage The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”...

  • Page 25: Kvm Osd

    < 4.3 > KVM OSD Combo DB-15 KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter...

  • Page 26: Kvm Hotkey & Remote Console Hotkey

    < 4.4 > KVM Hotkey & Remote Console Hotkey Combo DB-15 KVM Usage Local / IP Remote Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port...
  • Page 27 < 4.5 > Options : DC Power Combo DB-15 KVM Usage Model 125V 250V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load 50 mA...
  • Page 28 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-SKVM-Q222V1 www.austin-hughes.com...
