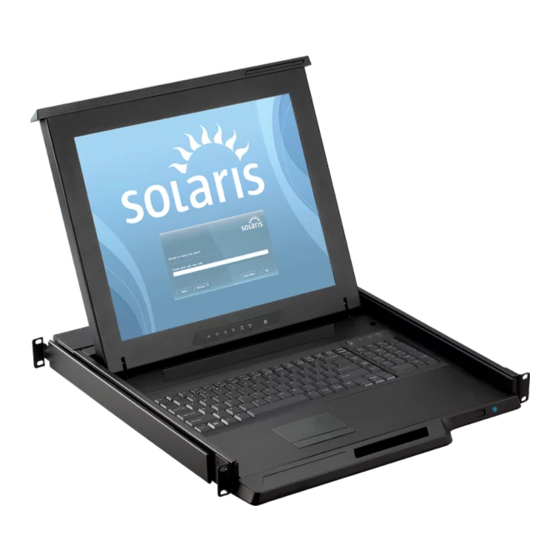

User Manual
USB Hub DB-15
USB Hub DB-15 2-console KVM
USB Hub DB-15 KVM
Designed and manufactured by Austin Hughes
UM-CV-751-USBKVM-KIT-Q221V1
dedicated KVM switch and rackmount screen technology
- KVM Rear Kit Version
for LCD Console Drawer
KVM
-IP802H
-IP1602H
back
-802H
-1602H
back
-801H
-1601H
back
www.austin-hughes.com
751
Advertisement
Table of Contents
Related Manuals for Austin Hughes CyberView DB-15
Summary of Contents for Austin Hughes CyberView DB-15

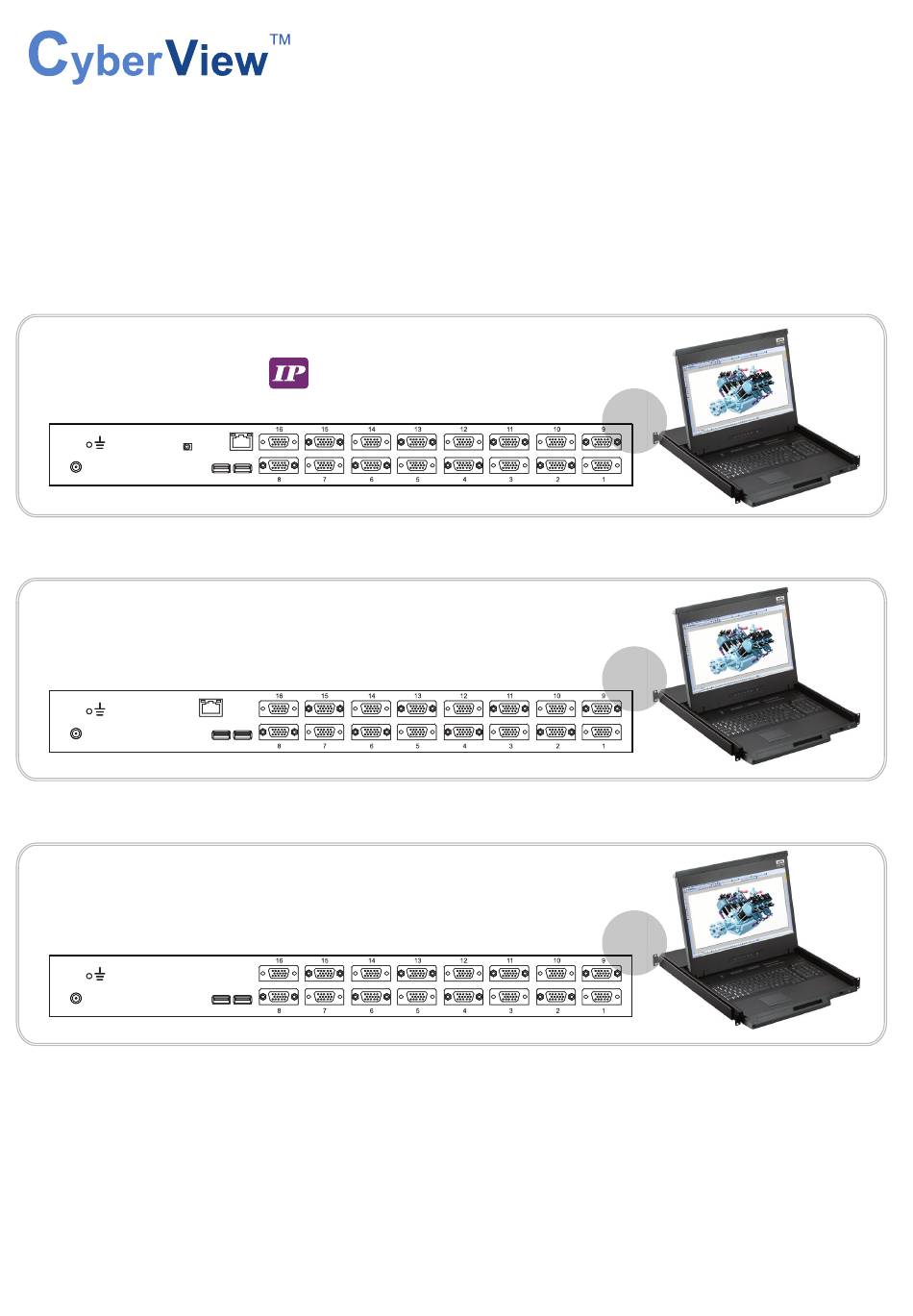

- Page 1 User Manual - KVM Rear Kit Version for LCD Console Drawer -IP802H USB Hub DB-15 -IP1602H back -802H USB Hub DB-15 2-console KVM -1602H back -801H USB Hub DB-15 KVM -1601H back Designed and manufactured by Austin Hughes UM-CV-751-USBKVM-KIT-Q221V1 www.austin-hughes.com...
- Page 2 Intentionally Left Blank UM-CV-751-USBKVM-KIT-Q221V1 www.austin-hughes.com...
- Page 3 Legal Information First English printing, April 2021 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents < Part. 1 > USB Hub DB-15 IP KVM -IP802H -IP1602H KVM port connection KVM port connection IP console connection IP console setting Important Preconfiguration for IP console Built-in USB Hub Usage & Connection Specifications < Part. 2 > USB Hub DB-15 2-console KVM -802H -1602H... -
Page 5: Usb Hub Db-15 Ip Kvm
< Part 1 > USB Hub DB-15 USB Hub DB-15 IP KVM < 1.1 > Package Contents -IP802H -IP1602H KVM Rear Kit back The power of the KVM rear kit may be changed to external power design based on the LCD console drawer series and model. -IP802H Flash 12VDC... -
Page 6: Kvm Port Connection
< 1.2 > KVM port connection USB Hub DB-15 IP KVM CB-6 / CB-10 / CB-15 USB Servers ■ 6 / 10 / 15 ft USB KVM cable ■ Support USB server DB-15 USB KVM port Drawer KVM Rear Kit CB - 6 / 10 / 15 USB KVM cable support USB server USB Servers... -
Page 7: Ip Console Connection
< 1.3 > IP console connection USB Hub DB-15 IP KVM Network device hub or router CAT 5 / 6 cable Drawer KVM Rear Kit IP Console Frequency Resolution Support ( Hz ) 1600 x 1200 1280 x 1024 1024 x 768 60 / 70 / 75 UM-CV-751-USBKVM-KIT-Q221V1 www.austin-hughes.com... -
Page 8: Ip Console Setting
< 1.4 > IP console setting USB Hub DB-15 IP KVM After the cable connection, please take the following steps to configure the IP KVM : 1. Download IPKVMsetup.exe from the link: www.austin-hughes.com/support/utilities/cyberview/IPKVMsetup.exe 2. Double click IPKVMsetup.exe to configure the IP KVM by device setup as below. 3. -
Page 9: Important Preconfiguration For Ip Console
< 1.5 > Important Preconfiguration for IP console USB Hub DB-15 IP KVM You must complete the following tasks after the IP console setting is performed. ( 1 ) TARGET SERVER SETUP **Servers connected to KVM Resolution The IP KVM remote console recognizes several varieties of video display formats with resolutions up to 1600 x 1200 @60Hz. - Page 10 < 1.5 > Important Preconfiguration for IP console USB Hub DB-15 IP KVM ( 2 ) REMOTE CLIENT COMPUTER SETUP The remote client computer must have a web browser ( such as Microsoft Internet Explorer, Mozilla Firefox, and Netscape Navigator ) and a Java Virtual Machine ( version 1.4 or higher ) installed. Enable Java on the web browser.
- Page 11 USB Hub DB-15 IP KVM 6) Click < Update > After the firmware has been updated, IP KVM will reset automatically. After one minute, you will be redirected to the Login page and requested to login again. - Completed UM-CV-751-USBKVM-KIT-Q221V1 www.austin-hughes.com...
-
Page 12: Built-In Usb Hub Usage & Connection
< 1.6 > Built-in USB Hub Usage & Connection USB Hub DB-15 IP KVM 2 x USB 2.0 ( USB hub for device connection ) Flash Disk Hard disk storage Keyboard / Mouse Scanner Printer Camera UM-CV-751-USBKVM-KIT-Q221V1 www.austin-hughes.com... -
Page 13: Specifications
< 1.7 > Specifications USB Hub DB-15 IP KVM -IP802H -IP1602H KVM Port ▀ Number of ports : 8 or 16 Connector : DB-15 combo connector Connectivity : Combo 2-in-1 VGA + USB KVM cable, 6, 10 or 15 feet Local Console : Nil for LCD console drawer version ▀... -
Page 14: Usb Hub Db-15 2-Console Kvm
< Part 2 > SB Hub DB-15 2-console KVM USB Hub DB-15 2-console KVM < 2.1 > Package Contents -802H / -1602H • Receiver box for remote console x 1 • Power adapter w/ power cord ( for receiver ) x 1 •... -
Page 15: Kvm Port Connection
< 2.2 > KVM port connection USB Hub DB-15 2-console KVM CB-6 / CB-10 / CB-15 USB Servers ■ 6 / 10 / 15 ft USB KVM cable ■ Support USB server DB-15 USB KVM port Drawer KVM Rear Kit CB - 6 / 10 / 15 USB KVM cable support USB server USB Servers... -
Page 16: Remote Console Connection
< 2.3 > Remote console connection USB Hub DB-15 2-console KVM Remote USB console For remote console, max. cable length is Receiver subject to the resolution. Please refer to the tables below. Drawer KVM Rear Kit Remote Console Frequency Max. Cat6 Cable Resolution Support ( Hz ) Length ( M ) - Page 17 How to use a receiver to connect a remote console USB Hub DB-15 2-console KVM Local Power Computer Remote I/O Receiver Front Mouse Remote Local Rear Select button The receiver provides a hotkey function for remote console. Please refer to P.23 Remote Drawer KVM Rear Kit Console...
-
Page 18: Built-In Usb Hub Usage & Connection
< 2.4 > Built-in USB Hub Usage & Connection USB Hub DB-15 2-console KVM 2 x USB 2.0 ( USB hub for device connection ) Flash Disk Hard disk storage Keyboard / Mouse Scanner Printer Camera UM-CV-751-USBKVM-KIT-Q221V1 P.14 www.austin-hughes.com... -
Page 19: Specifications
< 2.5 > Specifications USB Hub DB-15 2-console KVM -802H -1602H KVM Port ▀ Number of ports : 8 or 16 Connector : DB-15 combo connector Connectivity : Combo 2-in-1 VGA + USB KVM cable, 6, 10 or 15 feet Local Console : Nil for LCD console drawer version ▀... -
Page 20: Usb Hub Db-15 Kvm
< Part 3 > USB Hub DB-15 KVM USB Hub DB-15 KVM < 3.1 > Package Contents -801H / -1601H KVM Rear Kit back The power of the KVM rear kit may be changed to external power design based on the LCD console drawer series and model. -801H 12VDC 2 x USB 2.0... -
Page 21: Kvm Port Connection
< 3.2 > KVM port connection USB Hub DB-15 KVM CB-6 / CB-10 / CB-15 USB Servers ■ 6 / 10 / 15 ft USB KVM cable ■ Support USB server DB-15 USB KVM port Drawer KVM Rear Kit CB - 6 / 10 / 15 USB KVM cable support USB server USB Servers UM-CV-751-USBKVM-KIT-Q221V1... -
Page 22: Built-In Usb Hub Usage & Connection
< 3.3 > Built-in USB Hub Usage & Connection USB Hub DB-15 KVM 2 x USB 2.0 ( USB hub for device connection ) Flash Disk Hard disk storage Keyboard / Mouse Scanner Printer Camera UM-CV-751-USBKVM-KIT-Q221V1 P.18 www.austin-hughes.com... -
Page 23: Specifications
< 3.4 > Specifications USB Hub DB-15 KVM -801H -1601H ▀ KVM Port Number of ports : 8 or 16 Connector : DB-15 combo connector Connectivity : Combo 2-in-1 VGA + USB KVM cable, 6, 10 or 15 feet Local Console : Nil for LCD console drawer version ▀... -
Page 24: Usb Hub Db-15 Kvm Usage
< Part 4 > Usage USB Hub DB-15 KVM Usage < 4.1 > KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch finally computer Front Panel - Port LED Indications USB Hub DB-15 KVM 8 ports Bank no. -
Page 25: Password
< 4.2 > Password USB Hub DB-15 KVM Usage The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”... -
Page 26: Kvm Osd
< 4.3 > KVM OSD USB Hub DB-15 KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter... -
Page 27: Kvm Hotkey & Remote Console Hotkey
< 4.4 > KVM Hotkey & Remote Console Hotkey USB Hub DB-15 KVM Usage Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port... - Page 28 The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2021 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-USBKVM-KIT-Q221V1 P.24...
