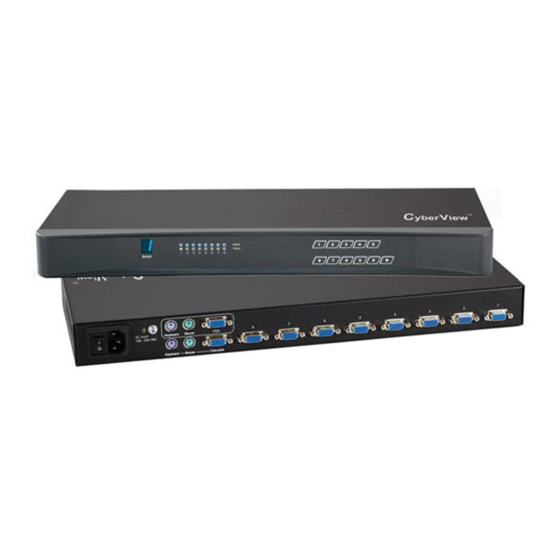

- Page 1 KVM switch and rackmount screen technology User Manual - KVM Rear Kit Version for LCD Console Drawer PS/2 DB-15 KVM - 801 back Designed and manufactured by Austin Hughes UM-CV-751-PS2KVM-KIT-Q117V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part 1 > PS/2 DB-15 KVM Kit -801 Package contents KVM port connection KVM Cascade Specifi cations < Part 2 > Usage KVM Button Password KVM OSD KVM Hotkey DC Power Option : 12V / 24V / 48V / 125V / 250V UM-CV-751-PS2KVM-KIT-Q117V1 www.austin-hughes.com... -
Page 4: Part 1 > Ps/2 Db-15 Kvm Kit
< Part 1 > PS/2 DB-15 KVM < 1.1 > Package Contents PS/2 DB-15 KVM -801 KVM Rear Kit back The power of the KVM rear kit may be changed to external power design based on the LCD console drawer series and model. -
Page 5: Kvm Port Connection
< 1.2 > KVM port connection PS/2 DB-15 KVM CD-6 / CD-10 / CD-15 PS/2 Servers ■ 6 / 10 / 15 ft PS/2 KVM cable ■ Support PS/2 server DB-15 PS/2 KVM port Drawer KVM Rear Kit PS/2 Servers UM-CV-751-PS2KVM-KIT-Q117V1 www.austin-hughes.com... -
Page 6: Kvm Cascade
< 1.3 > KVM Cascade PS/2 DB-15 KVM ■ Cascade up to 8 levels, 64 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of CV-801. When multiple PS/2 DB-15 KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. -
Page 7: Specifi Cations
< 1.4 > Specifi cations PS/2 DB-15 KVM - 801 KVM Port ▀ Number of ports : Connector : DB-15 combo connector Connectivity : PS/2 3-in-1 KVM cable, up to 6, 10 & 15 feet Local Console : Nil for LCD console drawer version ▀... -
Page 8: Part 2. Usage
■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications PS/2 DB-15 KVM 8 ports Bank no. PC port LEDs Channel Button... -
Page 9: Password
< 2.2 > Password PS/2 KVM Usage The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Set your own user name & password Scroll Lock + Scroll Lock + Space Bar Call KVM OSD menu by pressing the KVM hotkey Select “CHANGE PASSWORD”... -
Page 10: Kvm Osd
2.3 KVM OSD PS/2 KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter Complete / Switch to selected port Switch to previous or next port... -
Page 11: Kvm Hotkey
2.4 KVM Hotkey PS/2 KVM Usage Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port Scroll Lock + Scroll Lock + PgUp / PgDn... - Page 12 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2017 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-PS2KVM-KIT-Q117V1 www.austin-hughes.com...
