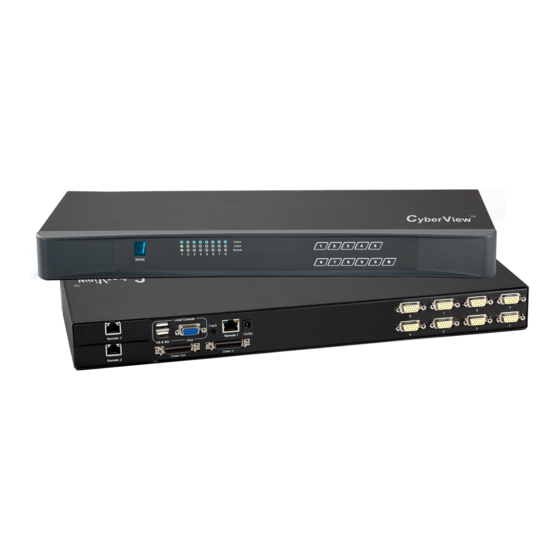

Austin Hughes CyberView Combo DB-15 KVM Series Installation Manual
  1. Manuals
  2. Brands
  3. Austin Hughes Manuals
  4. Switch
  5. CyberView Combo DB-15 KVM Series
  6. Installation manual

Austin Hughes CyberView Combo DB-15 KVM Series Installation Manual

Hide thumbs Also See for CyberView Combo DB-15 KVM Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Combo KVM Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CyberView Combo DB-15 KVM Series and is the answer not in the manual?

Questions and answers

Related Manuals for Austin Hughes CyberView Combo DB-15 KVM Series

Summary of Contents for Austin Hughes CyberView Combo DB-15 KVM Series

  • Page 1 Combo KVM Installation Guide...

  • Page 2: Package Content

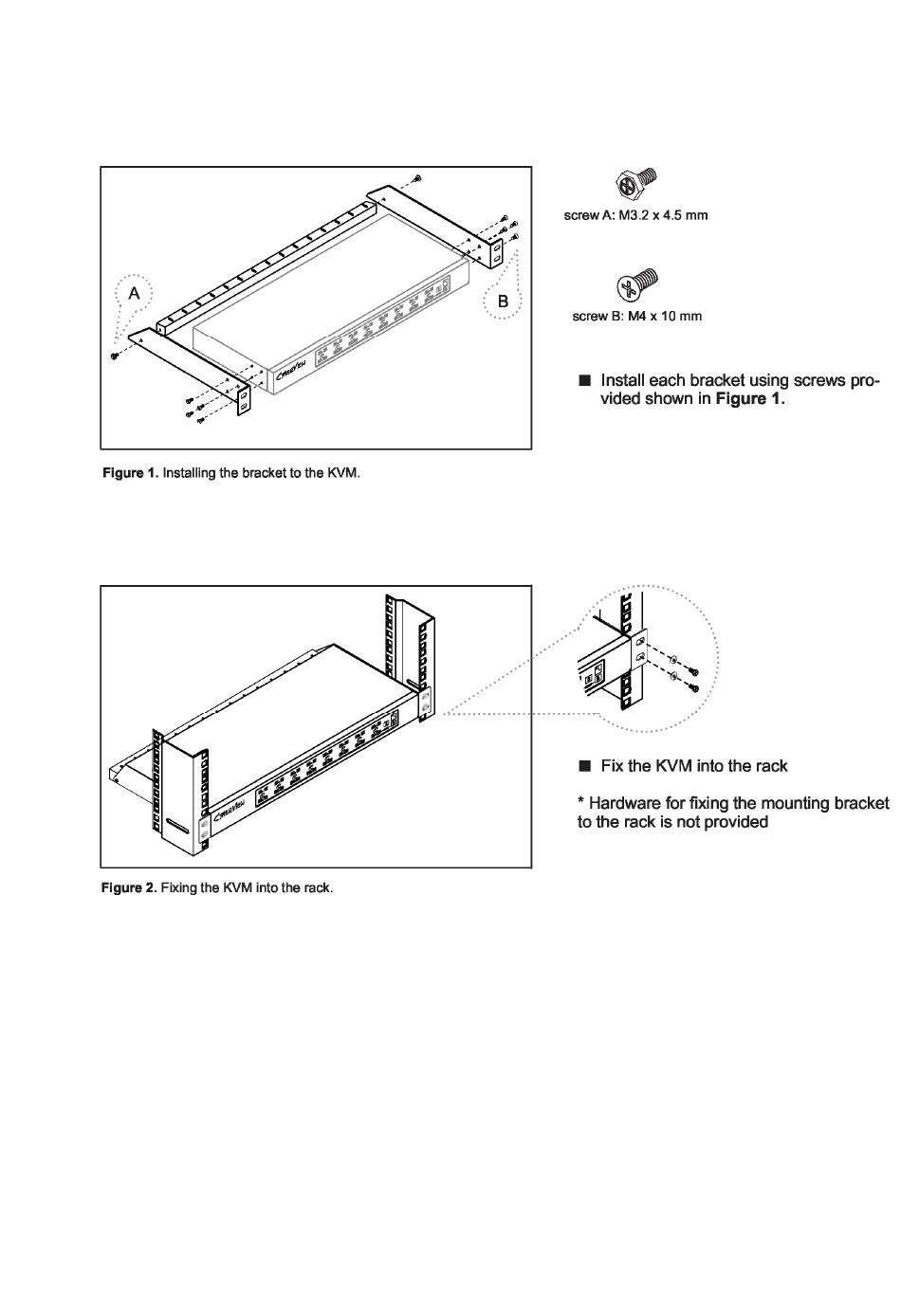

    KVMU-8 / KVMU-16 Combo DB-15 KVM Package Content (only for rackmount KVM) KVM switch x 1 pc Screw M3.2 x 4.5mm x 4 pcs Screw M4 x 10mm x 8 pcs Bracket x 1 set User manual x 1 pc Power cord x 1 pc...
  • Page 3 Combo DB-15 KVM KVMU-8 / KVMU-16 Connection KVMU-8 KVMU-16...
  • Page 4 KVMU-8 / KVMU-16 Combo DB-15 KVM...
  • Page 5 KVMU-8 / KVMU-16 Combo DB-15 KVM Cascade Cascade up to 8 levels, 128 servers Interconnection with Combo Cat6 KVM Cascading multiple KVM by KVMCBC-6 cable. KVMU-8 KVMU-16 KVMU-16 KVMU-8 KVM-CAT6-32 KVM-CAT6-16 KVMCBC-6...
  • Page 6 KVMU-8 / KVMU-16 Combo DB-15 KVM Cascade Cascade up to 8 levels, 128 servers Interconnection with Combo Cat6 KVM Cascading multiple KVM by KVMCBC-6 cable. KVMU-16 KVMU-16 KVMU-16 KVMU-8 KVM-CAT6-32 KVM-CAT6-16 KVMCBC-6...

  • Page 7: Specifications

    Specifications Combo DB-15 KVM KVMU-8 / KVMU-16 KVM Port Number of ports: 8 or 16 Connector: DB-15 combo connector Connectivity: Combo 4-in-1 KVM cable, up to 6, 10 & 15 feet Local Console Graphic connector: 1 x DB-15 VGA Resolution: Up to 1600 x 1200 Input device: 2 x USB type A for keyboard &...

  • Page 8: Kvm Button

    KVM Button Combo KVM Usage Power ON Turn off all servers and KVM switches Make sure all cables / connectors are properly connected Recommend Power ON sequence is monitor, KVM switch nally computer Þ...
  • Page 9 Password Combo KVM Usage...
  • Page 10 KVM OSD Combo KVM Usage...

  • Page 11: Kvm Hotkey

    KVM Hotkey Combo KVM Usage...
  • Page 12 IP Setting Combo KVM Usage...
  • Page 13 IP Setting Combo KVM Usage...

  • Page 14: Optional Accessories

    Optional Accessories Combo KVM Usage 1. Combo KVM cable 1.1 KVMCE-6 6 feet 1.2 KVMCE-10 10 feet 1.3 KVMCE-15 15 feet 2. Cat5 cable 2.1 KVMCU-3 3 feet 2.2 KVMCU-6 6 feet 2.3 KVMCU-10 10 feet 2.4 KVMCU-15 15 feet 2.5 KVMCU-33 33 feet 2.6 KVMCU-66 66 feet 3.
