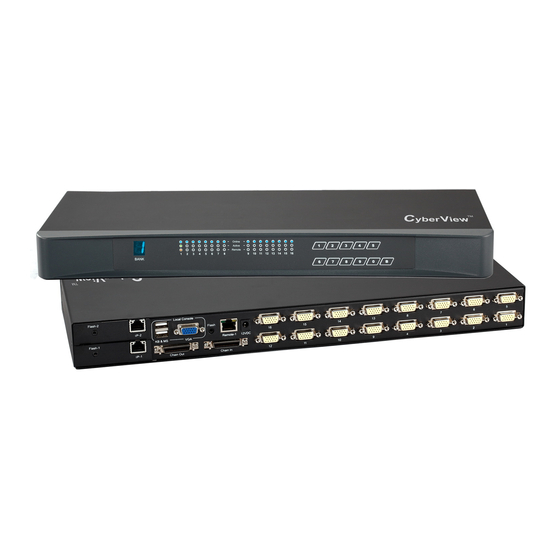

Austin Hughes Cyber Image Matrix DB-15 IP KVM Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Matrix DB-15
Matrix DB-15 KVM
Designed and manufactured by Austin Hughes
UM-CV-751-MKVM-KIT-Q418V1
dedicated KVM switch and rackmount screen technology
- KVM Rear Kit Version
for LCD Console Drawer
-MIP813 / 824
KVM
-MIP1613 / 1624
-M802 / 803 / 804
-M1602 / 1603 / 1604
back
back
www.austin-hughes.com
751

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cyber Image Matrix DB-15 IP KVM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Austin Hughes Cyber Image Matrix DB-15 IP KVM

Summary of Contents for Austin Hughes Cyber Image Matrix DB-15 IP KVM

  • Page 1 - KVM Rear Kit Version for LCD Console Drawer -MIP813 / 824 Matrix DB-15 -MIP1613 / 1624 back -M802 / 803 / 804 Matrix DB-15 KVM -M1602 / 1603 / 1604 back Designed and manufactured by Austin Hughes UM-CV-751-MKVM-KIT-Q418V1 www.austin-hughes.com...
  • Page 2 Legal Information First English printing, October 2018 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part 1 > Matrix DB-15 KVM Kit M-IP813 M-IP824 M-IP1613 M-IP1624 Package contents KVM port connection IP & Remote console connection P.3 - 4 IP console setting Important Preconfi guration for IP console P.6 - 8 KVM Cascade Specifi...

  • Page 4: Part 1 > Matrix

    < Part 1 > Matrix DB-15 < 1.1 > Package Contents Matrix DB-15 IP KVM -MIP813 / -MIP1613 • Receiver box for remote console x 1 -MIP824 / -MIP1624 • Power adapter w/ power cord ( for receiver ) x 1 •...

  • Page 5: Kvm Port Connection

    < 1.2 > KVM port connection Matrix DB-15 IP KVM USB Servers CB - 6 / 10 / 15 USB KVM cable support USB server DB-15 Combo KVM port Drawer KVM Rear Kit CB - 6 / 10 / 15 USB KVM cable support USB server USB Servers CB-6 / CB-10 / CB-15...

  • Page 6: Ip & Remote Console Connection

    < 1.3 > IP & Remote console connection Matrix DB-15 IP KVM Receiver For remote console, max. cable length is subject to the resolution. Please refer to the tables below. Drawer KVM Rear Kit IP Console Remote Console Frequency Frequency Max.
  • Page 7 How to use a receiver to connect a remote console Matrix DB-15 IP KVM Local Power Computer Remote I/O Receiver Front Mouse Remote Local Rear Select button The receiver provides a hotkey function for remote console. Please refer to P.21 Drawer KVM Rear Kit Remote Console...

  • Page 8: Ip Console Setting

    < 1.4 > IP console setting Matrix DB-15 IP KVM After the cable connection, please take the following steps to confi gure the IP KVM : 1. Download IPKVMsetup.exe from the link: www.austin-hughes.com/support/utilities/cyberview/IPKVMsetup.exe 2. Double click IPKVMsetup.exe to confi gure the IP KVM by device setup as below. 3.

  • Page 9: Important Preconfi Guration For Ip Console

    < 1.5 > Important Preconfi guration for IP console Matrix DB-15 IP KVM You must complete the following tasks after the IP console setting is performed. ( 1 ) TARGET SERVER SETUP **Servers connected to KVM Resolution The IP KVM remote console recognizes several varieties of video display formats with resolutions up to 1600 x 1200 @60Hz.
  • Page 10 < 1.5 > Important Preconfi guration for IP console Matrix DB-15 IP KVM ( 2 ) REMOTE CLIENT COMPUTER SETUP The remote client computer must have a web browser ( such as Microsoft Internet Explorer, Mozilla Firefox, and Netscape Navigator ) and a Java Virtual Machine ( version 1.4 or higher ) installed. Enable Java on the web browser.
  • Page 11 Matrix DB-15 IP KVM 6) Click < Update > After the firmware has been updated, IP KVM will reset automatically. After one minute, you will be redirected to the Login page and requested to login again. - Completed UM-CV-751-MKVM-KIT-Q418V1 www.austin-hughes.com...

  • Page 12: Kvm Cascade

    < 1.6 > KVM Cascade Matrix DB-15 IP KVM ■ Cascade up to 8 levels, 240 servers ■ Cascading multiple KVM with CMC-8 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of M-802 / M-1602 or MU-1602 / MU-3202. When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g.

  • Page 13: Specifi Cations

    < 1.7 > Specifi cations Matrix DB-15 IP KVM -MIP813 -MIP824 -MIP1613 -MIP1624 KVM Port ▀ Number of ports : 8 or 16 Connector : DB-15 combo connector Connectivity : USB 2-in-1 KVM cable up to 6, 10 & 15 feet Local Console : Nil for LCD console drawer version ▀...

  • Page 14: Part 2 > Matrix Db-15 Kvm Kit

    < Part 2 > Matrix DB-15 KVM < 2.1 > Package Contents Matrix DB-15 KVM -M802 / -M1602 • Receiver box for remote console x 1 • Power adapter w/ power cord ( for receiver ) x 1 • CB-6 6ft USB KVM cable for receiver box x 1 KVM Rear Kit back -M803 / -M1603...
  • Page 15 Matrix DB-15 KVM -M802 Remote Console 1 Power Cascade -M1602 -M803 Remote Console 1 Power Remote-2 Cascade -M1603 -M804 Remote-3 Remote Console 1 Power Remote-2 Cascade -M1604 UM-CV-751-MKVM-KIT-Q418V1 P.12 www.austin-hughes.com...

  • Page 16: Kvm Port Connection

    < 2.2 > KVM port connection Matrix DB-15 KVM USB Servers CB - 6 / 10 / 15 USB KVM cable support USB server DB-15 Combo KVM port Drawer KVM Rear Kit CB - 6 / 10 / 15 USB KVM cable support USB server USB Servers CB-6 / CB-10 / CB-15...
  • Page 17 < 2.3 > Local console & remote console connection Matrix DB-15 KVM For remote console, max. cable length is subject to the resolution. Please refer to the tables below. Drawer KVM Rear Kit Remote Console Frequency Max. Cat6 Cable Resolution Support ( Hz ) Length ( M ) 1920 x 1080...
  • Page 18 How to use a receiver to connect a remote console Matrix DB-15 KVM Local Power Computer Remote I/O Receiver Front Mouse Remote Local Rear Select button The receiver provides a hotkey function for remote console. Please refer to P.21 Drawer KVM Rear Kit Remote Console Local computer...

  • Page 19: Kvm Cascade

    < 2.4 > KVM Cascade Matrix DB-15 KVM ■ Cascade up to 8 levels, 240 servers ■ Cascading multiple KVM with CMC-8 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of M-802 / M-1602 or MU-1602 / MU-3202. When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g.

  • Page 20: Specifi Cations

    < 2.5 > Specifi cations Matrix DB-15 KVM -M802 -M803 -M804 -M1602 -M1603 -M1604 KVM Port ▀ Number of ports : 8 or 16 Connector : DB-15 combo connector Connectivity : USB 2-in-1 KVM cable up to 6, 10 & 15 feet Local Console : Nil for LCD console drawer version ▀...

  • Page 21: Part 3. Usage

    Part 3. Usage Matrix DB-15 KVM Usage 3.1 KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications Front Panel - Port LED Indications 8 ports...

  • Page 22: Password

    < 3.2 > Password Matrix DB-15 KVM Usage The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”...

  • Page 23: Kvm Osd

    < 3.3 > KVM OSD Matrix DB-15 KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter...

  • Page 24: Kvm Hotkey & Remote Console Hotkey

    < 3.4 > KVM Hotkey & Remote Console Hotkey Matrix DB-15 KVM Usage Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port...
  • Page 25 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2018 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-MKVM-KIT-Q418V1 P.22...
