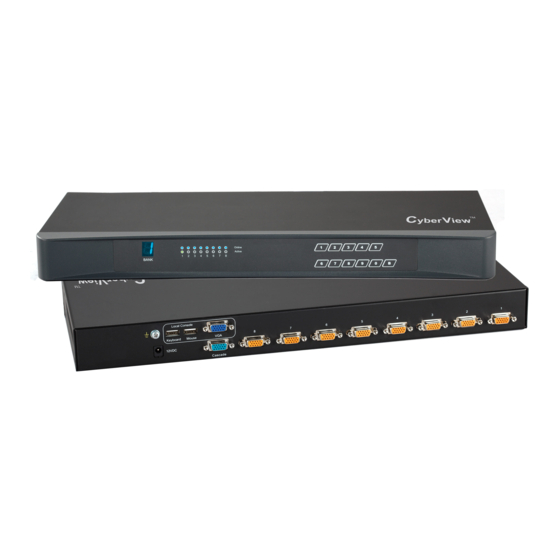

  • Page 1 KVM switch and rackmount screen technology User Manual CV-801K 4K KVM Designed and manufactured by Austin Hughes UM-CV-751-4KKVM-Q319V1 www.austin-hughes.com...
  • Page 2: Legal Information

    Legal Information First English printing, August 2019 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
  • Page 3: Before Installation

    Contents < Part. 1 > 4K KVM CV-801K Package Contents KVM port connection Specifi cations < Part. 2 > 4K KVM Usage KVM Button KVM Hotkey Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■...
  • Page 4: Package Contents

    < Part 1 > 4K KVM 4K KVM < 1.1 > Package Contents CV-801K KVM unit • 4K KVM unit x 1 • Mounting set w/ bracket & screws x 1 • Power adapter w/ power cord ( for KVM ) x 1 CV-801K Video Keyboard...
  • Page 5: Kvm Port Connection

    < 1.2 > KVM port connection 4K KVM DVI-D HDMI CK-6D KVM cable CK-6H KVM cable USB-A USB-A Video Keyboard Mouse Local Console KVM port x 8 1 x HDMI 1.4 ( HDMI + USB-B ) 2 x USB-A ( KB / MS ) USB-A CK-6P KVM cable 4K KVM Cable...
  • Page 6: Specifications

    < 1.3 > Specifi cations 4K KVM CV-801K KVM Port ▀ Number of ports : Connector : HDMI 1.4 + USB-B ( Video + KB / MS ) connector Resolution : 16 : 9 - max. 3840 x 2160@30Hz 16 : 10 - max. 1920 x 1200@60Hz 4 : 3 - max.
  • Page 7: Kvm Button

    < Part 2 > Usage 4K KVM Usage < 2.1 > KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications 8 ports PC port LEDs...
  • Page 8: Kvm Hotkey
