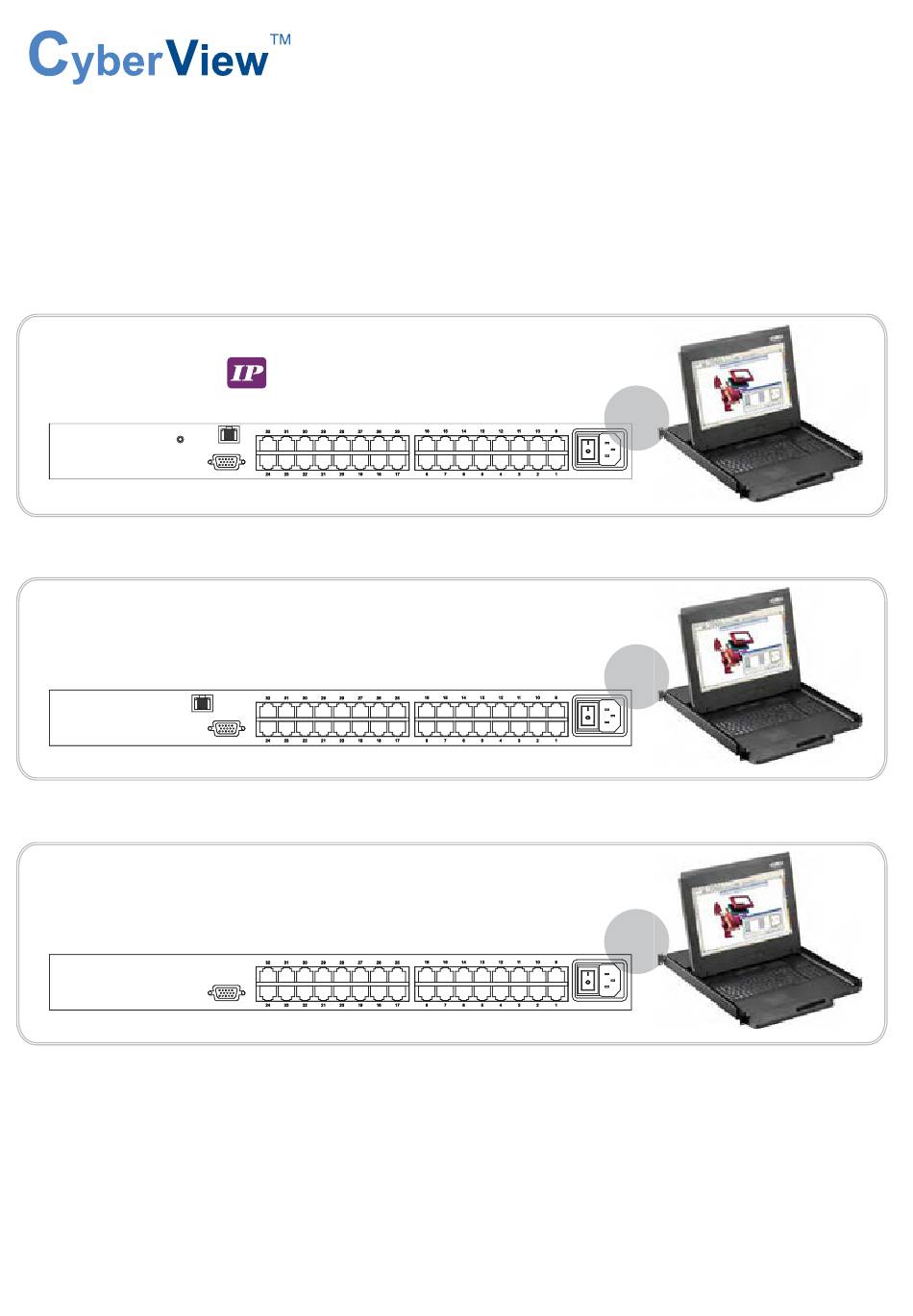

User Manual
Combo Cat6
Combo Cat6 2-console KVM
Combo Cat6 KVM
Designed and manufactured by Austin Hughes
UM-CV-751-UKVM-KIT-Q413V5
dedicated KVM switch and rackmount screen technology
- KVM Rear Kit Version
for LCD Console Drawer
KVM
-UIP802
-UIP1602
-UIP3202
back
-U802
-U1602
-U3202
back
-U801
-U1601
-U3201
back
www.austin-hughes.com
751
