Page 1: User Manual

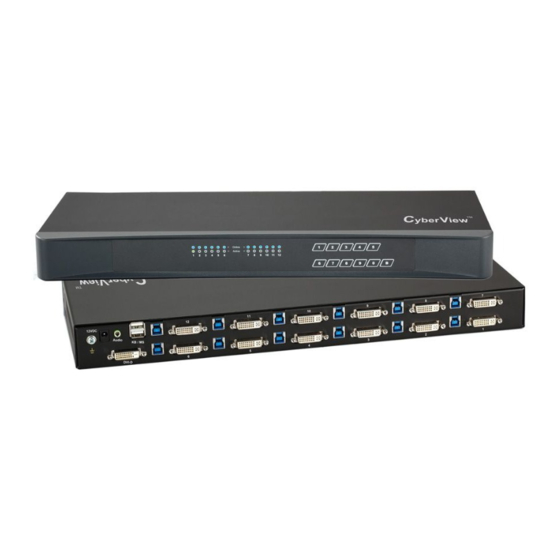

dedicated KVM switch and rackmount screen technology User Manual CV-1201D DVI-D KVM Designed and manufactured by Austin Hughes UM-CV-751-DVIKVM-Q413V6 www.austin-hughes.com... -
Page 3: Legal Information
Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment. -
Page 4: Table Of Contents
Contents < Part 1 > DVI-D KVM CV-1201D Package contents KVM port connection Specifi cations < Part 2 > Usage KVM Button KVM Hotkey UM-CV-751-DVIKVM-Q413V6 www.austin-hughes.com... - Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: Package Contents
Part 1. DVI-D KVM < 1.1 > Package Contents DVI-D KVM CV-1201D KVM unit • DVI-D KVM unit x 1 • Mounting set w/ bracket & screws x 1 • Power adapter w/ power cord ( for KVM ) x 1 CV-1201D Audio 12VDC... - Page 7 < 1.2 > KVM port connection DVI-D KVM USB Servers DVI-D KVM port USB Servers DVI KVM Cable CI - 6 : 6 feet DVI KVM cable CI - 15 : 15 feet DVI KVM cable ( Server end : DVI-D + USB + Audio ) ( KVM port : DVI-D + USB3.0 ) UM-CV-751-DVIKVM-Q413V6 www.austin-hughes.com...
-
Page 8: Kvm Port Connection
< 1.3 > Specifi cations DVI-D KVM CV-1201D KVM Port ▀ Number of ports: Connector: DVI-D connector USB 3.0 connector ( combined for keyboard, mouse & audio ) Connectivity: Combo 4-in-1 KVM cable, 6 or 15 feet Local Console ▀ Graphic connector: 1 x DVI-D Resolution:... -
Page 9: Part 2. Usage
Part 2. Usage DVI-D KVM Usage 2.1 KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications DVI-D KVM 12 ports PC port LEDs... -
Page 10: Kvm Hotkey
2.2 KVM Hotkey DVI-D KVM Usage Hotkey Function Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port Scroll Lock + Scroll Lock + Port no. Switch to specifi c port Scroll Lock + Scroll Lock + Auto scan for powered on PC Scroll Lock + Scroll Lock +... - Page 11 UM-CV-751-DVIKVM-Q413V6 www.austin-hughes.com...
- Page 12 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2013 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-DVIKVM-Q413V6 www.austin-hughes.com...
