Precision screwdriver (for small Phillips screw on battery cover door)

Adjustable wrench (for mounting pole)

Compass or GPS (for wind direction calibration)

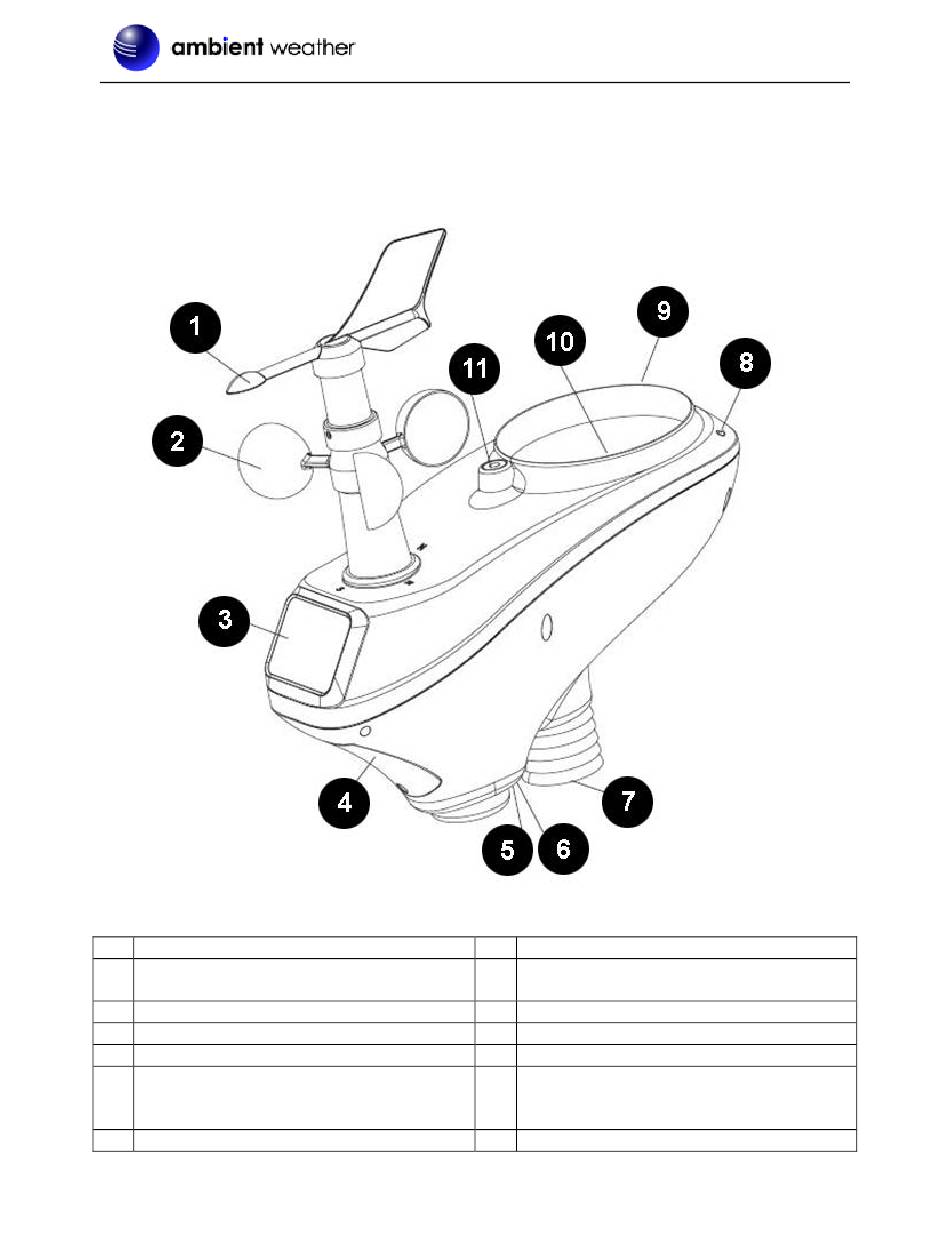

4.3 Sensor Array Set Up

No Description
1 Wind Vane (measures wind direction)
2 Wind Speed Sensor (measures wind speed)
3 Solar collector
4 Battery compartment
5 LED transmission indicator (turns on for 4
seconds on power up, flashes once per 16
seconds)
6 Reset button
Version 2.1 ©Copyright 2019, Ambient LLC. All Rights Reserved.
Figure 1
No
7 Thermo-hygrometer
temperature and humidity)
8 UV Sensor
9 Solar Radiation Sensor
10 Rain Collector (self emptying)
11 Bubble Level
Description
Sensor (measures
