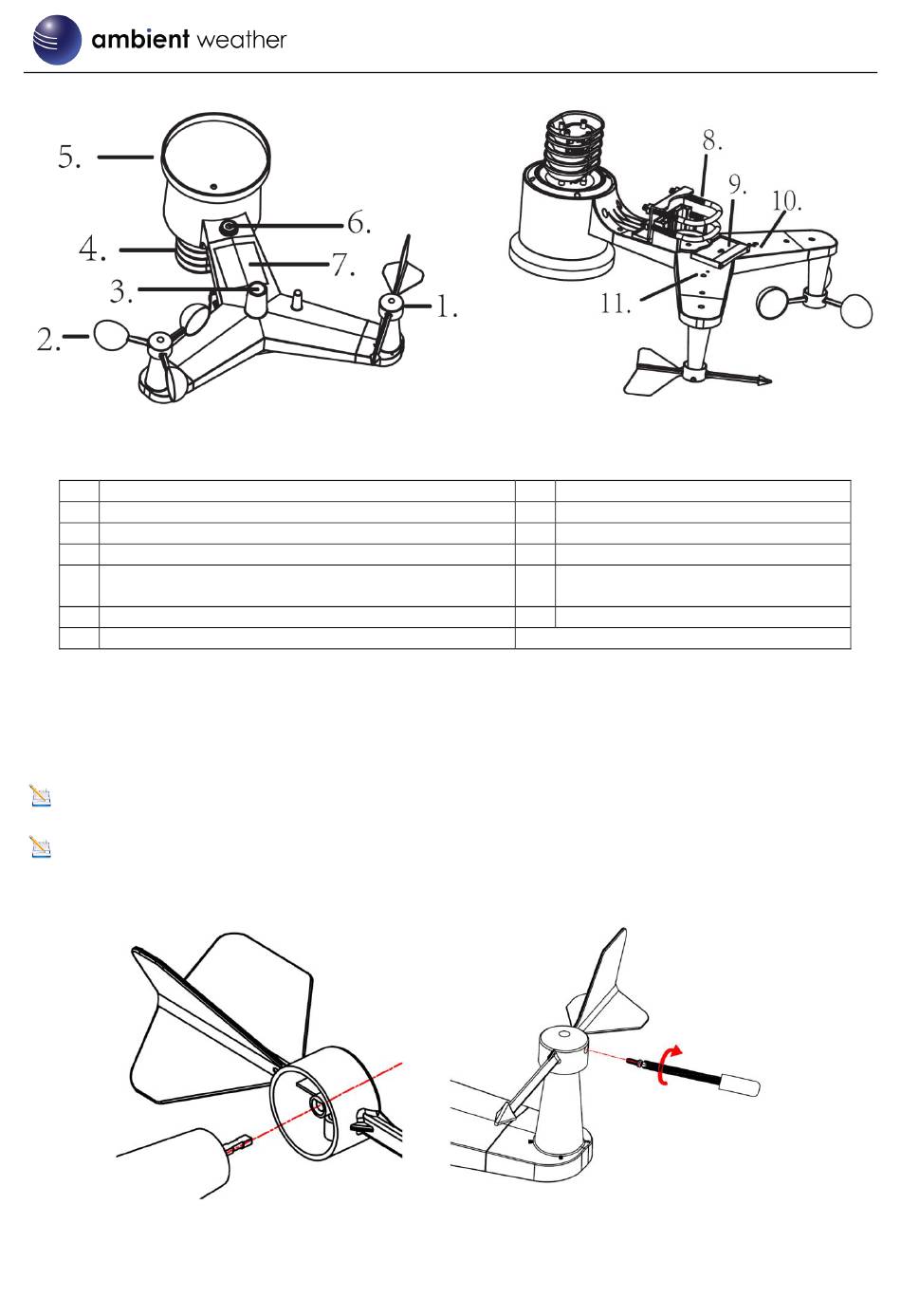

5.3 Sensor Array Set Up

No
1 Wind Vane (measures wind direction)
2 Wind Speed Sensor (measures wind speed)
3 UV sensor/ Light sensor
4 Thermometer-hygrometer sensor (measures temperature
and humidity)
5 Rain collector
6 Bubble level

5.3.1 Install Wind Vane

Reference Figure 2. (a) Locate and align the flat key on the wind vane shaft to the flat key on the wind vane and push
the vane on to the shaft. (b) tighten the set screw with a precision screw driver and make sure the wind vane spins
freely.
Note: You may need to back out the set screw first before sliding the vane onto the shaft.
Note: The wind vane shaft does not spin as freely as the wind cups. This is by design. The dampening prevents
the wind vane from spinning with the slightest breeze, which will result in variable wind all of the time. The added
resistance allows the wind vane to change direction with 2 – 3 mph, providing a much better wind direction tracking.
Version 1.4
(a)
Description
(a)
©Copyright 2019, Ambient LLC. All Rights Reserved.
Figure 1
No
7 Solar panel
8 U-Bolt
9 Battery compartment
10 Reset button
11 LED transmitter Indicator
(b)
Figure 2
(b)
Description
