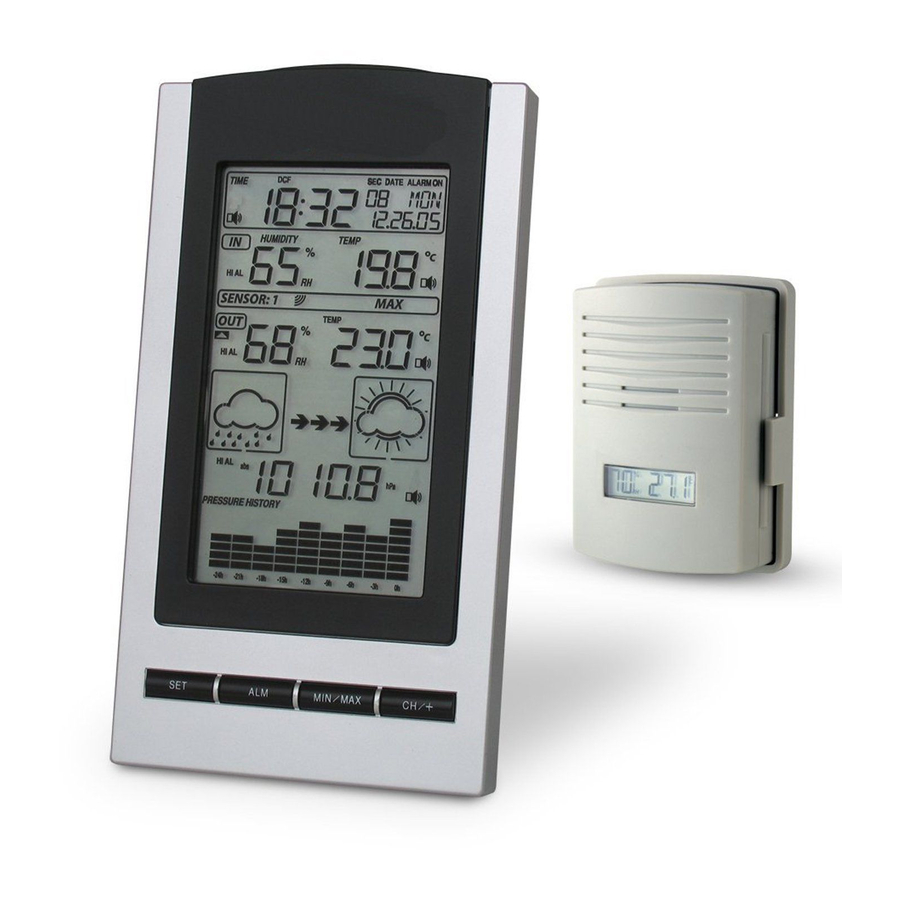

Ambient Weather WS-1171 Advanced Weather Station
Table of Contents
1.
Introduction ..................................................................................................................................... 2
2.
Getting Started ................................................................................................................................ 2
2.1 Parts List ....................................................................................................................................... 2
2.2 Recommend Tools ......................................................................................................................... 2
2.3 Thermo-Hygrometer Sensor Set Up .............................................................................................. 2
2.4 Display Console Set Up ................................................................................................................ 3
2.4.1 Radio Controlled Clock (RCC) .............................................................................................. 3
2.4.2
Display Console Layout ..................................................................................................... 4
2.4.3
Sensor Operation Verification ............................................................................................ 5
3.
Remote Sensor Installation ............................................................................................................. 5
4.
Console Operation ........................................................................................................................... 5
4.1 Quick Display Mode ..................................................................................................................... 5
4.2 Set (Program) Mode ...................................................................................................................... 6
4.2.1 Setting Barometric Pressure ................................................................................................... 8
4.2.2
Setting Calibrated Humidity............................................................................................... 8
4.3
Alarm Mode ........................................................................................................................... 9
4.3.1 Alarm Display ........................................................................................................................ 9
4.3.2
Alarm Programming ........................................................................................................... 9
4.3.3
Cancelling the Alarm ........................................................................................................ 10
4.3.4
Outdoor Alarm - Temperature vs. Dew Point .................................................................. 10
4.4 Min/Max Mode ........................................................................................................................... 10
4.5
Other Console Features ........................................................................................................ 11
4.5.1
Weather Forecasting ......................................................................................................... 11
4.5.2
Weather Icons ................................................................................................................... 11
4.5.3
Weather tendency indicator .............................................................................................. 11
4.5.4
Storm threshold indicator ................................................................................................. 12
4.5.5
Pressure threshold setting ................................................................................................. 12
4.5.6
Pressure Graph ................................................................................................................. 12
5.
Glossary of Terms ......................................................................................................................... 13
6.
Specifications ................................................................................................................................ 13
6.1 Wireless Specifications ............................................................................................................... 13
6.2 Measurement Specifications ....................................................................................................... 13
6.3 Power Consumption .................................................................................................................... 13
7.
Troubleshooting Guide .................................................................................................................. 14
8.
Accessories ................................................................................................................................... 15
9.
Liability Disclaimer ...................................................................................................................... 15
10.
FCC Statement .......................................................................................................................... 16
11.
Warranty Information ............................................................................................................... 16
Version 1.8
©Copyright 2011, Ambient LLC. All Rights Reserved.
User Manual
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ambient Weather WS-1171
Summary of Contents for Ambient Weather WS-1171
-
Page 1: Table Of Contents
Ambient Weather WS-1171 Advanced Weather Station User Manual Table of Contents Introduction ............................. 2 Getting Started ..........................2 2.1 Parts List ............................2 2.2 Recommend Tools ......................... 2 2.3 Thermo-Hygrometer Sensor Set Up ....................2 2.4 Display Console Set Up ........................ 3 2.4.1 Radio Controlled Clock (RCC) .................... -
Page 2: Introduction
1. Introduction Thank you for your purchase of the Ambient Weather WS-1171 Advanced Weather Station with Temperature, Humidity, Barometer and Advanced Forecasting. The following user guide provides step by step instructions for installation, operation and troubleshooting. To download the latest manual and additional troubleshooting tips, please visit: http://ambientweather.wikispaces.com/ws1170... -
Page 3: Display Console Set Up
Figure 1 2.4 Display Console Set Up Note: To avoid permanent damage, please take note of the battery polarity before inserting the batteries. Move the remote thermo-hygrometer at least 10’ away from the display console (if the sensor is too close, it may not be received by the display console). -
Page 4: Display Console Layout
2.4.2 Display Console Layout Note: The following illustration shows the full segments of the LCD for description purposes only and will not appear like this during normal operation. Figure 2 1. DST (daylight savings time) 16. Outdoor humidity display 2. WWVB Radio Controlled Time 17. -
Page 5: Sensor Operation Verification
2.4.3 Sensor Operation Verification Verify the indoor and outdoor humidity match closely with the console and sensor array in the same location (about 10’ apart). The sensors should be within 10% (the accuracy is ± 5%). Allow about 30 minutes for both sensors to stabilize. Verify the indoor and outdoor temperature match closely with the console and sensor array in the same location (about 10’... -
Page 6: Set (Program) Mode
Absolute Pressure and Relative Pressure. Press the MIN/MAX or + key to toggle between absolute pressure and relative pressure. 4.2 Set (Program) Mode While in Normal Mode, press and hold the SET key for at least three seconds to enter the Set Mode. The first setting will begin flashing. - Page 7 Hours from Time Zone Cities 7 --- Bangkok 8 CCT: China Coast Bejing 9 JST: Japan Standard Tokyo 10 GST: Guam Standard Sydney 11 --- Magadan 12 IDLE: International Date Line East Wellington, New Zealand NZST: New Zealand Standard 12/24 Hour Format. Press the SET key again to adjust the 12/24 hour format setting. Press the + key to change between 12 hour and 24 hour format.
-
Page 8: Setting Barometric Pressure
The calibration feature allows you to zero out this error. To calibrate humidity, you will need an accurate source, such as a sling psychrometer or Humidipaks One Step Calibration kit, available from Ambient Weather, which uses a salt bath. Version 1.8 ©Copyright 2011, Ambient LLC. -
Page 9: Alarm Mode
To calibra te indoor humidity, in the Set Mode with indoor humidity flashing, press the + key or MIN/MAX key to increase or decrease the humidity setting (in increments of 1%) to match the calibrated or known humidity source. To return the indoor humidity to the measured value, press and hold the SET key for 3 seconds and the humidity will return to the uncalibrated value. -
Page 10: Cancelling The Alarm
Press the SNOOZE key or wait 10 seconds, and the alar m mode will return to the normal mode. 4.3.3 Cancelling the Alarm When an alarm condition has been activate d, the specific alarm will sound and flash for 120 seconds. Press any key to cancel the alarm. -
Page 11: Other Console Features
parameter, in the following order: 1. Indoor humidity maximum (or minimum) 2. Indoor temperature maximum (or minimum) 3. Outdoor humidity maximum (or minimum) 4. Outdoor temperature maximum (or minimum) 5. Pressure maximum (or minimum) Press the SET key for two seconds to reset th e specific value (that is flashing) and associated date and me to the current reading. -
Page 12: Storm Threshold Indicator
Example 1: Pressure is decreasing, weat her is deteriorating. Example 2: Pressure is increasing, weather is improving. 4.5.4 Storm threshold indicator The storm threshold (the negative rate of pressu re change signifying a storm is expected) can be adjusted by the user from level 3 to level 9 (the def ault level 4 mbar/hour). -
Page 13: Glossary Of Terms
5. Glossary of Terms Term Definition Absolute Barometric Relative ba rometric pressure, corrected to sea-level. To compare Pressure pressure conditions from one location to another, meteorologists correct pressure to sea-level condition s. Because th e air pressure decreases as you rise in altitude, the sea-level corrected pressure (the pressure yo location would be at if located at sea-level) is generally higher than your measured pressure. -
Page 14: Troubleshooting Guide
Minimum 24 months for thermometer-hygrometer sensor ( use lithium batteries in cold weather climates) 7. Troublesho oting Guide If your question is not answered here, you can co ntact us as follows: 1. Email Support: support@ambientweather.com 2. Live Chat Support: www.ambientweather.com/chat.html (M-F 8am to 4pm Arizona Time) 3. -
Page 15: Accessories
Remove Temperatu re and Humidity the rain guard and install over Solar Radiation Shield thermo-hygrometer. Ambient Weather Humidity One step calibration kits for digital Calibration Kits hygrometers use salt slurry form ula to accurately calibrate th e indoor and outdoor hygrometers. -
Page 16: Fcc Statement
Reading the “User manual” is highly recommended. The manufacturer and supplier cannot accept any responsibility for any incorrect readings and any consequences that occur should an inaccurate reading ke place. This product is designed for use in the home only as indication of weather conditions. This product is not to be used for medical purposes or for public information. - Page 17 Warranty service can only be performed by a Ambient, LLC. The original dated bill of sale must be presented upon request as proof of purchase to Ambient, LLC. Your Ambient, LLC warranty covers all defects in material and workmanship with the following specified exceptions: (1) damage caused by accident, unreason able use or neglect (lack of reasonable nd necessary maintenance);...
