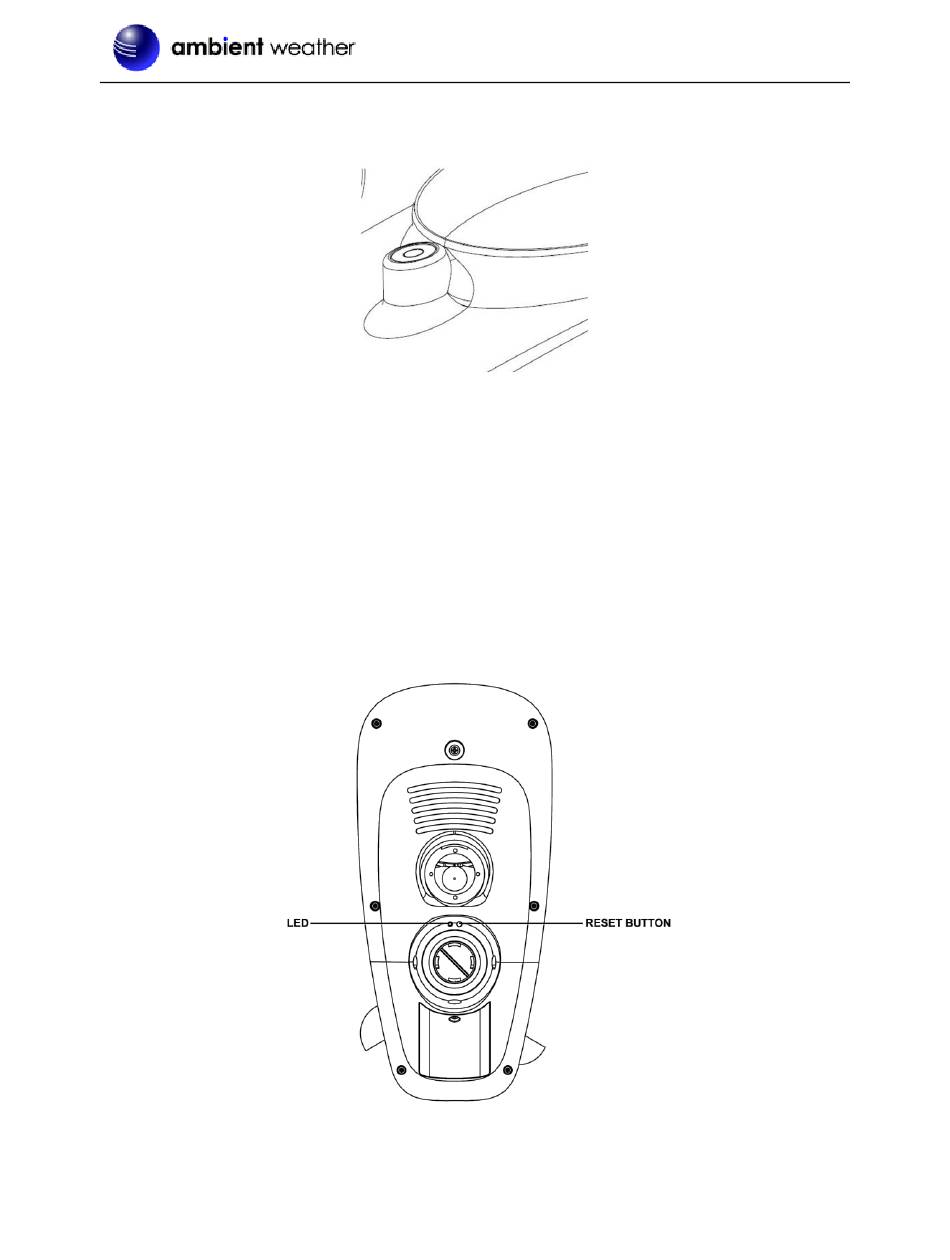

2. Reference Figure 10. Make sure the sensor array is completely level upon final installation.
Failure to do so will result in inaccurate rain gauge readings.
4.3.3 Reset Button and Transmitter LED
In the event the sensor array is not transmitting, reset the sensor array.
With an open ended paperclip, press and hold the RESET BUTTON for three seconds to completely
discharge the voltage.
Take out the batteries and wait one minute, while covering the solar panel to drain the voltage.
Put batteries back in and resynchronize with console by powering down and up the console with the
sensor array about 10 feet away.
Version 2.1
©Copyright 2019, Ambient LLC. All Rights Reserved.
Figure 10
Figure 11
Page 11
