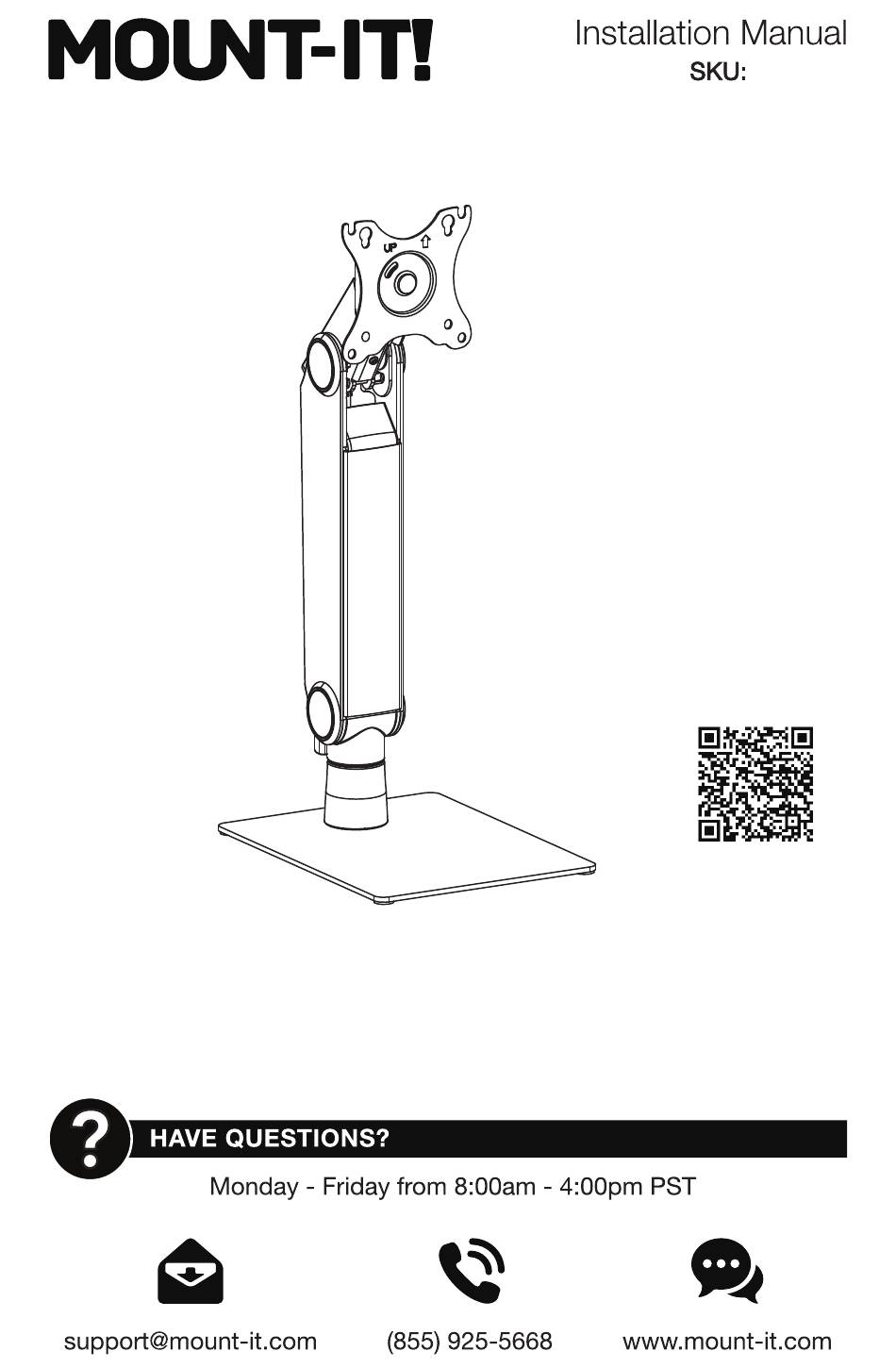

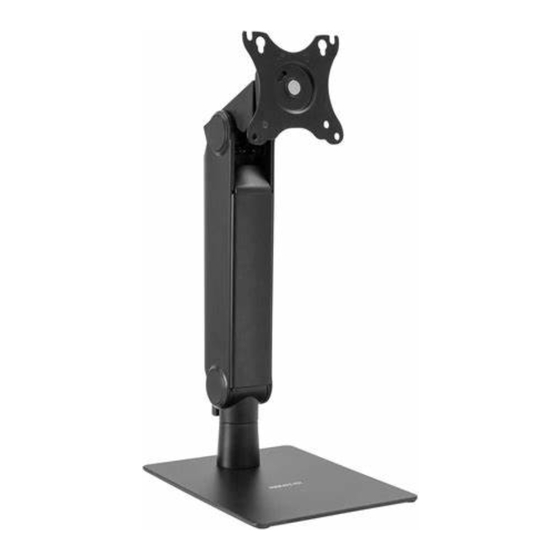

- Page 1 MI-2757 Scan this QR code for product information, videos, and assembly assistance. FREESTANDING MONITOR ARM WITH HEIGHT ADJUSTMENT...
- Page 2 Mount and Accessories Thank you for choosing Mount-It Mount-It! Mount-It! Stand Base Bolt Hex Wrench Hex Wrench Stand Arm Mounting Hardware Check carefully to make sure there are no missing or defective parts. Some hardware provided may not be used. Use the correct mounting hardware suitable for your installation. CHOKING HAZARD.
- Page 3 Step 1 Step 3 Connect the Base and Arm Attach the Monitor • Connect the Stand Base (#B) to the bottom of the Stand Arm (#A) using the Bolts (#C) and tighten until • Hang the monitor onto the top of the VESA Plate as shown here, then secure the monitor to the bottom secure using the 4mm Hex Wrench (#D) 2 bolt holes and tighten all bolts until secure.
-
Page 4: Final Adjustments
Step 4 Final Adjustments • The Monitor can be turned left to right +/- 25°, tilted forward or back +10°/-15° and rotated 90° to alternate between landscape and portrait orientations.
