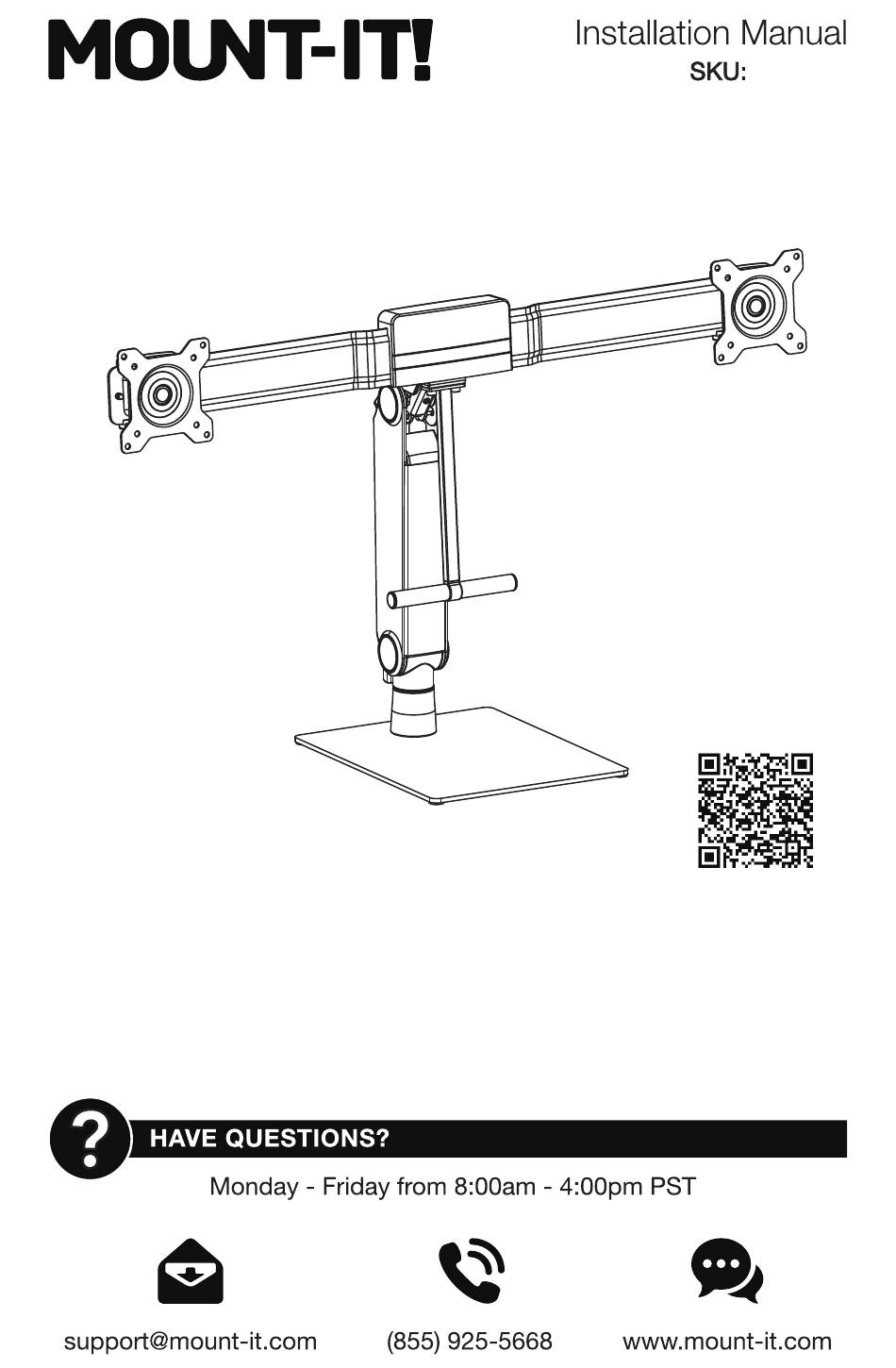

- Page 1 MI-2758 Scan this QR code for product information, videos, and assembly assistance. FREESTANDING DUAL MONITOR ARM WITH HEIGHT ADJUSTMENT...
- Page 2 Mount and Accessories Thank you for choosing Mount-It Mount-It! Horizontal Arm Decorative VESA Plate Handle Stand Base Mount-It! Cover Hand Knob Stand Arm Bolt Bolt Hex Wrench Hex Wrench Mounting Hardware Check carefully to make sure there are no missing or defective parts. Some hardware provided may not be used.
- Page 3 Step 1 Step 3 Connect the Base and Arm Attach the VESA Plates to the Monitors • Connect the Stand Base (#F) to the bottom of the Stand Arm (#A) using the Bolts (#H) and tighten until • Select the appropriate size mounting bolt (#M-A, M-B) and washer (#M-C) for your monitors mounting secure using the 4mm Hex Wrench (#J) holes and verify the length of the VESA bolt is not too long.
-
Page 4: Step 5 Cable Management
Step 5 Cable Management • Monitor cables can be routed through the cable clip on the back of the arm. • The monitors can be turned left to right +/- 25°, tilted forward or back +10°/-10° and rotated 90° to alternate between landscape and portrait orientations.
