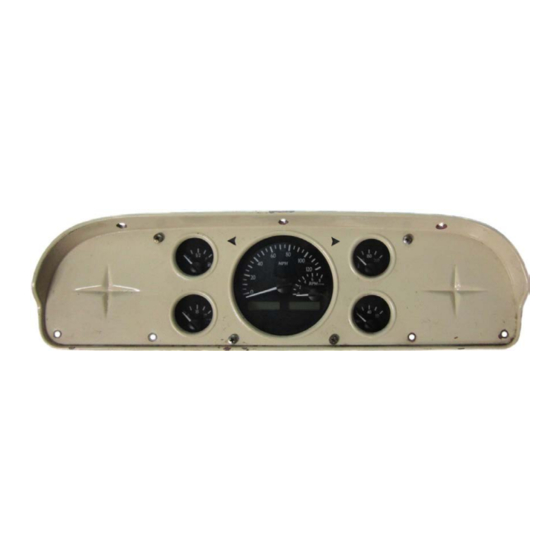

Dakota Digital VHX-57F-PU Quick Start Manual

For 1957-'60 ford pickup

VHX-57F-PU

Dakota Digital VHX Instrument Installation

For 1957-'60 Ford Pickup

Your new VHX-57F-PU kit includes:

VHX Display

Universal Sender

Pack

(2) Blinker Harness

Installation Manuals

Ford Speed

Sender

CAT5 Cable

Switch Assembly

Control Box

Installation

1. Remove the stock gauge panel from the dash as well as the four screws holding the gauge in place.

Retain all hardware for reassembly.

Manual #650545A

Table of Contents

Do you have a question about the VHX-57F-PU and is the answer not in the manual?

Page 1 VHX-57F-PU Dakota Digital VHX Instrument Installation For 1957-‘60 Ford Pickup Your new VHX-57F-PU kit includes: VHX Display Universal Sender Pack (2) Blinker Harness Installation Manuals Ford Speed Sender CAT5 Cable Switch Assembly Control Box Installation 1. Remove the stock gauge panel from the dash as well as the four screws holding the gauge in place.
Page 2 2. Secure the VHX system to the gauge panel using the four screws from disassembly. This system comes with two options for the turn signals. You can either have arrows located in the faceplate of your new VHX display, and/or arrows in your vehicle’s stock turn signal locations. To use the new faceplate arrows, follow the wiring instructions for the turn signals found in the main VHX manual.
Page 3 5. The gauge panel is now ready to re-install into the vehicle using stock hardware; take care when routing the CAT5 cable to the control box mounting location. Refer to the main manual to complete the VHX installation. WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
