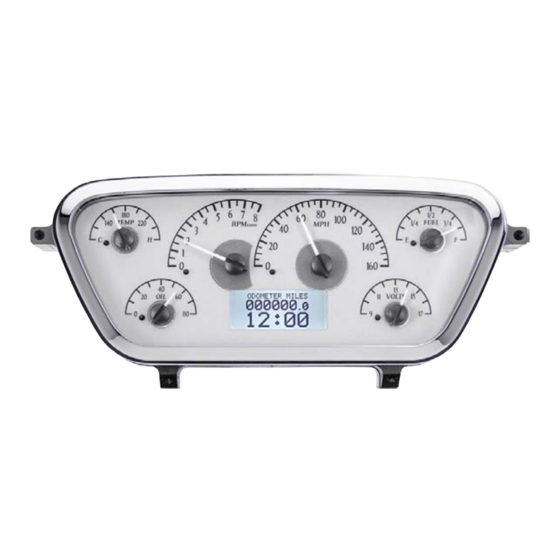

VHX-53F-PU

Dakota Digital VHX Instrument Installation

For 53-55 Ford Pickup

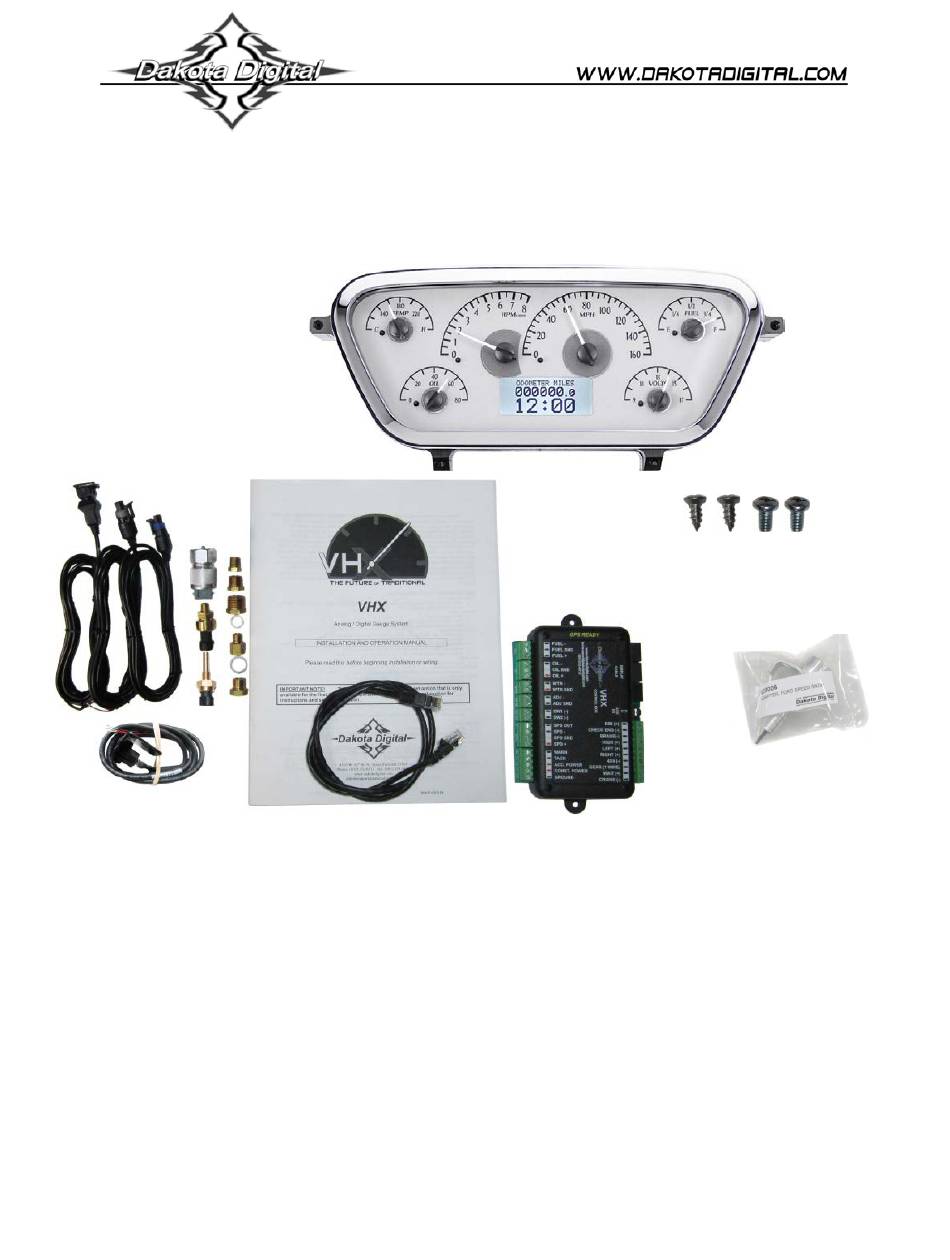

Your new VHX-53F-PU kit includes:

VHX Display

Universal Sender

Pack

Installation Manuals

Mounting screws

Ford speed

sender adaptor

Switch Assembly

Control Box

CAT5 Cable

Installation

1. Remove the stock gauges from the dash by removing the four screws securing the gauges to the

dash.

Manual # 650394A

Page 1 VHX-53F-PU Dakota Digital VHX Instrument Installation For 53-55 Ford Pickup Your new VHX-53F-PU kit includes: VHX Display Universal Sender Pack Installation Manuals Mounting screws Ford speed sender adaptor Switch Assembly Control Box CAT5 Cable Installation 1. Remove the stock gauges from the dash by removing the four screws securing the gauges to the dash.
Page 2 2. The VHX system should align tightly with the dash. 3. Secure the VHX system to the system with the four 10-18x.5” screws provided. The two counter sunk screw are for the upper two locations and the two pan heads are for the lower two locations. Take care when tightening the mounting screws to avoid stripping the threads.
Page 3 4. Connect the CAT5 cable to the system. As the assembled cluster is installed into the dash, take care when routing this cable to the control box. 5. Refer to the main manual for wiring instructions to complete the VHX installation.
