  • Page 1: S5552

    In no event will MiTAC be held liable for any direct or indirect, incidental or consequential damage, loss of use, loss of data or other malady resulting from errors or inaccuracies of information contained in this document.

  • Page 2: Table Of Contents

    Contents S5552 ......................1 Before you begin… ..................3 Chapter 1: Instruction ................4 1.1 Congratulations ................. 4 1.2 Hardware Specifications ..............4 1.3 Software Specifications ..............14 Chapter 2: Board Installation ..............15 2.1 Board Image ..................16 2.2 Block Diagram ................. 17 2.3 Motherboard Mechanical Drawing ...........

  • Page 3: Before You Begin

    Before you begin… Check the box contents! The retail motherboard package should contain the following: S5552 Motherboard x 1 SATA Single Cable x 2 Rear IO shielding x 1 1 x S5552 Quick Installation Guide IMPORTANT NOTE: 1. Sales samples may not come with any of the accessories listed above. If you have ordered a sales sample and you are missing any of the above items, please contact your sales representative to help order accessories.

  • Page 4: Chapter 1: Instruction

    Chapter 1: Instruction 1.1 Congratulations ® ® You have purchased the powerful TYAN S5552 motherboard, based on the Intel ® ® C242/C246 chipset. The S5552 is designed to support Intel Xeon E-2200/-2100 ® ® series processors, 9th/8th Gen. Intel Core i3, Intel Celeron G4900 Series ®...
  • Page 5 (2) PCI-E Gen.3 x1 slots (2) GbE ports, Q'ty / Port (1) PHY dedicated for IPMI Controller Intel I210 Realtek RTL8211E Connector (4) SATA Controller Intel C242 SATA Speed 6.0 Gb/s RAID 0/1/10/5 (Intel RAID RSTe) Storage Connector (2) SATA-DOM Controller Intel C242 sSATA...
  • Page 6 Feature compression, Supports storage over IP and remote platform-flash, USB 2.0 virtual hub IPMI 2.0 compliant baseboard AST2500 IPMI management controller (BMC), Feature 10/100/1000 Mb/s MAC interface Brand / ROM size AMI, 32MB Hardware Monitor, PXE boot support, ACPI sleeping states S5, BIOS User Configurable FAN PWM Duty Feature...
  • Page 7 S5552GM4NR Specifications Q'ty / Socket Type (1) LGA1151 Intel Xeon E-2200/2100 series processors, 9th/8th Gen. Intel Core Supported CPU i3 processors, Intel Celeron G4900 Processor Series Series Processors and Intel Pentium Processor G5000 Series Thermal Design Max up to 95W Power (TDP) Wattage Chipset Intel C242...
  • Page 8 (2) ports (1 at rear, 1 via cable) (1) D-Sub 15-pin VGA port (at rear) (4) GbE ports, RJ-45 (1) Dedicated for IPMI (4) SATA-III connectors SATA (2) SATA-DOM connectors Please refer to our TPM supported TPM (Optional) TPM Support list.
  • Page 9 Please refer to our AVL support Operating System OS supported list lists. Motherboard (1) S5552 Motherboard Package Contains Manual (1) Quick Installation Guide S5552WGM4NR Specifications Q'ty / Socket Type (1) LGA1151 Intel Xeon E-2200/2100 series processors, 9th/8th Gen. Intel Core Supported CPU i3 processors, Intel Celeron G4900 Processor...
  • Page 10 Connector (4) SATA Controller Intel C242 SATA Speed 6.0 Gb/s RAID 0/1/10/5 (Intel RAID RSTe) Connector (2) SATA-DOM Controller Intel C242 sSATA Speed 6.0 Gb/s RAID 0/1/10/5 (Intel RAID RSTe) Connector type D-Sub 15-pin Graphic Resolution Up to 1920x1200 @60Hz Chipset Aspeed AST2500 (2) USB3.1 Gen2 ports (at rear),...
  • Page 11 10/100/1000 Mb/s MAC interface Brand / ROM size AMI, 32MB Hardware Monitor, PXE boot support, ACPI sleeping states S5, BIOS User Configurable FAN PWM Duty Feature Cycle, Console Redirection, ACPI 6.1, SMBIOS 3.1/PnP/Wake on Form Factor Physical Dimension Board Dimension 12"x9.6"...
  • Page 12 S5552WGM4NR-EX Specifications Q'ty / Socket Type (1) LGA1151 Intel Xeon E-2200/2100 series processors, 9th/8th Gen. Intel Core Supported CPU i3 processors, Intel Celeron G4900 Processor Series Series Processors and Intel Pentium Processor G5000 Series Thermal Design Max up to 95W Power (TDP) Wattage Chipset Intel C246...
  • Page 13 RAID 0/1/10/5 (Intel RAID RSTe) Connector type (1) D-Sub 15-pin Up to 1920x1200 Resolution @60Hz Chipset Aspeed AST2500 Graphic Connector type (1)Display port 1.2 Up to 4096X2304 Resolution Display Port @60Hz Intel Processor Graphics Chipset (pGFX) (4) USB3.1 Gen2 ports (at rear), (2) USB3.1 Gen1 ports (via Cable) (2) ports (1 at rear, 1 via cable) (1) D-Sub 15-pin VGA port (at rear)

  • Page 14: Software Specifications

    Hardware Monitor, PXE boot support, ACPI sleeping states S5, User Configurable FAN PWM Duty Feature Cycle, Console Redirection, ACPI 6.1, SMBIOS 3.1/PnP/Wake on Form Factor Physical Dimension Board Dimension 12"x9.6" (305x243.8mm) FCC (SDoC) Class B Regulation CE (DoC) Class B Operating Temp.

  • Page 15: Chapter 2: Board Installation

    Unplug the power from your computer power supply and then touch a safely grounded object to release static charge (i.e. power supply case). For the safest conditions, MiTAC recommends wearing a static safety wrist strap. (2) Hold the motherboard by its edges and do not touch the bottom of the board, or flex the board in any way.

  • Page 16: Board Image

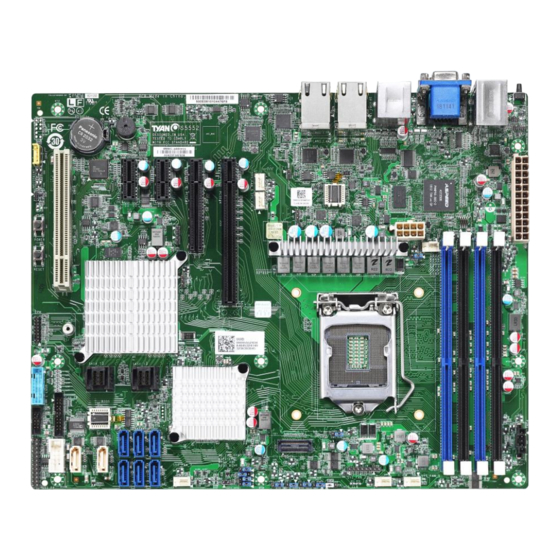

    2.1 Board Image S5552 This picture is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above picture. http://www.tyan.com...

  • Page 17: Block Diagram

    2.2 Block Diagram S5552 Block Diagram http://www.tyan.com...

  • Page 18: Motherboard Mechanical Drawing

    2.3 Motherboard Mechanical Drawing http://www.tyan.com...

  • Page 19: Board Parts, Jumpers And Connectors

    2.4 Board Parts, Jumpers and Connectors This diagram is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above diagram. The DIMM slot numbers shown above can be used as a reference when reviewing the DIMM population guidelines shown later in the manual.
  • Page 20 Motherboard Components Connectors 1. ID_Button (SW1) 18.SYS_FAN_FP (J39) 2. USB3.1x2+LAN PHY RJ45 (J62) 19.COM Port.2(J57) 3. VGA + COM Port1 (J56) 20.SATA 6(J20) 4. ATX Power Connector 8P(PW2) 21.SATA 0(SATA-DOM1) (J16) 5. Display Port (J58)+ 22.SATA 4(J15) USB3.1Port x 2 (J61) 6.
  • Page 21 CPU0 FAN/ SYS FAN1~5: 4-pin Fan Connector(J34,J36, J38, J40, J35,J37) Signal VCC12 FAN_TACH Use this header to connect the cooling fan to your motherboard to keep the system stable and reliable. Note: A 4-pin fan is required for fan support 4pin Control J32: Front Panel Connector (Power Button/Reset Button/HDD Active LED/Power On LED) Signal...
  • Page 22 J74: Front USB2.0/ USB3.1*2 Connector Signal Signal USB3_VCC_FPB USB31_PCH_P4_RX_ESD_DN USB31_PCH_P4_RX_ESD_DP USB31_PCH_P4_TX_ESD_DN USB31_PCH_P4_TX_ESD_DP USB2_PCH_P9_ESD_DN USB2_PCH_P9_ESD_DP USB31_FPB_OC2_N_R USB2_PCH_P6_ESD_DP USB31_PCH_P3_TX_ESD_DN USB31_PCH_P3_TX_ESD_DP USB31_PCH_P3_TX_ESD_DN USB31_PCH_P3_RX_ESD_DP USB31_PCH_P3_RX_ESD_DN USB3_VCC_FPB J24: SATA SGPIO Header Signal Signal SD1/SDO1 SDO0 SLOAD SCLOCK V3AUX HDD_FAULT J15, J17, J20, J21, J22, J23: SATA Connectors Signal Name Connects to the Serial ATA ready...
  • Page 23 J50: PSMI Connector Signal PSMI_CLK PSMI_DAT PSMI_ALERT VCC3 COM Port.2: Internal Serial Port Header Pin-out (J57) Signal Name SPA_DCD DCD (carrier detect) SPA_DSR DSR (data set ready) SPA_SIN_N RXD (receive data) SPA_RTS RTS (request to send) SPA_OUT_N TXD (Transmit data) SPA_CTS CTS (clear to send) SPA_DTR...
  • Page 24 J65: LAN3 LED Header Signal Signal P3V3_AUX LAN3_LED1_ACT_N J66: LAN4 LED Header Signal Signal P3V3_AUX LAN4_LED1_ACT_N Mini SAS HD ConnectorJ79/J78: (SAS 0~3/ SAS 4~7) Signal Signal RX0+ RX0- RX1+ RX1- RX2+ RX2- TX1+ TX1- RX3+ TX2+ RX3- TX2- TX0+ TX3+ TX0- TX3- J12:...
  • Page 25 J10: ME Firmware Update Jumper Signal TP_ME_RCVR_BOOT PM_ME_RCVR_R P0_ME_RCVR_N Normal (Default) 1-2: Normal <DEFAULT> 2-3: ME FORCE UPDATE ME Force Update http://www.tyan.com...

  • Page 26: Installing The Processor And Heatsink

    Intel processors for this specific motherboard. NOTE: MiTAC is not liable for damage as a result of operating an unsupported configuration. Processor Installation (Single Socket H4 LGA1151 Coffee Lake-S) Follow the steps below to install the processors and heat sinks.
  • Page 27 4. Install the processor and make sure the golden arrow is located in the right direction. 5. Close the CPU socket cover. 6. Close the socket lever. http://www.tyan.com...
  • Page 28 Heat sink Installation After installing the processor, you will need to proceed to install the heat sink. The CPU heat sink will ensure that the processor do not overheat and continue to operate at maximum performance for as long as you own them. An overheated processor is dangerous to the motherboard.
  • Page 29 Secure the heatsink screws. Connect the heatsink fan cable. http://www.tyan.com...

  • Page 30: Tips On Installing Motherboard In Chassis

    2.6 Tips on Installing Motherboard in Chassis Before installing your motherboard, make sure your chassis has the necessary motherboard support studs installed. These studs are usually metal and are gold in color. Usually, the chassis manufacturer will pre-install the support studs. If you are unsure of stud placement, simply lay the motherboard inside the chassis and align the screw holes of the motherboard to the studs inside the case.
  • Page 31 Some chassis include plastic studs instead of metal. Although the plastic studs are usable, MiTAC recommends using metal studs with screws that will fasten the motherboard more securely in place. Below is a chart detailing what the most common motherboard studs look like and how they should be installed.

  • Page 32: Installing The Memory

    2.7 Installing the Memory Before installing memory, ensure that the memory you have is compatible with the motherboard and processor. Check the TYAN Web site at http://www.tyan.com details of the type of memory recommended for your motherboard. http://www.tyan.com...
  • Page 33 Recommended Memory Population Table (Single CPU) Single CPU Installed (CPU0 only) P0_MC0_DIM_ P0_MC0_DIM P0_MC0_D P0_MC0_DI Supported/Not CH_A0 _CH_A1 IM_CH_B0 M_CH_B1 Supported Not Supported √ Not Supported Supported √ √ √ Supported √ Not Supported √ √ Not Supported √ √ Not Supported √...
  • Page 34 Intel Processor Families Memory Support Intel’Core Intel’Core Intel’ Xeon’ DIMM Pentium and and i7 Platform Processor E Configuration Celeron processor family Processors’ series Intel’C242 Supported Supported Chipset (Client OS) (Client OS) UDIMM Non- Supported (Essential Not Supported Not Supported Server) (Server OS) (Server OS) UDIMM ECC...
  • Page 35 Memory Installation Procedure Follow these instructions to install memory modules into the S5552. Unlock a DIMM socket by Press the retaining clip outwardly in the following illustration. Align the memory module with the socket，such that the DIMM NOTCH match the KEY SLOT on the socket. Seat the module firmly into the socket by gently pressing down until it sits flush with the socket.

  • Page 36: Attaching Drive Cables

    2.8 Attaching Drive Cables The following illustrates how to make a SATA/SAS Cable connection. If you are in need of SATA/SAS cables or power adapters please contact your local sales representative. Attaching SATA Cables Attaching SAS Cables http://www.tyan.com...

  • Page 37: Installing Add-In Cards

    2.9 Installing Add-In Cards Before installing add-in cards, it’s helpful to know if they are fully compatible with your motherboard. For this reason, we’ve provided the diagrams below, showing the slots that may appear on your motherboard. PCIE3.0 SLOT x16 (J55) PCIE3.0 SLOT x8 (J54) PCIE3.0 SLOT x1 (J75) ...

  • Page 38: Connecting External Devices

    2.10 Connecting External Devices Connecting external devices to the motherboard is an easy task. The motherboard supports a number of different interfaces through connecting peripherals. See the following diagrams for the details. NOTE: An extended function of system ID button is added to the latest BMC firmware release.
  • Page 39 Onboard LAN LED Color Definition Five (5) onboard Ethernet ports have green Amber LEDs to indicate LAN status. The chart below illustrates the different LED states. 1Gbps Ethernet port Link/Activity LED Scheme Left LED(LED2) Right LED(LED1) (Link/Activity) (Speed) No Link Link Green 10 Mbps...

  • Page 40: Installing The Power Supply

    2.11 Installing the Power Supply There are Two (2) power connectors on your S5552 motherboard. The S5552 supports ATX 12V power supply. PWR1: ATX 24-Pin Power Connector Pin-out Signal Signal +3.3V +3.3V +3.3V -12V PS_ON# PWR_OK 5VSB +12V +12V +3.3V PWR2: 8-pin CPU and Memory Power Connector Pin-out Signal Signal...

  • Page 41: Chapter 3: Bios Setup

    Chapter 3: BIOS Setup 3.1 About the BIOS The BIOS is the basic input/output system, the firmware on the motherboard that enables your hardware to interface with your software. The BIOS determines what a computer can do without accessing programs from a disk. The BIOS contains all the code required to control the keyboard, display screen, disk drives, serial communications, and a number of miscellaneous functions.
  • Page 42 Chipset section unless you are absolutely sure of what you are doing. The Chipset defaults have been carefully chosen either by MiTAC or your system manufacturer for best performance and reliability. Even a seemingly small change to the Chipset setup options may cause the system to become unstable or unusable.

  • Page 43: Main Menu

    3.2 Main Menu In this section, you can alter general features such as the date and time. Note that the options listed below are for options that can directly be changed within the Main Setup screen. BIOS Information It displays BIOS related information. Product Name It displays the product Name Platform Information...

  • Page 44: Advanced Menu

    3.3 Advanced Menu This section facilitates configuring advanced BIOS options for your system. iSCSI Configuration Configure the iSCSI parameters Option ROM Dispatch Policy Option ROM Dispatch Policy Trusted Computing Trusted Computing settings. CPU Configuration CPU Configuration parameters Server ME Configuration Server ME Configuration ACPI Settings System ACPI Parameters.
  • Page 45 Serial Port Console Redirection Serial Port Console Redirection PCI Subsystem Settings PCI, PCI-X and PCI Express Settings. Network Stack Configuration Network Stack Settings CSM Configuration CSM Configuration, Enable/Disable Option ROM execution setting, etc USB Configuration USB Configuration Parameters. Onboard Device Configuration Onboard Device and Function Configuration.
  • Page 46 3.3.1 iSCSI Configuration iSCSI Name The worldwide unique name of iSCSI Initiator. Only IQN format is accepted. Range is from 4 to 223. Step 0. Connect to iSCSI Server Step 1. Option ROM Dispatch Policy Settings: Advanced>Option ROM Dispatch Policy >Onboard LAN1 (I210) [Enabled] Advanced>Option ROM Dispatch Policy>Onboard LAN1 Option ROM type [iSCSI] Step 2.
  • Page 47 3.3.1.1 Add an Attempt Read only. http://www.tyan.com...
  • Page 48 3.3.1.1.1 MAC A0:42:3F:3A:F7:F0 iSCSI Mode Disabled, Enabled, Enabled for MPIO. Disabled / Enabled / Enabled for MPIO Internet Protocol Initiator IP address is system assigned in IP6 mode. In Autoconfigure mode, iSCSI driver will attempt to connect iSCSI target via IPv4 stack, if failed then attempt IPv6 stack.
  • Page 49 Enable DHCP Enable DHCP. Disabled / Enabled Initiator IP Address Enter IP address in dotted-decimal notation. Initiator Subnet Mask Enter IP address in dotted-decimal notation. Gateway Enter IP address in dotted-decimal notation. Target Name The worldwide unique name of the target. Only iqn. format is accepted. iqn.
  • Page 50 3.3.1.2 Delete Attempts Attempt 1 MAC: A0:42:3F:3A:F7:F0, PFA: Bus 1/ Dev 0 / Func 0, iSCSI mode: Disabled, IP version: IP4. Disabled / Enabled Commit Changes and Exit Commit Changes and Exit. Discard Changes and Exit Discard Changes and Exit. http://www.tyan.com...
  • Page 51 3.3.1.3 Change Attempt Order Change Attempt Order Change the order of Attempts using +/- keys. Use arrow keys to select the attempt then press +/- to move the attempt up/down in the attempt order list. Attempt 1 / Attempt # Commit Changes and Exit Commit Changes and Exit.
  • Page 52 3.3.2 Option ROM Dispatch Policy Configuration Onboard LAN1/2/3/4 (I210) Enable or disable onboard LAN1 Option ROM. Disabled / Enabled Onboard SAS Enable or disable onboard SAS Option ROM Disabled / Enabled PCIE #1 NOT FOUND Enable or Disable Option ROM execution for selected Slot. Disabled / Enabled PCIE #2 NOT FOUND Enable or Disable Option ROM execution for selected Slot.
  • Page 53 3.3.3 Trusted Computing Security Device Support Enable or disable BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. Disabled / Enabled NOTE: When Security Device Support is set to [Enabled], the following item will appear.
  • Page 54 Pending operation Schedule an Operation for the Security Device. NOTE： Your Computer will reboot during restart in order to change State of Security Device. None TPM Clear Platform Hierarchy Enable or Disable Platform Hierarchy Disabled Enabled Storage Hierarchy Enable or Disable Storage Hierarchy Disabled Enabled Endorsement Hierarchy...
  • Page 55 3.3.4 CPU Configuration http://www.tyan.com...
  • Page 56 Hyper- threading Enabled for Windows XP and Linux(OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). Disabled / Enabled Active Processor Cores Number of cores to enable in each processor package. All / 1 / 2 / 3 / 4 / 5 Intel (VMX) Virtualization Technology When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.
  • Page 57 3.3.4.1 Power and Performance Configuration Boot performance Mode Select the performance state that the BIOS will set starting from reset vector. Max Battery / Max Non-Turbo Performance / Turbo Performance Intel(R) SpeedStep(tm) Allows more than two frequency ranges to be supported. Disabled / Enabled Turbo Mode Enable/Disable processor Turbo Mode (requires Intel Speed Step or Intel Speed shift...
  • Page 58 C states Enable/Disable CPU Power Management. Allows CPU to go to C states when it’s not 100% utilized. When enabled, CPU will switch to minimum speed. When all cores enter C-State. Disabled / Enabled Enhanced C-states Enable/Disable C1E. When enabled, CPU will switch to minimum speed when all cores enter C-state.
  • Page 59 3.3.5 Server ME Configuration Read Only http://www.tyan.com...
  • Page 60 3.3.6 ACPI Settings Enable ACPI Auto Configuration Enables or Disables BIOS ACPI Auto Configuration. Disabled / Enabled Enable Hibernation Enables or Disables System ability to Hibernate (OS/SA Sleep State). This option may not be effective with some operating systems. Disabled / Enabled ACPI Sleep State Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.
  • Page 61 3.3.7 Serial Port Console Redirection COM1/COM2 Console Redirection Console redirection enable or disable. Disabled / Enabled NOTE: When Console Redirection was set to [Enabled], Console Redirection Settings will be able to set up. Legacy Console Redirection Legacy Console Redirection Settings Serial Port for Out-Of-Band Management/Windows Emergency Services (EMS) Console Redirection Console redirection enable or disable.
  • Page 62 3.3.7.1 Console Redirection Settings Terminal Type Emulation: ANSI: Extended ASCII char set. VT100: ASCII char set. VT100+: Extends VT100 to support color function keys, etc. VT-UTF8: Uses UTF8 encoding to map Unicode chars onto 1 or more bytes. VT100 / VT100+ / VT-UTF8 / ANSI Bits per Second Select serial port transmission speed.
  • Page 63 Stop Bits Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning). The standard setting is 1 stop bit. Communication with slow devices may require more than 1 stop bit. 1 / 2 Flow Control Flow Control can prevent data loss from buffer overflow.
  • Page 64 3.3.7.2 Legacy Console Redirection Settings Redirection COM Port Select a COM port to display redirection of Legacy OS and Legacy OPROM Messages COM1 / COM2 Resolution On Legacy OS, the Number of Rows and Columns supported redirection 80x24 / 80x25 Redirect After POST When Bootloader is selected then Legacy Console Redirection is disabled before booting to legacy OS.
  • Page 65 3.3.7.3 Serial Port for Out-Of-Band Management/Windows Emergency Services (EMS) Console Redirection Settings Out-of Band Mgmt Port Microsoft Windows Emergency Management Services (EMS) allows for remote management of a Windows Server OS through a serial port. COM1 / COM2 Terminal Type VT-UTF8 is the preferred terminal type for out-of-band management.
  • Page 66 Flow Control Flow Control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a ‘stop’ signal can be sent to stop the data flow. Once the buffers are empty, a ‘start’ signal can be sent to restart the flow. Hardware flow control uses two wires to send start/stop signal.
  • Page 67 3.3.8 PCI Subsystem Settings Above 4G Decoding Enables or Disables 64bit capable Devices to be decoded in Above 4G Address Space. Enabled / Disabled SR-IOV Support If system has SR-IOV capable PCIe devices, this option Enables or Disables Single root IO virtualization Support Enabled / Disabled http://www.tyan.com...
  • Page 68 3.3.9 Network Stack Configuration Network Stack Enable/Disable UEFI Network Stack Disabled / Enabled http://www.tyan.com...
  • Page 69 3.3.10 CSM Configuration CSM support Enable/Disable CSM Support Enabled / Disabled Option ROM Messages Set display mode for Option ROM Force BIOS / Keep Current Network Controls the execution of UEFI and legacy PXE OpROM UEFI / legacy Storage Controls the execution of UEFI and legacy PXE OpROM UEFI / legacy Video Controls the execution of UEFI and legacy PXE OpROM...
  • Page 70 3.3.11 USB Configuration Legacy USB Support Enables legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications. Enabled / Disabled / Auto XHCI Hand-off This is a workaround for OSes without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver.
  • Page 71 USB transfer time-out The time-out value for Control, Bulk and Interrupt transfers. 1 sec / 5 sec / 10 sec / 20 sec Device reset time-out USB mass storage device Start Unit command time-out. 10 sec / 20 sec / 30 sec / 40 sec Device power-up delay Maximum time the device will take before it properly reports itself to the Host Controller.
  • Page 72 Onboard SAS Enabled/Disabled the LSI 3008 SAS in the Chipset. Disabled / Enabled LAN1/2/3/4 LAN Enable/Disable control function. Disabled / Enabled Chassis Intrusion Detection Enabled: When a chassis open event is detected, the BIOS will record the event. Disabled / Enabled NMI Button Enable or Disable NMI button Disabled / Enabled...
  • Page 73 3.3.14 Super IO Configuration Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA) Serial Port 2 Configuration Set Parameters of Serial Port 2 (COMB) http://www.tyan.com...
  • Page 74 3.3.14.1 Serial Port 1 Configuration Serial Port Enable or Disable Serial Port (COM) Disabled / Enabled Device Settings Read only. Change Settings Select an optimal setting for Super IO Device. Auto / IO=3F8h; IRQ=4; / IO=3F8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; / IO=2F8h;...
  • Page 75 3.3.14.2 Serial Port 2 Configuration Serial Port Enable or Disable Serial Port (COM) Disabled / Enabled Device Settings Read only. Change Settings Select an optimal setting for Super IO Device. Auto / IO=2F8h; IRQ=3; / IO=3F8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; / IO=2F8h;...
  • Page 76 3.3.15 Hardware Health Configuration Fan speed Control Fan speed control Manual / Full Speed PWM Minimal Duty Cycle (%) Duty Cycle control range 30 BMC Alert Beep Enable/Disable BMC Alert Beep Off / On PMBus Support PMBus Support Disabled Enabled http://www.tyan.com...
  • Page 77 3.3.15.1 Sensor Data Register Monitoring When you enter the Sensor Data Register Monitoring submenu, you will see the following dialog window pop out. Please wait 8~10 seconds. NOTE 1: SDR cannot be modified. Read only. http://www.tyan.com...
  • Page 78 http://www.tyan.com...

  • Page 79: Chipset Menu

    3.4 Chipset Menu North Bridge System Agent (SA) Parameters. South Bridge PCH Parameters http://www.tyan.com...
  • Page 80 3.4.1 North Bridge Configuration Memory Configuration Memory Configuration Parameters Graphics Configuration Graphics Configuration DMI/DPI Configuration Control various DMI functions PEG Port Configuration PEG Port Options VT-d VT-d capability Disabled / Enabled http://www.tyan.com...
  • Page 81 3.4.1.1 Memory Configuration Maximum Memory Frequency Maximum Memory Frequency Selections in Mhz. Valid values should match the refclk, i.e. divide by 133 or 100 Auto / 2133 / 2400 / 2666 ECC Support Enable/ disable DDR Ecc Support Disabled Enabled http://www.tyan.com...
  • Page 82 3.4.1.2 Graphics Configuration Primary Display Select which of IGFX/PEG/ PCI Graphics device should be Primary Display or select SG for Switchable Gfx. Auto / PEG / PCH PCIe http://www.tyan.com...
  • Page 83 3.4.1.3 DMI/OPI Configuration DMI Max Link Speed Set DMI Speed Gen1/Gen2/ Gen3 Auto / Gen1 / Gen2 / Gen3 DMI Link ASPM Control Enable/Disable the control of Active State Power Management on SA side of the DMI Link. Disabled L0s / L1 / L0sL1 http://www.tyan.com...
  • Page 84 3.4.1.4 PEG Port Configuration PEG 0:1:0 Enable Root Port Enable or Disable the Root Port Disabled Enabled / Auto Max Link Speed Configure PEG 0:1:0 Max Speed. Auto Gen1/ Gen2 / Gen3 Max Link width Force PEG Link to retrain to X1/2/4/8 Auto Force X1/ Force X2 / Force X4 / Force X8 ASPM...
  • Page 85 De-emphasis Control PEG1: Configure the De-emphasis control on PEG. -6 dB / -3.5 dB PEG 0:1:1 Onboard SAS Enabled/Disabled the LSI 3008 SAS in the chipset. Disabled Enabled Max Link Speed Configure PEG 0:1:0 Max Speed. Auto Gen1/ Gen2 / Gen3 Max Link width Force PEG Link to retrain to X1/2/4/8 Auto...
  • Page 86 3.4.2 South Bridge Configuration SATA And RSTe Configuration SATA Device Options Settings PCI Express Configuration PCI Express Configuration settings DeepSx Power Policies Configure the DeepSx Mode configuration Disabled / Enabled in S4-S5 Restore AC Power Loss Select AC power state when power is re-applied after a power failure. Power On Power Off Last State...
  • Page 87 3.4.2.1 SATA And RSTe Configuration SATA Controller Enable/Disable SATA Device Enabled / Disabled SATA Mode Selection Determines how SATA controller(s) operate. AHCI / RAID Serial ATA Port 0 / SATADOM1 Hot plug Designated this port as Hot pluggable Disabled Enabled SATA Device Type Identify the SATA port is connected to Solid State Drive or Hard Disk Drive Hard Disk Drive...
  • Page 88 SATA Device Type Identify the SATA port is connected to Solid State Drive or Hard Disk Drive Hard Disk Drive Solid State Drive Serial ATA Port 2/3/4/5 Hot plug Designated this port as Hot pluggable Disabled Enabled SATA Device Type Identify the SATA port is connected to Solid State Drive or Hard Disk Drive Hard Disk Drive Solid State Drive...
  • Page 89 3.4.2.2.1 PCI Express Root Port 1 Configuration PCI Express Root Port 1 Control the PCI Express Root Port。 Disabled Enabled ASPM 0 Set the ASPM Level: Force L0s – Force all links to L0s State AUTO – BIOS auto configure DISABLE –...

  • Page 90: Server Management

    3.5 Server Management FRB-2 Timer Enable or Disable FRB-2 timer (POST Timer) Enabled / Disabled NOTE: When FRB-2 Timer was set to [Enabled], the following two items was available FRB-2 Timer timeout Enter value Between 3 to 6 min for FRB-2 Timer Expiration value 3 minutes / 4 minutes / 5 minutes / 6 minutes FRB-2 Timer Policy Configure how the system should respond if the FRB-2 Timer expires.
  • Page 91 OS Watchdog Timer If enabled, starts a BIOS timer which can only be shut off by Management Software after the OS loads. Helps determine that the OS successfully loaded or follows the OS Boot watchdog Timer policy. Disabled / Enabled NOTE: When OS Watchdog Timer was set to [Enabled], the following two items was available...
  • Page 92 3.5.1 System Event Log SEL Components Change this to enable or disable event logging for error/ progress codes during boot. Disabled / Enabled Erase SEL Choose options for erasing SEL. No / Yes, on next reset / No, on every reset When SEL is Full Choose options for reactions to a full SEL.
  • Page 93 3.5.2 BMC Event Log http://www.tyan.com...

  • Page 94: Security

    Configuration Address Source Select the configure LAN channel parameters statically or dynamically (by BIOS or BMC). Unspecified option will not modify any BMC network parameters during BIOS phase. Unspecified / Static / DynamicBmcDhcp / DynamicBmcNonDhcp Management Port 1/2 IPV6 Support Enable or Disable LAN1 IPV6 Support Disabled / Enabled 3.6 Security...
  • Page 95 Security Frozen Mode Enable or disable HDD security freeze lock. Disable to support secure erase function. Disabled / Enabled Secure Boot Customizable Secure Boot settings 3.6.1 Secure Boot Configuration Submenu Secure Boot Secure Boot feature is Active if Secure Boot is Enabled, Platform Key (PK) is enrolled and the System is in User mode.
  • Page 96 3.6.1.1 Restore Factory Keys Submenu Restore Factory Keys Force System to User Mode. Install factory default Secure Boot Key databases. When Press ‘Yes’ to proceed When Press ‘No’ to cancel http://www.tyan.com...
  • Page 97 3.6.1.2 Reset To Setup Mode Submenu Reset To Setup Mode Delete all Secure Boot key databases from NVRAM Deleting all variables will reset the System to setup Mode When Press ‘Yes’ to proceed When Press ‘No’ to cancel Key Management Enables experienced users to modify Secure Boot variables http://www.tyan.com...
  • Page 98 3.6.2 Key Management Factory Keys Provision Install factory default Secure Boot Keys after the platform reset and while the System is in Setup Mode. Disabled / Enabled Restore Factory Keys Force System to User Mode. Install Factory Default Secure Boot Key databases. Reset To Setup Mode Delete all Secure Boot Key databases from NVRAM Export Secure Boot variables...
  • Page 99 Remove ‘UEFI CA’ from DB Device Guard ready system must not list ‘ Microsoft’ UEFI CA’ Certificate in Authorized Signature database (db) Restore DB defaults Restore DB variable to Factory defaults Platform Key (PK) Enroll Factory Defaults or load certificates from a file: 1.
  • Page 100 a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256,384,512 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Default, External, Mixed, Test Authorized TimeStamps Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin)

  • Page 101: Boot

    3.7 Boot Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite waiting. Bootup NumLock State Select the keyboard NumLock state. Off / On Quiet Boot Enable or disable Quiet Boot option. Disabled / Enabled Boot Option #1#2#3#4#5 Sets the system boot order Device Name / Disabled...
  • Page 102 Wait for “ESC” if Error Wait for ESC stop when BIOS has error appeared. Disabled / Enabled Hard Drive BBS Priorities Set the order of the legacy devices in this group USB Device BBS Priorities Set the order of the legacy devices in this group Add New Boot Option Add a new EFI boot option to the boot order Delete Boot Option...
  • Page 103 3.7.1 Hard Drive BBS Priorities Configuration Boot Option #1 Sets the system boot order Device Name / Disabled http://www.tyan.com...
  • Page 104 3.7.2 USB Device BBS Priorities Configuration Boot Option #1 Sets the system boot order Device Name / Device Name / Disabled Boot Option #2 Sets the system boot order Device Name / Device Name / Disabled http://www.tyan.com...
  • Page 105 3.7.3 Add New Boot Option Configuration Add boot option Specify name for new boot option Path for boot option Enter the path to the boot option in the format fsk:\ path\ filename.efi Create Creates the newly formed boot option http://www.tyan.com...
  • Page 106 3.7.4 Delete Boot Configuration Delete Boot Option Remove an EFI boot option from the boot order. Select one to Delete / Device Name http://www.tyan.com...

  • Page 107: Save & Exit

    3.8 Save & Exit Save Changes and Exit Exit system setup after saving the changes. Discard Changes and Exit Exit system setup without saving any changes. Save Changes and Reset Reset the system after saving the changes. Discard Changes and Reset Reset system setup without saving any changes.
  • Page 108 Save as User Defaults Save the changes done so far as User Defaults. Restore User Defaults Restore the User Defaults to all the setup options. Boot Override Device Name http://www.tyan.com...

  • Page 109: Chapter 4: Diagnostics

    Chapter 4: Diagnostics NOTE: if you experience problems with setting up your system, always check the following things in the following order: Memory, Video, CPU By checking these items, you will most likely find out what the problem might have been when setting up your system.

  • Page 110: Amibios Post Code (Aptio)

    4.2 AMIBIOS Post Code (Aptio) The POST code checkpoints are the largest set of checkpoints during the BIOS pre- boot process. The following table describes the type of checkpoints that may occur during the POST portion of the BIOS: Checkpoint Ranges Status Code Range Description 0x01 –...
  • Page 111 SEC Error Codes 0x0C – 0x0D Reserved for future AMI SEC error codes 0x0E Microcode not found 0x0F Microcode not found SEC Phase None PEI Phase Status Code Description Progress Codes 0x10 PCI Core is started 0x11 Pre-memory CPU initialization is started 0x12 Pre-memory CPU initialization (CPU module specific) 0x13...
  • Page 112 Status Code Description CPU post-memory initialization. Boot Strap Processor (BSP) 0x35 selection CPU post-memory initialization. System Management Mode (SMM) 0x36 initialization 0x37 Post-Memory North Bridge initialization is started. Post-Memory North Bridge initialization (North Bridge module 0x38 specific) Post-Memory North Bridge initialization (North Bridge module 0x39 specific) Post-Memory North Bridge initialization (North Bridge module...
  • Page 113 Status Code Description S3 Resume Error Codes 0xE8 S3 Resume failed 0xE9 S3 Resume PPI not found 0xEA S3 Resume Boot Script error 0xEB S3 OS wake error 0xEC – 0xEF Reserved for future AMI error codes Recovery Progress Codes 0xF0 Recovery condition triggered by firmware (Auto recovery) 0xF1...
  • Page 114 Status Code Description 0x63 CPU DXE initialization is started. 0x64 CPU DXE initialization (CPU module specific) 0x65 CPU DXE initialization (CPU module specific) 0x66 CPU DXE initialization (CPU module specific) 0x67 CPU DXE initialization (CPU module specific) 0x68 PCI host bridge initialization 0x69 North Bridge DXE initialization is started.
  • Page 115 Status Code Description 0x9B USB Reset 0x9C USB Detect 0x9D USB Enable 0x9E -0x9F Reserved for future AMI codes 0xA0 IDE initialization is started 0xA1 IDE Reset 0xA2 IDE Detect 0xA3 IDE Enable 0xA4 SCSI initialization is started. 0xA5 SCSI Reset 0xA6 SCSI Detect 0xA7...
  • Page 116 Status Code Description 0xD5 No Space for Legacy Option ROM 0xD6 No Console Output Devices are found. 0xD7 No Console Input Devices are found. 0xD8 Invalid password 0xD9 Error loading Boot Option (LoadImage returned error) 0xDA Boot Option is failed (StartImage returned error). 0xDB Flash update is failed.

  • Page 117: Appendix I: Fan And Temp Sensors

    Appendix I: Fan and Temp Sensors This section aims to help readers identify the locations of some specific FAN and Temp Sensors on the motherboard. A table of BIOS Temp sensor name explanation is also included for readers’ reference. NOTE: The red dot indicates the sensor.
  • Page 118 BIOS Temp Sensor Name Explanation: http://www.tyan.com...
  • Page 119 CPU_DTS_Temp Temperature of the CPU_DTS CPU_PECI_Value Temperature of the CPU_PECI_Value Temperature of the SAS_Air_Inlet SAS_Air_Inlet Temperature of the M/B_Air_Inlet M/B_Air_Inlet Temperature of the SAS_Air_Outlet SAS_Air_Outlet Temperature of the SAS_Area_Tenp SAS_Area_Tenp CPU_MOSFET Temperature of the CPU MOSFET PCH_Temp Temperature of the PCH P0_MC0_DIM_CH_A The highest temperature of CPU DIMM channel A slot P0_MC0_DIM_CH_B...
  • Page 120 NOTE http://www.tyan.com...

  • Page 121: Glossary

    Glossary ACPI (Advanced Configuration and Power Interface): a power management specification that allows the operating system to control the amount of power distributed to the computer’s devices. Devices not in use can be turned off, reducing unnecessary power expenditure. AGP (Accelerated Graphics Port): a PCI-based interface which was designed specifically for demands of 3D graphics applications.
  • Page 122 Bus: a data pathway. The term is used especially to refer to the connection between the processor and system memory, and between the processor and PCI or ISA local buses. Bus mastering: allows peripheral devices and IDEs to access the system memory without going through the CPU (similar to DMA channels).
  • Page 123 DRAM (Dynamic RAM): widely available, very affordable form of RAM which looses data if it is not recharged regularly (every few milliseconds). This refresh requirement makes DRAM three to ten times slower than non-recharged RAM such as SRAM. ECC (Error Correction Code or Error Checking and Correcting): allows data to be checked for errors during run-time.
  • Page 124 I/O (Input/Output): the connection between your computer and another piece of hardware (mouse, keyboard, etc.) IRQ (Interrupt Request): an electronic request that runs from a hardware device to the CPU. The interrupt controller assigns priorities to incoming requests and delivers them to the CPU. It is important that there is only one device hooked up to each IRQ line;...
  • Page 125 RAID (Redundant Array of Independent Disks): a way for the same data to be stored in different places on many hard drives. By using this method, the data is stored redundantly and multiple hard drives will appear as a single drive to the operating system.
  • Page 126 Standby mode: in this mode, the video and hard drives shut down; all other devices continue to operate normally. UltraDMA-33/66/100: a fast version of the old DMA channel. UltraDMA is also called UltraATA. Without a proper UltraDMA controller, your system cannot take advantage of higher data transfer rates of the new UltraDMA/UltraATA hard drives.

  • Page 127: Technical Support

    Technical Support If a problem arises with your system, you should first turn to your dealer for direct support. Your system has most likely been configured or designed by them and they should have the best idea of what hardware and software your system contains.
  • Page 128 NOTE: A receipt or copy of your invoice marked with the date of purchase is required before any warranty service can be rendered. You may obtain service by calling the manufacturer for a Return Merchandise Authorization (RMA) number. The RMA number Should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid.

This manual is also suitable for:

S5552gm2nr

Table of Contents
