Related Manuals for MiTAC TYAN S5545

Summary of Contents for MiTAC TYAN S5545

  • Page 1 In no event will MiTAC be held liable for any direct or indirect, incidental or consequential damage, loss of use, loss of data or other malady resulting from errors or inaccuracies of information contained in this document.
  • Page 2 http://www.tyan.com...

  • Page 3: Table Of Contents

    Contents   Before you begin… ..................4 Chapter 1: Instruction ................5     1.1 Congratulations ................. 5   1.2 Hardware Specifications ..............5   1.3 Software Specifications ..............8 Chapter 2: Board Installation ..............9     2.1 Board Image ..................10  ...

  • Page 4: Before You Begin

    Before you begin… Check the box contents! The retail motherboard package should contain the following: 1 x S5545 Motherboard 2 x SATA Cable 1 x Rear IO Shield 1 x S5545 Quick reference guide ® 1 x TYAN Driver’s and Utilities DVD IMPORTANT NOTE: Sales sample may not come with the accessory listed above.

  • Page 5: Chapter 1: Instruction

    TYAN products as well as all the supporting documentation, FAQs, Drivers and BIOS upgrades. 1.2 Hardware Specifications TYAN S5545 (S5545AG2NR) Supported CPU Series Intel 6th Gen. Core i7/i5/i3 series Socket Type / Q'ty LGA1151 / (1)
  • Page 6 (1) Web User's manual / (1) Quick Installation Manual Contains Guide Installation CD (1) TYAN installation CD TYAN S5545-HE (S5545AG2NR-HE) Supported CPU Series Intel Xeon E3-1200 v5 series processors Processor Socket Type / Q'ty LGA1151 / (1) Thermal Design Power Max up to 80W...
  • Page 7 (TDP) wattage Chipset Intel C236 Supported DIMM Qty (4) DIMM slots DIMM Type / Speed Unbuffered ECC UDIMM DDR4 2133 Memory Capacity Up to 64GB Memory channel 2 Channels Memory voltage 1.2V (1) PCI-E Gen3 x16 slot / (1) PCI-E Gen3 x8 slot Expansion Slots PCI-E ( w/ x4 link) / (1) PCI-E Gen.3 x1 slot...

  • Page 8: Software Specifications

    Environment Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F) In/Non-operating 90%, non-condensing at 35° C Humidity RoHS RoHS 6/6 Compliant Motherboard (1) S5545 Motherboard Package (1) Web User's manual / (1) Quick Installation Manual Contains Guide Installation CD (1) TYAN installation CD...

  • Page 9: Chapter 2: Board Installation

    Unplug the power from your computer power supply and then touch a safely grounded object to release static charge (i.e. power supply case). For the safest conditions, MiTAC recommends wearing a static safety wrist strap. (2) Hold the motherboard by its edges and do not touch the bottom of the board, or flex the board in any way.

  • Page 10: Board Image

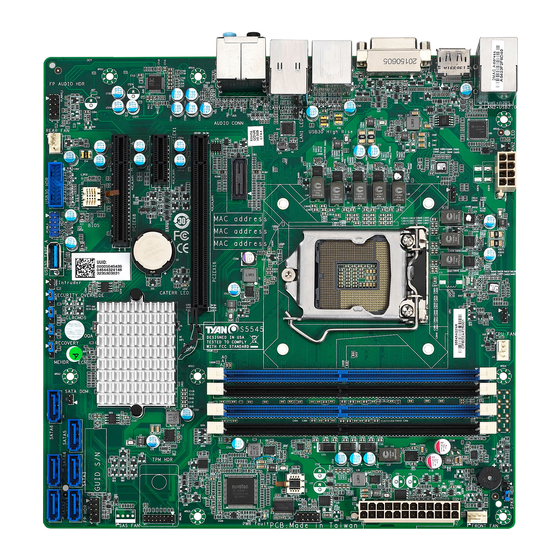

    2.1 Board Image S5545 This picture is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above picture. http://www.tyan.com...

  • Page 11: Block Diagram

    2.2 Block Diagram S5545 Block Diagram http://www.tyan.com...

  • Page 12: Mainboard Mechanical Drawing

    2.3 Mainboard Mechanical Drawing http://www.tyan.com...

  • Page 13: Board Parts, Jumpers And Connectors

    2.4 Board Parts, Jumpers and Connectors This diagram is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above diagram. But for the DIMM number please refer to the above placement for memory installation. For the latest board revision, please visit our web site at http://www.tyan.com.
  • Page 14 Jumpers & Connectors Connector/Jumper RJ45 LAN Port #1 (LAN1) + USB 15 SATA 4 (J48) 2.0 Ports (J42) 2 DP1 (J10) 16 SATA 3 (J39) 3 DVI-D Connector (DVI-D) 17 SATA 1 (J41) 4 DP2/USB 3.0 High Rise (J8/J13) 18 SATA 0 (J50) 5 RJ45 LAN Port #2 (LAN2) + USB 19 FP Header (J15) 3.0 Ports (J9)
  • Page 15 J77: COM Port Header Signal Signal KEY-Pin J16 (CPU FAN) / J20 (Front FAN) / J17 (Rear FAN): 4-pin FAN Connector Signal VCC12 TACHOMETER Use this header to connect the cooling fan to your motherboard to keep the system stable and reliable. J15: Front Panel Header Signal Signal...
  • Page 16 J83: SATA DOM Power Connector Signal Signal VCC5 J76: LAN1 LED Signal Signal Power 3.3V LED Activity J82: LAN2 LED Signal Signal Power 3.3V LED Activity INTRD1: Intruder Header Signal Signal INTRUDER FP_USB_3: Front USB2.0 Header (blue) Signal Signal VCCUSB_13 VCCUSB_13 USB_PCH_DN1_R USB_PCH_DN3_R...
  • Page 17 J26: USB3.0 Header Signal Signal VCCUSB3_FRONT VCCUSB3_FRONT USB30RX_4N_R USB30RX_3N_R USB30RX_4P_R USB30RX_3P_R USB30TX_4N_R USB30TX_3N_R USB30TX_4P_R USB30TX_3P_R USB_PCH DN2_R USB_PCH_DN4_R USB_PCH DP2_R USB_PCH_DP4_R USB_PCH_OC24_N_ID DBG_HD1: TYAN Module Header Signal Signal VCC3 LPC_LFRAME_N LAD0 LAD1 LPC_RST_N LAD2 LAD3 CLK_24M SERIRQ PRESENT_N 3V3_VSB GPIO1 GPIO2 J193: Vertical Type-A USB3.0 Connector Signal...
  • Page 18 J101: Clear CMOS Jumper You can reset the CMOS settings by using this jumper. This can be useful if you have forgotten your system/setup password, or need to clear the system BIOS setting. Normal (Default) 1. Power off system and disconnect power connectors from the motherboard.

  • Page 19: Installing The Processor And Heat Sink

    Specifications on page 5. Check our website at for latest processor support. NOTE: MiTAC TYAN is not liable for damage as a result of operating an unsupported configuration. Processor Installation (SNB_H4 (LGA1151) for Intel Skylake CPU) Follow the steps below to install the processors and heat sinks.
  • Page 20 Remove the CPU protection cap. Install the processor and make sure the gold arrow is located in the right direction with two notches properly aligned. Close the CPU socket cover. Press the socket lever down to lock the CPU in place. http://www.tyan.com...
  • Page 21 Heat sink Installation After installing the processor, you should proceed to install the heat sink. The CPU heat sink will ensure that the processor do not overheat and continue to operate at maximum performance for as long as you own them. The overheated processor is dangerous to the motherboard.
  • Page 22 Secure the heat sink screws. Connect the fan cable to complete the installation. http://www.tyan.com...

  • Page 23: Thermal Interface Material

    2.5 Thermal Interface Material There are two types of thermal interface materials designed for use with the processors. The most common material comes as a small pad attached to the heat sink at the time of purchase. There should be a protective cover over the material.

  • Page 24: Tips On Installing Motherboard In Chassis

    Some chassis include plastic studs instead of metal. Although the plastic studs are usable, MiTAC recommends using metal studs with screws that will fasten the motherboard more securely in place. Below is a chart detailing what the most common motherboard studs look like and how they should be installed.
  • Page 25 http://www.tyan.com...

  • Page 26: Installing The Memory

    2.7 Installing the Memory Before installing memory, ensure that the memory you have is compatible with the motherboard and processor. Check the TYAN Web site at http://www.tyan.com details of the type of memory recommended for your motherboard.  Supports up to 64GB of un-buffered non-ECC UDIMM DDR4 2133MHz memory...
  • Page 27 Recommended Memory Population Table Single CPU Installed Quantity of memory installed √ √ √ √ DIMM_A0 √ √ DIMM_A1 √ √ √ DIMM_B0 √ DIMM_B1 NOTE: 1. √ indicates a populated DIMM slot. 2. Use paired memory installation for max performance. 3.
  • Page 28 Memory Installation Procedure Follow these instructions to install memory modules into the S5545. Unlock the clips as shown in the illustration. Insert the memory module firmly into the socket by gently pressing down until it sits flush with the socket. Lock the clips to secure the memory module into place.

  • Page 29: Attaching Drive Cables

    2.8 Attaching Drive Cables Attaching Serial ATA Cables six (6) S5545 is equipped with Serial ATA (SATA) channel. Connections for the drives are very simple. There is no need to set Master/Slave jumpers on SATA drives. If you are in need of SATA/SAS cables or power adapters please contact your place of purchase.

  • Page 30: Installing Add-In Cards

    2.9 Installing Add-In Cards Before installing add-in cards, it’s helpful to know if they are fully compatible with your motherboard. For this reason, we’ve provided the diagrams below, showing the slots that may appear on your motherboard. PCI-E x 16 slot PCI-E x 8 slot PCI-E x 1 slot Simply find the appropriate slot for your add-in card and insert the card firmly.

  • Page 31: Connecting External Devices

    2.10 Connecting External Devices Connecting external devices to the motherboard is an easy task. The motherboard supports a number of different interfaces through connecting peripherals. See the following diagrams for the details. Surround Out LAN2 (I219) USB3.0 Ports LAN1 (I210) CEN/LFE Out LINE_In LINE_Out...

  • Page 32: Installing The Power Supply

    2.11 Installing the Power Supply two (2) There are power connectors on your S5545 motherboard. The S5545 supports EPS 12V power supply. J18: 24-pin Power Connector Signal Signal +3.3V +3.3V +3.3V -12V PS ON# Power OK Reserve +5VSB +12V +12V +3.3V PWRCONN1: ATX 8-pin Power Connector Signal...

  • Page 33: Chapter 3: Bios Setup

    Chapter 3: BIOS Setup 3.1 About the BIOS The BIOS is the basic input/output system, the firmware on the motherboard that enables your hardware to interface with your software. The BIOS determines what a computer can do without accessing programs from a disk. The BIOS contains all the code required to control the keyboard, display screen, disk drives, serial communications, and a number of miscellaneous functions.
  • Page 34 Chipset section unless you are absolutely sure of what you are doing. The Chipset defaults have been carefully chosen either by MiTAC or your system manufacturer for best performance and reliability. Even a seemingly small change to the Chipset setup options may cause the system to become unstable or unusable.

  • Page 35: Main Menu

    3.2 Main Menu In this section, you can alter general features such as the date and time. Note that the options listed below are for options that can directly be changed within the Main Setup screen. BIOS Information It displays BIOS related information. Memory Information This displays the total memory size.

  • Page 36: Advanced Menu

    3.3 Advanced Menu This section facilitates configuring advanced BIOS options for your system. ACPI Settings System ACPI Parameters. WatchDog Timer Configuration WatchDog Configuration. AMT Configuration Active Management Technology Configuration Parameters. PCH-FW Configuration Management Engine Technology Configuration Parameters. Super IO Configuration System Super IO Chip Parameters.
  • Page 37 S5 RTC Wake Settings Enable system to wake from S5 using RTC alarm. Serial Port Console Redirection Serial Port Console Redirection. CPU Configuration CPU Configuration Parameters. Intel Ready Mode Technology (only for S5545AG2NR) Intel Ready Mode Technology Settings. SATA Configuration SATA Devices Configuration.
  • Page 38 3.3.1 ACPI Settings ACPI Sleep State Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed. Suspend Disabled / S3 only (Suspend to RAM) http://www.tyan.com...
  • Page 39 3.3.2 Watch Dog Timer Configuration Watch Dog Mode Watch Dog Mode Help. Disabled / POST / OS / PowerON NOTE: Watch Dog Timer will not appear when Watch Dog Mode is set to [Disabled]. Watch Dog Timer Watch Dog Timer Help. 2 MINS / 4 MINS / 6 MINS / 8 MINS / 10 MINS http://www.tyan.com...
  • Page 40 3.3.3 AMT Configuration Intel AMT Enable/Disable Intel® Active Management Technology BIOS Extension. This option just controls the BIOS extension execution. If enabled, this requires additional firmware in the SPI device. Disabled / Enabled http://www.tyan.com...
  • Page 41 3.3.4 PCH-FW Configuration ME FW Version Read only. ME Firmware Mode Read only. ME Firmware Type Read only. ME Firmware SKU Read only. NFC Support Read only. ME Unconfig on RTC Clear State Disabling this option will cause ME not to unconfigure on RTC clear Enabled / Disabled ME State Set ME to Soft Temporary Disabled...
  • Page 42 3.3.4.1 Firmware Update Configuration Me FW Image Re-Flash Enable or disable ME FW Image Re-Flash function. Disabled / Enabled http://www.tyan.com...
  • Page 43 3.3.5 Super IO Configuration Super IO Chip Read only. http://www.tyan.com...
  • Page 44 3.3.5.1 Serial Port 1 Configuration Serial Port Enable or disable Serial Port (COM). Enabled / Disabled Device Settings Read only. Change Settings Select an optimal setting for Super IO Device. Auto / IO=3F8h; IRQ=4; / IO=3F8h, IRQ=3, 4, 5, 6, 7, 10, 11, 12; / IO=2F8h;...
  • Page 45 3.3.6 Hardware Health Configuration Auto Fan Control Auto Fan Control. Disabled: Fan speed full on. Enabled: Automatic fan speed control by temperature. Disabled / Enabled http://www.tyan.com...
  • Page 46 3.3.6.1 Sensor Data Register Monitoring Read only. http://www.tyan.com...
  • Page 47 3.3.7 S5 RTC Wake Settings Wake system from S5 Enable or disable System wake on alarm event. Select Fixed Time, system will wake on the hr:min:sec specified. Select Dynamic Time, system will wake on the current time + increase minute(s). Disabled / Fixed Time / Dynamic Time Wake system from S5 (when set to [Fixed time]) Wake up hour...
  • Page 48 3.3.8 Serial Port Console Redirection Console Redirection Console redirection enable or disable. Disabled / Enabled Serial Port for Out-Of-Band Management/Windows Emergency Services (EMS) Console Redirection Console redirection enable or disable. Disabled / Enabled Console Redirection Settings The settings specify how the host computer (which the user is using) will exchange data.
  • Page 49 3.3.8.1 Console Redirection Settings Terminal Type Emulation: ANSI: Extended ASCII char set. VT100: ASCII char set. VT100+: Extends VT100 to support color, function keys, etc.   VT-UTF8: Uses UTF8 encoding to map Unicode chars onto 1 or more bytes. VT100+ / VT100 / VT-UTF8 / ANSI Bits per Second Select serial port transmission speed.
  • Page 50 Stop Bits Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning). The standard setting is 1 stop bit. Communication with slow devices may require more than 1 stop bit. 1 / 2 Flow Control Flow Control can prevent data loss from buffer overflow.
  • Page 51 3.3.8.2 Serial Port for Out-Of-Band Management/Windows Emergency Services (EMS) Console Redirection Settings Out-of-Band Mgmt Port Microsoft Windows Emergency Management Services (EMS) allows for remote management of a Windows Server OS through a serial port. COM1 / COM2 (Pci Bus0, Dev0, Func0) (Disabled) Terminal Type VT-UTF8 is the preferred terminal type for out-of-band management.
  • Page 52 Flow Control Flow Control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a ‘stop’ signal can be sent to stop the data flow. Once the buffers are empty, a ‘start’ signal can be sent to restart the flow. Hardware flow control uses two wires to send start/stop signal.
  • Page 53 3.3.9 CPU Configuration CPU Configuration Read only. Hyper-threading Enabled for Windows XP and Linux (OS optimized for Hyper Threading Technology) and disabled for other OS (OS not optimized for Hyper Threading Technology). When disabled only one thread per enabled core is enabled. Enabled / Disabled Active Processor Cores Number of cores to enable in each processor package.
  • Page 54 Intel (R) Speed Shift Technology Enable/Disable Intel (R) Speed shift Technology support. Enabling will expose the CPPCv2 interface to allow for hardware controlled P-states. Enabled / Disabled Intel (R) SpeedStep (tm) Allows more than two frequency ranges to be supported. Enabled / Disabled Turbo Mode Turbo Mode.
  • Page 55 3.3.10 Intel Ready Mode Technology (only for S5545AG2NR) Intel Ready Mode Technology Enable/Disable Ready Mode support based on Windows Away-mode. Only on DT/AIO Disabled / Enabled Intel RMT State Intel RMT Enabling Status in BIOS. Enabled / Disabled HW Notification Hardware notification enabling status.
  • Page 56 3.3.11 SATA Configuration SATA Mode Selection Determines how SATA controller(s) operate. AHCI / RAID NOTE: Software Feature Mask Configuration submenu will appear when SATA Mode Selection is set to [RAID]. Hot Plug Designates this port as Hot Pluggable. Disabled / Enabled SATA Device Type Identify the SATA port is connected to Solid State Drive or Hard Disk Drive.
  • Page 57 3.3.11.1 Software Feature Mask Configuration OROM UI and BANNER If enabled, the OROM UI is shown. Otherwise, no OROM banner or information will be displayed if all disks and RAID volumes are Normal. Disabled / Enabled OROM UI Delay Select the delay time of the OROM UI Splash Screen in a normal status. 2 / 4 / 6 / 8 http://www.tyan.com...
  • Page 58 3.3.12 PCI Subsystem Settings Above 4G Decoding Enables or Disables 64bit capable Devices to be Decoded in Above 4G Address Space (Only if System Supports 64 bit PCI Decoding). Disabled / Enabled http://www.tyan.com...
  • Page 59 3.3.13 CSM Configuration CSM Support Enable/Disable CSM Support. Enabled / Disabled Option ROM Messages Set display mode for Option ROM Force BIOS / Keep Current INT19 Trap Response BIOS reaction on INT19 trapping by Option ROM: IMMEDIATE – execute the trap right away;...
  • Page 60 Storage Controls the execution of UEFI and Legacy Storage OpROM. Legacy / Do not launch / UEFI Video Controls the execution of UEFI and Legacy Video OpROM Legacy / Do not launch / UEFI Other PCI Devices Determines OpROM execution policy for devices other than Network, Storage, or Video.
  • Page 61 3.3.14 NVMe Configuration Read only. http://www.tyan.com...
  • Page 62 3.3.15 USB Configuration USB Module Version / USB Controllers / USB Devices Read only. Legacy USB Support Enable USB legacy support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.
  • Page 63 3.3.16 Onboard Device Configuration NOTE: The BIOS will automatically read the onboard LAN controller. LAN1(I210) Enable or disable onboard LAN1 (I210). Enabled / Disabled LAN1 OPROM Enable or disable onboard LAN1 OPROM. Disabled / PXE / iSCSI LAN2(I219) Enable or disable onboard LAN1 (I219). Enabled / Disabled LAN2 OPROM Enable or disable onboard LAN2 OPROM.

  • Page 64: Chipset Menu

    3.4 Chipset Menu North Bridge System Agent (SA) Parameters. South Bridge South Bridge Parameters. http://www.tyan.com...
  • Page 65 3.4.1 North Bridge Configuration VT-d VT-d capability. Enabled / Disabled http://www.tyan.com...
  • Page 66 3.4.1.1 Graphics Configuration Submenu IGFX VBIOS Version Read only. Primary Display (only for S5545AG2NR) Select which of IGFX/PEG/PCI Graphics device should be Primary Display Or select SG for Switchable Gfx. Auto / Disabled / Enabled Internal Graphics Keep IGFX enabled based on the setup options. Auto / Disabled / Enabled http://www.tyan.com...
  • Page 67 3.4.1.2 Memory Configuration Submenu Memory RC Version / Memory Frequency / Total Memory / VDD / DIMM_A0 / DIMM_A1 / DIMM_B0 / DIMM_B1 Read only. Maximum Memory Frequency Maximum Memory Frequency selections in Mhz. Auto / 1866 / 2133 ECC Support (only for S5545AG2NR-HE) Enable/disable DDR ECC support.
  • Page 68 3.4.2 South Bridge Configuration DeepSx Power Policies Configure the DeepSx Mode configuration. Disabled / Enabled in S4-S5 Wake on LAN Enable or disable integrated LAN to wake the system. (The Wake on LAN cannot be disabled if ME is on at Sx state.) Enabled / Disabled SLP_LAN# Low on DC Power Enable/Disable SLP_LAN# Low on DC Power.
  • Page 69 3.4.2.1 HD Audio Configuration Submenu HD Audio Control Detection of the HD-Audio device. Disabled = HDA will be unconditionally disabled Enabled = HDA will be unconditionally enabled Auto = HDA will be enabled if present, disabled otherwise. Auto / Disabled / Enabled Audio DSP Enable/Disable Audio DSP.

  • Page 70: Security

    3.5 Security Administrator Password Set administrator password in the Create New Password window. After you key in the password, the Confirm New Password window will pop out to ask for confirmation. User Password Set user password in the Create New Password window. After you key in the password, the Confirm New Password window will pop out to ask for confirmation.
  • Page 71 3.5.1 Secure Boot menu Secure Boot Secure Boot can be enabled if 1. System running in User mode with enrolled Platform Key (PK) 2. CSM function is disabled. Disabled / Enabled Secure Boot Mode Secure Boot mode selector. “Custom” Mode enables users to change Image Execution policy and manage Secure Boot Keys.
  • Page 72 3.5.1.1 Key Management Submenu Provision Factory Default keys Install factory default Secure Boot keys when System is in Setup Mode. Disabled / Enabled Enroll All Factory Default Keys Force System to User Mode – install all Factory Default Keys (PK, KEK, db, dbt, dbx).
  • Page 73 Key Exchange Keys Enroll Factory Defaults or load the keys from a file with: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256 (bin) 2. Authenticated UEFI Variable Key source: Default, Custom, Mixed (*) modified from Setup menu Set New Key / Append Key / Delete Key Authorized Signatures Enroll Factory Defaults or load the keys from a file with:...

  • Page 74: Boot

    3.6 Boot Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite waiting. Bootup NumLock State Select the keyboard NumLock state. On / Off Quiet Boot Enable or disable Quiet Boot option. Disabled / Enabled Boot Option #1 / #2 Sets the system boot order.
  • Page 75 Endless Boot Continuously searches for the Legacy PXE boot image until it is found or the process is aborted (press Ctrl + Alt + Del). Disabled / Enabled http://www.tyan.com...
  • Page 76 3.6.1 Delete Boot Option Delete Boot Option Remove an EFI boot option from the boot order. Select one to delete / UEFI: Built-in EFI Shell http://www.tyan.com...

  • Page 77: Save & Exit

    3.7 Save & Exit Save Changes and Exit Exit system setup after saving the changes. Discard Changes and Exit Exit system setup without saving any changes. Save Changes and Reset Reset the system after saving the changes. Discard Changes and Reset Reset system setup without saving any changes.
  • Page 78 Restore/Load Default values for all the setup options. Save as User Defaults Save the changes done so far as User Defaults. Restore User Defaults Restore the User Defaults to all the setup options. http://www.tyan.com...

  • Page 79: Chapter 4: Diagnostics

    Chapter 4: Diagnostics NOTE: if you experience problems with setting up your system, always check the following things in the following order: Memory, Video, CPU By checking these items, you will most likely find out what the problem might have been when setting up your system.

  • Page 80: Amibios Post Code (Aptio)

    4.2 AMIBIOS Post Code (Aptio) The POST code checkpoints are the largest set of checkpoints during the BIOS pre- boot process. The following table describes the type of checkpoints that may occur during the POST portion of the BIOS: Checkpoint Ranges Status Code Range Description 0x01 –...
  • Page 81 SEC Error Codes 0x0C – 0x0D Reserved for future AMI SEC error codes 0x0E Microcode not found 0x0F Microcode not found SEC Beep Codes None PEI Phase Status Code Description Progress Codes 0x10 PEI Core is started 0x11 Pre-memory CPU initialization is started 0x12 Pre-memory CPU initialization (CPU module specific) 0x13...
  • Page 82 Status Code Description 0x38 Post-Memory North Bridge initialization (North Bridge module specific) 0x39 Post-Memory North Bridge initialization (North Bridge module specific) 0x3A Post-Memory North Bridge initialization (North Bridge module specific) 0x3B Post-Memory South Bridge initialization is started 0x3C Post-Memory South Bridge initialization (South Bridge module specific) 0x3D Post-Memory South Bridge initialization (South Bridge module specific) 0x3E...
  • Page 83 Recovery Progress Codes 0xF0 Recovery condition triggered by firmware (Auto recovery) 0xF1 Recovery condition triggered by user (Forced recovery) 0xF2 Recovery process started 0xF3 Recovery firmware image is found 0xF4 Recovery firmware image is loaded 0xF5 – 0xF7 Reserved for future AMI progress codes Recovery Error Codes 0xF8 Recovery PPI is not available...
  • Page 84 Status Code Description 0x6C North Bridge DXE initialization (North Bridge module specific) 0x6D North Bridge DXE initialization (North Bridge module specific) 0x6E North Bridge DXE initialization (North Bridge module specific) 0x6F North Bridge DXE initialization (North Bridge module specific) 0x70 South Bridge DXE initialization is started 0x71 South Bridge DXE SMM initialization is started...
  • Page 85 Status Code Description 0xA5 SCSI Reset 0xA6 SCSI Detect 0xA7 SCSI Enable 0xA8 Setup Verifying Password 0xA9 Start of Setup 0xAA Reserved for ASL (see ASL Status Codes section below) 0xAB Setup Input Wait 0xAC Reserved for ASL (see ASL Status Codes section below) 0xAD Ready To Boot event 0xAE...
  • Page 86 DXE Beep Codes # of Beeps Description Invalid password Some of the Architectural Protocols are not available No Console Output Devices are found No Console Input Devices are found Flash update is failed Reset protocol is not available Platform PCI resource requirements cannot be met ACPI/ASL Checkpoints Status Code Description...

  • Page 87: Appendix: Fan And Temp Sensors

    Appendix: Fan and Temp Sensors This section aims to help readers identify the locations of some specific FAN and Temp Sensors on the motherboard. A table of BIOS Temp sensor name explanation is also included for readers’ reference. NOTE: The red mark indicates the sensor. Fan and Temp Sensor Location: Fan Sensor: It is located in the third...
  • Page 88 BIOS Temp Sensor Name Explanation: BIOS Temp Sensor Name Explanation CPU_ DTS_Temp Temperature of the CPU Digital Temperature Sensor CPU_PECI_Temp Temperature of the CPU Platform Environment Control Interface CPU_MOS_Area Temperature of the CPU MOS Area PCH_Temp Temperature of the PCH Area DIMM_Area Temperature of the DIMM Area CPU_DIMM_A0...

  • Page 89: Glossary

    Glossary ACPI (Advanced Configuration and Power Interface): a power management specification that allows the operating system to control the amount of power distributed to the computer’s devices. Devices not in use can be turned off, reducing unnecessary power expenditure. AGP (Accelerated Graphics Port): a PCI-based interface which was designed specifically for demands of 3D graphics applications.
  • Page 90 Bus: a data pathway. The term is used especially to refer to the connection between the processor and system memory, and between the processor and PCI or ISA local buses. Bus mastering: allows peripheral devices and IDEs to access the system memory without going through the CPU (similar to DMA channels).
  • Page 91 DRAM (Dynamic RAM): widely available, very affordable form of RAM which looses data if it is not recharged regularly (every few milliseconds). This refresh requirement makes DRAM three to ten times slower than non-recharged RAM such as SRAM. ECC (Error Correction Code or Error Checking and Correcting): allows data to be checked for errors during run-time.
  • Page 92 I/O (Input/Output): the connection between your computer and another piece of hardware (mouse, keyboard, etc.) IRQ (Interrupt Request): an electronic request that runs from a hardware device to the CPU. The interrupt controller assigns priorities to incoming requests and delivers them to the CPU. It is important that there is only one device hooked up to each IRQ line;...
  • Page 93 RAID (Redundant Array of Independent Disks): a way for the same data to be stored in different places on many hard drives. By using this method, the data is stored redundantly and multiple hard drives will appear as a single drive to the operating system.
  • Page 94 Standby mode: in this mode, the video and hard drives shut down; all other devices continue to operate normally. UltraDMA-33/66/100: a fast version of the old DMA channel. UltraDMA is also called UltraATA. Without a proper UltraDMA controller, your system cannot take advantage of higher data transfer rates of the new UltraDMA/UltraATA hard drives.

  • Page 95: Technical Support

    Technical Support If a problem arises with your system, you should first turn to your dealer for direct support. Your system has most likely been configured or designed by them and they should have the best idea of what hardware and software your system contains.
  • Page 96 NOTE: A receipt or copy of your invoice marked with the date of purchase is required before any warranty service can be rendered. You may obtain service by calling the manufacturer for a Return Merchandise Authorization (RMA) number. The RMA number Should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid.
