MiTAC TYAN S5555 Series Manual
  1. Manuals
  2. Brands
  3. MiTAC Manuals
  4. Motherboard
  5. TYAN S5555 Series
  6. Manual

MiTAC TYAN S5555 Series Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Copyright
Copyright © 2018 MiTAC International Corporation. All rights reserved. No part of
this manual may be reproduced or translated without prior written consent from
MiTAC International Corporation.
Trademark
All registered and unregistered trademarks and company names contained in this
manual are property of their respective owners including, but not limited to the
following.
®
TYAN
is a trademark of MiTAC International Corporation.
®
Intel
is a trademark of Intel
AMI, AMI BIOS are trademarks of AMI Technologies.
®
Microsoft
, Windows
®
Winbond
is a trademark of Winbond Electronics Corporation.
Notice
Information contained in this document is furnished by MiTAC International
Corporation and has been reviewed for accuracy and reliability prior to printing.
MiTAC assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN
warranties relating to fitness for a particular purpose or merchantability. MiTAC
retains the right to make changes to product descriptions and/or specifications at
any time, without notice. In no event will MiTAC be held liable for any direct or
indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.

S5555

Version 1.0
®
Corporation.
®
are trademarks of Microsoft Corporation.
http://www.tyan.com
®
products including liability or
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TYAN S5555 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MiTAC TYAN S5555 Series

Summary of Contents for MiTAC TYAN S5555 Series

  • Page 1: S5555

    In no event will MiTAC be held liable for any direct or indirect, incidental or consequential damage, loss of use, loss of data or other malady resulting from errors or inaccuracies of information contained in this document.

  • Page 2: Table Of Contents

    Contents S5555 ......................1 Before you begin… ..................3 Chapter 1: Instruction ................4 1.1 Congratulations ................. 4 1.2 Hardware Specifications ..............4 1.3 Software Specifications ..............7 Chapter 2: Board Installation ..............8 2.1 Board Image ..................9 2.2 Block Diagram ................. 10 2.3 Motherboard Mechanical Drawing ...........

  • Page 3: Before You Begin

    Before you begin… Check the box contents! The retail motherboard package should contain the following: S5555 Motherboard x 1 SATA Single Cable x 2 Rear IO shielding x 1 1 x S5555 Quick Installation Guide ® 1 x TYAN Driver CD IMPORTANT NOTE: 1.

  • Page 4: Chapter 1: Instruction

    Chapter 1: Instruction 1.1 Congratulations ® ® You have purchased the powerful TYAN S5555 motherboard, based on the Intel C246/H310/Q370 chipset (Cannon lake-PCH). The S5555 is designed to support ® Intel Coffee lake E-series and i3/i5/i7 series Processors, and support UDIMM w/ ®...
  • Page 5 RAID RAID 0/1/10/5 (Intel® RSTe) NVMe Connector (1) 2280/2242 (by PCI-E interface) (M.2) Connector type (1) DVI-D, (2) Display port 1.2 Graphic Chipset Intel® Processor Graphics(pGFX) Chipset Realtek® ALC892-CG Audio Feature 7.1 ch (2) USB 2.0 ports (at rear) (4) USB3.1 Gen2 ports (at rear) (2) USB 2.0 header (2) USB 3.1 Gen 1 header (2) headers...
  • Page 6 Operating OS supported list Please refer to our AVL support lists. System Motherboard (1) S5555AG2NR Motherboard SATA Single Cable (2) SATA Single Cable Package Rear IO shielding (1) Rear IO shielding Contains Manual (1) Quick Installation Guide Installation CD (1) TYAN Device Driver CD S5555AG2NR-HE Specifications Supported CPU Intel Xeon E-2100 series processors...

  • Page 7: Software Specifications

    (1) DVI-D connector (1) 2x5-pin header Audio (1) 5 holes Audio Jack+SPDIF fiber connector SATA (4) SATA-III connectors + (2) SATA-DOM Display port (2) Display ports 1.2 TPM Support Please refer to our TPM supported list. (Optional) AMT Feature Support Power on/ Power off/ Restart at remote side Chipset NCT6683D-T System...

  • Page 8: Chapter 2: Board Installation

    Unplug the power from your computer power supply and then touch a safely grounded object to release static charge (i.e. power supply case). For the safest conditions, MiTAC recommends wearing a static safety wrist strap. (2) Hold the motherboard by its edges and do not touch the bottom of the board, or flex the board in any way.

  • Page 9: Board Image

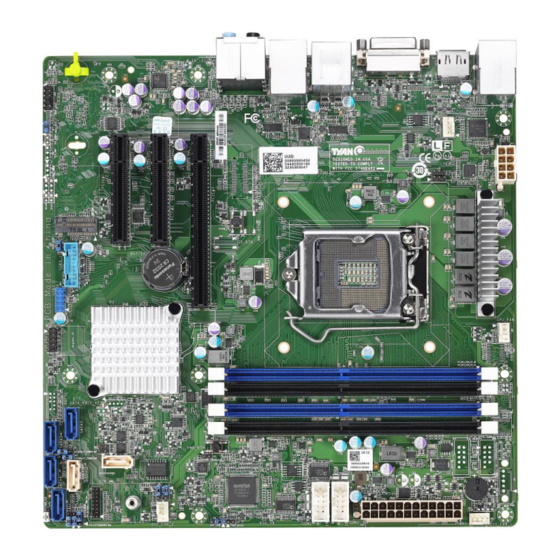

    2.1 Board Image S5555AG2NR This picture is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above picture. http://www.tyan.com...

  • Page 10: Block Diagram

    2.2 Block Diagram S5555 Block Diagram http://www.tyan.com...

  • Page 11: Motherboard Mechanical Drawing

    2.3 Motherboard Mechanical Drawing http://www.tyan.com...

  • Page 12: Board Parts, Jumpers And Connectors

    2.4 Board Parts, Jumpers and Connectors This diagram is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above diagram. The DIMM slot numbers shown above can be used as a reference when reviewing the DIMM population guidelines shown later in the manual.
  • Page 13 Motherboard Components Connectors 1. RJ45 LAN port(i210)+USB2.0 port (J3) 2. Display Port#2 (J6) 3. VIDEO-DVI-D (J1) Ports 4. USB3.1Port x2 (J4)+Display Port#1(J5) 5. RJ45 LAN port (i219)+USB3.1Port (J7) 6. Audio x5 + SPDIF OUT x1 (J2) 18. TYAN Module Header (DBG_HD1) 7.
  • Page 14 CPU0 FAN/ SYS FAN1~3: 4-pin CPU Fan Connector(J28, J56, J54, J10) Signal VCC12 FAN_TACH Use this header to connect the cooling fan to your motherboard to keep the system stable and reliable. Note: A 4-pin fan is required for fan support 4pin Control FPIO1: Front Panel Header Signal Signal...
  • Page 15 COM Port 1/ COM Port 2: Internal Serial Port Header Pin-out (J51,J52) Signal Signal SPA_DCD SPA_DSR SPA_SIN_N SPA_RTS SPA_OUT_N SPA_CTS SPA_DTR SPA_RI DBG_HD1: TYAN Module Header(J62) Signal Signal P3V3 FRAME_N LAD0 LAD1 PLT_RST_N LAD2 LAD3 CLK_33M DBG_SERIRQ DBG_PRES_N VCC3_AUX P3V3(NI) / GND RST_ESPI_RESET_N J63: Front USB2.0/ USB3.1*2 Connector Signal...
  • Page 16 J65: USB2.0*2 Connector Signal Signal USB DATA1- USB DATA2- USBDATA1+ USB DATA2+ J64: Front Audio x 2 Header Signal Signal MIC2-L MIC2-R FP_Present LINE2-R MIC2-JD LINE2_L LINE2-JD J38: SATA-DOM power rail option for Pin1 Signal SATA-DOM P1 Pin 1-2 Closed: P5V(Default) Pin 2-3 Closed: GND J43: SATA-DOM power rail option for Pin7...
  • Page 17 J60: Clear CMOS Jumper Signal VBAT RTCRST# You can reset the CMOS settings by using this jumper. This can be useful if you have forgotten your system/setup password, or need to clear the system BIOS setting. Normal (Default) 1. Power off system and disconnect power connectors from the motherboard.

  • Page 18: Installing The Processor And Heatsink

    Intel processors for this specific motherboard. NOTE: MiTAC is not liable for damage as a result of operating an unsupported configuration. Processor Installation (Single Socket LGA1151 for Intel Coffee lake CPU) Follow the steps below to install the processors and heat sinks.
  • Page 19 Remove the socket protection cap. NOTE: Save and replace the socket cover if the processor is removed from its socket. Install the processor and make sure the golden arrow is in the right direction. Close the CPU socket cover. Close the socket lever. http://www.tyan.com...
  • Page 20 Heat sink Installation After installing the processor, you will need to proceed to install the heat sink. The CPU heat sink will ensure that the processor do not overheat and continue to operate at maximum performance for as long as you own them. An overheated processor is dangerous to the motherboard.
  • Page 21 Secure the heatsink screws. Connect the heatsink fan cable. http://www.tyan.com...

  • Page 22: Tips On Installing Motherboard In Chassis

    2.7 Tips on Installing Motherboard in Chassis Before installing your motherboard, make sure your chassis has the necessary motherboard support studs installed. These studs are usually metal and are gold in color. Usually, the chassis manufacturer will pre-install the support studs. If you are unsure of stud placement, simply lay the motherboard inside the chassis and align the screw holes of the motherboard to the studs inside the case.
  • Page 23 Some chassis include plastic studs instead of metal. Although the plastic studs are usable, MiTAC recommends using metal studs with screws that will fasten the motherboard more securely in place. Below is a chart detailing what the most common motherboard studs look like and how they should be installed.

  • Page 24: Installing The Memory

    2.8 Installing the Memory Before installing memory, ensure that the memory you have is compatible with the motherboard and processor. Check the TYAN Web site at http://www.tyan.com details of the type of memory recommended for your motherboard.  Support (4)U-DDR4 288-pin DIMM slots ...
  • Page 25 Recommended Memory Population Table (Single CPU) Quantity of Single CPU Installed memory installed (CPU0 only) √ √ P0_MC0_DIM_CH_A0 √ √ √ √ P0_MC0_DIM_CH_A1 √ P0_MC0_DIM_CH_B0 √ √ √ P0_MC0_DIM_CH_B1 NOTE: 1. √ indicates a populated DIMM slot. 2. Use paired memory installation for max performance. 3.
  • Page 26 Intel Xeon Coffee lake Processors Families Support NOTE 1: 1DPC => One dimm per channel NOTE 2: 2DPC => Two dimm per channel (S5555AG2NR support as following)  Physical Ranks are used to calculate DIMM Capacity.  Supported DRAM Densities are 2Gb, 4Gb, 8Gb,16Gb. http://www.tyan.com...
  • Page 27 (S5555AG2NR-HE support as following)  Physical Ranks are used to calculate DIMM Capacity.  Supported DRAM Densities are 4Gb, 8Gb,16Gb. http://www.tyan.com...
  • Page 28 Memory Installation Procedure Follow these instructions to install memory modules into the S5555. Unlock a DIMM socket by Press the retaining clip outwardly in the following illustration. Align the memory module with the socket，such that the DIMM NOTCH match the KEY SLOT on the socket. Seat the module firmly into the socket by gently pressing down until it sits flush with the socket.

  • Page 29: Attaching Drive Cables

    2.9 Attaching Drive Cables Attaching SATA Cables The following illustrates how to make a SATA Cable connection. If you are in need of SATA/SAS cables or power adapters please contact your local sales representative. 1. SATA drive cable connection 2. SATA drive power connection 3.

  • Page 30: Installing Add-In Cards

    2.10 Installing Add-In Cards Before installing add-in cards, it’s helpful to know if they are fully compatible with your motherboard. For this reason, we’ve provided the diagrams below, showing the slots that may appear on your motherboard.  PCIE3.0 SLOT x16 (J14) PCIE3.0 SLOT x8 (J13) PCIE3.0 SLOT x8 (J12) ...

  • Page 31: Connecting External Devices

    2.11 Connecting External Devices Connecting external devices to the motherboard is an easy task. The motherboard supports a number of different interfaces through connecting peripherals. See the following diagrams for the details. LAN2 USB 3.1 LAN1 Display USB2.0 Display AUDIO Jack DVI-D USB3.1 Port 1...
  • Page 32 Onboard LAN LED Color Definition Two (2) onboard Ethernet ports have green Yellow LEDs to indicate LAN status. The chart below illustrates the different LED states. I210 1Gbps/ I219 AMT Ethernet port Link/Activity LED Scheme Left LED(LED2) Right LED(LED1) (Link/Activity) (Speed) No Link Link...

  • Page 33: Installing The Power Supply

    2.12 Installing the Power Supply There are Two (2) power connectors on your S5555 motherboard. The S5555 supports EPS 12V power supply. PWR1: ATX 24-Pin Power Connector Pin-out Signal Signal +3.3V +3.3V +3.3V -12V PS-ON# PWR_OK 5VSB +12V +12V +3.3V PWR2: 8-pin CPU and Memory Power Connector Pin-out Signal Signal...

  • Page 34: Chapter 3: Bios Setup

    Chapter 3: BIOS Setup 3.1 About the BIOS The BIOS is the basic input/output system, the firmware on the motherboard that enables your hardware to interface with your software. The BIOS determines what a computer can do without accessing programs from a disk. The BIOS contains all the code required to control the keyboard, display screen, disk drives, serial communications, and a number of miscellaneous functions.
  • Page 35 Chipset section unless you are absolutely sure of what you are doing. The Chipset defaults have been carefully chosen either by MiTAC or your system manufacturer for best performance and reliability. Even a seemingly small change to the Chipset setup options may cause the system to become unstable or unusable.

  • Page 36: Main Menu

    3.2 Main Menu In this section, you can alter general features such as the date and time. Note that the options listed below are for options that can directly be changed within the Main Setup screen. BIOS Information It displays BIOS related information. Product Name It displays the product Name Platform Information...

  • Page 37: Advanced Menu

    3.3 Advanced Menu This section facilitates configuring advanced BIOS options for your system. CPU Configuration CPU Configuration parameters SATA Configuration SATA Device Option Settings PCH-FW Configuration Configure Management Engine Technology Parameters Intel® Virtual RAID on CPU This formset allows the user to manage Intel® Virtual RAID on CPU Trusted Computing Trusted Computing settings.
  • Page 38 Super IO Configuration System Super IO Chip Parameters Hardware Health Configuration Hardware Health Configuration S5 RTC Wake Settings S5 RTC Wake Settings Serial Port Console Redirection Serial Port Console Redirection PCI Subsystem Settings PCI, PCI-X and PCI Express Settings USB Configuration USB Configuration Parameters.
  • Page 39 3.3.1 CPU Configuration http://www.tyan.com...
  • Page 40 Software Guard Extensions (SGX) Enable/ Disable Software Guard Extensions (SGX) Disabled / Enabled/ Software controlled Intel (VMX) Virtualization Technology When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology. Disabled / Enabled Active Processor Cores Number of cores to enable in each processor package. All / 1 / 2 / 3 / 4 / 5 Hyper- threading Enabled for Windows XP and Linux(OS optimized for Hyper-Threading Technology)
  • Page 41 Enhanced C-states Enable/Disable C1E. When enabled, CPU will switch to minimum speed when all cores enter C-state. Disabled / Enabled Package C State Limit Maximum Package C State Limit Setting. Cpu Default: Leaves to Factory default value. Auto: Initializes to deepest available Package C State Limit. Auto / Cpu Default / C8 / C7 / C6 / C3 / C2 / C0/C1 http://www.tyan.com...
  • Page 42 3.3.2 SATA Configuration SATA Mode Selection Determines how SATA controller(s) operate. AHCI / RAID Serial ATA Port 0/1/2/3/4/5 Hot Plug Designates this port as Hot Pluggable. Disabled / Enabled SATA Device Type Identify the SATA port is connected to Solid State Drive or Hard Dish Drive. Hard Disk Drive / Solid State Drive http://www.tyan.com...
  • Page 43 3.3.3 PCH-FW Configuration ME State When Disabled ME will be not into ME Temporarily Disabled Mode. Disabled / Enabled AMT BIOS Features When disabled AMT BIOS Features are no longer supported and user is no longer able to access MEBx Setup. Note: This option does not disable Manageability Features in FW.
  • Page 44 3.3.3.1 Firmware Update Configuration Me FW Image Re-Flash Enable/Disable Me FW Image Re- Flash function. Disabled / Enabled http://www.tyan.com...
  • Page 45 3.3.4 Trusted Computing Security Device Support Enable or disable BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. Disable / Enable http://www.tyan.com...
  • Page 46 3.3.5 ACPI Settings ACPI Sleep State Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed. Suspend Disabled / S3 (Suspend to RAM) S3 Video Repost Enables or disables S3 Video Repost. Disabled / Enabled http://www.tyan.com...
  • Page 47 3.3.6 Watchdog Timer Configuration Watchdog Mode The duration of enabling Watchdog Timer. When Watchdog time-out occurs, System will roboot immediately. Disabled / POST / OS / Power ON http://www.tyan.com...
  • Page 48 3.3.7 Super IO Configuration Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA) Serial Port 2 Configuration Set Parameters of Serial Port 2 (COMB) http://www.tyan.com...
  • Page 49 3.3.7.1 Serial Port 1 Configuration Serial Port Enable or Disable Serial Port (COM) Disabled / Enabled Device Settings Read only. Change Settings Select an optimal setting for Super IO Device. Auto / IO=3F8h; IRQ=4; / IO=3F8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; / IO=2F8h;...
  • Page 50 3.3.7.2 Serial Port 2 Configuration Serial Port Enable or Disable Serial Port (COM) Disabled / Enabled Device Settings Read only. Change Settings Select an optimal setting for Super IO Device. Auto / IO=2F8h; IRQ=3; / IO=3F8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; / IO=2F8h;...
  • Page 51 3.3.8 Hardware Health Configuration Auto Fan Control Auto Fan Control help. Disabled / Enabled NOTE: Auto Fan Control must be set to [Enabled] PWM Minimal Duty Cycle menu will appear. PWM Minimal Duty Cycle Duty Cycle control range 15% Duty Cycle / 30% Duty Cycle / 45% Duty Cycle http://www.tyan.com...
  • Page 52 3.3.8.1 Sensor Data Register Monitoring http://www.tyan.com...
  • Page 53 3.3.9 S5 RTC Wake Settings Wake system from S5 Enable or disable system wake on alarm event. Select Fixed time, system will wake on the hr::min::sec specified. Select dynamic time, system will wake on the current time+ increase minute(s) Disabled / Fixed time / Dynamic time http://www.tyan.com...
  • Page 54 3.3.10 Serial Port Console Redirection COM1/COM2/COM3(Pci Bus0,Dev22,Func3) Console Redirection Console redirection enable or disable. Disabled / Enabled Legacy Console Redirection Legacy Console Redirection Settings Serial Port for Out-Of-Band Management/Windows Emergency Services (EMS) Console Redirection Console redirection enable or disable. Disabled / Enabled Console Redirection Settings The settings specify how the host computer (which the user is using) will exchange data.
  • Page 55 3.3.10.1 Console Redirection Settings Terminal Type Emulation: ANSI: Extended ASCII char set. VT100: ASCII char set. VT100+: Extends VT100 to support color function keys, etc. VT-UTF8: Uses UTF8 encoding to map Unicode chars onto 1 or more bytes. VT100 / VT100+ / VT-UTF8 / ANSI Bits per Second Select serial port transmission speed.
  • Page 56 Stop Bits Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning). The standard setting is 1 stop bit. Communication with slow devices may require more than 1 stop bit. 1 / 2 Flow Control Flow Control can prevent data loss from buffer overflow.
  • Page 57 3.3.10.2 Legacy Console Redirection Settings Legacy Serial Redirected Port Select a COM port to display redirection of Legacy OS and Legacy OPROM Messages COM1 / COM2 / COM3(Pci Bus0,Dev22,Func3) Resolution On Legacy OS, the Number of Rows and Columns supported redirection 80x24 / 80x25 Redirect After POST When Bootloader is selected then Legacy Console Redirection is disabled before...
  • Page 58 3.3.10.3 Serial Port for Out-Of-Band Management/Windows Emergency Services (EMS) Console Redirection Settings Out-of Band Mgmt Port Microsoft Windows Emergency Management Services (EMS) allows for remote management of a Windows Server OS through a serial port. COM1 / COM2 / COM3(Pci Bus0,Dev22,Func3) Terminal Type VT-UTF8 is the preferred terminal type for out-of-band management.
  • Page 59 Flow Control Flow Control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a ‘stop’ signal can be sent to stop the data flow. Once the buffers are empty, a ‘start’ signal can be sent to restart the flow. Hardware flow control uses two wires to send start/stop signal.
  • Page 60 3.3.11 PCI Subsystem Settings Above 4G Decoding Enables or Disables 64bit capable Devices to be decoded in Above 4G Address Space(Only if System supports 64 bit PCI decoding). Enabled / Disabled SR-IOV Support If system has SR-IOV capable PCIe devices, this option Enable or Disable Single root IO virtualization Support Enabled / Disabled http://www.tyan.com...
  • Page 61 3.3.12 USB Configuration Legacy USB Support Enables USB legacy support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications. Enabled / Disabled / Auto USB transfer time-out The time-out value for Control, Bulk and Interrupt transfers.
  • Page 62 3.3.13 Network Stack Configuration Network Stack Enable / Disable UEFI Network Stack. Disabled / Enabled http://www.tyan.com...
  • Page 63 3.3.14 CSM Configuration CSM support Enable/Disable CSM Support Enabled / Disabled Option ROM Messages Set display mode for Option ROM Force BIOS / Keep Current INT19 Trap Resource BIOS reaction on INT19 trapping by option ROM: IMMEDIATE - execute the trap right away; POSTPONED – execute the trap during legacy boot.
  • Page 64 Network Controls the execution of UEFI and legacy PXE OpROM Do not launch / UEFI / legacy Storage Controls the execution of UEFI and legacy PXE OpROM Do not launch / UEFI / legacy Video Controls the execution of UEFI and legacy PXE OpROM Do not launch / UEFI / legacy Other PCI devices Determines OpRom execution policy for devices other than Network, Storage, or...
  • Page 65 3.3.15 NVMe Configuration No NVMe Device Found http://www.tyan.com...
  • Page 66 3.3.16 Onboard Device Configuration LAN1(I210) Enable or disable onboard LAN1(I210). Disabled / Enabled LAN1 OPROM Enable or disable onboard LAN1 OPROM. Disabled / PXE / iSCSI LAN2 (I219) Enable or disable onboard LAN2 (I219) Disabled / Enabled LAN2 OPROM Enable or disable onboard LAN2 OPROM Disabled Chassis Intrusion Detection Enabled: When a chassis open event is detected, the BIOS will record the event.
  • Page 67 3.3.17 iSCSI Configuration iSCSI Name The worldwide unique name of iSCSI Initiator. Only IQN format is accepted. Range is from 4 to 223. Press enter to input a iSCSI Initiator Name http://www.tyan.com...

  • Page 68: Chipset Menu

    3.4 Chipset Menu North Bridge System Agent (SA) Parameters. South Bridge PCH Parameters http://www.tyan.com...
  • Page 69 3.4.1 North Bridge Configuration VT-d VT-d capability Disabled / Enabled Memory Configuration Memory Configuration Parameters Graphics Configuration Graphics Configuration http://www.tyan.com...
  • Page 70 3.4.1.1 Memory Configuration Memory Test on Warm Boot Enable Or Disable Base Memory Test Run on Warm Boot Disabled Enabled Maximum Memory Frequency Maximum Memory Frequency Selections in Mhz. Valid values should match the refclk, i.e. divide by 133 or 100 Auto / 2133 / 2400 / 2667 ECC Support Enable/ disable DDR Ecc Support...
  • Page 71 3.4.1.2 Graphics Configuration Primary Display Select which of IGFX/PEG/ PCI Graphics device should be Primary Display or select SG for Switchable Gfx. Auto / IGFX / PEG / PCI Internal Graphics Keep IGFX enabled based on the setup options. Auto / Disabled / Enabled http://www.tyan.com...
  • Page 72 3.4.2 South Bridge Configuration HD Audio Configuration HD Audio Subsystem Configuration Settings DeepSx Power Configure the DeepSx Mode configuration. Disabled Enabled in S4-S5 Wake on LAN Enable/Disable integrated LAN to wake the system. Enabled / Disabled High Precision Timer Enable or Disable the High Precision Event Timer Disabled Enabled Restore AC Power Loss...
  • Page 73 3.4.2.1 HD Audio Configuration HD Audio Control Detection of the HD- Audio device. Disabled = HAD will be unconditionally disabled Enabled = HAD will be unconditionally enabled. Disabled Enabled Audio DSP Enable/Disable Audio DSP. Disabled Enabled http://www.tyan.com...

  • Page 74: Security

    3.5 Security Administrator Password Set Administrator Password. User Password Set User Password. Security Frozen Mode Enable or disable HDD security freeze lock. Disable to support secure erase function. Disabled / Enabled Secure Boot Customizable Secure Boot settings http://www.tyan.com...
  • Page 75 3.5.1 Secure Boot Configuration Submenu Secure Boot Secure Boot feature is Active if Secure Boot is Enabled, Platform Key (PK) is enrolled and the System is in User mode. The mode change requires platform reset Disabled / Enabled Secure Boot Mode Secure Boot mode selector.
  • Page 76 3.5.1.1 Restore Factory Keys Submenu Restore Factory Keys Force System to User Mode. Install factory default Secure Boot Key databases. When Press ‘Yes’ to proceed When Press ‘No’ to cancel http://www.tyan.com...
  • Page 77 3.5.1.2 Reset To Setup Mode Submenu Reset To Setup Mode Delete all Secure Boot key databases from NVRAM Deleting all variables will reset the System to setup Mode When Press ‘Yes’ to proceed When Press ‘No’ to cancel Key Management Enables experienced users to modify Secure Boot variables http://www.tyan.com...
  • Page 78 3.5.2 Key Management Factory Keys Provision Install factory default Secure Boot Keys after the platform reset and while the System is in Setup Mode. Disabled / Enabled Restore Factory Keys Force System to User Mode. Install Factory Default Secure Boot Key databases. Reset To Setup Mode Delete all Secure Boot Key databases from NVRAM Export Secure Boot variables...
  • Page 79 Remove ‘UEFI CA’ from DB Device Guard ready system must not list ‘ Microsoft’ UEFI CA’ Certificate in Authorized Signature database (db) Restore DB defaults Restore DB variable to Factory defaults Platform Key (PK) Enroll Factory Defaults or load certificates from a file: 1.
  • Page 80 a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256,384,512 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Default, External, Mixed, Test Authorized TimeStamps Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin)

  • Page 81: Boot

    3.6 Boot Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite waiting. Bootup NumLock State Select the keyboard NumLock state. Off / On Quiet Boot Enable or disable Quiet Boot option. Disabled / Enabled Boot Option #1 Sets the system boot order Device Name / Disabled...
  • Page 82 Wait for “ESC” if Error Wait for ESC stop when BIOS has error appeared. Disabled / Enabled Hard Drive BBS Priorities Set the order of the Legacy devices in this group http://www.tyan.com...
  • Page 83 3.6.1 Hard Drive BBS Priorities Configuration Boot Option #1 Sets the system boot order. Device Name / Disabled http://www.tyan.com...

  • Page 84: Save & Exit

    3.7 Save & Exit Save Changes and Exit Exit system setup after saving the changes. Discard Changes and Exit Exit system setup without saving any changes. Save Changes and Reset Reset the system after saving the changes. Discard Changes and Reset Reset system setup without saving any changes.
  • Page 85 Save as User Defaults Save the changes done so far as User Defaults. Restore User Defaults Restore the User Defaults to all the setup options. Boot Override Device Name http://www.tyan.com...

  • Page 86: Chapter 4: Diagnostics

    Chapter 4: Diagnostics NOTE: if you experience problems with setting up your system, always check the following things in the following order: Memory, Video, CPU By checking these items, you will most likely find out what the problem might have been when setting up your system.

  • Page 87: Amibios Post Code (Aptio)

    4.2 AMIBIOS Post Code (Aptio) The POST code checkpoints are the largest set of checkpoints during the BIOS pre- boot process. The following table describes the type of checkpoints that may occur during the POST portion of the BIOS: Checkpoint Ranges Status Code Range Description 0x01 –...
  • Page 88 SEC Error Codes 0x0C – 0x0D Reserved for future AMI SEC error codes 0x0E Microcode not found 0x0F Microcode not found SEC Phase None PEI Phase Status Code Description Progress Codes 0x10 PCI Core is started 0x11 Pre-memory CPU initialization is started 0x12 Pre-memory CPU initialization (CPU module specific) 0x13...
  • Page 89 Status Code Description CPU post-memory initialization. Boot Strap Processor (BSP) 0x35 selection CPU post-memory initialization. System Management Mode (SMM) 0x36 initialization 0x37 Post-Memory North Bridge initialization is started. Post-Memory North Bridge initialization (North Bridge module 0x38 specific) Post-Memory North Bridge initialization (North Bridge module 0x39 specific) Post-Memory North Bridge initialization (North Bridge module...
  • Page 90 Status Code Description S3 Resume Error Codes 0xE8 S3 Resume failed 0xE9 S3 Resume PPI not found 0xEA S3 Resume Boot Script error 0xEB S3 OS wake error 0xEC – 0xEF Reserved for future AMI error codes Recovery Progress Codes 0xF0 Recovery condition triggered by firmware (Auto recovery) 0xF1...
  • Page 91 Status Code Description 0x63 CPU DXE initialization is started. 0x64 CPU DXE initialization (CPU module specific) 0x65 CPU DXE initialization (CPU module specific) 0x66 CPU DXE initialization (CPU module specific) 0x67 CPU DXE initialization (CPU module specific) 0x68 PCI host bridge initialization 0x69 North Bridge DXE initialization is started.
  • Page 92 Status Code Description 0x9B USB Reset 0x9C USB Detect 0x9D USB Enable 0x9E -0x9F Reserved for future AMI codes 0xA0 IDE initialization is started 0xA1 IDE Reset 0xA2 IDE Detect 0xA3 IDE Enable 0xA4 SCSI initialization is started. 0xA5 SCSI Reset 0xA6 SCSI Detect 0xA7...
  • Page 93 Status Code Description 0xD5 No Space for Legacy Option ROM 0xD6 No Console Output Devices are found. 0xD7 No Console Input Devices are found. 0xD8 Invalid password 0xD9 Error loading Boot Option (LoadImage returned error) 0xDA Boot Option is failed (StartImage returned error). 0xDB Flash update is failed.

  • Page 94: Appendix I: Fan And Temp Sensors

    Appendix I: Fan and Temp Sensors This section aims to help readers identify the locations of some specific FAN and Temp Sensors on the motherboard. A table of BIOS Temp sensor name explanation is also included for readers’ reference. NOTE: The red dot indicates the sensor.
  • Page 95 BIOS Temp Sensor Name Explanation: CPU_DTS_Temp Temperature of the CPU_DTS CPU_PECI_Value Temperature of the CPU_PECI_Value CPU_MOSFET Temperature of the CPU MOSFET PCH_Temp Temperature of the PCH P0_MC0_DIM_CH_A The highest temperature of CPU DIMM channel A slot P0_MC0_DIM_CH_B The highest temperature of CPU DIMM channel B slot BIOS FAN Sensor Name Explanation CPU_FAN...
  • Page 96 NOTE http://www.tyan.com...

  • Page 97: Glossary

    Glossary ACPI (Advanced Configuration and Power Interface): a power management specification that allows the operating system to control the amount of power distributed to the computer’s devices. Devices not in use can be turned off, reducing unnecessary power expenditure. AGP (Accelerated Graphics Port): a PCI-based interface which was designed specifically for demands of 3D graphics applications.
  • Page 98 Bus: a data pathway. The term is used especially to refer to the connection between the processor and system memory, and between the processor and PCI or ISA local buses. Bus mastering: allows peripheral devices and IDEs to access the system memory without going through the CPU (similar to DMA channels).
  • Page 99 DRAM (Dynamic RAM): widely available, very affordable form of RAM which looses data if it is not recharged regularly (every few milliseconds). This refresh requirement makes DRAM three to ten times slower than non-recharged RAM such as SRAM. ECC (Error Correction Code or Error Checking and Correcting): allows data to be checked for errors during run-time.
  • Page 100 I/O (Input/Output): the connection between your computer and another piece of hardware (mouse, keyboard, etc.) IRQ (Interrupt Request): an electronic request that runs from a hardware device to the CPU. The interrupt controller assigns priorities to incoming requests and delivers them to the CPU. It is important that there is only one device hooked up to each IRQ line;...
  • Page 101 RAID (Redundant Array of Independent Disks): a way for the same data to be stored in different places on many hard drives. By using this method, the data is stored redundantly and multiple hard drives will appear as a single drive to the operating system.
  • Page 102 Standby mode: in this mode, the video and hard drives shut down; all other devices continue to operate normally. UltraDMA-33/66/100: a fast version of the old DMA channel. UltraDMA is also called UltraATA. Without a proper UltraDMA controller, your system cannot take advantage of higher data transfer rates of the new UltraDMA/UltraATA hard drives.

  • Page 103: Technical Support

    Technical Support If a problem arises with your system, you should first turn to your dealer for direct support. Your system has most likely been configured or designed by them and they should have the best idea of what hardware and software your system contains.
  • Page 104 NOTE: A receipt or copy of your invoice marked with the date of purchase is required before any warranty service can be rendered. You may obtain service by calling the manufacturer for a Return Merchandise Authorization (RMA) number. The RMA number Should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid.
