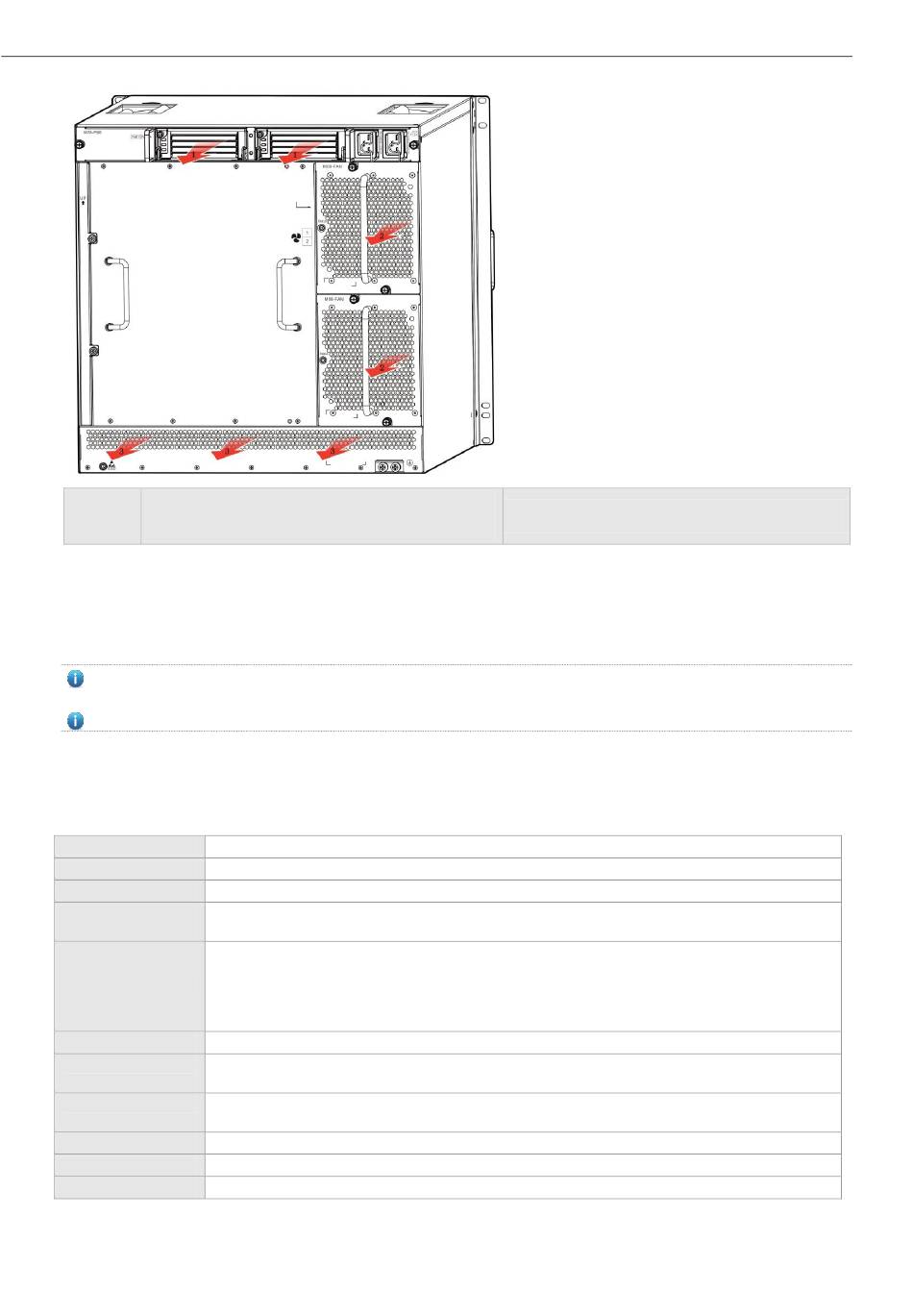

Hardware Installation and Reference Guide
Note:
1.
Exhaust vents for PoE power modules
2.
Exhaust vents for service and supervisor
modules
For the PoE power supply modules, air flows across the chassis from the back intakes to the front vents.
For the supervisor and service modules, air flows across the chassis from the right intakes to the back vents.
For the power supply modules, air flows in from the front intakes and out from the back vents.
The chassis should be mounted in a place with sufficient space for air circulation. Maintain a minimum clearance of
10cm around the chassis.
If any module slot is unoccupied, install a filler panel to ensure proper airflow.
1.2 RG-S7805C
Specifications
Model
RG-S7805C
Module Slot
two supervisor module slots and three service module slots
Supervisor Module
M7805C-CM
Supervisor Module
Supported
Redundancy
M7800C-24SFP/12GT4XS-EA
M7800C-36GT12SFP4XS-EA
Service Module
M7800C-48GT4XS-EA
M7800C-48SFP4XS-EA
M7800C-24GT24SFP4XS-EA
Hot Swapping
Supported
Power
Supply
RG-PA300I-F: 90-290V~ power: 300W;
Module
Power
Supply
The power supply redundancy of the same model is supported.
Redundancy
Fan Module
M05C-FAN
EMC Standards
GB9254-2008 CLASS A, FCC CLASS A
Safety Standards
GB4943-2011
192-290V~ power: 300W
3.
Exhaust vents for system power modules
Product Overview
5
