Hardware Installation and Reference Guide
The weight only includes that of the empty chassis and fans. The whole device's weight is subject to that of the
modules selected.
RG-S7808C switch is a class A product. In a domestic environment, this product may cause radio interference in
which case the user may be required to take adequate measures.
Product Appearance
The hardware system of the RG-S7808C switch is composed of the chassis, the power system, modules and the cooling
system.

The power system provides four power supply slots and supports N+N power redundancy. After M78-PSE or
M78-PSE-L is configured, two PoE power slots are available. PoE power supports 1+1 power redundancy. Users are
recommended to configure redundancy for the power supplies.

The RG-S7808C switch provides two supervisor module slots and six service module slots. The supervisor modules
support 1+1 redundancy. Users are recommended to configure redundancy for the supervisor modules. Users may
choose different service modules as needed.

The cooling system is composed of the fan trays and air filters. Fan trays are at the back of the chassis. The air filters
are on the right side of the chassis.

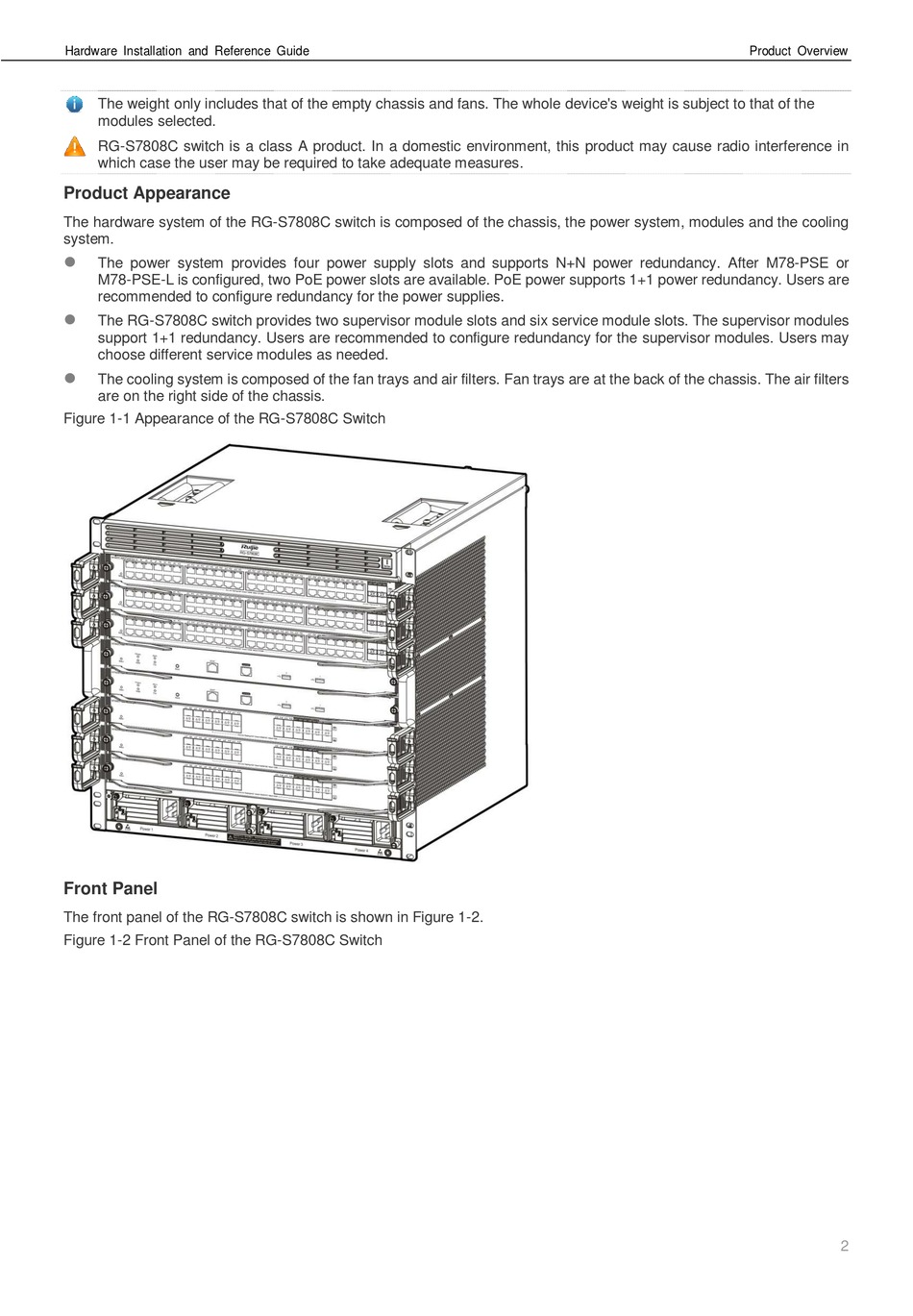

Figure 1-1 Appearance of the RG-S7808C Switch
Front Panel
The front panel of the RG-S7808C switch is shown in Figure 1-2.
Figure 1-2 Front Panel of the RG-S7808C Switch
