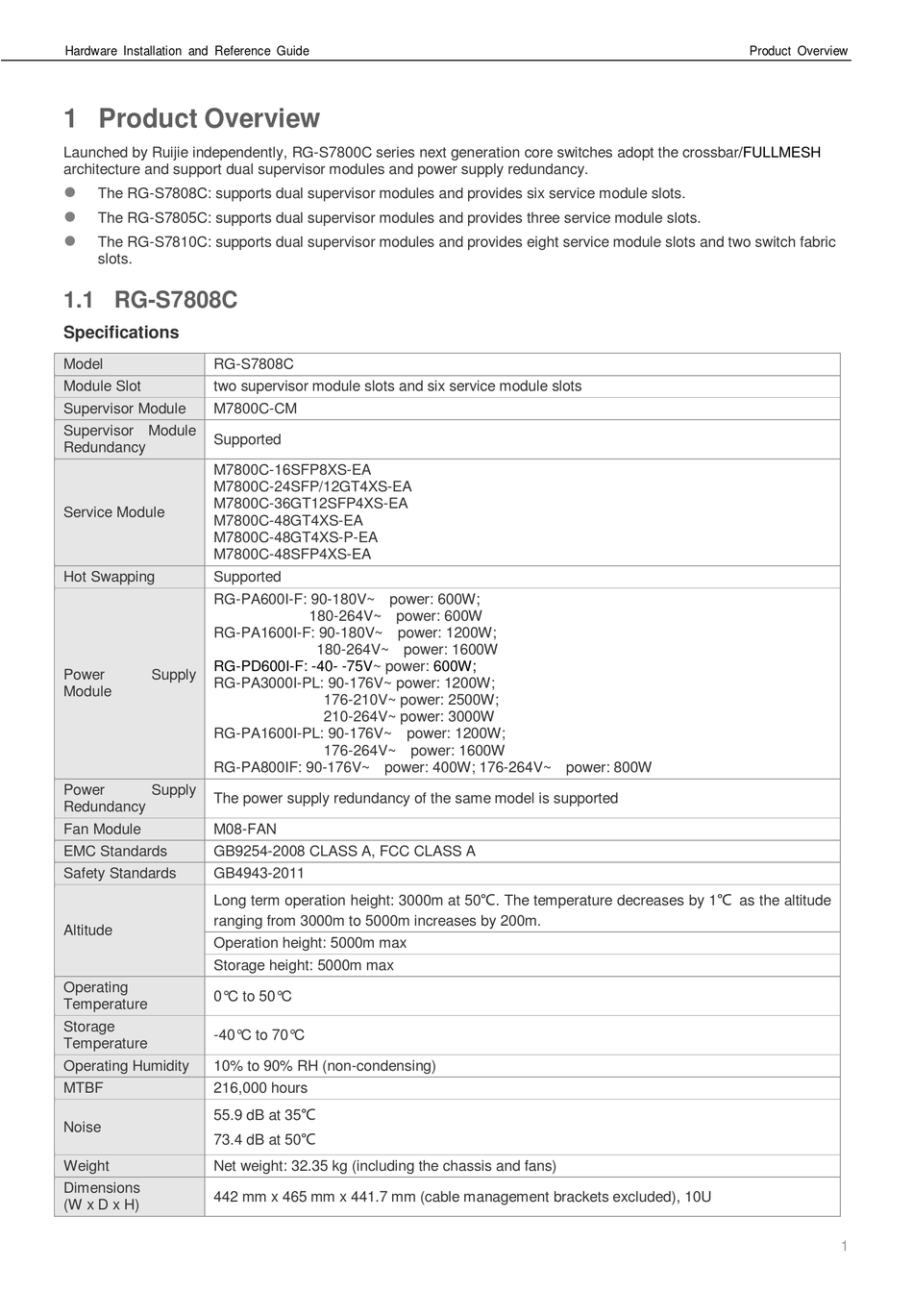

1 Product Overview

Launched by Ruijie independently, RG-S7800C series next generation core switches adopt the
architecture and support dual supervisor modules and power supply redundancy.

The RG-S7808C: supports dual supervisor modules and provides six service module slots.

The RG-S7805C: supports dual supervisor modules and provides three service module slots.

The RG-S7810C: supports dual supervisor modules and provides eight service module slots and two switch fabric
slots.
1.1 RG-S7808C
Specifications
Model RG-S7808C
Module Slot two supervisor module slots and six service module slots
Supervisor Module M7800C-CM
Supervisor Module
Supported
Redundancy
M7800C-16SFP8XS-EA
M7800C-24SFP/12GT4XS-EA
M7800C-36GT12SFP4XS-EA
Service Module
M7800C-48GT4XS-EA
M7800C-48GT4XS-P-EA
M7800C-48SFP4XS-EA
Hot Swapping Supported
RG-PA600I-F: 90-180V~ power: 600W;
RG-PA1600I-F: 90-180V~ power: 1200W;
RG-PD600I-F: -40-
Power Supply
RG-PA3000I-PL: 90-176V~ power: 1200W;
Module
RG-PA1600I-PL: 90-176V~ power: 1200W;
RG-PA800IF: 90-176V~ power: 400W; 176-264V~ power: 800W
Power Supply
The power supply redundancy of the same model is supported
Redundancy
Fan Module M08-FAN
EMC Standards GB9254-2008 CLASS A, FCC CLASS A
Safety Standards GB4943-2011
Long term operation height: 3000m at 50℃. The temperature decreases by 1℃ as the altitude
ranging from 3000m to 5000m increases by 200m.
Altitude
Operation height: 5000m max
Storage height: 5000m max
Operating
0° C to 50° C
Temperature
Storage
-40° C to 70° C
Temperature
Operating Humidity 10% to 90% RH (non-condensing)
MTBF 216,000 hours
55.9 dB at 35℃
Noise
73.4 dB at 50℃
Weight Net weight: 32.35 kg (including the chassis and fans)
Dimensions
442 mm x 465 mm x 441.7 mm (cable management brackets excluded), 10U
(W x D x H)
180-264V~ power: 600W
180-264V~ power: 1600W
-75V~ power: 600W;
176-210V~ power: 2500W;
210-264V~ power: 3000W
176-264V~ power: 1600W
Product Overview
crossbar/FULLMESH
