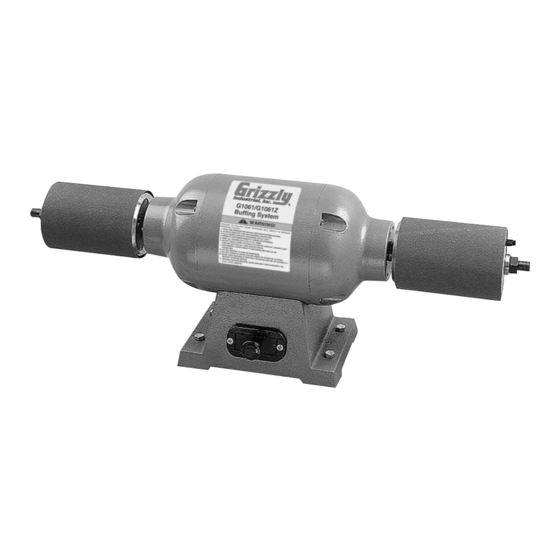

- Page 1 BUFFING SYSTEM MODEL G1061/G1061Z INSTRUCTION MANUAL COPYRIGHT © 1992 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. JANUARY, 2002 PRINTED IN TAIWAN.
- Page 2 WARNING Some dust created by power sanding, sawing, grind- ing, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints. •...
-
Page 3: Table Of Contents
1. SAFETY SAFETY RULES FOR POWER TOOLS ...2-3 ADDITIONAL SAFETY INSTRUCTIONS FOR BUFFERS ...4 2. CIRCUIT REQUIREMENTS 110V OPERATION ...5 EXTENSION CORDS ...5 GROUNDING ...5 3. INTRODUCTION COMMENTARY...6 MOUNTING ...7 6. OPERATIONS TEST RUN...8 GENERAL ...8 BUFFING & POLISHING...9 DRUM SANDING ...9-10 ACCESSORY REMOVAL ...10 7. -
Page 4: Safety
G1061/G1061Z Buffing System VISITORS... - Page 5 15. USE RECOMMENDED ACCESSORIES. Consult the owner’s manual for recom- mended accessories. The use of improper accessories may cause risk of injury. G1061/G1061Z Buffing System 16. REDUCE THE RISK OF UNINTENTION- 17. MANY WOODWORKING TOOLS CAN LENGTH 50ft 100ft 18.
-
Page 6: Additional Safety Instructions For Buffers
The time you invest before you begin to use your Model G1061/G1061Z will be time well spent. DO NOT operate this machine until you are completely familiar with the contents of this manual or serious personal injury may occur. -
Page 7: Circuit Requirements
SECTION 2: CIRCUIT REQUIREMENTS 110V Operation The Model G1061/G1061Z is wired for 110/120V. The 1 H.P. motor will safely draw 10 amps at 110V. If you operate this machine on any circuit that is already close to its capacity, it might blow a fuse or trip a circuit breaker. -
Page 8: Introduction
Commentary We are proud to offer the Grizzly Model G1061/G1061Z Buffing System. The Model G1061/G1061Z is part of a growing Grizzly family of fine woodworking machinery. When used according to the guidelines set forth in this manu- al, you can expect years of trouble-free, enjoyable operation and proof of Grizzly’s commitment to... -
Page 9: Mounting
Unpacking The Model G1061/G1061Z is shipped from the manufacturer in a carefully packed carton. If you discover the machine is damaged after you have signed for delivery, immediately call Customer Service for advice. When you are completely satisfied with the con- dition of your shipment, you should inventory its parts. -
Page 10: Operations
If you cannot easily locate the source of an unusual noise or vibration, feel free to contact our service department for help. The Model G1061/G1061Z Buffing System is strictly designed for buffing and sanding opera- tions. IT IS NOT A GRINDER. The absence of grinding wheel guards prohibit the use of this machine as a grinder. -
Page 11: Buffing & Polishing
Buffing & Polishing For buffing and polishing, Grizzly offers a broad line of buffing wheels and polishing compounds. Please refer to our current catalog. To buff or pol- ish: Make sure the power cord is unplugged and remove the 1 ⁄... -
Page 12: Accessory Removal
Figure 4 shows the loosening/tightening proce- dure for buffing wheels. Figure 5 shows the loos- ening/tightening procedure for sanding drums. Figure 4. Buffing wheel loosening/tightening procedure. Figure 5. Sanding drum loosening/tightening procedure. G1061/G1061Z Buffing System... -
Page 13: Maintenance
All bear- ings are standard sizes, and replacements can be purchased from our parts department or a bearing supply store. G1061/G1061Z Buffing System Miscellaneous Always be aware of the condition of your buffer. adjust-... -
Page 14: Closure
-12- We recommend you keep a copy of our current catalog for complete information regarding Grizzly's warranty and return policy. If you need additional technical information relating to this machine, or if you need general assistance or replacement parts, please contact the Service Department listed in Section 3: Introduction. -
Page 15: Machine Data
Customer Service #: (570) 546-9663 • To Order Call: (800) 523-4777 • Fax #: (800) 438-5901 GRIZZLY MODEL G1061/G1061Z BUFFING MACHINE Design Type... Bench Model Overall Dimensions: Height ...11 Width...31 Depth ...7 Shipping Weight ...59 lbs. Net Weight ...53 lbs. -
Page 16: Parts Breakdown And Parts List
002 P1061002 MOTOR CASE 003 PFH07 FLAT HD SCR 004 P1061004 STATOR (G1061) 004 P1061Z004 STATOR (G1061Z) 005 P1061005 ROTOR W/#6 (G1061) 005 P1061Z005 ROTOR (G1061Z) 007 P1061007 MOTOR FAN 008 P6206 BALL BEARING 6206ZZ 009 P1061009 END BELL 010 PLW02... -
Page 17: Notes
NOTES: G1061/G1061Z Buffing System -15-... -
Page 18: Warranty And Returns
WARRANTY AND RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. - Page 19 Do you think your purchase represents good value? ___Yes Would you recommend Grizzly Industrial to a friend? ___Yes Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than three times. ___Yes Comments:_________________________________________________...
