Operating instructions
Using T-410-25 adapter ring

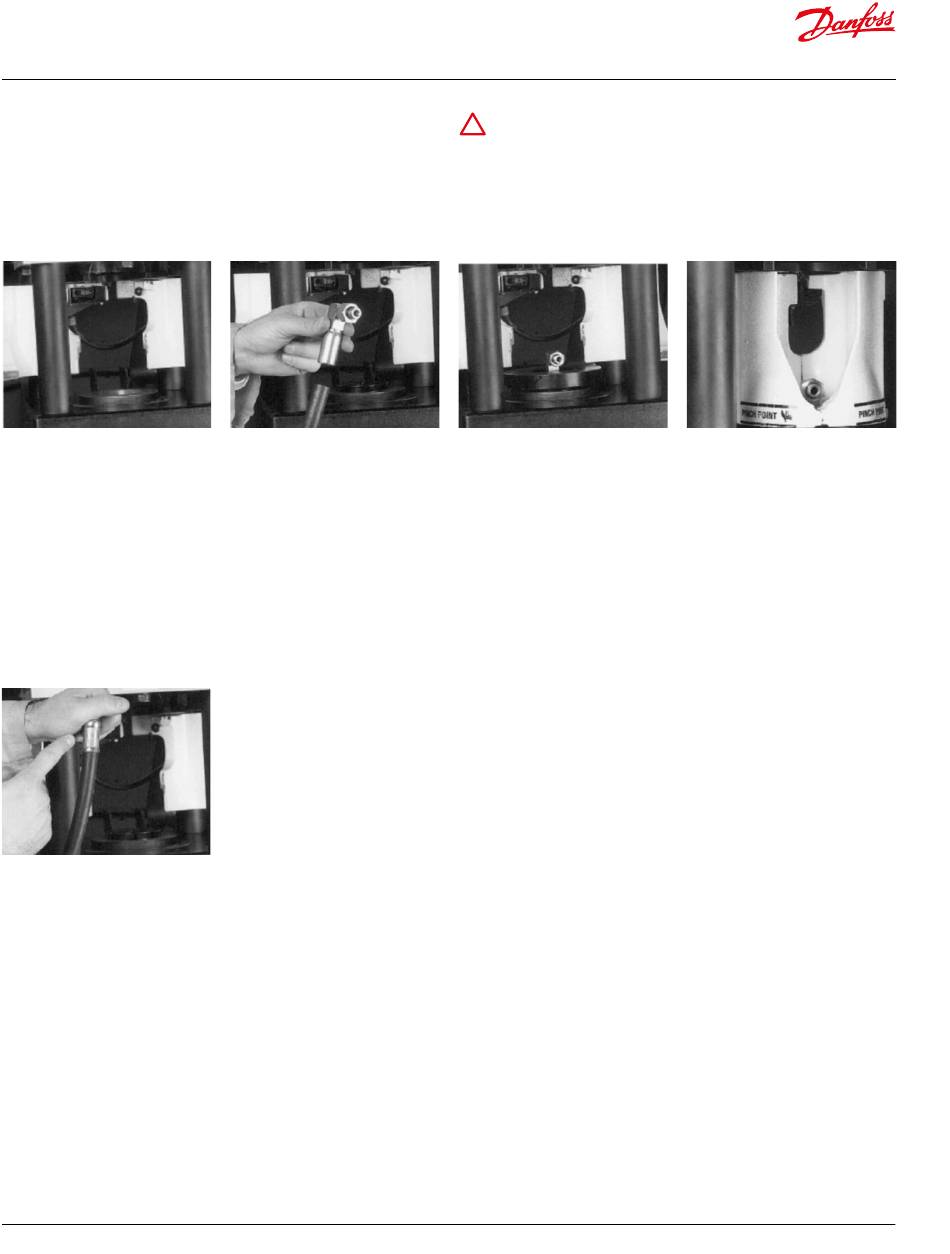

1. OPEN pusher halves and
place T-410-25 adapter ring
in the base adapter ring
(ET4000AR-001).
NOTE: Lubricate the inside cone
of the base adapter ring and
external surfaces of the collet
assembly with a high-efficiency
PTFE-based lubricant (T-400-G).
2. SELECT proper size collet
5. RELEASE the switch and
the pusher will stop. Move
the switch to the RETRACT
position to return the pusher.
OPEN the pusher halves and
remove the crimped hose
fittings.
6. Visually inspect the crimp
and verify the correct crimp
diameter and crimp length.
8 | © Danfoss ET4001 Crimp machine operator's manual | 2022.06.
(referenced in the crimp
specifications manual) for
hose type and size being
crimped. INSERT collet halves
into adapter ring. PLACE
proper size hose end on
hose. Be sure to bottom the
hose.
! Refer to safety information regarding Danfoss hose,
hose fittings, and assembly compatibility on page 2.
Eye protection required when press and pump are in use.
NOTE: Based on the fitting style, correctly align the fitting with
the top of the collet.
3. SELECT PROPER spacer ring
referenced in the crimp
specifications manual. INSERT
hose assembly from below,
between collet halves.
PLACE appropriate side
of spacer ring on top of
collet with uncrimped hose
assembly held in place.
4. CLOSE pusher halves. HOLD
SWITCH ON. When spacer
ring (shown in step 3 in
black) bottoms on adapter
ring below it, the crimp is
complete.
