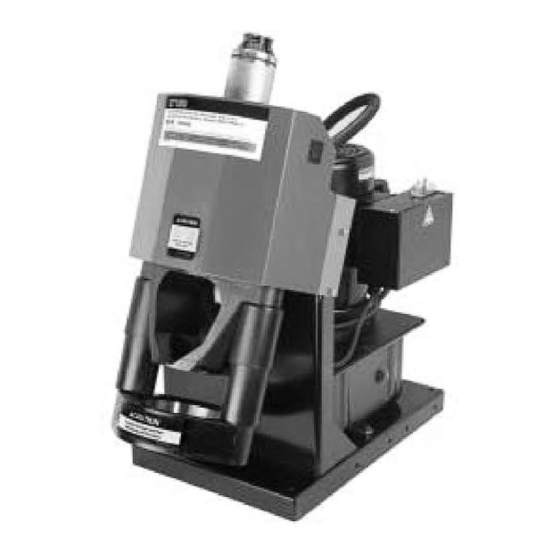

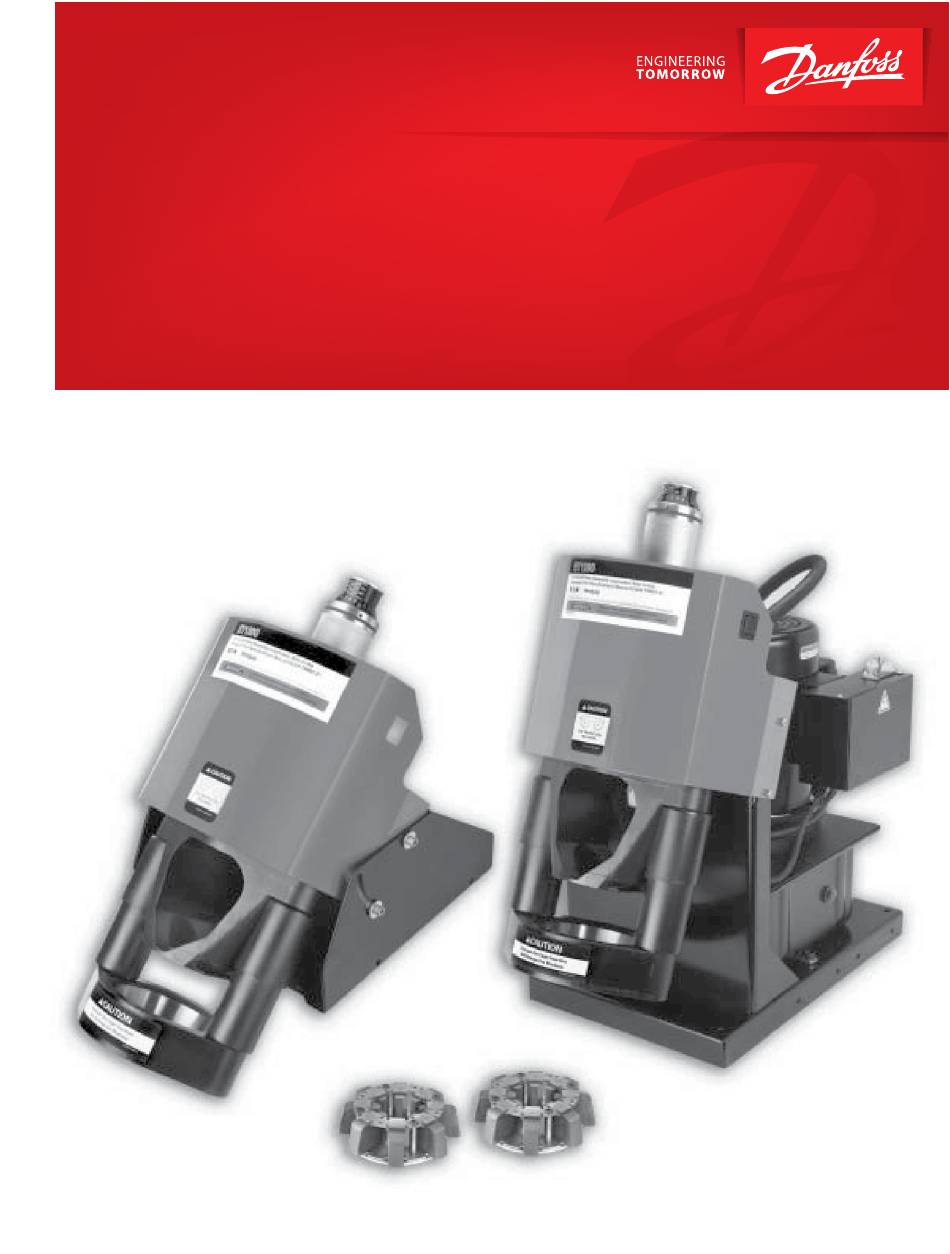

- Page 1 Operator’s Manual Danfoss ET1280 Crimp Machine...
-
Page 2: Table Of Contents
Table of Contents Safety Instructions ..........................3 Specifications and Equipment ......................4 Set-Up ..............................5 Operating Instructions ........................6 Crimping Procedures ..........................7 Calibration .............................8 Maintenance ............................9 Crimp Machine Components ......................10 Die Cage Components ........................11 2 | © Danfoss ET1280 Crimp Machine Operator’s Manual | 2023.01. AQ439269292775en-000101... -
Page 3: Safety Instructions
Do not rest your hand on the crimp ring. Keep your hands clear of all moving parts. Do not allow anyone, other than the operator, close to the equipment while it is in operation. AQ439269292775en-000101 © Danfoss ET1280 Crimp Machine Operator’s Manual | 2023.01. | 3... -
Page 4: Specifications And Equipment
FT1380-200-M465† For easy positioning of fittings into FT1380 “M” series die cages * Included in the 5 die cage package. † Included in the 8 die cage package. 4 | © Danfoss ET1280 Crimp Machine Operator’s Manual | 2023.01. AQ439269292775en-000101... -
Page 5: Set-Up
Never use an extension cord, always plug directly into the power outlet. AQ439269292775en-000101 © Danfoss ET1280 Crimp Machine Operator’s Manual | 2023.01. | 5... -
Page 6: Operating Instructions
(Figure 1). The die cage may be inserted or removed in this position. Figure 1 6 | © Danfoss ET1280 Crimp Machine Operator’s Manual | 2023.01. AQ439269292775en-000101... -
Page 7: Crimping Procedures
(rotate the and the resultant crimp diameter the machine setting (250-134=116) machine setting. adjustment knob upward) by the can be measured. same amount in thousandths of an AQ439269292775en-000101 © Danfoss ET1280 Crimp Machine Operator’s Manual | 2023.01. | 7... -
Page 8: Calibration
Danfoss ET1280 Crimp Machine Operator’s Manual Calibration The ET1280 Crimp Machine is factory calibrated. A TTC- 8 or WeatherGRIP –8 fitting crimped with an FT1380- 200-M240 die cage and a machine setting of 100 should result in a socket diameter of 1.000 +/- 0.003 inches. -
Page 9: Maintenance
Lubricate the die cage. For maximum service. FT1380 die cages require lubrication at 50-crimp intervals with high efficiency PTFE grease (Danfoss part number T-400-G). Periodically remove grease residue that has built-up on the sides of the dies and the crimp ring during the crimping process. Grease residue becomes contaminated with metal and plating chips and airborne contaminants, which can cause premature wear of the dies and crimp ring. -
Page 10: Crimp Machine Components
1/4-20 x 3/8” Button Head Cap Screw Steel ET1280C-0014 5/16-18 Button Head Cap Screw Steel FF90626 Set Screw Steel FF90627 229 O-Ring Neoprene ET1280C-0015/ET1280C-0017 Red Shroud/Yellow Shroud Steel 10 | © Danfoss ET1280 Crimp Machine Operator’s Manual | 2023.01. AQ439269292775en-000101... -
Page 11: Die Cage Components
FT1330-2-9-3 Spring Plate FT1330-2-9-55 FT1330-2-9-5 Cap Screw FT1330-2-9-66 FT1330-2-6-6 Spacers FT1380-2-9-1 FT1380-2-9-1 Back Plate * The FT1380-200-NO. (FT1380-2-9) requires 16 springs and the FT1380-201-NO. (FT-1380-2-9A) requires 8 springs. AQ439269292775en-000101 © Danfoss ET1280 Crimp Machine Operator’s Manual | 2023.01. | 11... - Page 12 Phone: +86 21 3418 5200w Danfoss can accept no responsibility for possible errors in catalogs, brochures, and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary in specifications already agreed.
