Danfoss ET4001 Operator's Manual page 7

Danfoss ET4001 Crimp machine operator's manual

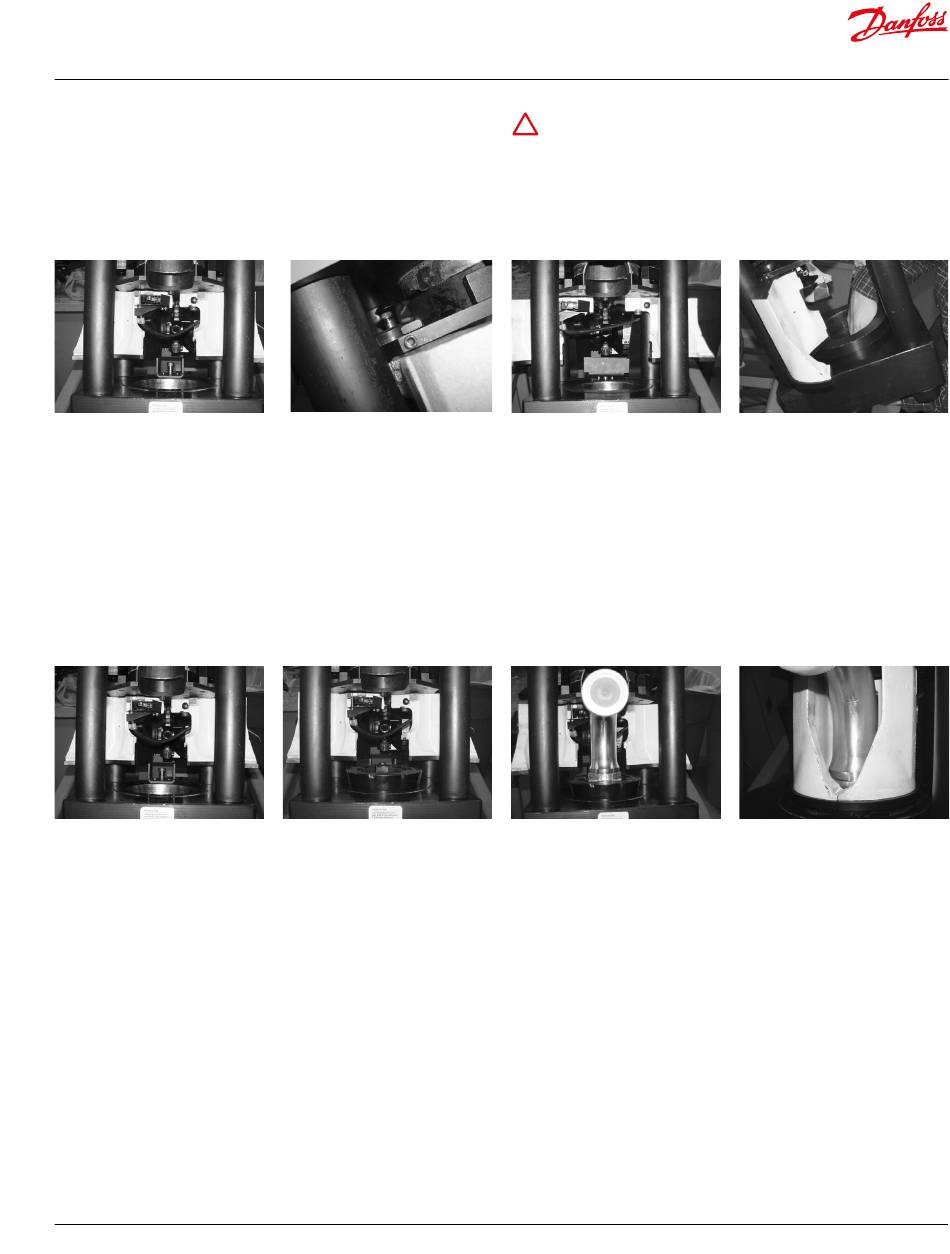

Operating instructions
Using ET4000AR-002 for
heavy 4-wire and 6-wire fittings
(-24 thru -32 collets)
1. OPEN the pusher halves.
NOTE: Lubricate the inside cone
of the base adapter ring and
external surfaces of the collet
assembly with a high-efficiency
PTFE based lubricant (T-400-G).
6. TURN locator bracket 90˚
until aligned properly.
AQ418954741547en-000101
2. PULL the pusher tab upward.
The pusher tab is located
behind the top of the
pushers at the back of the
machine.
7. SELECT the proper collet
assembly for hose type being
crimped as referenced in the
crimp specifications manual
or chart and insert the collet
assembly into the base
adapter ring.
NOTE: Lubricate the inside
cone of the base adapter
ring and external surfaces of
the collet assembly with a
high-efficiency PTFE-based
lubricant (T-400-G).
! Refer to safety information regarding Danfoss hose,
hose fittings, and assembly compatibility on page 2.
Eye protection required when press and pump are in use.
NOTE: Based on the fitting style, correctly align the fitting with the
top of the collet.
3. SLIDE pushers to side while
holding the pusher tab up.
4. PULL spacer ring locator
bracket upward. TURN the
locator bracket 90˚.
8. INSERT the hose assembly
through the bottom of
the base adapter ring and
between the two collet
assembly halves. To achieve
a full flat crimp for 4SP/6SP
fittings, locate the bottom
of the socket approximately
/ " (3mm) from the bottom
1
8
edge of the collet halves as
referenced in Danfoss crimp
specifications.
© Danfoss ET4001 Crimp machine operator's manual | 2022.06. | 7
5. REMOVE the base adapter
ring from base plate and
PLACE the ET4000AR-002
base adapter ring inside the
base plate.
NOTE: Lubricate the outside
diameter of base adapter
ring before placing into the
base plate.
9. CLOSE the pusher halves and
begin crimping by activating
the pump with turning on
the switch. When the pusher
halves or spacer ring (if
applicable) contacts the base
adapter ring, the crimp is
complete.
10. RELEASE the switch and
the pusher will stop. Move
the switch to the RETRACT
position to return the pusher.
OPEN the pusher halves and
remove the crimped hose
assembly.
11. Visually inspect the crimp
and verify the correct crimp
diameter and crimp length.
