Danfoss ET4001 Operator's Manual page 5

Danfoss ET4001 Crimp machine operator's manual
Shop/Work table
mounting and
check-out procedure
ET4001P-002 Electric pump

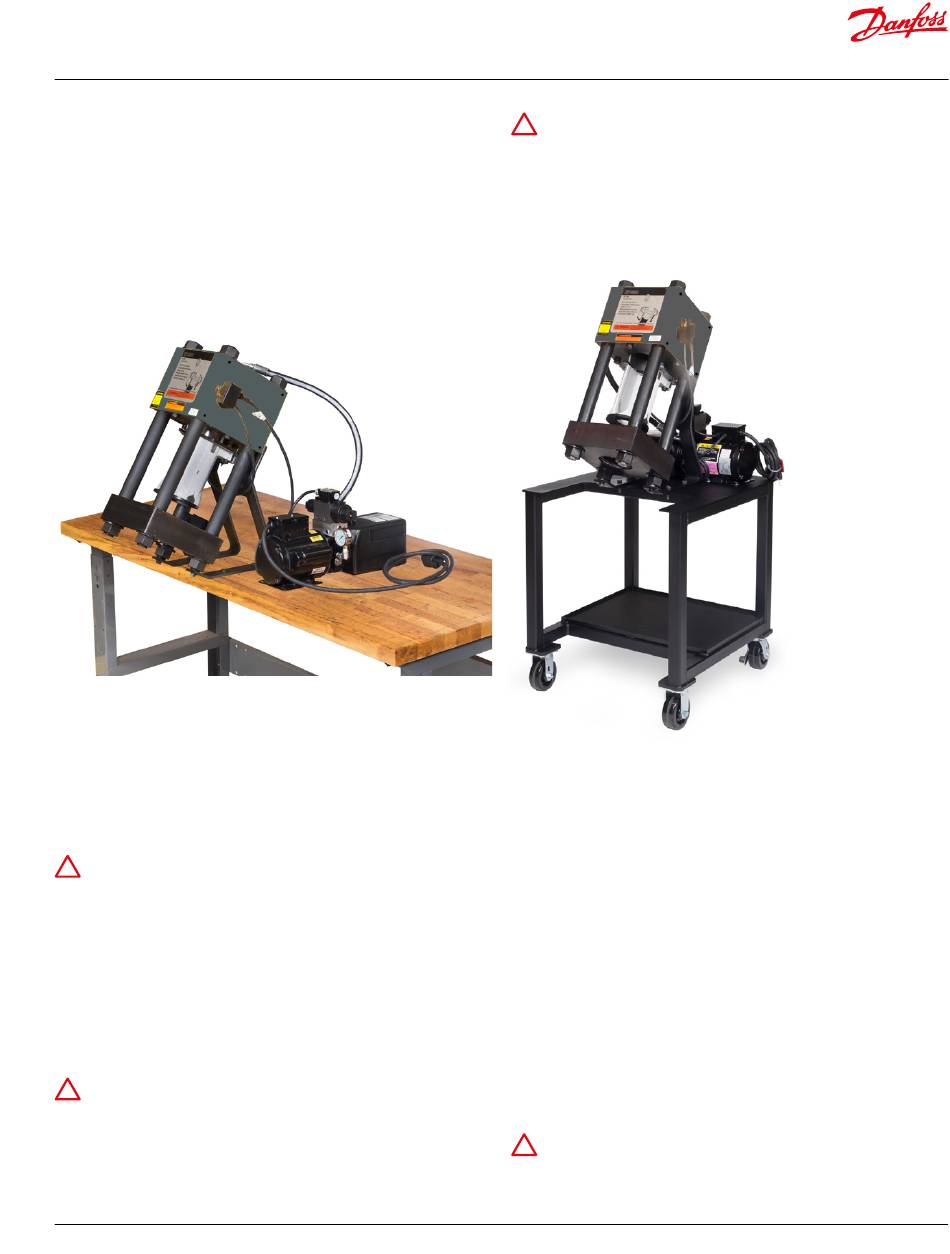

Figure 8
Typical ET4001 equipment set-
up on shop/work table
Note: Machine to be mounted on sturdy surface to
accommodate the machine and components (500+lbs.).
Check out procedure
! CAUTION
Throughout the Check-out procedure, check hose assembly/
adapter connections for any leaks. TIGHTEN if necessary. For-seal
swivel nut torque for hose assembly; 32-35 ft. lbs.
Check oil level in power unit. The oil reservoir was filled
at the factory; however, if oil is required, use ISO 32
(SAE 10W).
! WARNING
Do not cycle without base adapter ring in place.
AQ418954741547en-000101
! Refer to safety information regarding Danfoss hose, hose
fittings and assembly equipment compatibility on page 2.
ET4001 on FF91042 cart
Check-out procedure for using electric pump ET4001P-002.
1. Plug electric cord into a grounded (4 wire connection), 220 volt,
60 cycle, single phase outlet. IT IS RECOMMENDED THAT THE
PUMP BE ON AN INDIVIDUAL 20 AMP SERVICE OUTLET.
2. Close pusher halves on press. Due to safety interlock switch,
power unit will operate only when pusher halves are closed.
3. Hold switch until pusher touches the base adapter ring.
4. RELEASE SWITCH. Pump and pusher will stop.
5. Move switch to the RETRACT position. The pusher will retract
fully in approx. 12 to 14 seconds.
6. REPEAT STEPS 3 & 5 APPROXIMATELY SIX TIMES. This will purge
the hydraulic system.
! WARNING
Do not attempt to disconnect the hose sssemblies when the
pusher is not fully retracted.
© Danfoss ET4001 Crimp machine operator's manual | 2022.06. | 5
Cart, FF91042, holes are pre-
drilled for ET4000, ET4001 or
T-420 crimp machines
