Danfoss ET4001 Crimp machine operator's manual
Operating instructions
Using ET4000AR-001

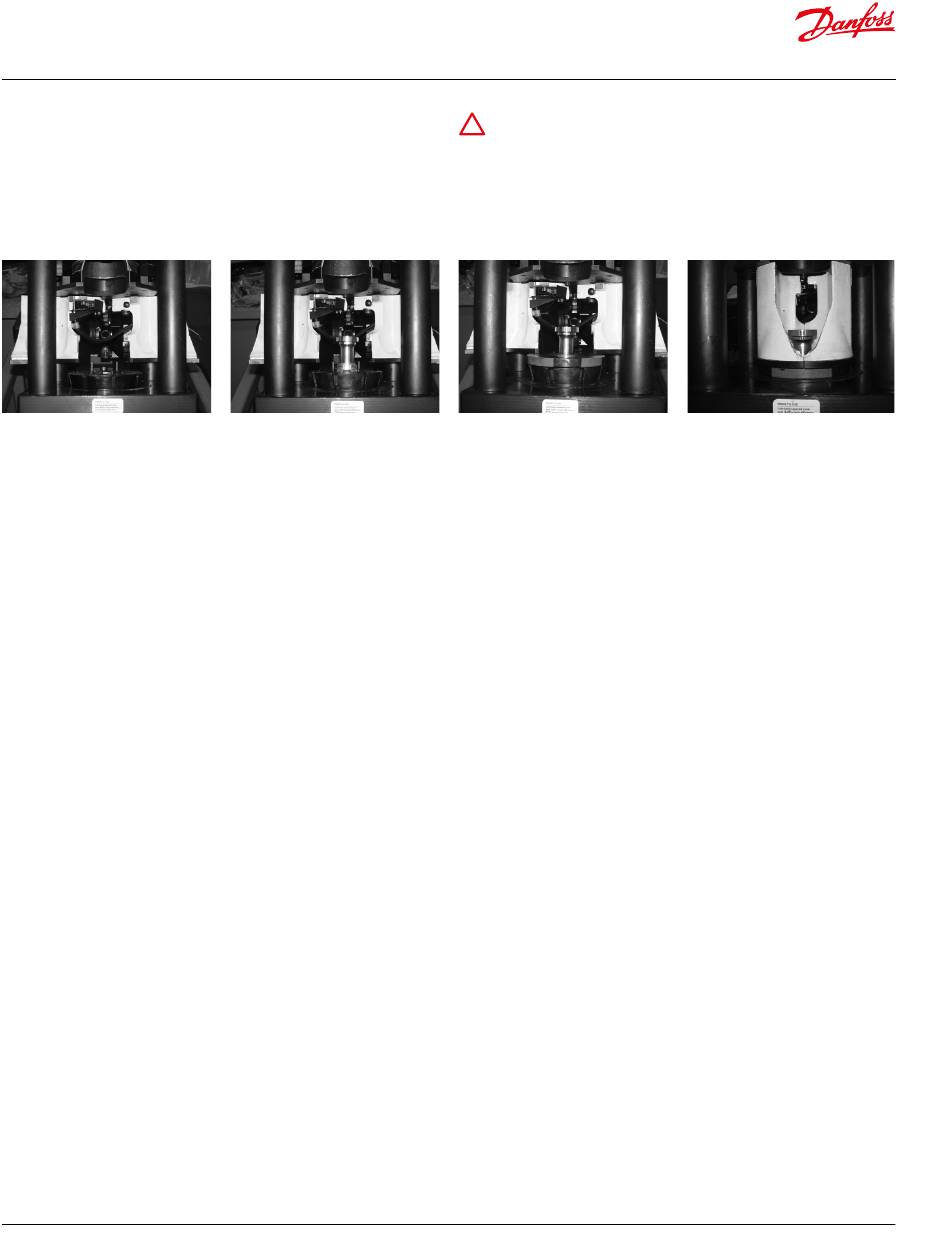

1. OPEN the pusher halves.
Select the proper tooling for
hose type being crimped as
referenced in the Danfoss
crimp specifications manual
or chart and insert the collet
assembly into the base
adapter ring.
NOTE: Lubricate the inside cone
of the base adapter ring and
external surfaces of the collet
assembly with a high-efficiency
PTFE based lubricant (T-400-G).
6 | © Danfoss ET4001 Crimp machine operator's manual | 2022.06.
2. INSERT the hose assembly
through the bottom of
the base adapter ring and
between the two collet
assembly halves. Align the
fitting with the top of the
collet halves as referenced in
Danfoss crimp specifications.
! Refer to safety information regarding Danfoss hose,
hose fittings, and assembly compatibility on page 2.
Eye protection required when press and pump are in use.
NOTE: Based on the fitting style, correctly align the fitting with
the top of the collet.
3. PLACE the spacer ring (if
applicable) in the appropriate
position on top of the collet
assembly (either flat-side
up or flat-side down as
referenced in Danfoss crimp
specifications).
4. CLOSE the pusher halves and
begin crimping by activating
the pump with turning on
the switch. When the pusher
halves or spacer ring (if
applicable) contact the base
adapter ring, the crimp is
complete.
5. RELEASE the switch and
the pusher will stop. Move
the switch to the RETRACT
position to return the pusher.
OPEN the pusher halves and
remove the crimped hose
fittings.
6. Visually inspect the crimp
and verify the correct crimp
diameter and crimp length.
