NOTE: Slicing only
works with CURA!
You can fi nd the STL data
at www.planeprint.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Funbus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PLANEPRINT Funbus

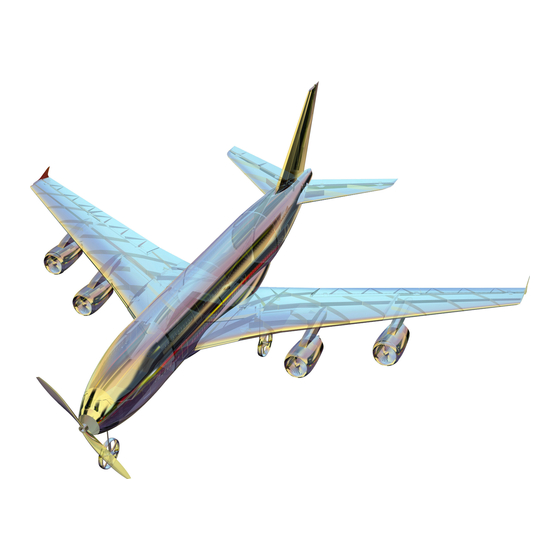

Summary of Contents for PLANEPRINT Funbus

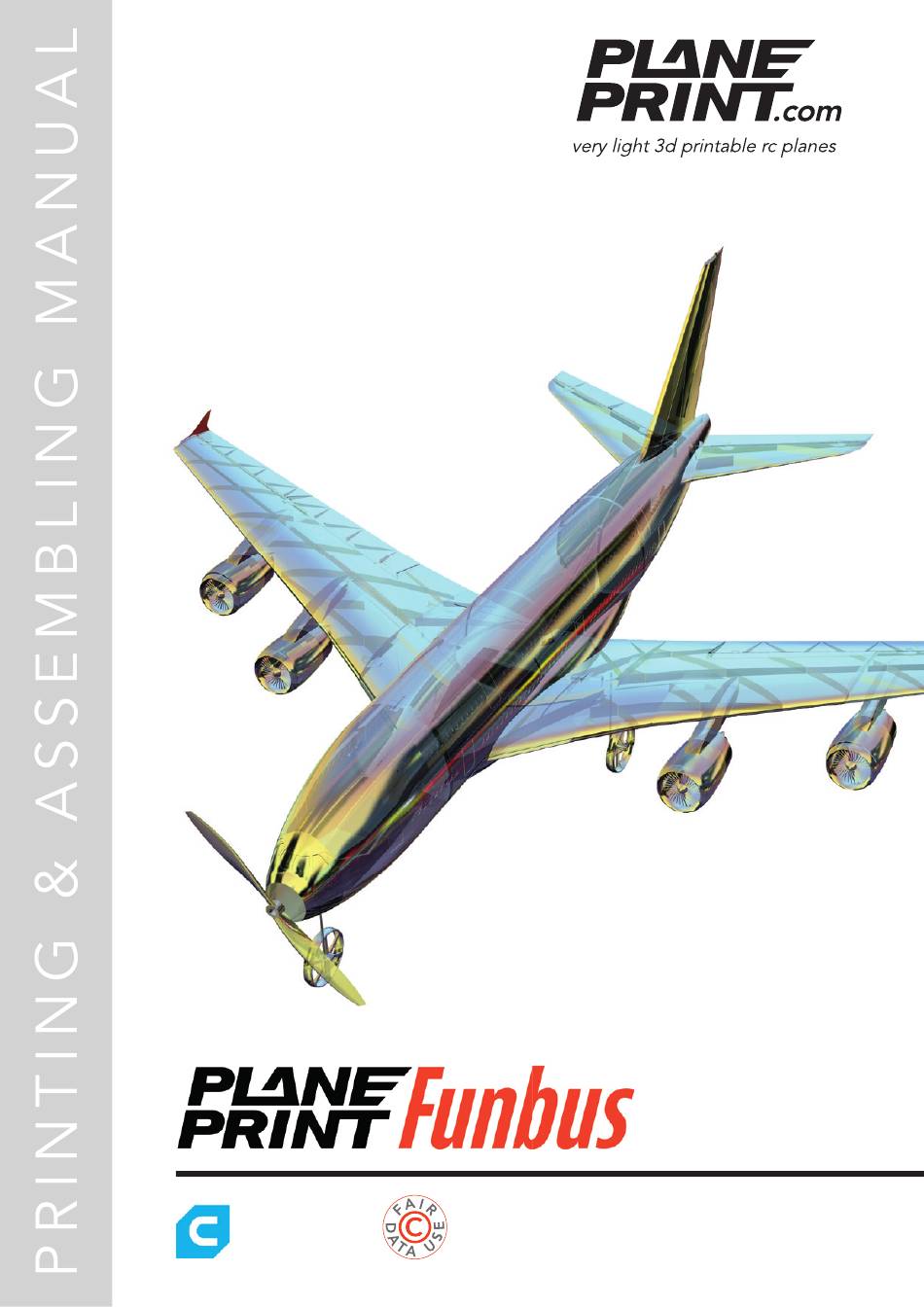

  • Page 1 You can fi nd the STL data NOTE: Slicing only at www.planeprint.com works with CURA!
  • Page 2 For this model we need only 4, easy to create profiles. It is important to follow the instructions from PLANEPRINT.com to slice the part correctly. However, it can be useful to perfect your 3D printing by making some additional settings depending on the printer and filament used.

  • Page 3: Additional Settings

    Please note the additional settings for the individual parts! Winglet-left_LW_profi le1_fb.stl Winglet-right_LW_profi le1_fb.stl MATERIAL LW-PLA, Weight: ~ 1 g ADDITIONAL SETTINGS None required Gear front_profi le1_fb.stl MATERIAL PLA, ~ 4 g ADDITIONAL SETTINGS None required FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 4 PLA, ~ 6 g ADDITIONAL SETTINGS None required Interconnects-profi le1_fb.stl MATERIAL PLA or LW-PLA, ~ 2 g ADDITIONAL SETTINGS None required NOTE You can also print the interconnects with LW-PLA, then they are less visible. FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 5 None required Motor mount-31mm_profi le1_fb.stl Motor mount-undrilled_profi le1_fb.stl MATERIAL PLA, ~ 2 g ADDITIONAL SETTINGS None required NOTE If your motor has other drilling distances than 31 mm, use the undrilled motor mount. FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 6 Servo mount_profi le1_fb.stl MATERIAL PLA or LW-PLA, ~ 2 g ADDITIONAL SETTINGS None required Wheel_profi le1_fb.stl MATERIAL PLA, ~ 2 g ADDITIONAL SETTINGS None required NOTE Use transparent PLA, then the wheels are less visible. FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 7 PROFILE P1_FULLBODY The following parts must be sliced with the PROFILE P1_FULLBODY. Please note the additional settings for the individual parts! Wingmount_profi le1_fb.stl MATERIAL PLA or LW-PLA, ~ 3 g ADDITIONAL SETTINGS None required FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 8 The optimal weight and suffi cient strength is achieved with 60 % fl ow. Increase the temperature until the wall thickness is 0.4 to 0.5 mm. (We print at 250° and 60% fl ow). FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 9 The optimal weight and suffi cient strength is achieved with 60 % fl ow. Increase the temperature until the wall thickness is 0.4 to 0.5 mm. (We print at 250° and 60% fl ow). FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 10 The optimal weight and suffi cient strength is achieved with 60 % fl ow. Increase the temperature until the wall thickness is 0.4 to 0.5 mm. (We print at 250° and 60% fl ow). FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 11 The optimal weight and suffi cient strength is achieved with 60 % fl ow. Increase the temperature until the wall thickness is 0.4 to 0.5 mm. (We print at 250° and 60% fl ow). FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 12 The optimal weight and suffi cient strength is achieved with 60 % fl ow. Increase the temperature until the wall thickness is 0.4 to 0.5 mm. (We print at 250° and 60% fl ow). FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 13 60 % fl ow. Increase the temperature until the wall thickness is 0.4 to 0.5 mm. (We print at 250° and 60% fl ow). NOTE Stringing is unavoidable here, please just clean it a bit with the cutter knife. FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 14 The optimal weight and suffi cient strength is achieved with 60 % fl ow. Increase the temperature until the wall thickness is 0.4 to 0.5 mm. (We print at 250° and 60% fl ow). FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 15 The optimal weight and suffi cient strength is achieved with 60 % fl ow. Increase the temperature until the wall thickness is 0.4 to 0.5 mm. (We print at 250° and 60% fl ow). FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 16 The optimal weight and suffi cient strength is achieved with 60 % fl ow. Increase the temperature until the wall thickness is 0.4 to 0.5 mm. (We print at 250° and 60% fl ow). FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 17 The following parts must be sliced with the PROFILE P4_FLEX. Please note the additional settings for the individual parts! Hinges_profi le4_fb.stl MATERIAL TPU ~ A95, Weight: ~ 1 g ADDITIONAL SETTINGS None required FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 18 • Steel wire Ø0.6mm*1000mm, 2 pieces (or Ø0.8mm, max. Ø1mm for the servo linkages) • small Rod connection, 4 pieces Rod connection Tools • Cutter knife • small Philips screwdriver • needle-nose pliers FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 19 RC COMPONENTS 2S-Setting (Like our Funbus from the offi cial Planeprint video) (Like our Funbus from the offi cial Planeprint video) ENGINE AXI 2203/40 VPP PROP APC 9x3.7 But you can also use other motors. It is important that the motor should have a weight of about 20 grams.
  • Page 20 LW-PLA...

  • Page 21: Assembling Manual

    Do not use too much glue, the fl ap must move easily! These spacers ensure the correct gap distance. Don´t remove! If the gaps for the hinges are closed by the fi rst layer, open them carefully. FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...

  • Page 22: Wings Assembly

    Glue the middle wing parts fi rst, then the Wing2-left-LW_profi le3_fb.stl remaining parts as shown in the drawing. medium l. Wing1-left-LW_profi le3_fb.stl Interconnects-profi le1_fb.stl STEP 2 Wingmount_profi le1_fb.stl STEP 1 Wing-middle-back_LW_profi le3_fb.stl Wing-middle-front_LW_profi le3_fb.stl Wing1-right-LW_profi le3_fb.stl Wing2-right-LW_profi le3_fb.stl Winglet-right_LW_profi le1_fb.stl FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 23 See instructions on the Basic Information page. thin Hinges_profile4_fb.stl Aileron1-left_LW_profile3_fb.stl Aileron2-left_LW_profile3_fb.stl Turbine blade_LW_profile3_fb.stl medium l. turbine outside-left_LW_profile3_fb.stl turbine inside-left_LW_profile3_fb.stl medium l. medium l. The turbines fit exactly on these cones. Be careful not to mix them up! FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...

  • Page 24: Fuselage Assembly

    Fuselage1_LW_profi le3_fb.stl VS_LW_profi le3_fb.stl Tailplane assembly Carbon rod Ø2*20mm Open the holes with the cutter knife Carbon rod Ø2*90mm Carbon rod Ø2*150mm medium l. HS-left_LW_profi le3_fb.stl Fuselage4_LW_profi le3_fb.stl FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 25 Glue the linkages into the elevator and make sure they are absolutely symmetrical! The linkages must point downwards. HS-left_LW_profi le3_fb.stl Linkages_profi le1_fb.stl See instructions on the Basic Information page. thin Rudder_LW_profi le3_fb.stl Elevator-right_LW_profi le3_fb.stl Elevator-left_LW_profi le3_fb.stl FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 26 The carbon rod of the vertical stabilizer must run in the gap of the linkage! The short wires are simply inserted into the holes and do not need to be secured. FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 27 Then glue it to the rudder as shown in the picture. Make sure that it is in line with the axis of rotation when viewed from the side. Steel wire Ø0.6*480mm medium l. Linkages_profi le1_fb.stl FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...

  • Page 28: Wing Mount

    Wing mount Tighten the rotary lever so that it can be turned with some resistance. Wingmount_profi le1_fb.stl medium l. Fuselage3_LW_profi le3_fb.stl STEP 1 STEP 2 STEP 3 FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 29 90° to the axis of rotation of the aileron. Bend a steel wire to the exact length necessary to position the linkage lever on the edge of the aileron. FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...

  • Page 30: Gear Assembly

    90° medium l. to the wheel. The steering and the wheel must move easily! Carbon rod Ø2*100mm Gear front_profi le1_fb.stl Carbon rod Ø2*20mm FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...

  • Page 31: Motor Mounting

    1.5 degrees downwards and 1.5 degrees to the right (viewed from above). If your prop turns to the left, the motor must point to the left. Then glue the motor mount well to the fuselage 1. FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 32 (this area is reinforced) to attach (this area is reinforced) to attach the battery. the battery. Servos Motor Receiver Controller Battery Set the exact CG by positioning the battery. FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...

  • Page 33: Center Of Gravity (Cg)

    When checking the control directions, look at the aircraft from behind. look at the aircraft from behind. Elevator up Elevator up Elevator down Elevator down Rudder left Rudder left Rudder right Rudder right Aileron left Aileron left Aileron right Aileron right FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...

  • Page 34: Technical Specifications

    It is a good idea to be conservative with the fl ight timer until you gain experience with your airplane. TECHNICAL SPECIFICATIONS WINGSPAN 1000 mm/39.3 inches LENGHT 850 mm/33.4 inches FLIGHT WEIGHT 390 grams (with 2S/350MaH-Battery) 390 grams (with 2S/350MaH-Battery) FUNBUS PRINTING & ASSEMBLING MANUAL © PLANEPRINT...

  • Page 35: Age Recommendation

    Filaments, printing supplies, hardware or mitter or model. consumables that can not be used after faulty 3D printing will not be replaced by PLANEPRINT.com in any way. Always keep the model in view and under control. Use only fully charged batteries.
