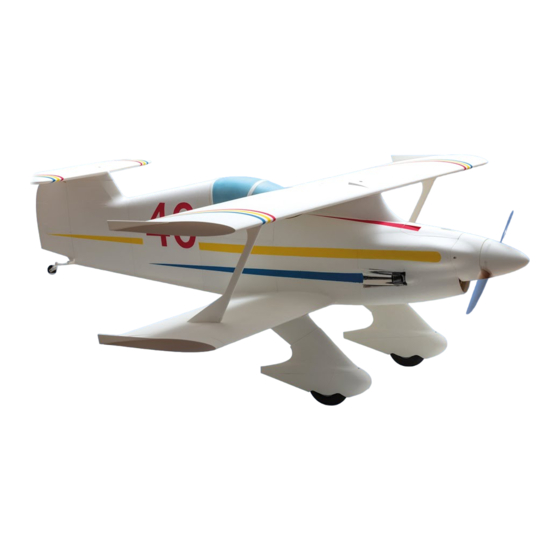

PLANEPRINT WANNA PLAY II Assembling Manual

Reno air race biplane
Hide thumbs

Advertisement

Quick Links

Download this manual
NOTE:
Slicing works best
with CURA!
Reno Air race biplane
www.planeprint.com
the ONLY place where you can get
original Planeprint STL fi les legally!

Advertisement

loading
Need help?

Need help?

Do you have a question about the WANNA PLAY II and is the answer not in the manual?

Questions and answers

Related Manuals for PLANEPRINT WANNA PLAY II

Summary of Contents for PLANEPRINT WANNA PLAY II

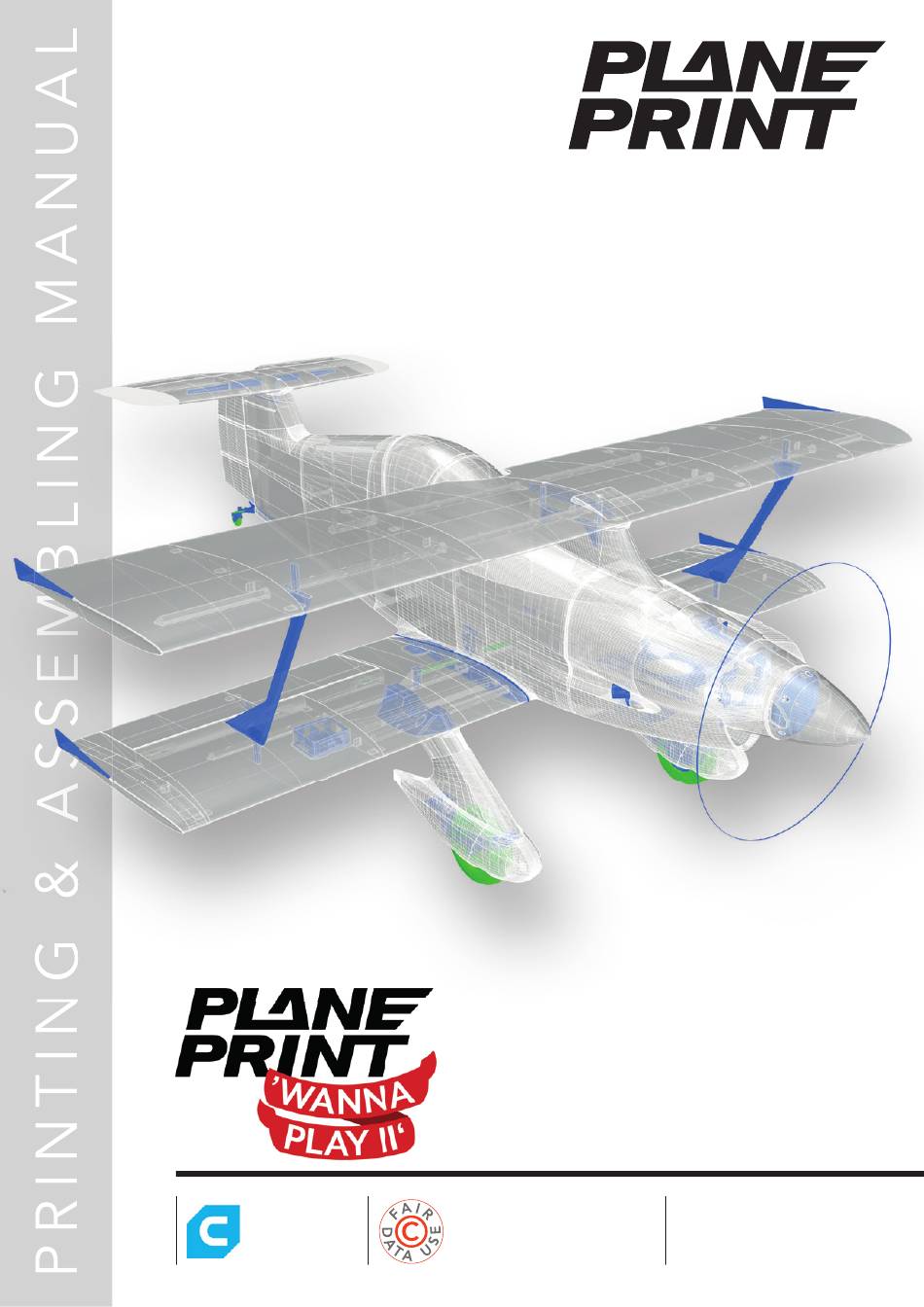

  • Page 1 Reno Air race biplane www.planeprint.com NOTE: Slicing works best the ONLY place where you can get with CURA! original Planeprint STL fi les legally!
  • Page 2 LW-PLA CARBON WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 3 Tube 2 for the wings: 2x500 Tube 3 for the wings and HS: 1x800, 1x120 Tube 4 for the wing: 1x1000 (do not cut) *Cut the 3mm rod into the following parts: Motormount: 4x200 6 mm WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 4 (The battery should have a weight of 400 to 450 grams) SERVOS 4 pieces like Corona DS-238MG or comparable Dimensions (The optimal distance between screws is 35 mm): max. 30 mm max. 15 mm WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 5 3D printer is a very complex and extensive process. Therefore, we appeal to your fairness not to forward the STL data you have acquired to third parties. Thank you for your understanding and have fun with your PLANEPRINT MODEL! WANNA PLAY II PRINTING &...
  • Page 6 Please note the additional settings for the individual parts! P1_Gear parts_wp.stl MATERIAL PLA, Weight: ~ 45 g ADDITIONAL SETTINGS None required P1_Interconnects_wp.stl MATERIAL PLA, Weight: ~ 3 g ADDITIONAL SETTINGS None required WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 7 Please note the additional settings for the individual parts! P1_Motormount base_wp.stl MATERIAL PLA, Weight: ~ 21 g ADDITIONAL SETTINGS None required P1_Motormount_wp.stl MATERIAL PLA, Weight: ~ 18 g ADDITIONAL SETTINGS None required WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 8 Please note the additional settings for the individual parts! P1_Parts_wp.stl MATERIAL PLA, Weight: ~ 19 g ADDITIONAL SETTINGS None required P1_Protectors FUS_wp.stl MATERIAL PLA, Weight: ~ 11 g ADDITIONAL SETTINGS None required WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 9 P1_Protectors WING_wp.stl MATERIAL PLA, Weight: ~ 11 g ADDITIONAL SETTINGS None required P1_Parts rear_wp.stl MATERIAL PLA, Weight: ~ 9 g ADDITIONAL SETTINGS None required Remove support. Please be careful with the knife! WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 10 Please note the additional settings for the individual parts! P1_Rear gear_wp.stl MATERIAL PLA, Weight: ~ 4 g ADDITIONAL SETTINGS None required P1_Servo board 35mm_wp.stl P1_Servo board customizable_wp.stl MATERIAL PLA, Weight: ~ 5 g ADDITIONAL SETTINGS None required WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 11 Please note the additional settings for the individual parts! P1_Spinner plate 6_wp.stl MATERIAL PLA, Weight: ~ 12 g ADDITIONAL SETTINGS None required P1_Strut parts_wp.stl MATERIAL PLA, Weight: ~ 7 g ADDITIONAL SETTINGS None required WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 12 Please note the additional settings for the individual parts! P1_Winglets_wp.stl MATERIAL PLA, Weight: ~ 11 g ADDITIONAL SETTINGS None required P1_Clips 1mm wire.stl MATERIAL PLA, Weight: ~ 1 g ADDITIONAL SETTINGS None required WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 13 Please note the additional settings for the individual parts! Carbon tool 8mm.stl MATERIAL PLA, Weight: ~ 6 g ADDITIONAL SETTINGS None required Use this tool to cut the 8mm carbon tubes. WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 14 Please note the additional settings for the individual parts! P2_Battery mount_wp.stl MATERIAL PLA, Weight: ~ 20 g ADDITIONAL SETTINGS None required P2_Cowling lock_wp.stl MATERIAL PLA, Weight: ~ 5 g ADDITIONAL SETTINGS None required WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 15 Please note the additional settings for the individual parts! P2_Gearbase L_wp.stl and P2_Gearbase R_wp.stl MATERIAL PLA, Weight: ~ 20 g ADDITIONAL SETTINGS • Infill Pattern: Gyroid P2_Parts_wp.stl MATERIAL PLA, Weight: ~ 13 g ADDITIONAL SETTINGS None required WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 16 • Wall Line Count: 3 There is also a rim version STL without ball bearing, but we recommend the variant with ball bearing! P2_Servocovers_wp.stl MATERIAL PLA, Weight: ~ 11 g ADDITIONAL SETTINGS None required WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 17 The following parts must be sliced with the PROFILE P2_Hollowbody. Please note the additional settings for the individual parts! P2_Strut_wp.stl MATERIAL PLA, Weight: ~ 12 g ADDITIONAL SETTINGS • Infill Density: 6 % • Print twice WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 18 P4_Rear wheel_wp.stl MATERIAL TPU A95 or better VarioShore, Weight: ~ 2 g ADDITIONAL SETTINGS VarioShore with Flow 70 %: • Infill Density: 100 % TPU A95: • Infill Density: 100 % WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 19 Please note the additional settings for the individual parts! P4_Rubber bands_wp.stl MATERIAL TPU A95, Weight: ~ 1 g ADDITIONAL SETTINGS None required P4_Tension belts 125_wp.stl MATERIAL TPU A95, Weight: ~ 4 g ADDITIONAL SETTINGS None required WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 20 • Bottom Layers: 6 • Infill Density: 15 % • Infill Pattern: Gyroid • print this part twice TPU A95: • Wall Line Count: 3 • Top Layers: 3 • Infill Pattern: Gyroid WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 21 MATERIAL LW-PLA, ~ 17 g* *Weighed (approximate guideline) ADDITIONAL SETTINGS None required P5_AIL 2 L_wp.stl and P5_AIL 2 R_wp.stl MATERIAL LW-PLA, ~ 15 g* *Weighed (approximate guideline) ADDITIONAL SETTINGS None required WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 22 P5_Canopy1_wp.stl MATERIAL LW-PLA, ~ 13 g* *Weighed (approximate guideline) ADDITIONAL SETTINGS None required P5_Canopy2_wp.stl MATERIAL LW-PLA, ~ 17 g* *Weighed (approximate guideline) ADDITIONAL SETTINGS None required WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 23 ADDITIONAL SETTINGS None required Remove support. Please be careful with the knife! P5_Elevator 1 L_wp.stl and P5_Elevator 1 R_wp.stl MATERIAL LW-PLA, ~ 3 g* *Weighed (approximate guideline) ADDITIONAL SETTINGS None required WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 24 *Weighed (approximate guideline) ADDITIONAL SETTINGS None required P5_FUS 1_wp.stl MATERIAL LW-PLA, ~ 95 g* *Weighed (approximate guideline) ADDITIONAL SETTINGS • Z Seam Position: Back Right Remove support. Please be careful with the knife! WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 25 *Weighed (approximate guideline) ADDITIONAL SETTINGS None required None required Remove support. Please be careful with the knife! P5_FUS 2B_wp.stl MATERIAL LW-PLA, ~ 10 g* *Weighed (approximate guideline) ADDITIONAL SETTINGS None required WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 26 *Weighed (approximate guideline) ADDITIONAL SETTINGS None required None required Remove support. Please be careful with the knife! P5_FUS 3B_wp.stl MATERIAL LW-PLA, ~ 79 g* *Weighed (approximate guideline) ADDITIONAL SETTINGS None required WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 27 P5_FUS 4A_wp.stl MATERIAL LW-PLA, ~ 40 g* *Weighed (approximate guideline) ADDITIONAL SETTINGS None required P5_FUS 4B_wp.stl MATERIAL LW-PLA, ~ 49 g* *Weighed (approximate guideline) ADDITIONAL SETTINGS None required WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 28 *Weighed (approximate guideline) ADDITIONAL SETTINGS • Z Seam Position: Back Right P5_FUS1 detail_wp.stl MATERIAL LW-PLA, ~ 2 g* *Weighed (approximate guideline) ADDITIONAL SETTINGS Stringing occurs here, please simply remove with the knife. WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 29 ADDITIONAL SETTINGS • Z Seam Position: Back Left P5_Gear B L_wp.stl and P5_Gear B R_wp.stl MATERIAL LW-PLA, ~ 15 g* *Weighed (approximate guideline) ADDITIONAL SETTINGS • Z Seam Position: Back Left WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 30 MATERIAL LW-PLA, ~ 11 g* *Weighed (approximate guideline) ADDITIONAL SETTINGS None required P5_HS 2 L_wp.stl and P5_HS 2 R_wp.stl MATERIAL LW-PLA, ~ 18 g* *Weighed (approximate guideline) ADDITIONAL SETTINGS None required WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 31 P5_HS 3_wp.stl MATERIAL LW-PLA, ~ 2 g* *Weighed (approximate guideline) ADDITIONAL SETTINGS None required P5_Interconnects Elevator_wp.stl MATERIAL LW-PLA, ~ 1 g* *Weighed (approximate guideline) ADDITIONAL SETTINGS None required WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 32 P5_Nose_wp.stl MATERIAL LW-PLA, ~ 18 g* *Weighed (approximate guideline) ADDITIONAL SETTINGS None required P5_Rudder 1_wp.stl MATERIAL LW-PLA, ~ 6 g* *Weighed (approximate guideline) ADDITIONAL SETTINGS None required WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 33 *Weighed (approximate guideline) ADDITIONAL SETTINGS None required P5_Spinner_wp.stl MATERIAL LW-PLA, ~ 11 g* *Weighed (approximate guideline) ADDITIONAL SETTINGS • Infill Density: 8 % Remove support. Please be careful with the knife! WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 34 *Weighed (approximate guideline) ADDITIONAL SETTINGS • Z Seam Position: Back Left P5_WING down 2 L_wp.stl and P5_WING down 2 R_wp.stl MATERIAL LW-PLA, ~ 50 g* *Weighed (approximate guideline) ADDITIONAL SETTINGS None required WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 35 • Z Seam Position: Back Left P5_WING top 1 L_wp.stl and P5_WING top 1 R_wp.stl MATERIAL LW-PLA, ~ 66 g* *Weighed (approximate guideline) ADDITIONAL SETTINGS • Z Seam Position: Back Left WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 36 • Z Seam Position: Back Left P5_WING top 3 L_wp.stl and P5_WING top 3 R_wp.stl MATERIAL LW-PLA, ~ 50 g* *Weighed (approximate guideline) ADDITIONAL SETTINGS • Z Seam Position: Back Left WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...

  • Page 37: Basic Information

    The remaining top surface is about 1 mm thick. To compensate for this, you can move the new part to be printed down the Z axis in Cura by 1 mm. Glue joint Broken part Glue joint WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...

  • Page 38: Fuselage Assembly

    Fuselage assembly medium liquid P1_Interconnects_wp.stl P5_FUS 4A_wp.stl P5_FUS 3A_wp.stl STEP 1 STEP 1 STEP 2 P5_FUS 4B_wp.stl P5_FUS 3B_wp.stl WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...

  • Page 39: Installing The Hinges

    Then push the rudder all the way to the fuselage and wait until the glue is dry. Before the fi rst fl ight, test whether the connection is fi rm. WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 40 P2_Parts_wp.stl P5_FUS 2B_wp.stl P5_FUS 2B_wp.stl Remove support. Remove support. Remove support. Remove support. Please be careful with the knife! Please be careful with the knife! Please be careful with the knife! WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 41 Use the 8mm carbon tubes to glue the fuselage protectors in the optimal position on the fuselage. Do not glue the tubes! P1_Protectors FUS_wp.stl P1_Interconnects_wp.stl P1_Protectors FUS_wp.stl Carbon tube Ø8*800mm Carbon tube Ø8*500mm WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 42 This glue connection is very important so that the motor is well fi xed! The side that was down on the buildplate must face forward! P1_Motormount base_wp.stl P5_FUS 1_wp.stl P1_Parts_wp.stl P5_FUS1 detail_wp.stl Carbon rods Ø3*200mm, 4 pieces medium liquid P1_Interconnects_wp.stl P5_FUS 1_wp.stl WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...

  • Page 43: Horizontal Stabilizer Assembly

    Then glue the part HS 3 so that the elevator is not blocked. Before the fi rst fl ight, test whether the connection is fi rm. WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...

  • Page 44: Top Wing Assembly

    P1_Interconnects_wp.stl The carbon tubes do not need to be glued P2_Parts_wp.stl in place, then you can reuse them if you ever need to reprint the upper wing. P5_WING top 1 R_wp.stl WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 45 Wing servos P2_Servocovers_wp.stl P1_Clips 1mm wire.stl P1_Clips 1mm wire.stl Wing fastening P2_Parts_wp.stl Fuselage inside P4_Tension belts 125_wp.stl WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 46 P1_Servo board customizable_wp.stl Metal screws 3*30mm Thread the steel wire from behind through the Bowden cables and shorten it to the correct length. P1_Clips 1mm wire.stl Steel wire Ø1*1000mm P1_Clips 1mm wire.stl WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...

  • Page 47: Motor Mounting

    61 mm P1_Motormount base_wp.stl Remove support. Please be careful with the knife! This bar can be screwed behind the motor shaft to protect the battery. P5_Cownling_wp.stl P5_Cownling_wp.stl P2_Cowling lock_wp.stl WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 48 CA glue run into the gaps. on the safe side, let some thin CA glue run into the gaps. P5_Gear A L_wp.stl Carbon tube Ø8*125mm Carbon tube Ø8*158mm P1_Gear parts_wp.stl WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 49 Use about 3 or 4 hair gums to adjust the spring force. It should not be too tight. P5_Gear B L_wp.stl This screw may be a maximum of 8 mm long! WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 50 Hold it fi rmly during disassembly Hold it fi rmly during disassembly so that it can not fall down! so that it can not fall down! P1_Strut parts_wp.stl Metal screws 3*40mm P2_Strut_wp.stl P1_Strut parts_wp.stl WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 51 Flight direction Mounting rails RC components Use self-adhesive Velcro tape to attach the RC components. Set the exact CG by positioning the battery and Lead (see next side). Receiver Battery WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...

  • Page 52: Technical Specifications

    You don‘t have to forget to fasten the lead well. You don‘t have to Lead worry about increasing the wingload, it‘s more important that the CG is right. WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...

  • Page 53: Tips For Flying

    Tips for flying The Wanna Play II has a relatively high gear and you have to be careful when taxing and taking off and landing that the nose does not go down, which can result in a rollover. Therefore it is important to always keep some elevator up, especially when you see the tail taking off.
  • Page 54 Rudder right 30 mm 30 mm Expo setting (for some remote AILERON 30 % ELEVATOR 30 % RUDDER 30 % controls a minus has to be in front of the number) WANNA PLAY II PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 55 3D printing Always keep the transmitter switched on when the model will not be replaced by PLANEPRINT.com in any way. is switched on. When operating, always keep a safe distance from your Always remove the battery before disassembling the model.
