  • Page 1 ESW-5112-2MG Series L2 Managed Switch with 8-Port 10/100/1000M RJ-45 2-Port 100M/1G/2.5G/5G/10G RJ-45 and 2-Port 1/10G SFP+ User’s Guide Version: 1.0...
  • Page 2: Revision History

    This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. Trademarks CTS is a registered trademark of Connection Technology Systems Inc. All trademarks belong to their respective proprietors Contents subject to change without prior notice.
  • Page 3: Cts Contact Information

    CTS Contact Information Headquarters/Manufacturer: ▓ Connection Technology Systems Inc. 18F-6, No.79, Sec.1, Xintai 5th Rd., Xizhi Dist., New Taipei City 221, Taiwan(R.O.C.) Tel: +886-2-2698-9661 Fax: +886-2-2698-3960 Sales Direct Line:+886-2-2698-9201 www.ctsystem.com Global Offices: ▓ Connection Technology USA Connection Technology Systems Japan 40538 La Purissima Way, Higobashi Bldg.
  • Page 4: Table Of Contents

    Table of Contents Revision History ........................ii CTS Contact Information ......................iii 1. Introduction ........................2 1.1 Overview of ESW-5112-2MG ..................2 1.2 Key Features ......................... 3 1.3 Front & Rear Panels ..................... 6 1.3.1 Front Panel ......................6 1.3.2 Rear Panel ......................8 1.4 LED Definitions ......................
  • Page 5 4.1.1 Local Check ......................27 4.1.2 Remote Check ...................... 28 4.2 Hardware Replacement Procedures ................28 4.3 Firmware Upgrade ...................... 28...
  • Page 7 About this manual In this user’s guide, it will not only clearly introduce CTS ESW-5112-2MG Managed Switch but tell you how to install this Managed Switch with detailed instructions. Organization of the Manual  Chapter 1 “Introduction” describes the features of the Managed Switch ...
  • Page 8: Introduction

    Introduction Introduction CTS’s Managed Switch is designed to meet the emerging FTTX & Metro Ethernet requirements. Besides the low profile appearance with 1U height and the standard 8.5-inch rack-mounted size, the product also achieves hassle-free monitoring and comprehensive management for any network operator who desires to build up a reliable telecommunication network infrastructure.
  • Page 9: Key Features

    Introduction 1.2 Key Features  Interface -RJ-45 Port 8 x 10/100/1000Base-T RJ-45 2 x 100M/1G/2.5G/5G/10GBase-T RJ-45 -Fiber Port 2 x 10GBase-SR/LR SFP+ Compatible with 1000Base-X Transceiver -Console Port 1 x RS-232 to RJ-45 Serial Port -Terminal Block 1 x Digital Input (Dry Contact) ...
  • Page 10 Introduction -Static Port Trunking -Up to 6 Aggregation Groups, 8 Ports per Group Multicast -IGMP Snooping v1/v2/v3 -IGMP Fast Leave and Querier -MLD v1/v2 Snooping -MLD Querier -IGMP/MLD Snooping Group: 512/128 Groups -IP Multicast Filter with Segment and Profile -Static Multicast Group -Multicast VLAN Replication (MVR) IPv6 Feature -IPv6 over Ethernet (RFC 2464)
  • Page 11 Introduction -Static MAC Address Table -LLDP Maintenance Diagnostic -Port Mirror -ICMP Ping -Event log -Syslog -SFP SFF-8472 DDMI & Threshold Monitor: Temp / Volt / TX Bias / TX Power / RX Power -CPU Temperature/Utilization -Memory Statistics -System Voltage -Cable Diagnostics Upgrade/Restore -Firmware Upgrade/Downgrade HTTP/HTTPS/FTP/TFTP...
  • Page 12: Front & Rear Panels

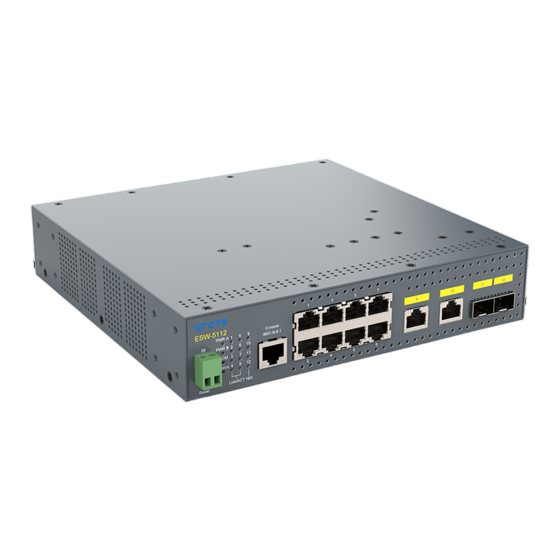

    Introduction 1.3 Front & Rear Panels 1.3.1 Front Panel Figure 1-1. The Managed Switch Front Panel The interfaces on the front panel of the Managed Switch are described below: 8 x 10/100/1000Base-T RJ-45 Ports (Port 1-8) 2 x 100M/1G/2.5G/5G/10GBase-T RJ-45 Ports (Port 9-10) 2 x 1/10GBase-R SFP+ (Port 11-12) Console Port: ...
  • Page 13 Introduction LEDs:  Includes Power LEDs, COM LED, Status LED, LEDs of TP 1-10 ports and LEDs of SFP+ 11-12 ports. For more details on LEDs description, please refer to Section Definitions. Publication date: Aug. 25, 2023 Revision 1.0...
  • Page 14: Rear Panel

    Introduction 1.3.2 Rear Panel The Managed Switch provides one fixed power module or two fixed power modules for redundancy purpose. Depending on your physical environment requirements, the type of power module is selectable and could be AC input, DC input, or external power DC input. Figure 1-2.
  • Page 15: Led Definitions

    Introduction 1.4 LED Definitions The Managed Switch is Plug & Play compliant. The real-time operational status can be monitored through a set of LED indicators located on the front panel. Figure 1-3. LEDs of the Managed Switch Power A/B LED The power status of the Managed Switch is indicated by the Power A/B LED on the front panel of the device.
  • Page 16 Introduction COM LED The console status is indicated by the COM LED on the front panel of the device. Color Operation Either the console port is not activated or no session exists. Green Lit when the console port is activated and the session exists. TP 1~8 Port LEDs Color Operation...
  • Page 17: Cable Specifications

    Introduction 1.5 Cable Specifications The following table contains various cable specifications for the Managed Switch. Please make sure that you use the proper cable when connecting the Managed Switch. Cable Type Description Multi-mode fiber module(2km) / Single-mode fiber 100BASE-FX module 1000BASE-SX Multi-mode fiber module (550m) 1000BASE-LX...
  • Page 18: Installation

    Installation Installation To properly install the Managed Switch, please follow the procedures listed below. These procedures will be respectively described in detail in the following sections.  Installation Requirements  Checking the Package Contents  Installing the Managed Switch  Grounding the Managed Switch ...
  • Page 19: Installation Requirements

    Installation 2.1 Installation Requirements Basic requirements for installation are as follows:  Environmental conditions  One power outlet  Proper ventilation  Proper isolation to electrical noise, radio, etc.  Required SFP/SFP+ Transceiver  Rack mounting tools 2.2 Checking the Package Contents Unpack the package carefully and check the package contents.
  • Page 20: Installing The Managed Switch

    Installation 2.3 Installing the Managed Switch You can install the Managed Switch on a flat surface or mount it in a standard 19-inch network equipment rack. CAUTION To prevent any damage or failure of the Managed Switch, please DO NOT block the ventilation holes.
  • Page 21: Rack Installation

    Installation 2.3.2 Rack Installation Either you can install an 8.5-inch switch or two 8.5-inch switches in a standard 19-inch network equipment rack. In the following sections, we will take a Managed Switch for example to separately demonstrate how to mount it or them in this size of rack space. WARNING! Please mount the Switch firmly in rack, otherwise it may fall and cause the system damage and possible injury to personnel.
  • Page 22 Installation Step 3. Then, tighten the screws with the screwdriver to secure each bracket. Step 4. Align the mounting holes in the brackets with the desired holes in the rack, and insert screws through each bracket and into the rack. Step 5.
  • Page 23: Install Two Managed Switches In A Rack Using The Combine Kit

    Installation 2.3.2.2 Install Two Managed Switches in a Rack Using the Combine To install two sets of the 8.5-inch Managed Switch in a single rack space, you need the 19-inch rack-mount kit as well as the combine kit, supplied with the switch. Also follow the procedures listed below for step-by-step instructions to install your switches in this rack space: Step 1.
  • Page 24 Installation 2.4. On the left side of the switch, attach one ⼐-shaped fixed piece in the reverse direction by inserting the screws provided in the combine kit through this fixed piece and into the mounting holes in the switch. (See Figure 2-3) 2.5.
  • Page 25 Installation Step 5. Tighten the screws with the screwdriver to secure each middle mount. Step 6. Align the mounting holes in the regular brackets on both sides (the left side of the left switch and the right side of the right switch) with the desired holes in the rack, and insert the screws through each bracket and into the rack.
  • Page 26: Install A Single/Two Managed Switches In A Rack Using 19-Inch Rack-Mount Bracket

    Installation 2.3.2.3 Install a Single/Two Managed Switches in a Rack Using 19- inch Rack-mount Bracket Besides the mounting methods we previously mentioned, to install one or two sets of the Managed Switches in a single rack space; alternatively, you can use the 19-inch rack-mount bracket supplied with the switch.
  • Page 27 Installation 19-inch Rack- mount Bracket Figure 2-6. Install the19-inch rack-mount bracket for two-switch mounting Step 3. Align the mounting holes on both sides of this 19-inch rack-mount bracket with the desired holes in the rack, and insert the screws through this bracket and into the rack. Step 4.
  • Page 28: Grounding The Managed Switch

    Installation 2.4 Grounding the Managed Switch Grounding helps to limit the effects of noise due to electromagnetic interference (EMI). Be sure to install the ground connection from the ground screw to the grounding surface before connecting devices. Figure 2-5 Grounding Wiring for the Managed Switch Publication date: Aug.
  • Page 29: Powering On The Managed Switch

    Installation 2.5 Powering on the Managed Switch The Managed Switch can be used with AC power supply 100-240VAC, 50–60 Hz, 0.4~0.2A, DC power supply 48VDC, 0.4A, or external DC power supply 12VDC, 0.33A (R7B adapter). After the Managed Switch is turned on, the Power LED indicators should light in green color. For more details about the power LED description, please refer to Section 1.4 LED Definitions.
  • Page 30: Removing Sfp/Sfp+ Modules

    Installation 3. Repeat the previous procedures to install any additional SFP/SFP+ transceivers in the switch. The fiber port is now set up. 2.7.2 Removing SFP/SFP+ Modules To disconnect an LC/SC connector, use the following guidelines: 1. Press down and hold the locking clips on the upper side of the optic cable. 2.
  • Page 31: Operation

    Operation Operation A built-in management module of Managed Switch provides users flexible interfaces to configure, control and monitor the system remotely and locally. To know the further information about the operation of Managed Switch, please refer to Network Management User’s Manual for the detailed management functions and required installation and operation procedures.
  • Page 32 Operation SNMP Management SNMP is also In-Band-Management and requires a network connection to the Managed Switch. The Managed Switch private Management Information Bases (MIB) is provided for SNMP-based network management program to configure, control and monitor the system. Web Management Web Management is done over the network.
  • Page 33: Maintenance

    Maintenance Maintenance This Managed Switch is easy to maintain. The procedures are suggested when you would like to identify faults, perform hardware replacement and firmware upgrade. 4.1 Fault Identification Identifying faults can greatly reduce the times required to find problem and solution. Users may perform local check or remote check to find the problems.
  • Page 34 Maintenance 4.1.2 Remote Check Users may check the Managed Switch through SNMP manager remotely. For detailed procedures, please refer to the Network Management User’s Manual. 4.2 Hardware Replacement Procedures WARNING! The Managed Switch contains no user-serviceable parts. DO NOT, UNDER ANY CIRCUMSTANCES, open and attempt to repair it.
