User Manual
Before operating this unit, please read the user manual completely and keep it. If the manual is lost,
you can send e-mail to overseas@robam.com, request for an electronic manual.

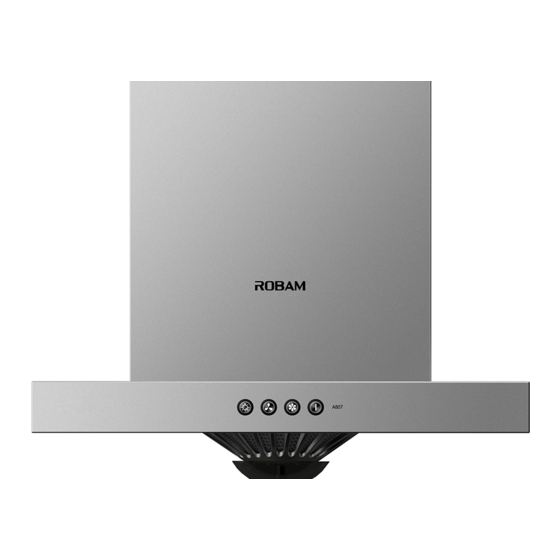

CXW-220-A807
Range Hood

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CXW-220-A807 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Robam CXW-220-A807

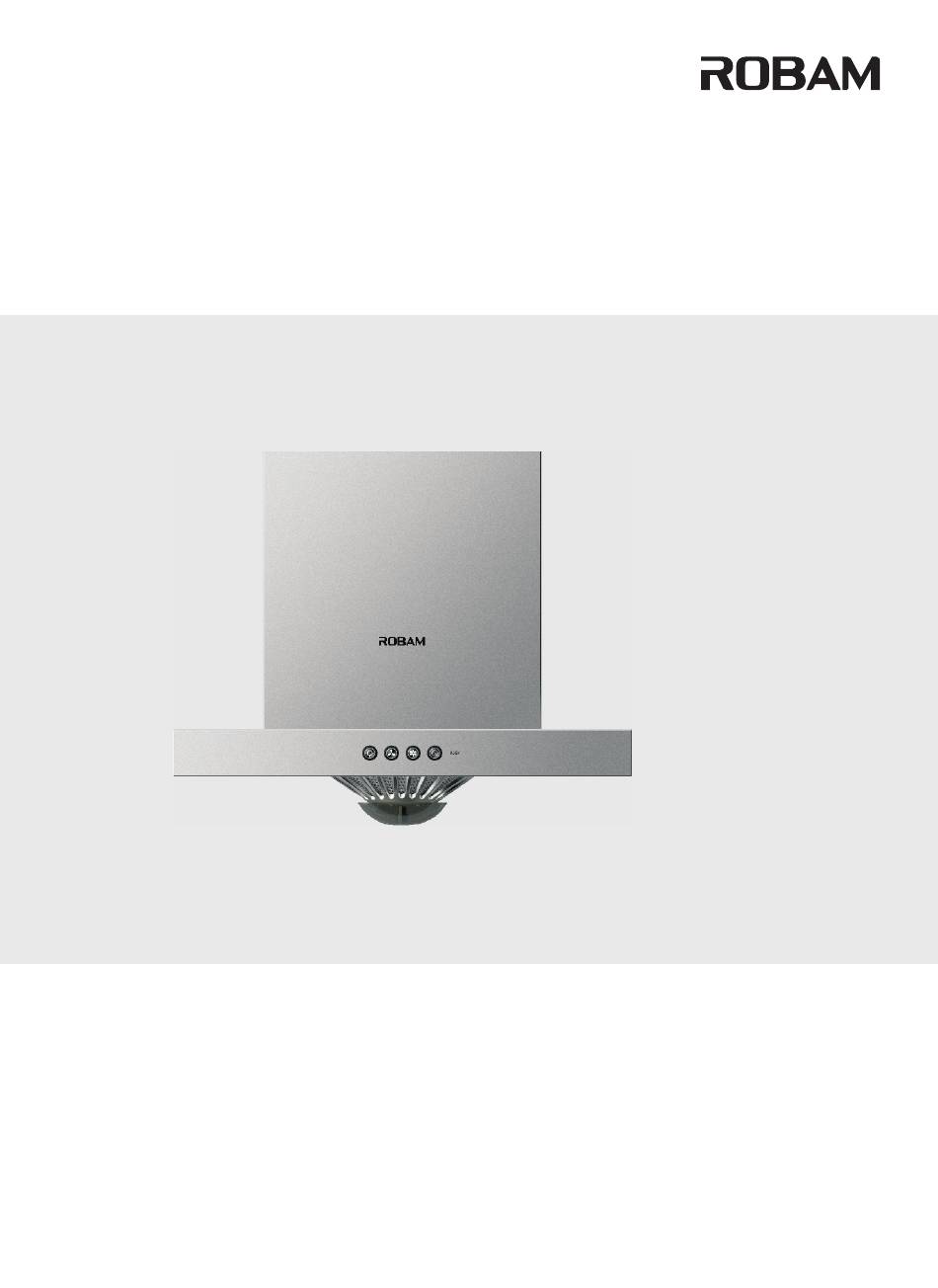

  • Page 1 User Manual Before operating this unit, please read the user manual completely and keep it. If the manual is lost, you can send e-mail to overseas@robam.com, request for an electronic manual. CXW-220-A807 Range Hood...
  • Page 2: Table Of Contents

    CONTENTS Safety Precaution........................1 Important Information......................Product Overview........................Packing List..........................Installation ..........................6 User Manual..........................9 Maintenance...........................9 Removal of Components.......................10 Circuit Diagram........................1 .. 1 Troubleshooting of General faults..................
  • Page 3: Safety Precaution

    Touch Disassembly Execution Earthed Electric Shock Please use this product according to manual strictly, or ROBAM shall not take any responsible Warning caused by improper operation. Danger Don't allow children or weakling to use range hood separately, or it may cause electric shock or other accident.
  • Page 4 Range Hood Danger Unplug before cleaning installing or maintaining avoiding from electric Strict shock Execution Please turn off range hood immediately if pan got fire (range hood shall aggravate fire if it’s working) and extinguish fire by effective action. Strict For example, cover flame by metal cover, turn off gas valve immediately Execution and remove inflammable things.
  • Page 5 Range Hood Warning All operation must comply with our safety guidelines as well as local safety regulations. Strict Execution If the range hood will be used with the kitchen range burning gas or other Strict fuels, the room must be well ventilated. Execution This appliance just for household use only.And it’s not allowed to exhaust dangerous or explosive matter or air.
  • Page 6: Important Information

    Range Hood Notice Because the installation is difficult and hood is heavy, the installation Strict shall be executed by professional person based on manul. Execution Before removing range hood for installation, clean or maintainance, power must be cut off avoiding from electric shock. When installation, clean or maintainance, protective gloove must be wear avoiding from Prohibit injury.
  • Page 7: Product Overview

    Range Hood Product Overview Technical Specification ≤58dB Model CXW-220-A807 Noise Power Supply Rated Whole Machine Input Power 220-240V~ 50Hz 223W ≥18% Total Pressure Efficiency Rated Main Motor Input Power 220W Nominal Wind Pressure Max Lighting Power ≤1.5W×2 220Pa 595×440×529(mm) Maximum Static Pressure...
  • Page 8: Installation

    Range Hood Installation Warning 1.The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels,the discharge of air must fulfill the requirements of local regulations 2.Note that when installing the metal expansion pipe, the pipe shall match with the hole in size. Overlarge hole is prohibited, as it will result in loose pipe and accidental drops.
  • Page 9 Range Hood Installation ● Determine the position The size of removable baffle (reference: 430mm) can be adjusted according to the actual situations. The installation pitch of holes is shown in Figure 2. The hood body shall be centered vertically and kept level. Ceiling hole size is shown in Figure 3. The hood shall be installed right above the hob.
  • Page 10 Range Hood ●Adjust drawing panel Pull the two brackets of the drawing panel upwards to an appropriate height and then pull out the drawing panel by holding both sides. Remove the protective film (excluding cold plate materials) on the drawing panel and insert it along the gap between the main hood panel and the housing.
  • Page 11: User Manual

    Range Hood User Manual Switch Control Panel After power is on press "high speed" button the motor works with high speed If press the "low speed" button it will work in the low speed states High Speed After power is on press "low speed" button the motor works with low speed If press the "high speed"...
  • Page 12: Removal Of Components

    Range Hood ●Please check and clean the oil cup at regular basis. When the oil reaches above 2/3 of the cup, rotate the cup rightwards with a hand to toss away the oil, as shown in right. ●Do not touch the light bulb that has been turned on or just been turned off to avoid burns. ●Please unplug it during long-term shutdown, but please do not pull hard.
  • Page 13: Circuit Diagram

    Range Hood Removal steps of the whole range hood Removal steps 1. Pull out the plug; 2. Unscrew the four screws from the back of the main hood panel. Tilt the panel forward to a certain angle, and then pull it up forcibly;...
  • Page 14: Troubleshooting Of General Faults

    Range Hood Troubleshooting of General faults Warning Fault Cause No response after pressing any button The power plug is not connected 1. When connecting or replacing the plug, please (e.g. the impeller does not rotate, or properly or there is power failure unplug the power plug.
  • Page 15 Model: A807 Edition: A/0 Publication Date April ,10,2018...

This manual is also suitable for:

Cxw-200-a807
