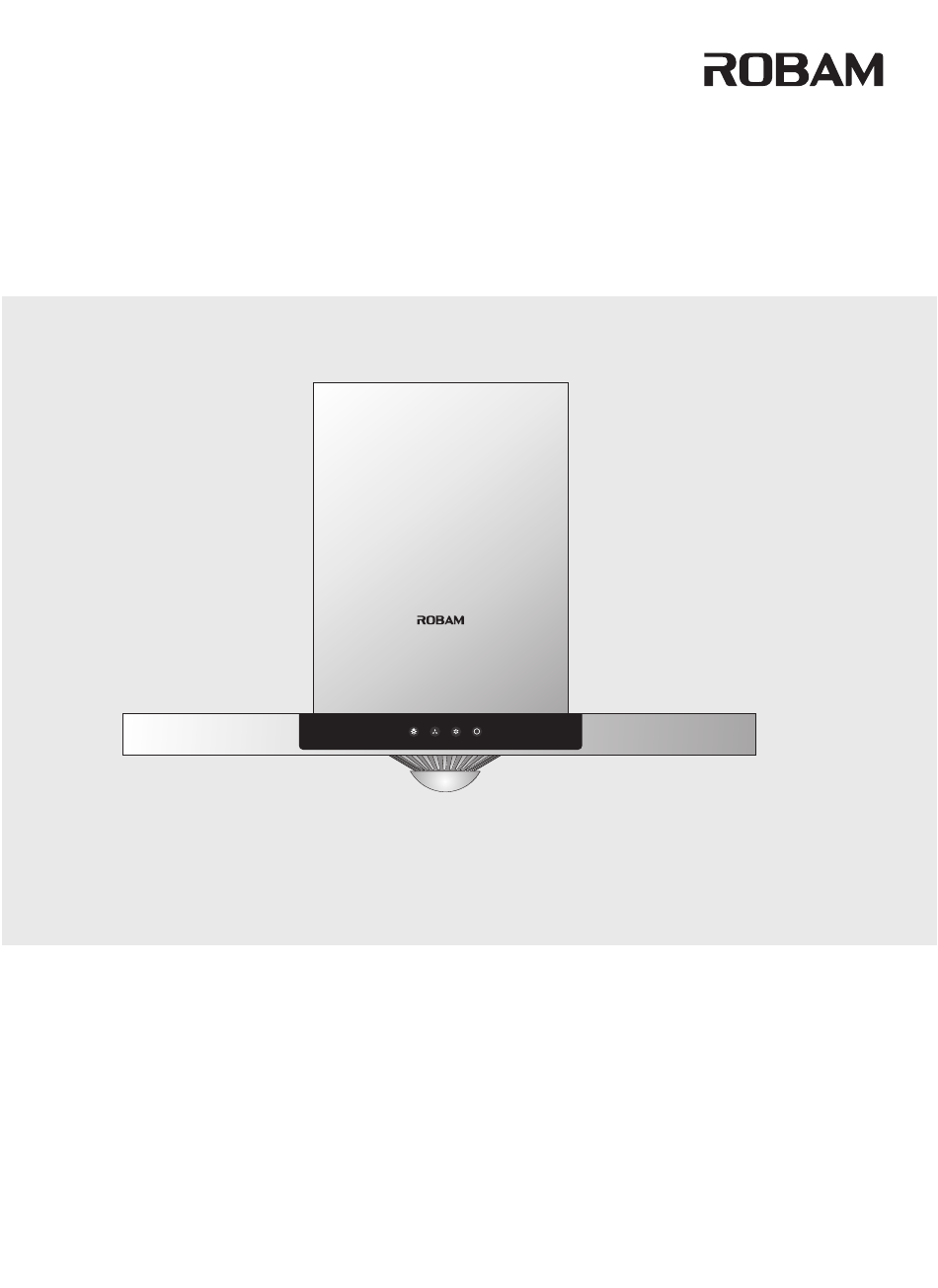

- Page 1 User Manual A816 CXW-220-A816 Range Hood...
-
Page 2: Table Of Contents
CONTENTS 1.Important Information ......................2.Product Overview......................1 3.Installation.........................2 4.Use Instruction........................6 5.Maintenance and Services ....................6 6.Circuit Diagram ........................9 7.General Troubleshooting ....................9... -
Page 3: Important Information
If range hood has obvious damage, please don’t electrify and contact operator. Children and disability are not allowed to use range hood independently in order to avoid accident. Product Overview Technical Data ≤58dB CXW-220-A816 Noise Model Power Supply Main Rated Input Power... -
Page 4: Installation
机 烟 油 吸 Range Hood Size & Dimension Picture 2 The length is only for reference.The size in the brackets is the attached panel height (unit:mm). Installation Warning 1. The range hood is prohibited from exhausting fume into hot flue , which is used for exhausting gas fuel or other fuel fume. - Page 5 吸油烟机 Range Hood Installation Precautions Picture 3 Picture 4 Warning:The height from hood bottom to the cooktop should be not less than 650mm.(see installation in Don't install the range hood too high and details).Don't allow to contact fire with range hood keep it free from external airflow to prevent directly.
- Page 6 机 烟 油 吸 Range Hood Installation 1.Location:Reference dimension for mounting of removable baffle is 430(mm),but subject to adjustment according to actual situations. The installation hole(picture 10-1) shall be centered vertically with the hood body and kept horizontally.Ceiling installation hole size as picture 10-2shown. Operator shall install range hood upright the gas hob with recommended lowest height between hood bottom and cooktop is 650mm.
- Page 7 吸油烟机 Range Hood 6.Installation of aluminum foil's air duct: Installation of without check valve:Firstly,insert the aluminum foil's air duct with fixed bar between the inner and external rings of check valve vent, fasten it by ST3x10 tapping screw. Then fasten another side of aluminum foil's air duct with adhesive tap outside of room.When the wall's hole is bigger than air duct, the air duct can be pulled out of room directly;when the wall's pipe is smaller than air duct, there are four specifications for the interface of air duct, such as 140mm,150mm,160mm and 170mm.The operator can select reasonable specification according to wall's hole.
-
Page 8: Use Instruction
机 烟 油 吸 Range Hood Use Instruction Control Panel Picture 12 High Light Power Picture 13 Picture 14 High After the power connected,press "High" button, the motor works with high speed.If press the "Low " Insert power plug,and power of range hood or”Power”... - Page 9 吸油烟机 Range Hood Range hood shall be cleaned at regular intervals depending on the environmental conditions to keep clean and good effect,it's helpful to extend service life. Our suggestion: To ensure smooth fume removal,oil guide mesh should be cleaned every month. Impeller should be cleaned once every year by professionals.
- Page 10 机 烟 油 吸 Range Hood Dismounting of switch Picture 24 Dismounting Steps: 1.Pull out power plugs; 2.Screw off 4 screws behind the m otor panel and incline the m otor panel forward to certain angle and pull it out by force with hands; 3.Take out v ice motor panel from the m...
-
Page 11: Circuit Diagram
吸油烟机 Range Hood Circuit Diagram Green Control circuit black LED: Lamp 220-240V~ white Motor blue black Green/Yellow Capacitor 500VAC brown orange Power Plug blue blue Warning There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels 。... - Page 12 Model A816 Edition: A/ 0(Pilipinas) Publication Date：September,1,2017...
