Summary of Contents for Robam CXW-220-A852

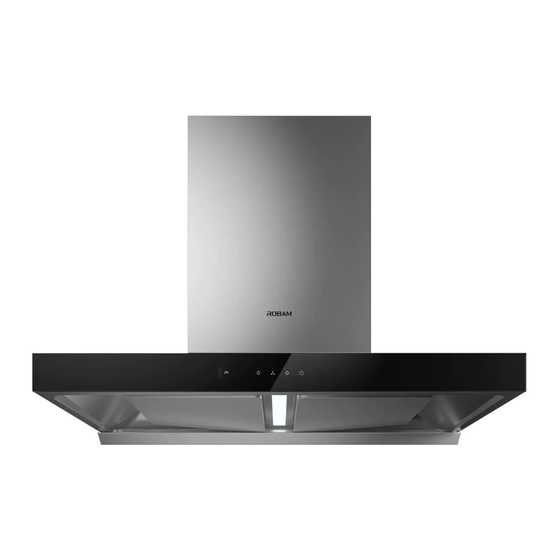

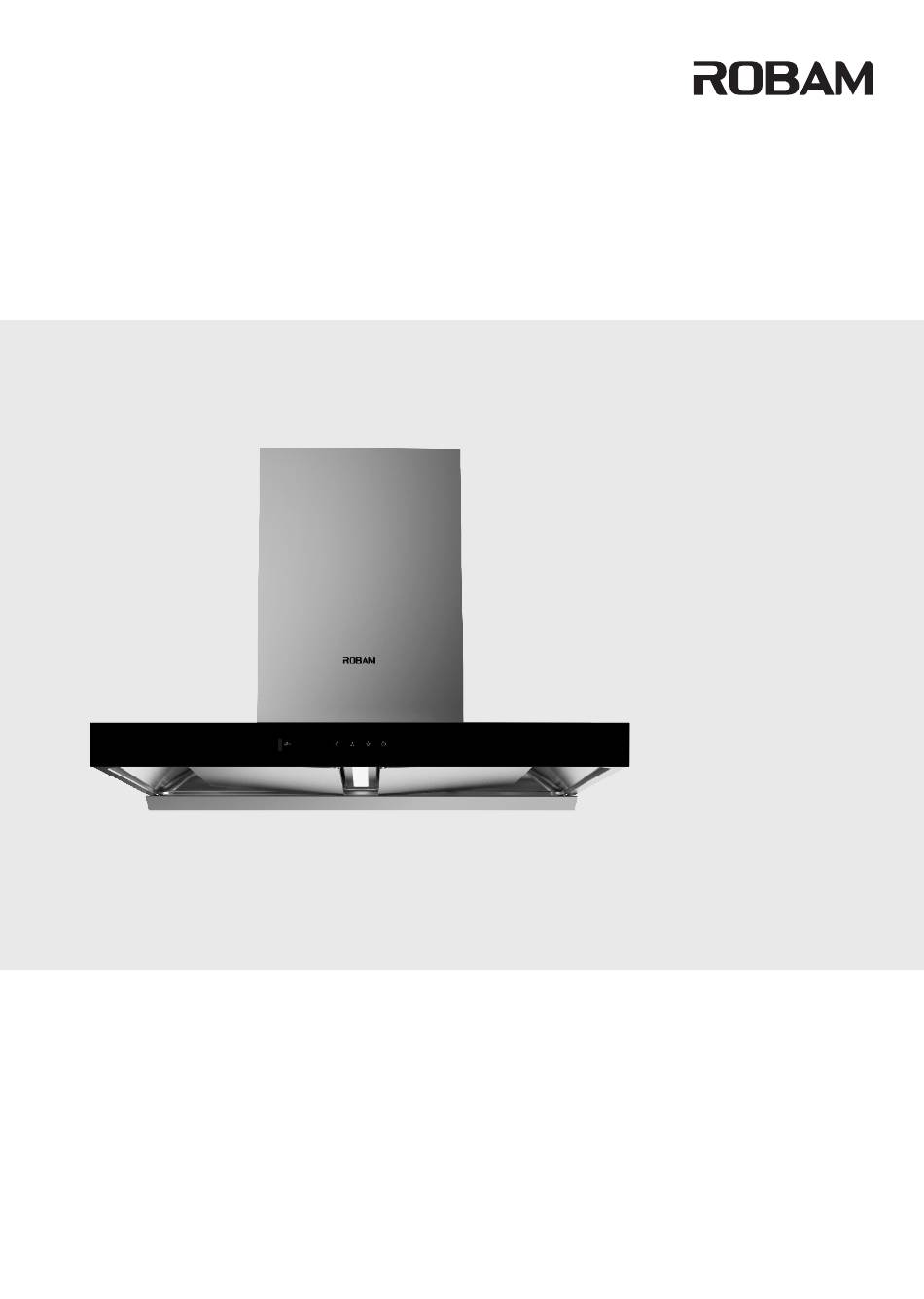

- Page 1 User Manual Before operating this unit, please read the user manual completely and keep it. If the manual is lost, you can send e-mail to overseas@robam.com, request for an electronic manual. CXW-220-A852 Range Hood...
-
Page 2: Table Of Contents
CONTENTS Safety Precaution........................1 Important Information......................4 Product Description .........................5 Packing List..........................5 Installation..........................6 User Manual..........................9 Maintenance.........................10 Removal of Components.......................10 Circuit Diagram........................12 Troubleshooting of General faults..................13... -
Page 3: Safety Precaution
Touch Disassembly Execution Earthed Electric Shock Please use this product according to manual strictly, or ROBAM shall not take any responsible Warning caused by improper operation. Danger t allow children or weakling to use range hood separately, or it may cause electric shock or other accident. - Page 4 Range Hood Danger Please turn off range hood immediately if pan got fire (range hood shall aggravate fire if it’s working) and extinguish fire by effective action. Strict For example, cover flame by metal cover, turn off gas valve immediately Execution and remove inflammable things.
- Page 5 Range Hood Warning This appliance just for household use only.And it’s not allowed to exhaust dangerous or explosive matter or air. It should be put under dry and Strict ventilation environment without dangerous air. Execution The range hood and electric circuit must be installed by skilled and trained personnel with required qualification.
-
Page 6: Important Information
Range Hood Notice Because the installation is difficult and hood is heavy, the installation Strict shall be executed by professional person based on manul. Execution Don't break electric wire or other invisible equipment when cutting Strict something or drilling holes on ceiling. Execution When range hood is using in well sealed building, it should have air inlet Strict... -
Page 7: Product Description
Range Hood Product Description Technical Data 51dB(A) Model Noise CXW-220-A852 Power Supply Rated Power Input 220-240V~ 50Hz 224W Total Pressure Efficiency ≥23% Rated Main Motor Power Input 220W Lamp Power (max) Nominal Wind Pressure 310Pa × × Dimension (L (895×513×695)mm... -
Page 8: Installation
Range Hood Installation If the flue aperture is less than air duct aperture, it will influence the fume suction effect and the too long air duct will influence the fume suction effect, too. Preparation for installation ●Surrounding Keep the hood away from too many doors and windows, so as to avoid air convection affecting the efficiency. ●Tools preparation The hood will be installed with the following tools 1.an impact drill (with drill bit);... - Page 9 Range Hood Installation Note: All data units in the following diagram are expressed in mm. ●Determine the position The removable baffle can be adjusted according to the actual situations. The installation pitch of holes is shown in Figure 2. The hood body shall be centered vertically and kept level. Ceiling hole size is shown in Figure 3.
- Page 10 Range Hood ●Adjust drawing panel Pull the two brackets of the drawing panel upwards to an appropriate height and then pull out the drawing panel by holding both sides. Remove the protective film (excluding cold plate materials) on the drawing panel and insert it along the gap between the main hood panel and the housing.
-
Page 11: User Manual
Range Hood Installation of left and right baffles ●Remove the left and right baffles from the package first, then hang the hanging feet of the baffles into the machine hanging foot holes in the direction shown. ●Then push the baffle plate upward by hand so that the baffle plate touch bead shaft is inserted into the touch bead hole of the range hood as shown in the figure. -
Page 12: Maintenance
Range Hood Maintenance Notice ●The hood shall be cleaned and maintained regularly depending on the surroundings, so as to keep its cleanness & efficiency and extend its service life. We recommend that: Clean the outer surface of range hood after each cooking. To ensure smooth discharge of fumes, the protective screening shall be cleaned regularly according to actual situations. - Page 13 Range Hood Removal of switch ●Remove the small cover plate by unscrewing the 2 screws on the small cover plate. ●Unscrew the 2 screws on the switch cover plate, rotate and flip out the switch cover plate, pull out the switch assembly, and repair or replace it.
-
Page 14: Circuit Diagram
Range Hood In general, the range hood body does not need to remove. The removal needs to be completed by professional maintenance staff. Main hood panel Junction box Noise-reducing cotton Noise-cancelling Drawing panel Power supply board Noise-reducing cotton panels Impeller Noise-cancelling Motor panels... -
Page 15: Troubleshooting Of General Faults
Range Hood Troubleshooting of General faults Fault Cause Solution Warning No response after pressing any icon The power plug is not connected When (e.g. the impeller does not rotate, Plug in the power plug properly or there is power failure or the light is off) connecting or replacing... - Page 16 Edition: A/0 Publication Date: June, 20, 2021...
