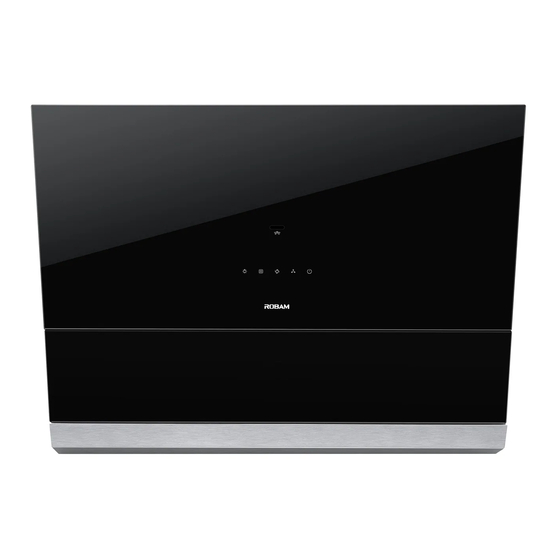

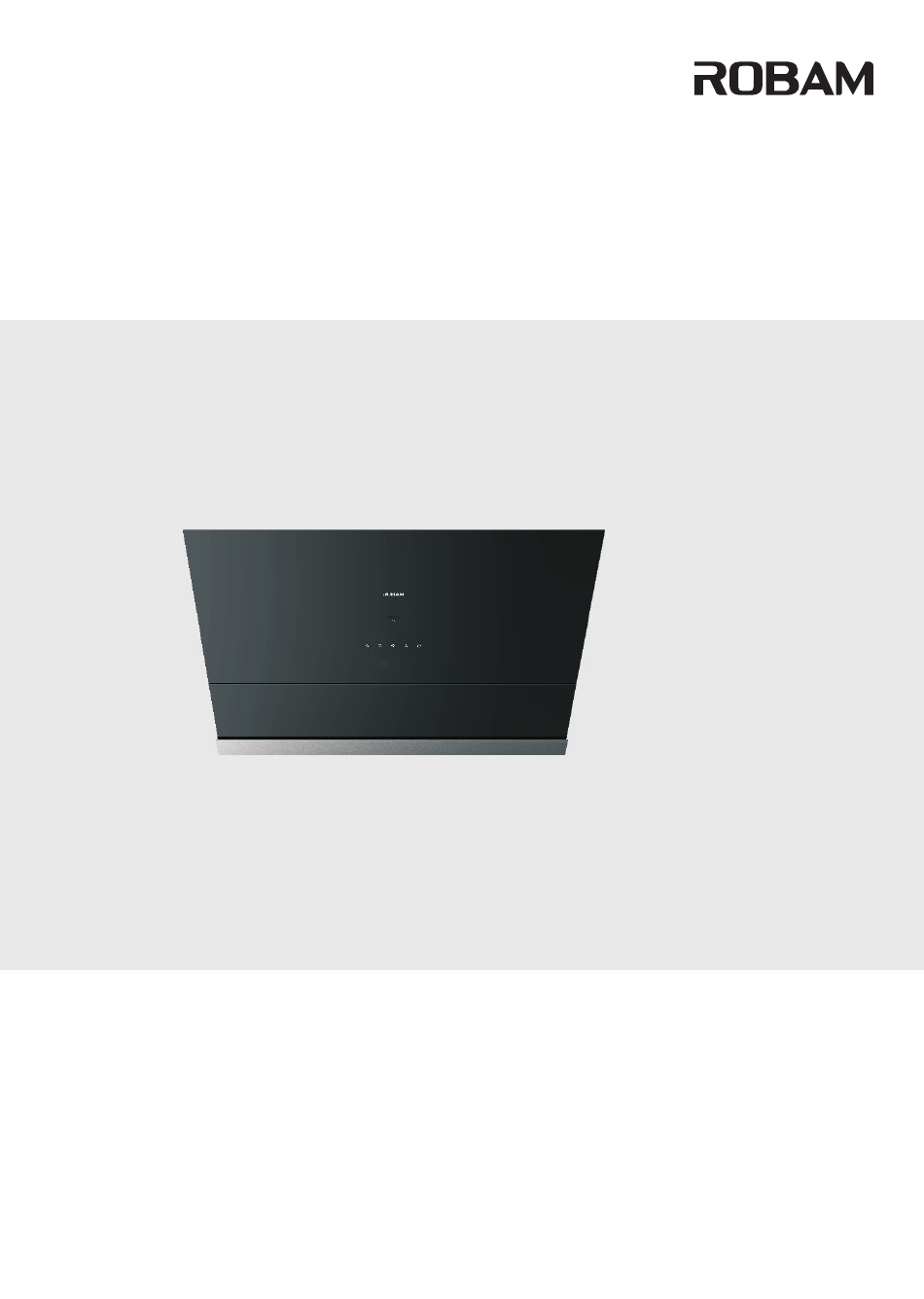

- Page 1 User Manual Before operating this unit, please read the user manual completely and keep it. If the manual is lost, you can send e- mail to support@robamusa.com (for USA) or xiaotianzhu@robam.com (for Canada), request for an electronic manual. CXW-260-A671 Range Hood...
-
Page 2: Table Of Contents
CONTENTS Safety Precaution........................24 Important Information......................29 Product Description .......................29 Packing List...........................30 Installation..........................31 User Manual..........................41 Maintenance.........................42 Removal of Components.......................43 Circuit Diagram........................45 Troubleshooting of General faults..................45... -
Page 3: Safety Precaution
Wet Hand Disassembly Earthed Execution Electric Shock Please use this product according to manual strictly, or ROBAM shall not take any responsible Warning caused by improper operation. Danger Don't allow children or weakling to use range hood separately, or it may cause electric shock or other accident. - Page 4 Range Hood Danger Please turn off range hood immediately if pan got fire (range hood shall aggravate fire if it’s working) and extinguish fire by effective action. Strict For example, cover flame by metal cover, turn off gas valve immediately Execution and remove inflammable things.
- Page 5 Range Hood Warning There shall be adequate ventilation of the room when the range hood is Strict used at the same time as appliances burning gas or other fuels. Execution For Residential Use Only.And it’s not allowed to exhaust dangerous or explosive matter or air.
- Page 6 Range Hood Warning TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. b) Always turn hood ON when cooking at high heat or when flambeing Strict food (i.e.
- Page 7 Range Hood Warning Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance. Strict Execution This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction Strict...
-
Page 8: Important Information
If it’s necessary, please read manual for gas hob. And please keep these manual carefully for future reference. If range hood has obvious damage, please don’t electrify and contact operator. Product Description Technical Data Rated Power Input Model CXW-260-A671 262W Power Supply Rated Main Motor Power Input 260W 120V~ 60Hz Max static pressure... -
Page 9: Packing List
Range Hood Size ”(400mm) ”(270mm) ”(462mm) ”(759mm) ”(80mm) The size marked is for reference only. Packing List Please check the items in the container upon unpacking Standard Offerings Hole size plate Range hood Check valve User Manual Gasket Plastic expansion pipe Oil cup 4×60 wood screw... -
Page 10: Installation
Range Hood Mainframe panel accessories (optional) M4 nut M4×8 pan head screw assembly Mainframe panel Ø gasket ST4.2× 8 self tapping screw Attached panel of the mainframe Hitching leg stop block metal expansion pipe Decoration panel accessories (optional) ST4.2× 8 self tapping screw 6”or12”decoration panel Hitching leg stop block... - Page 11 Range Hood Electric percussion Electric screwdriver Wrench Measuring tape Gloves Cross screwdriver drill Hammer Pencil Ruler Scissors Art knife Cutting pliers Level meter Beam detector Goggles Electric saw Notice ● Installation and circuit setting must be done by experienced professionals. Only a professionally trained person with an installation qualification can install the hood.
- Page 12 Range Hood Installation The range hood should be installed directly above the stove. In order to ensure the safety and the best effect of oil fume suction, it is suggested that the minimum distance between the top of the range hood and the cooker supporting surface on the stove should be 29 ”...
- Page 13 Range Hood 6. Paste the opening sample plate with the text surface downwards on the bottom plate of the upper cabinet, and use the electric saw and the drill bit of diameter ” (7mm) to open holes according to the requirements on the opening sample plate.
- Page 14 Range Hood 10. Put the sealing gasket at the air outlet of the range hood, and fix the check valve with eight ST4.2×18 screws. Attach the duct to the check valve and seal with aluminum tape, make sure that the duct connection is sealed, and then plug it in. Check valve ST4.2×18 screw Duct...
- Page 15 Range Hood 1.Determine the installation position of the hitching leg and the hitching leg fixed block: confirm the hitching leg position with the inside of the upper cabinet plate bottom as the base and mark the drill holes. The relevant size is given as below: 1)The distance from inside the bottom of the upper cabinet plate to the center of the hitching leg hole is 7- ”(181mm) when 6”...
- Page 16 Range Hood 8.Put the sealing gasket at the air outlet of the range hood, and fix the check valve with eight ST4.2×18 screws. Attach the duct to the check valve and seal with aluminum tape, make sure that the duct connection is sealed. Note: Please straighten the flexible aluminum duct when mounting, to avoid noise generated when the flexible aluminum duct is semi-stretched, and cut off the excess parts with wire pliers.
- Page 17 Range Hood 12. After installation, the range hood must be kept horizontal. In the end, insert the oil cup and power it for test run. ” ” (1 0mm) (1 0mm) ●Installation without upper cabinet Note: select the mainframe panel accessories if there is no cabinet above the stove.
- Page 18 Range Hood Drill a hole 2- ”(60mm)-2- ”(70mm) deep (not too large) at the mark with a drill bit with a diameter of ”(8mm), press the expansion pipe into the hole, and reliably fix the hitching leg with 4×60mm wood screws supplied with the machine.
- Page 19 Range Hood 5.After the machine is installed in place, install the hitching leg stop block and the gasket on the M6 metal expansion pipe, and tighten the nut (to prevent the machine from decoupling accidentally under external force). Attach the duct to the check valve and seal with aluminum tape, make sure that the duct connection is sealed, and then plug it in.
-
Page 20: User Manual
Range Hood 12. After installation, the range hood must be kept horizontal. In the end, insert the oil cup and power it for test run. ” ” (1 0mm) (1 0mm) User Manual Lighting Power Wave induction Clean Turbo/High Turn on the power and the buzzer will sound, indicating the power state. Press the power button to enter the standby state, and the icon of the power button will be always on. -
Page 21: Maintenance
Range Hood Press the “Lighting” button, the light is on, then press the “Lighting” button again to turn off the light. Press the lighting button when the power button is off, the light and the air deflector are turned on at the same time. Lighting After the hood runs for 60 hours cumulatively, the cleaning icon flashes to remind the user to clean the oil screen. -
Page 22: Removal Of Components
Range Hood Removal of Components Warning 1. As a general rule, the hood body does not need to remove, and removal shall be done by professional maintainers. Nonprofessionals are forbidden to remove, install and repair the hood. 2. Before cleaning, installation or maintenance for the range hood, cut off the power supply to avoid electric shock. Note: The installation procedures of the following components are in reverse with the removal. - Page 23 Range Hood Filer disassembly 1. Long press the cleaning button to open the air deflector. 2. Hold the two magnetic clasps on the filter with both hands slightly exert force outwards to make the filter no longer be absorbed then lift the filter according to the direction of the arrow to make it separated from the neck and finally pull out the filter to clean the filter Neck...
-
Page 24: Circuit Diagram
Range Hood Circuit diagram Electrical Connection Diagram: Control circuit black/blue black/blue black white brown orange Yellow/Green gray black blue black white 120V~ 60Hz Yellow/Green Troubleshooting of General faults Serial Solution Fault Cause number No response after pressing any icon The power plug is not connected (e.g.
